B-Tech BT7594 medical monitor ceiling mount up to 28 inch, white
Ceiling mount for the medical area
B-Tech's monitor ceiling bracket (BT7594) is specifically designed for use in hospitals, clinics or medical offices and is ideal for mounting over patient beds. With a variety of adjustment options, the ceiling mount for the medical area offers staff full flexibility for examinations. Screens with up to 28 inches as well as a weight of 8 kg can be attached to the 330° swiveling monitor mount. The display itself can also be tilted by +40 / -10°. An optional handle under the VESA mount simplifies the exact positioning of the monitor. Thanks to its special antibacterial powder coating, the monitor ceiling holder meets the hygienic requirements for use in healthcare environments. When the mount is not in use, it can be completely retracted to the ceiling. The connection cables belonging to the monitor are always in an orderly path thanks to the integrated cable routing. A suitable power cable as well as a LAN cable are already pre-installed inside the swivel arm.
Key features B-Tech medical ceiling mount (BT7594)
- Medical monitor ceiling mount for installation in patient rooms
- Screen size: up to 28 inch
- Load capacity: 2 - 8 kg

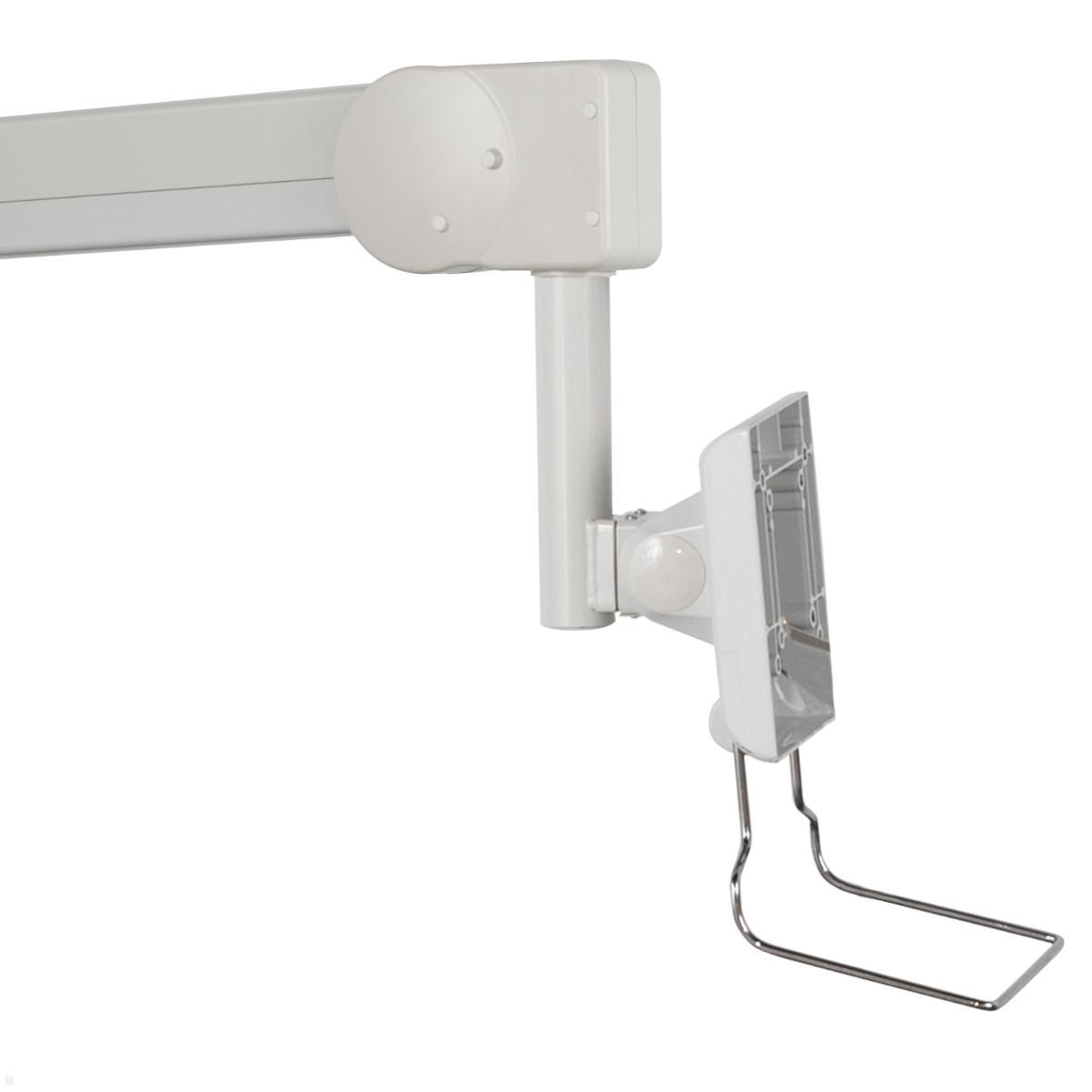

- VESA mount: 75x75, 100x100 mm

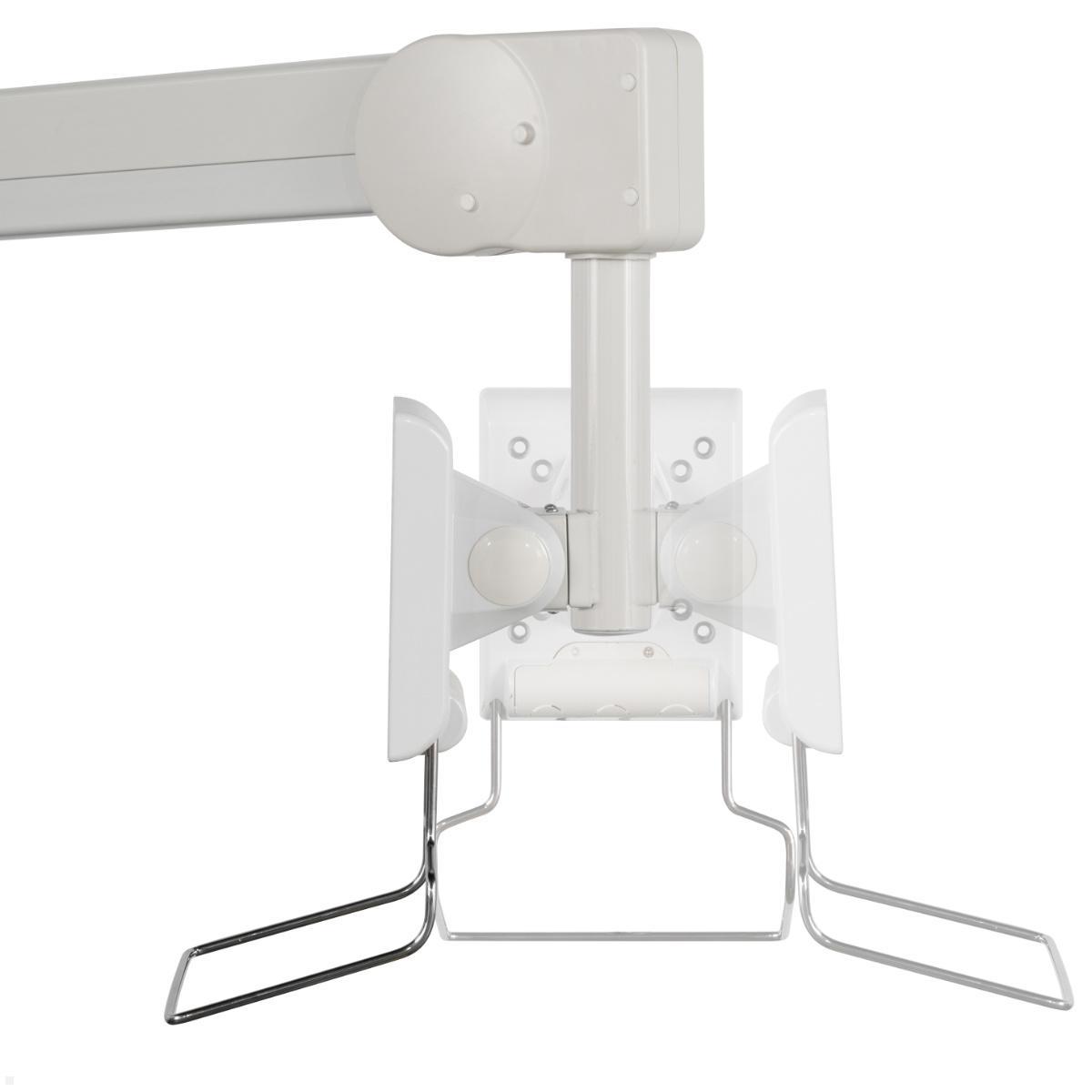

- Swivel: 330 degrees

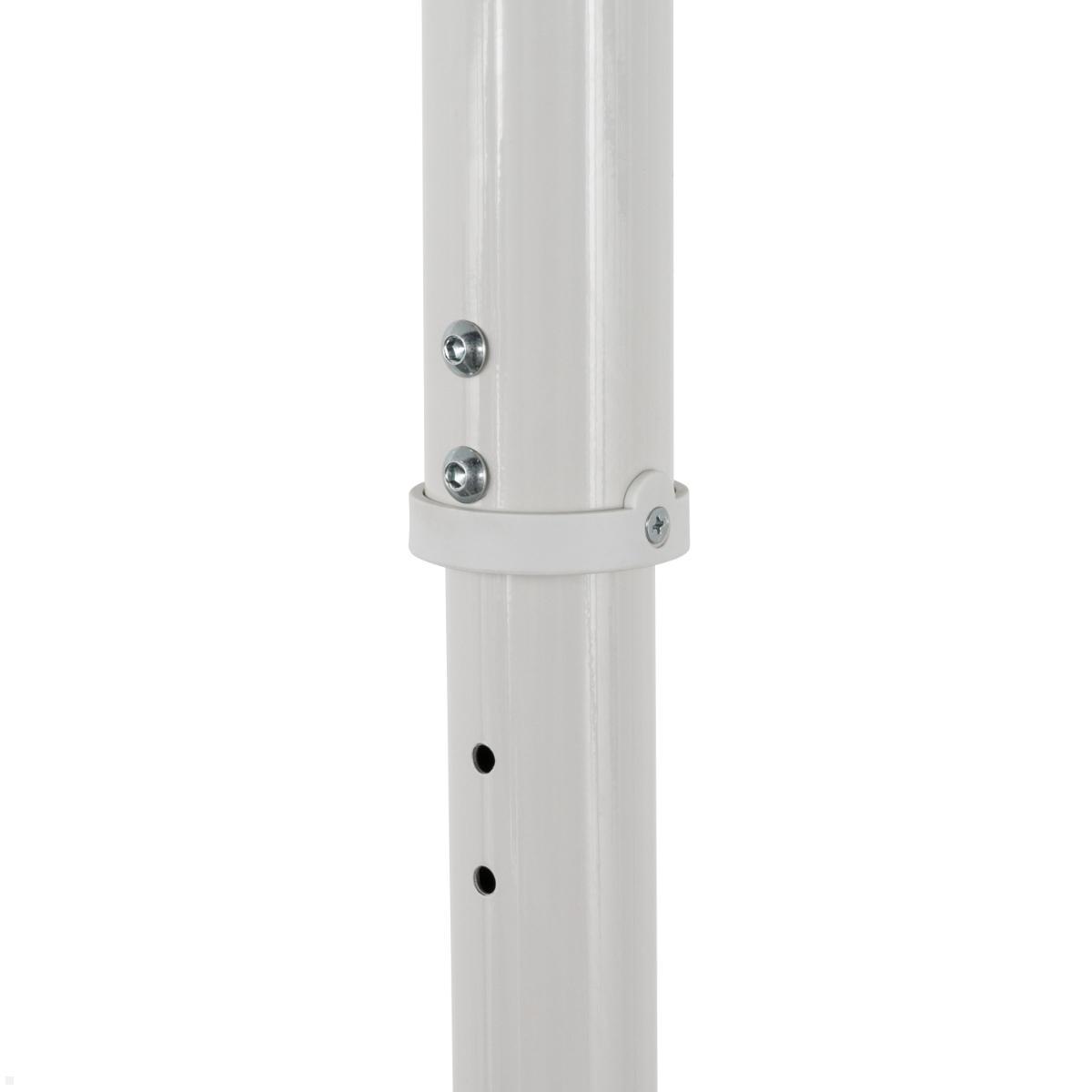

- Height adjustable: 2168 mm

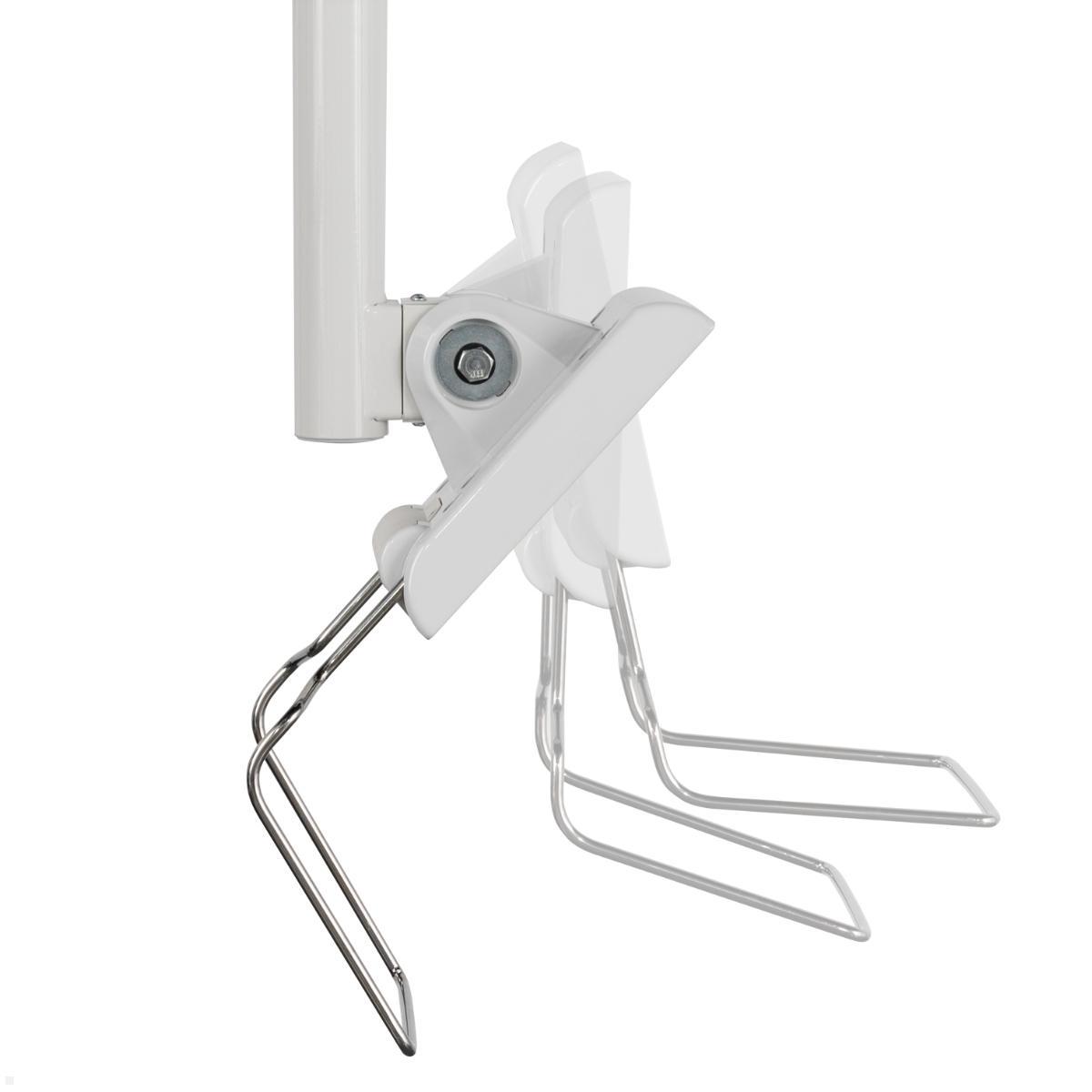

- Tilt: +40 / -10°
- Reach: 1895 mm
- Integrated cable management

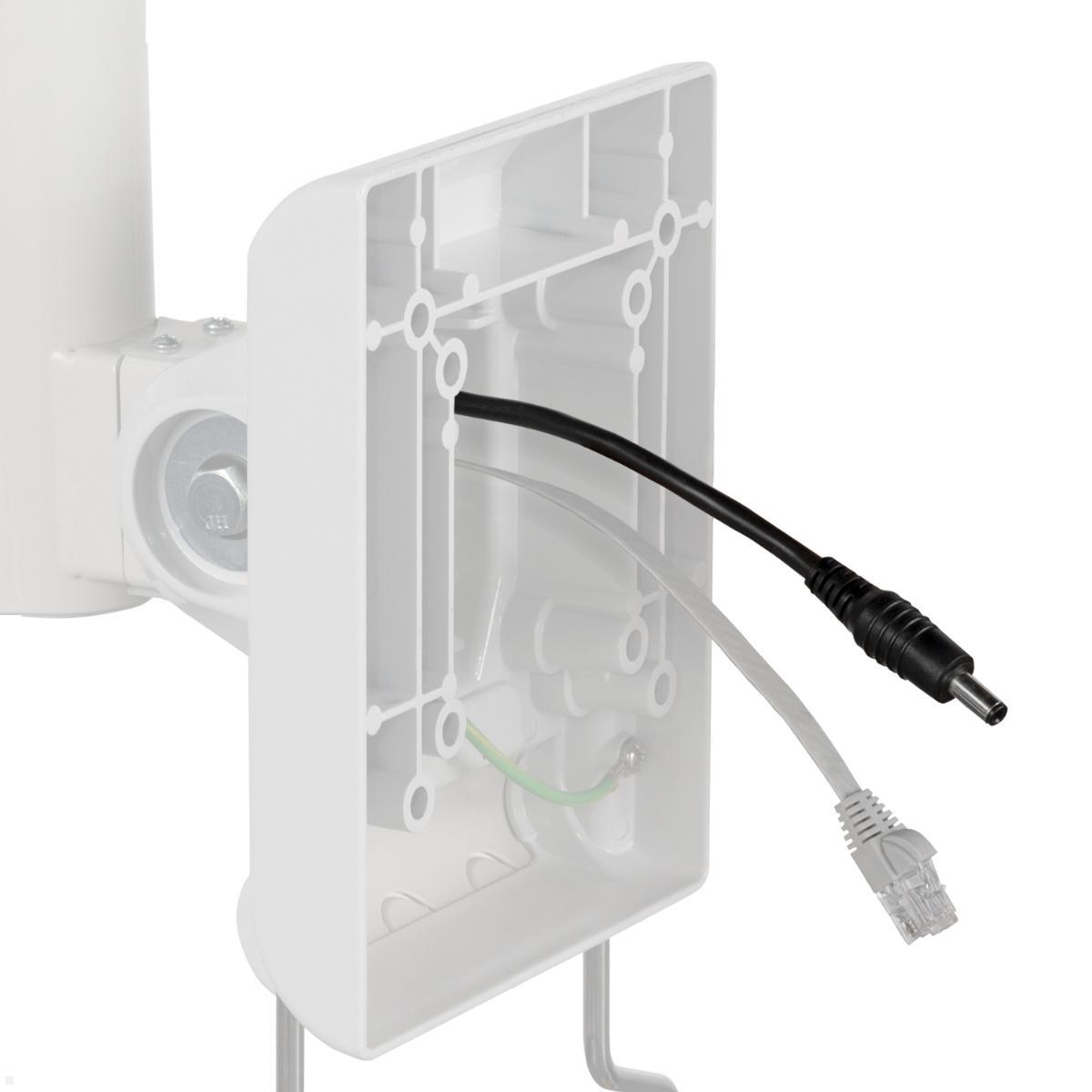

- Power and LAN cables pre-installed

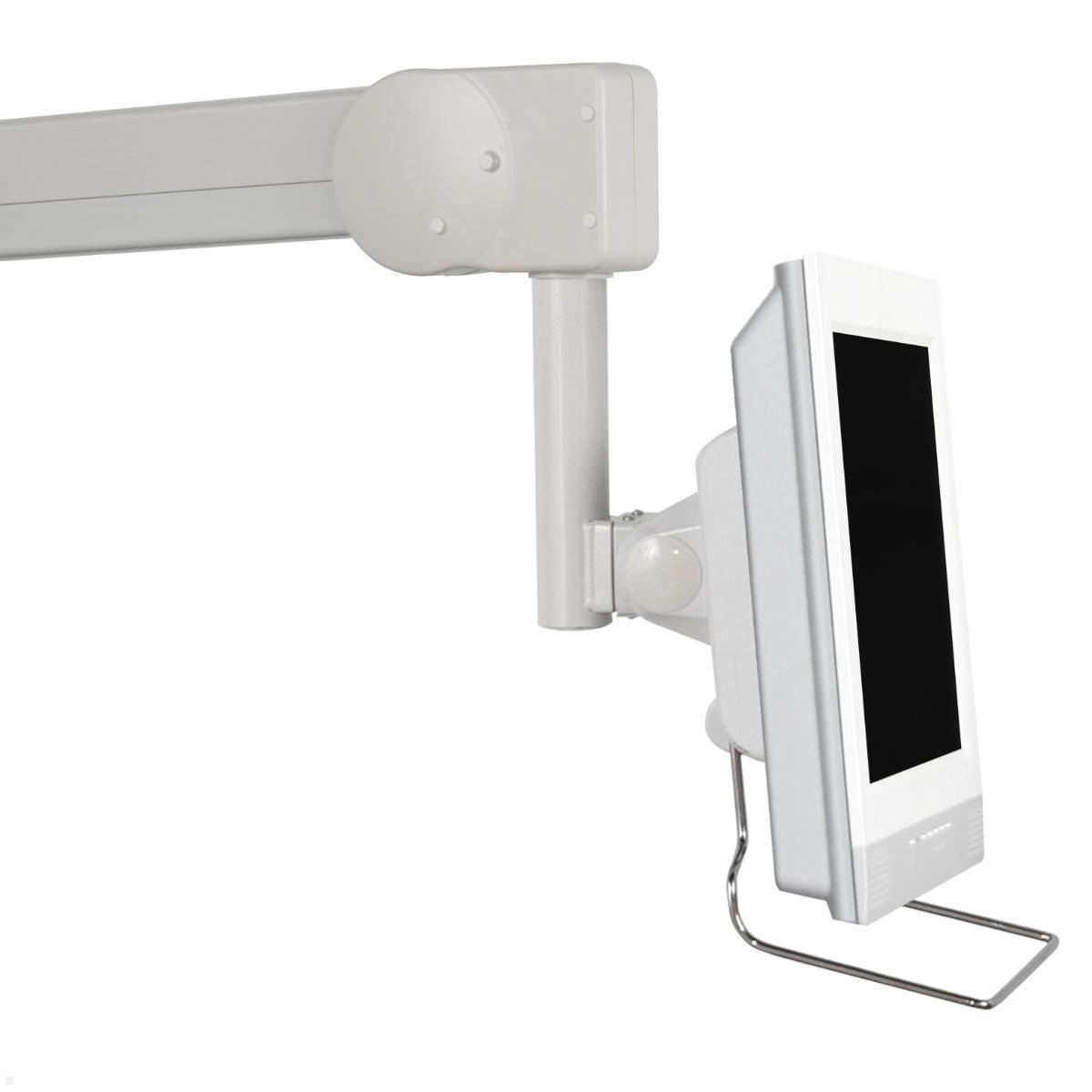

- Optional handle for easy screen positioning
- Antibacterial powder coating

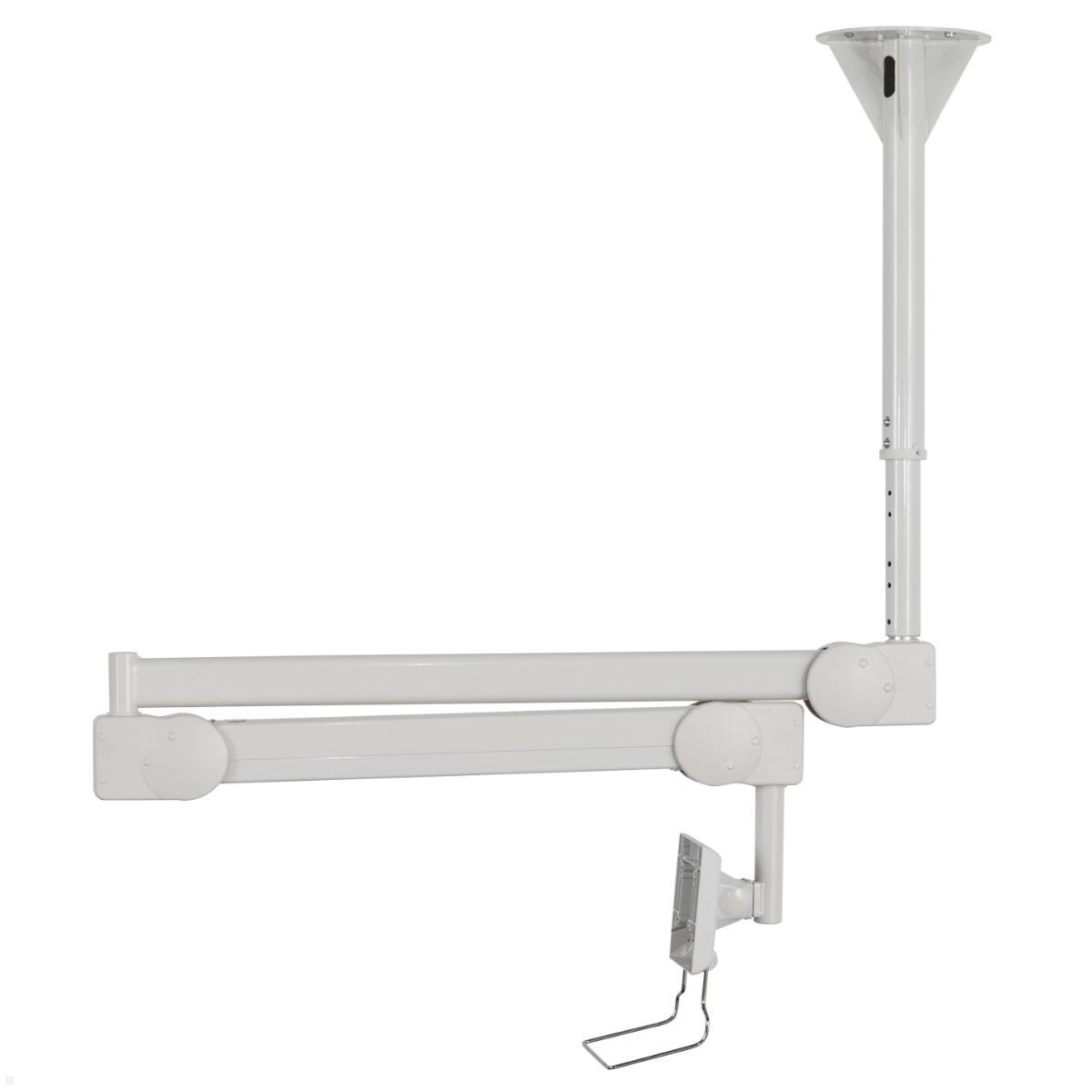

- Folds away to save space when not in use
- Color: white
- Warranty: 5 years
Does your display fit the monitor mount?
We would be happy to check whether your monitor is suitable for this B-Tech monitor ceiling mount (BT7594). Just tell us your model (manufacturer + model number) in the comment field at the end of the ordering process. We will then check for you whether the monitor or display fits the monitor mount and if not, we will contact you.
VESA standard - Learn more about the VESA standard of monitor mounts!
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Minimum weight: | 2 kg |
| Capacity: | 8 kg |
| Tilt: | +40 / -10° |
| Height range (mm): | 2168 |
| Swivelling range: | 330° |
| Length of the swivel arm: | 1895 |
| Screen size: | 19 - 28" |
| Ceiling distance: | 1248 mm |
| VESA Standard: | 75x75, 100x100 mm (www.vesa-standard.com) |
| Scope of delivery: | 1x ceiling mount | 1x power cable | 1x LAN cable | installation material |
| Contains installation material: | + |
| Warranty: | 5 years |
| Manufacturer/Importer: | B-Tech Pro-AV BVBA, Brixtonlaan 32, Zaventem 1930, Brussels, Belgium, Europe@btechavmounts.com |
| Inch size: | 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch, 28 inch |
| Mobility: | height adjustable , swivelling, tilting |
| Mounting type: | Ceiling mount |
| color: | Weiß |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
