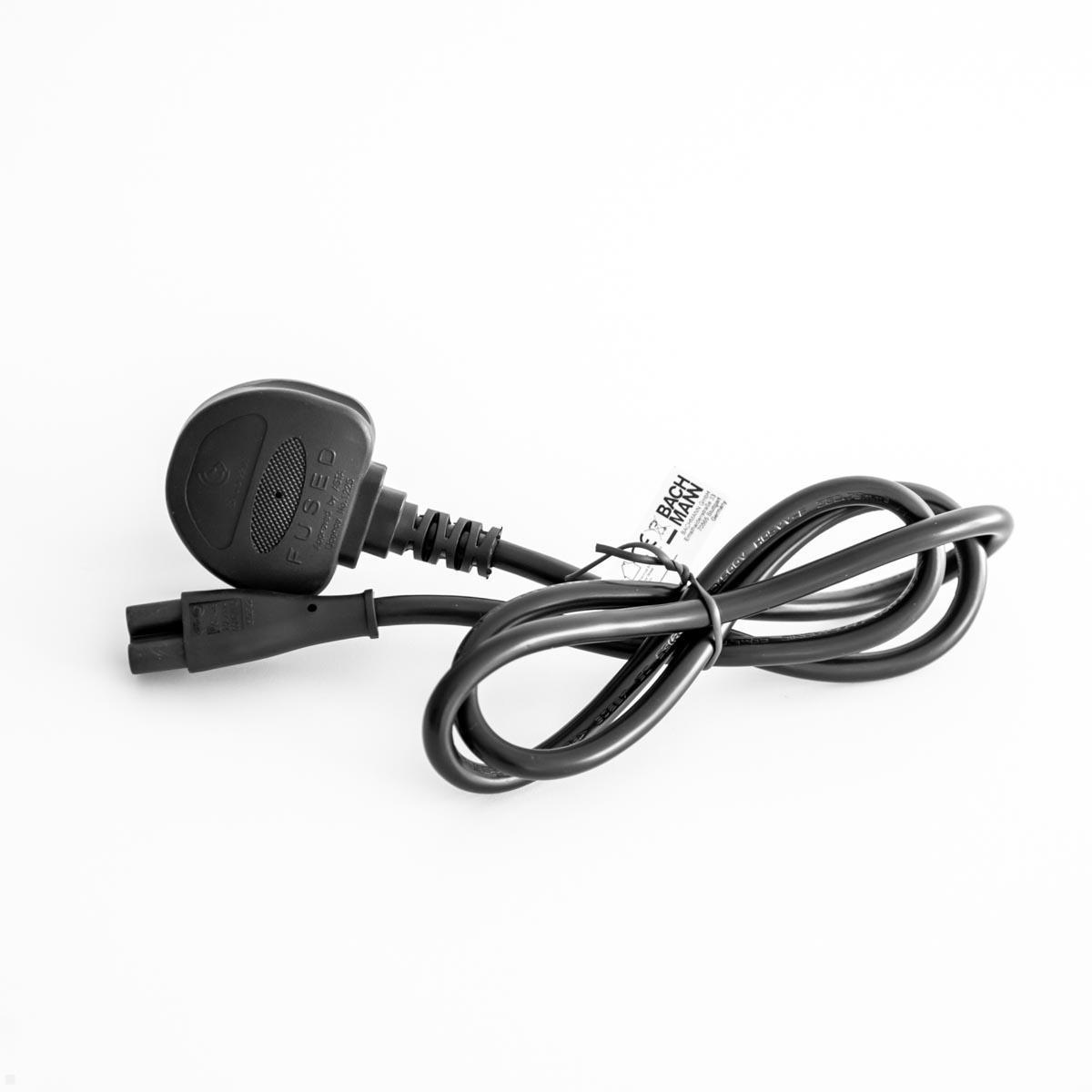

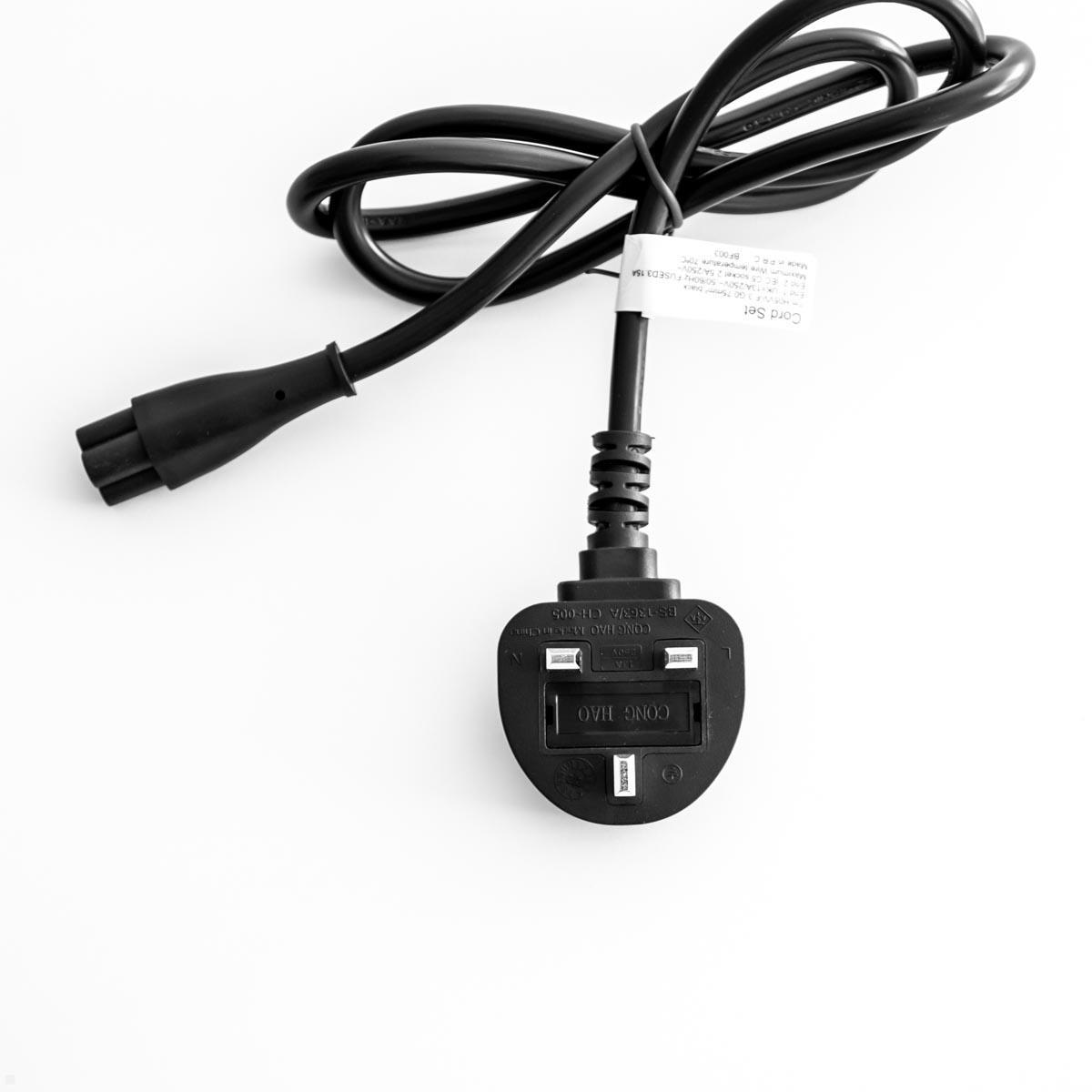

Bachmann connection cable cable IEC C5 socket to UK plug (304.1055)
Article number:
51143595
Manufacturer:
Bachmann
Manufacturernumber:
304.1055
EAN:
4057298143595
The Bachmann connection cable (304.1055) with IEC C5 to UK angle plug has a length of 1.0 m and is a perfect addition to the Bachmann USB-C power supply.
Bachmann adapter cable UK plug for charging adapter
The Bachmann mains connection cable UK (304.1055) has an IEC C5 socket to UK Plug equipped. Among other things, it is compatible with the Bachmann power supply unit USB-C charging adapter, 918.194 (not included in the scope of delivery).
Key features Bachmann connection cable
- 2.5 A / 250 V~
- Length 1.0 m
- Cable type H05VV-F
- Side 1: BS13A plug
- Side 2: IEC C5 socket
- Number of wires 3G
- Cross section (per wire) 0.75 mm
- Sheath and wire insulation: PVC

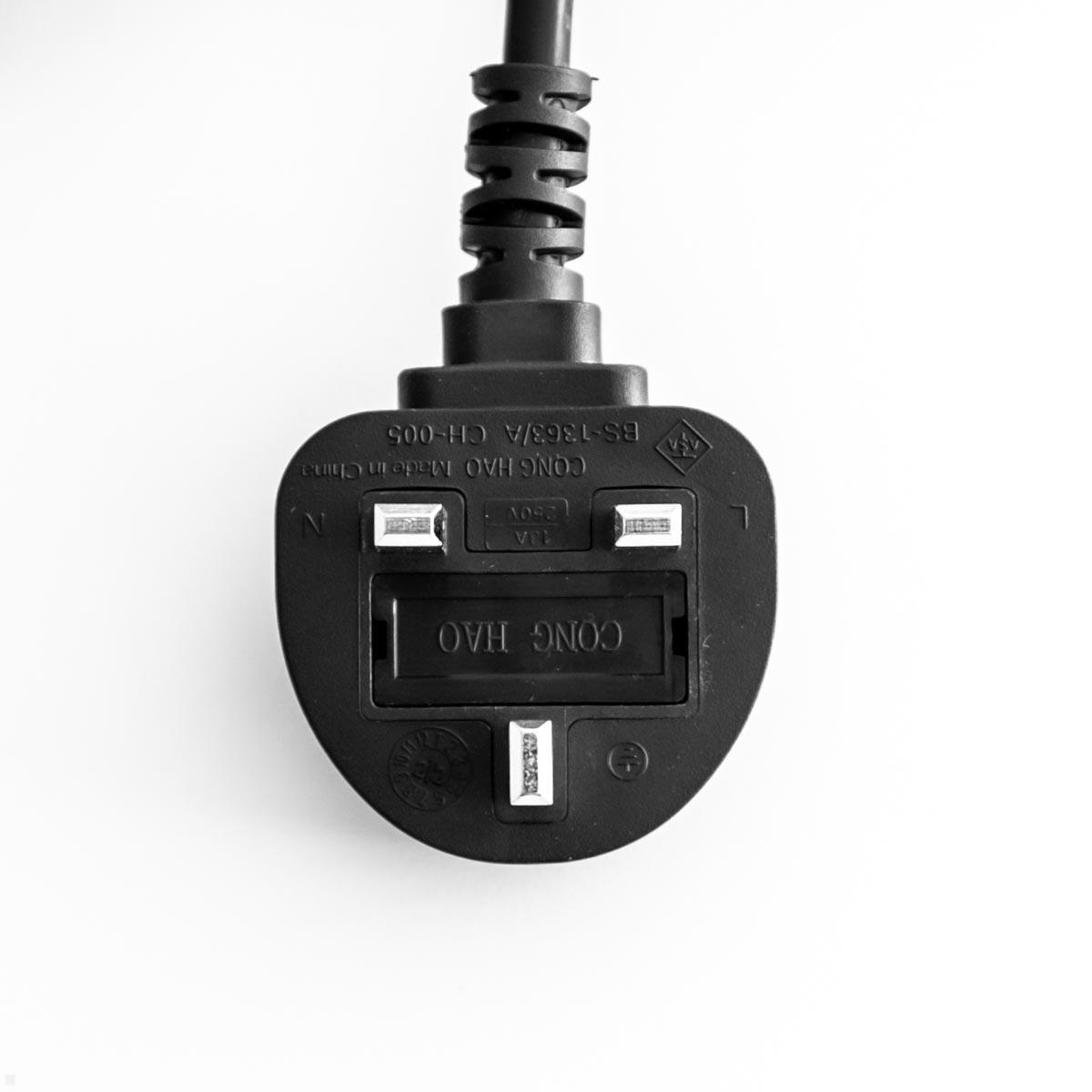

- Plug BS 1363 (Type G)

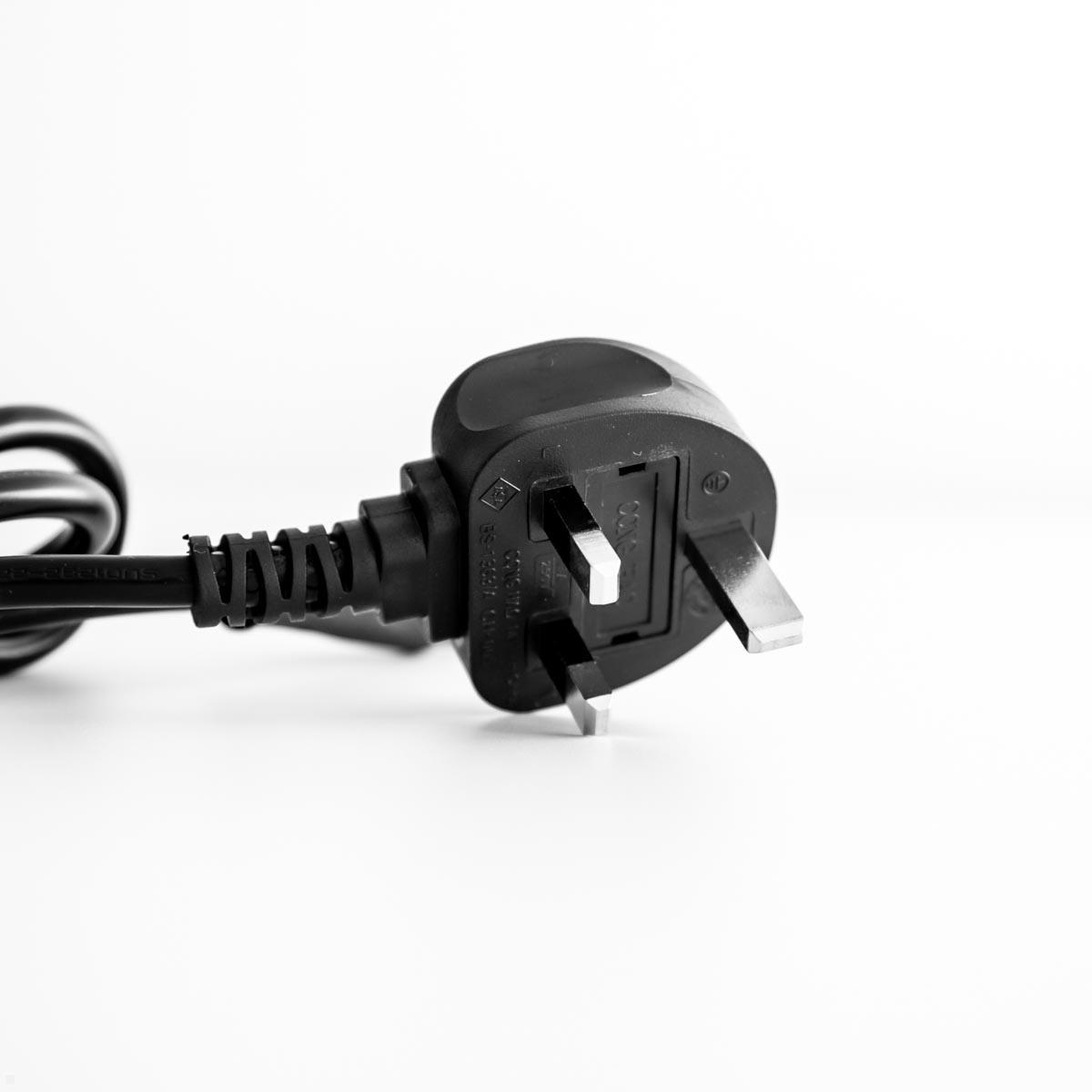

- Plug type: angle plug

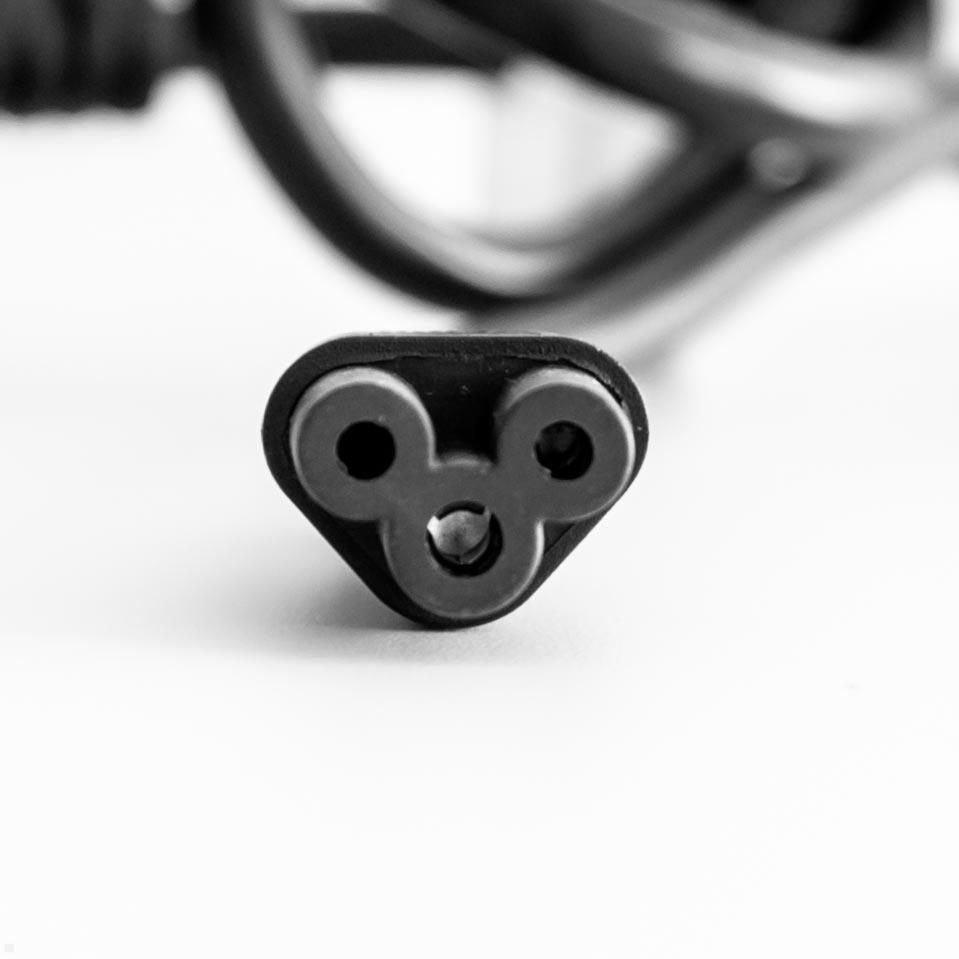

- Coupling IEC60320 C5
- 2-pin
- IP20
| Product sheet: |  [pdf] |
|---|---|

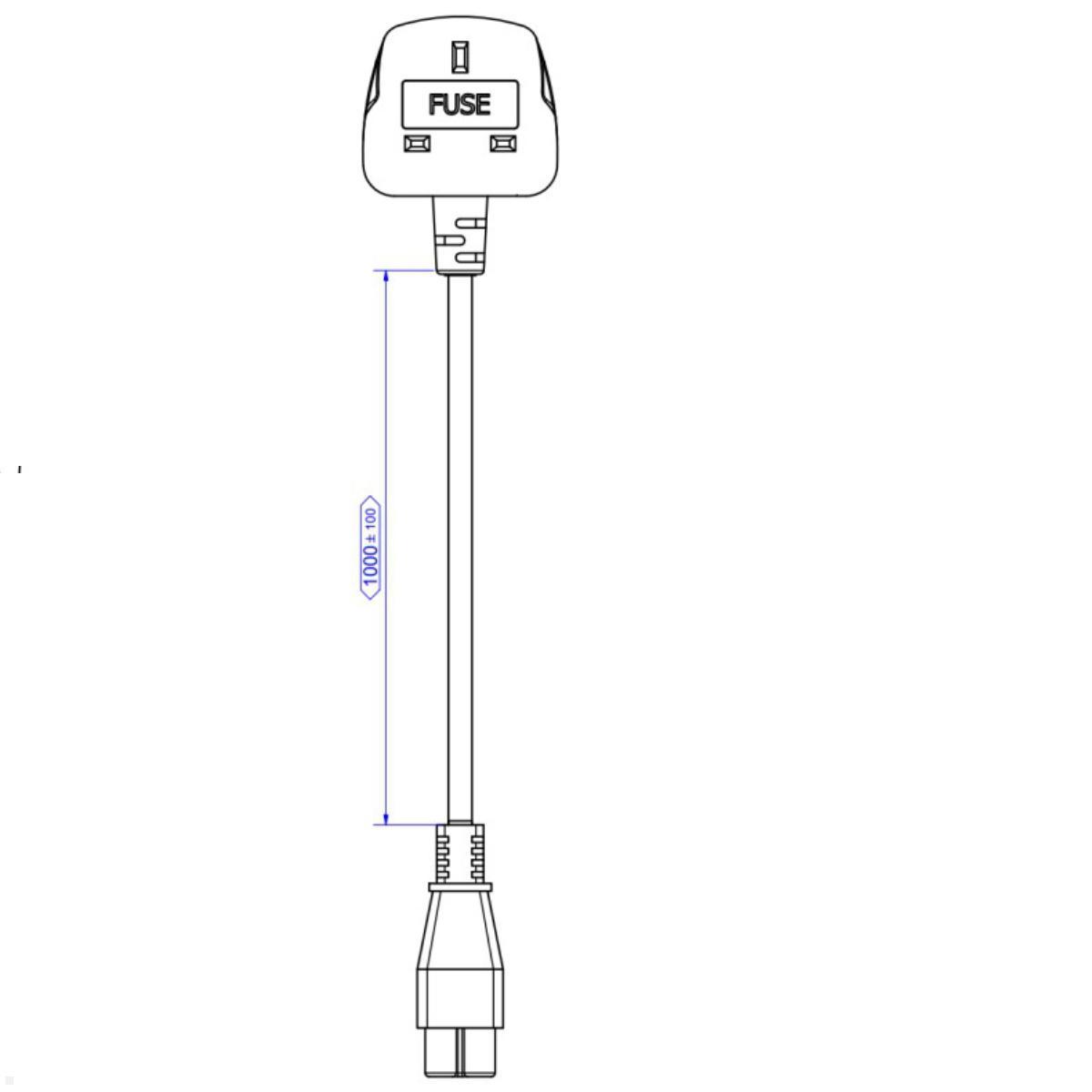

| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Suitable for: | Bachmann Netzteil USB-C |
| Packaging dimensions (LxWxH in mm): | 100x120x50 |
| Scope of delivery: | 1 x Connection Cable |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
