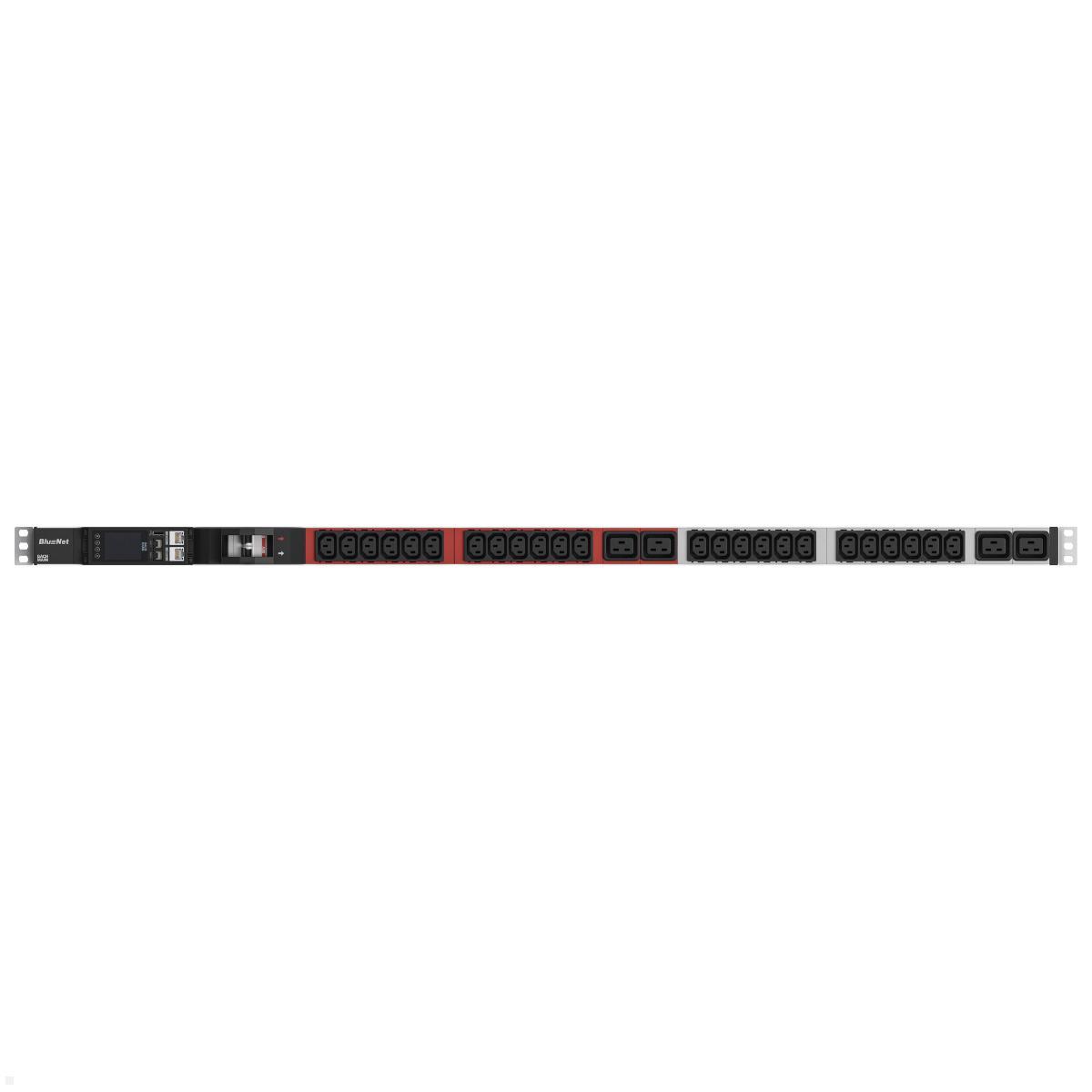

Bachmann BN ESSENTIAL Metered - 32/3p Rack PDU with 24xC13, 4xC19, 2xMCB with display (BM0024226)

Why is a rack PDU with MCB particularly important for server racks?

The Bachmann BN ESSENTIAL Metered Rack PDU with integrated miniature circuit breakers (MCBs) is specifically designed for use in professional IT environments. In server racks and data centers, a stable and protected power supply is crucial to avoid failures and to ensure the long-term availability of systems. This PDU offers a clear advantage here: it combines reliable power distribution with additional safety through integrated protection. The built-in MCBs ensure that connected devices and cables are effectively protected against overload and short circuit. This is a decisive factor, especially in critical infrastructures, where even small disturbances can have major consequences. By dividing the supply into two separate power blocks, it is also ensured that faults do not affect the entire system but can be isolated selectively.

What advantages does the 32A power supply offer in the data center?

With a feed of 32A at 230V, this rack PDU provides a total power of up to 7.2 kW. This capacity is ideal for modern server deployments where many devices are run simultaneously. The high outlet density with 24x C13 and 4x C19 allows direct connection of servers, storage systems, switches and other IT hardware. The powerful power supply enables flexible expansion of IT infrastructures without immediately having to install additional power distributors. This reduces installation effort and ensures clean, structured cabling in the server rack. At the same time, sufficient power reserve remains available for future expansions.

How does the integrated energy monitoring support operations?

A central advantage of this metered PDU is the integrated measurement function, which enables precise monitoring of all relevant electrical parameters. These include current, voltage, active power, reactive power, apparent power, and total energy consumption. These data provide valuable insights into the actual utilization of the infrastructure. Continuous monitoring allows load peaks to be detected early and distributed appropriately. This not only contributes to operational safety but also enables optimization of energy efficiency. Especially in data centers, where energy costs play a major role, this is an important factor for economical operation.

How can the rack PDU be integrated into existing IT systems?

The Bachmann BN ESSENTIAL Metered - 32/3p Rack PDU with 24xC13, 4xC19, 2xMCB with display (BM0024226) is equipped with an integrated web server and supports SNMP. As a result, it can be easily integrated into existing monitoring and management systems. Administrators have access to current measurement data at any time and can centrally monitor and analyze power distribution. The two integrated Gigabit Ethernet ports ensure a stable network connection and allow redundant connectivity. In addition, USB and sensor interfaces offer further expansion options, for example for temperature or environmental monitoring. The integrated TFT color display also enables quick checks directly on the device in the rack. Overall, this rack PDU offers an optimal combination of powerful power distribution, integrated protection and comprehensive energy monitoring. It is therefore the ideal solution for companies that want to operate their IT infrastructure securely, efficiently and future-proof.
