Bachmann CONEO Set 4-way 3x protective contact socket, 1x Custom Modul (900.400)

Bachmann CONEO Set 4-way 3x protective contakt socket, 1x Custom Modul (900.400)

Bachmann CONEO mounting frame 4-way 900.400 - 3x protective contact socket, 1x Custom module - the easy and fast solution for integrating power and data connections elegantly in the furniture. With the Coneo series, we guarantee great flexibility through the use of custom modules and the absolute leg clearance through the minimal installation depth, even with edge-tight installation. The quick and easy installation can be carried out without problems thanks to a double-sided special adhesive tape. The cables can also be used perfectly in the closed state.

Benefit from the familiar Bachmann custom modularity and combine power with our selection of Bachmann custom modules - for flexibility and adaptability.

Technische Details Bachmann CONEO Set 4-way 3x protective contakt socket, 1x Custom Modul (900.400)

• Finish: Gray metallic (powdered, similar to RAL 9006)

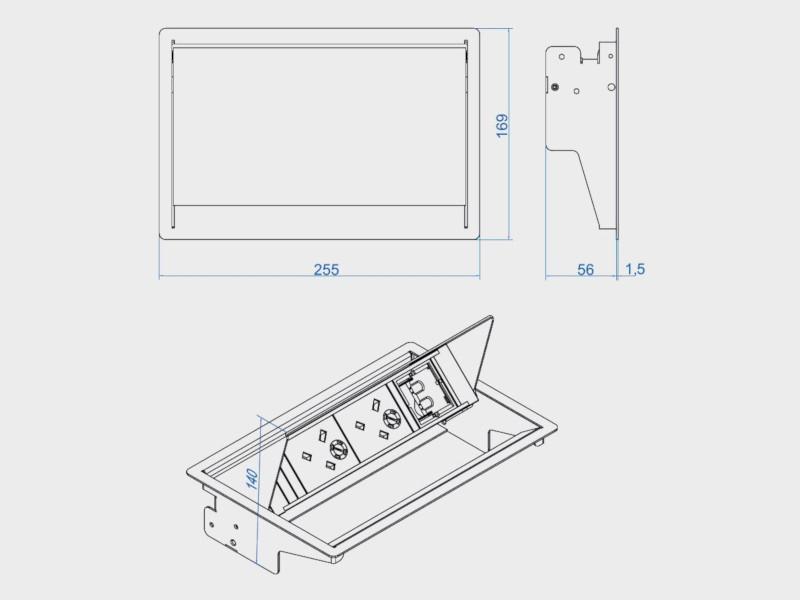

• Dimensions (WxHxD): 256 x 169 x 58 mm
• 3xprotective contakt socket
• Protective contakt socket rotated by 35°
• 1x Custom Modul (Which is screwed into an empty field of a socket unit)

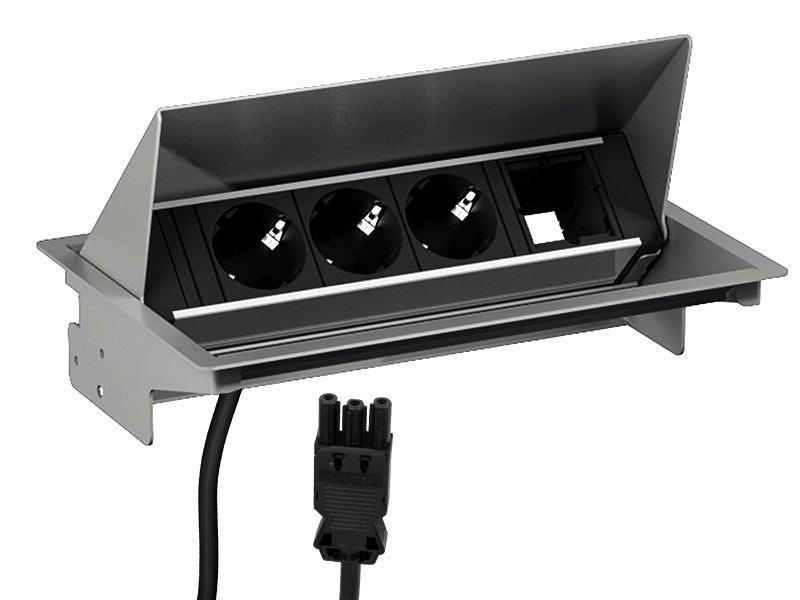

• Power input: 0.2 m line and GST18 plug
• Built-in frame: 56 mm
• Plate thickness: all strengths - product is glued
• Material Mounting frame: Steel plate
• Material socket: synthetic substance aluminum

Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips must be checked every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be checked annually. Further information can be found in the download area under "Manufacturer's declarations"
