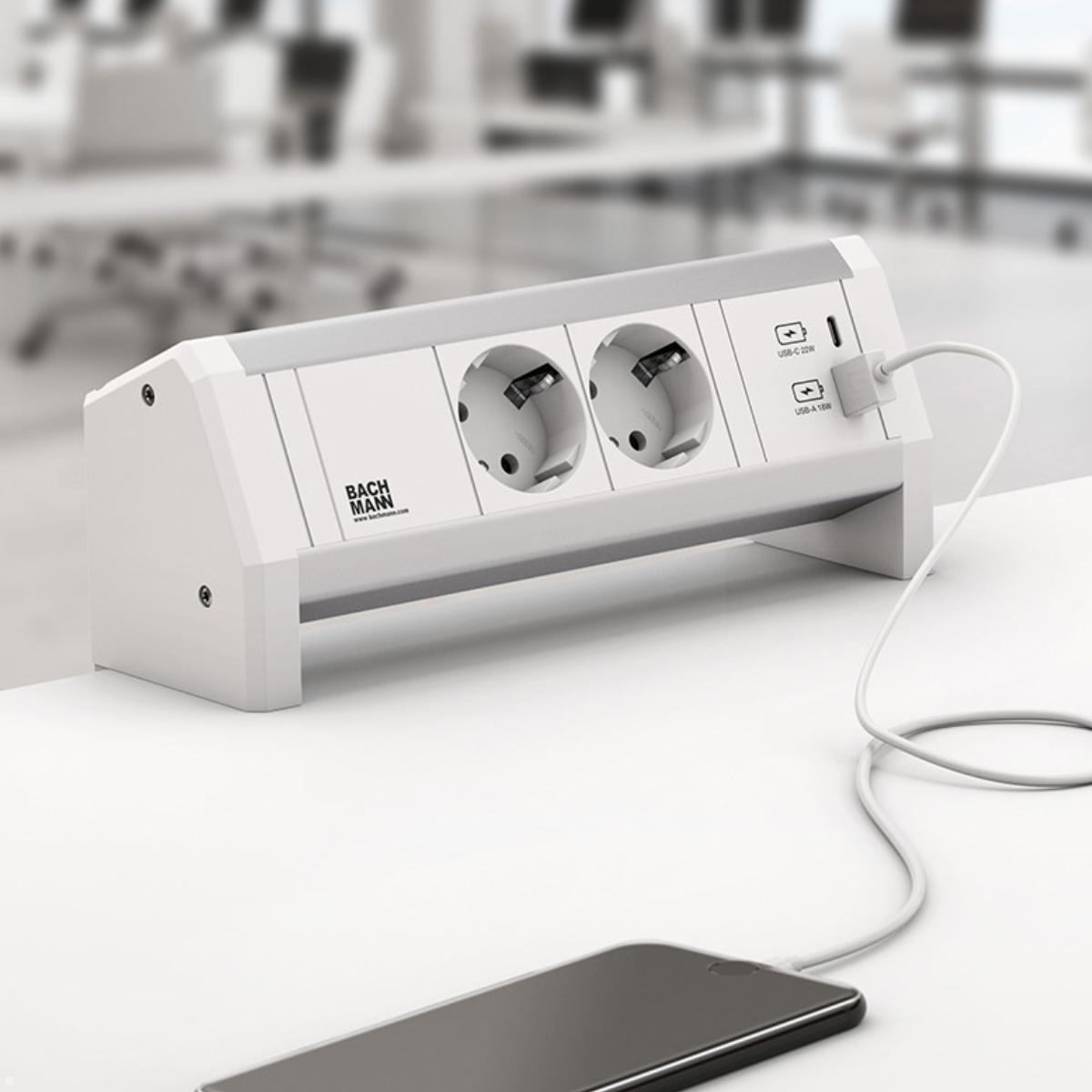

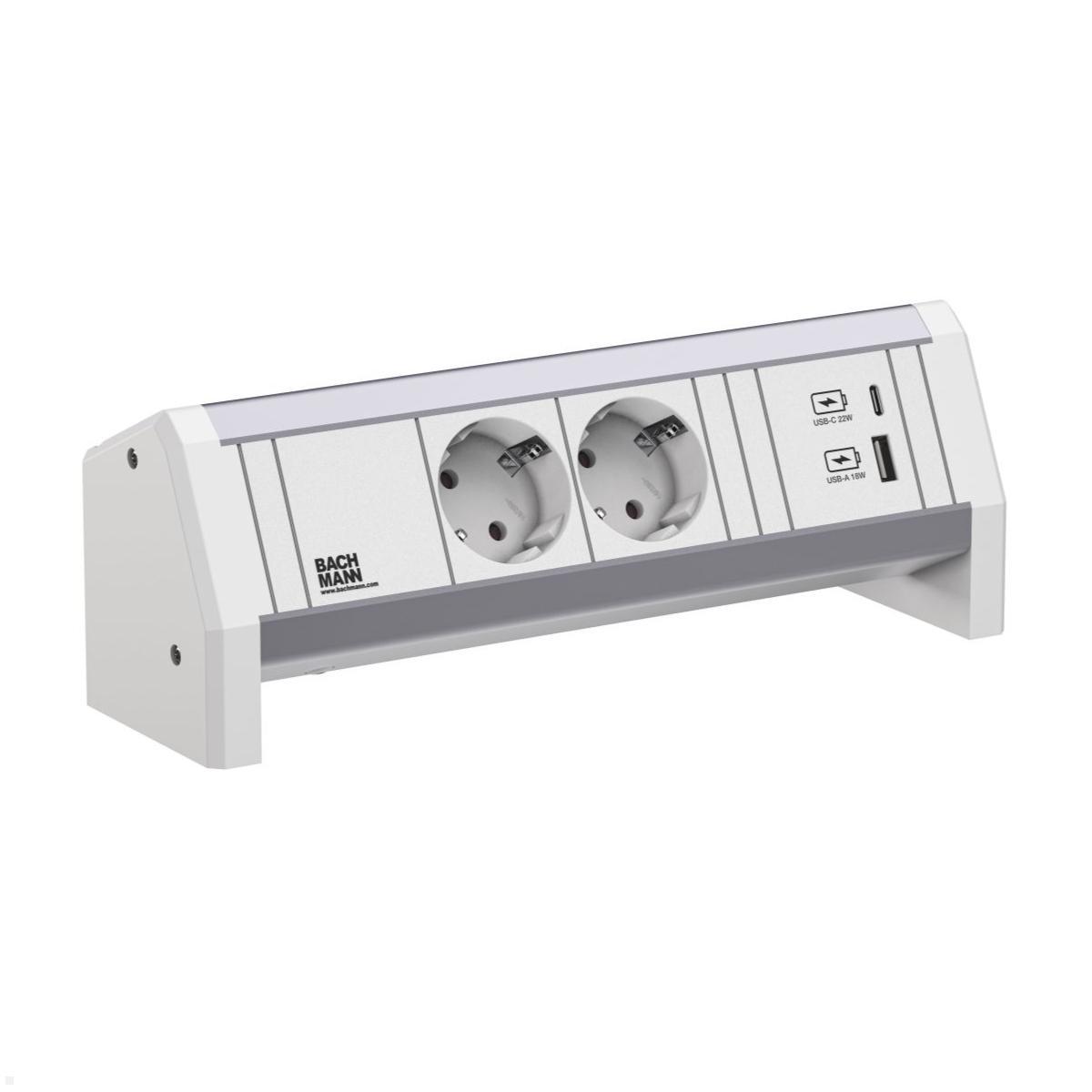

Bachmann DESK 1 WHITE 2x power socket with USB Charger A/C (902.0290)

Power socket with USB A/C charger

The Bachmann DESK 1 WHITE 902.0290 power socket with USB C, USB A charger as a charging station is quick and easy with a bracket set or an adhesive plate mounted on the edge of the table without damage. The socket strip with two CEE 7/3 safety sockets, a USB-C charger and a USB A charger in 22W allows easy access to power outlets for different devices (smartphones, tablets or laptops). Supplied without mounting bracket and adhesive plate.

Clear and simply designed, Bachmann DESK 1 WHITE is made of high-quality and durable materials. If several DESK 1 desk connection panels are to be installed next to each other and looped through via a GST18 connection, a distributor block (e.g.: 375.102, 375.105, etc.) simplifies the connections and distribution of the cables. Please note a max. load of 16A!

Key features Bachmann DESK 1 WHITE socket strip (902.0290)

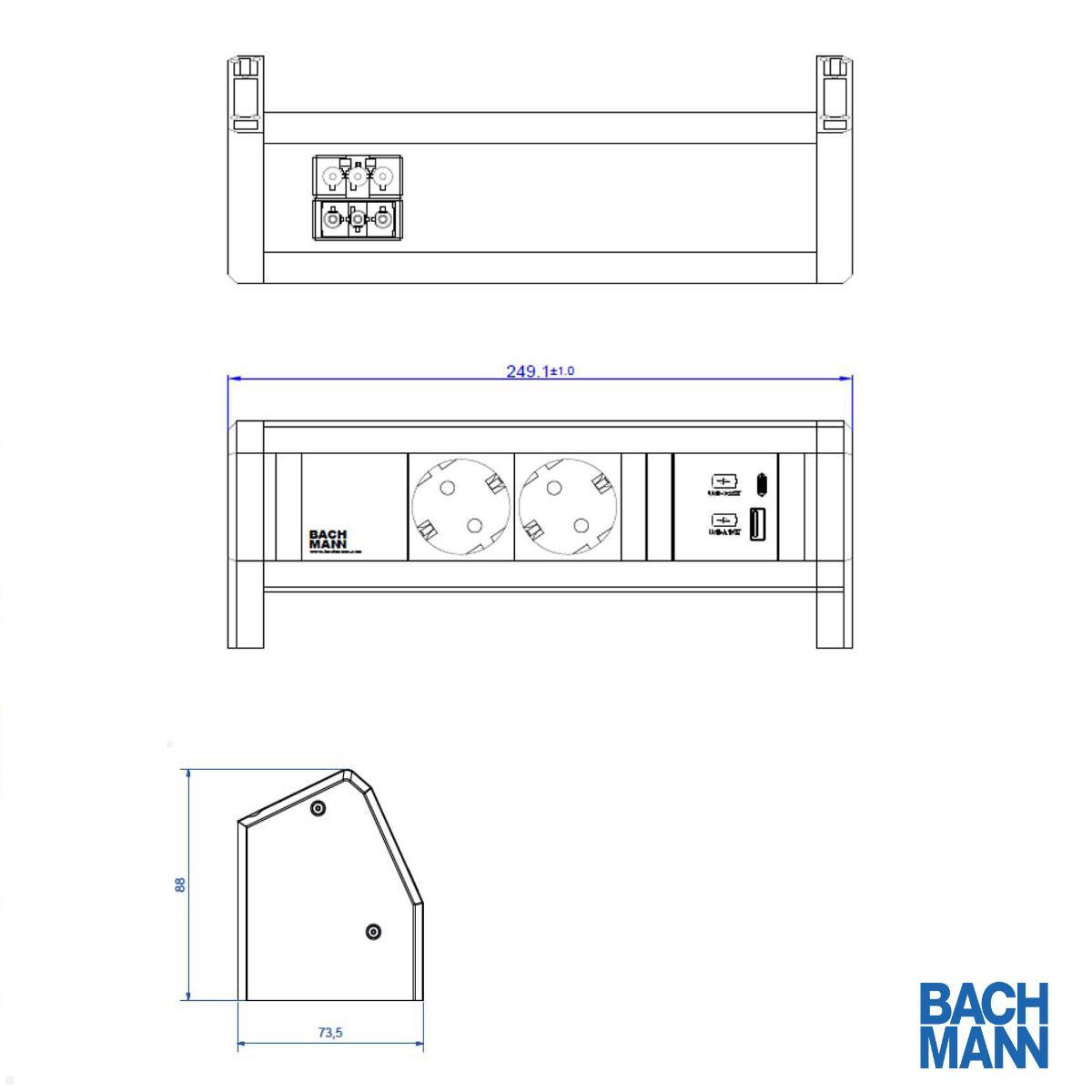

• Dimensions (WxHxD): 249.1 x 73,5 x 88 mm
• Finish: white, aluminum profile
• 2x socket outlets with earthing contact, white, 35° rotated
• 1x USB A-Charger 22W (42.5 mm)
• 1x USB-C Charger 22W (42.5 mm)
• Power input GST18
• Power outlet GST18

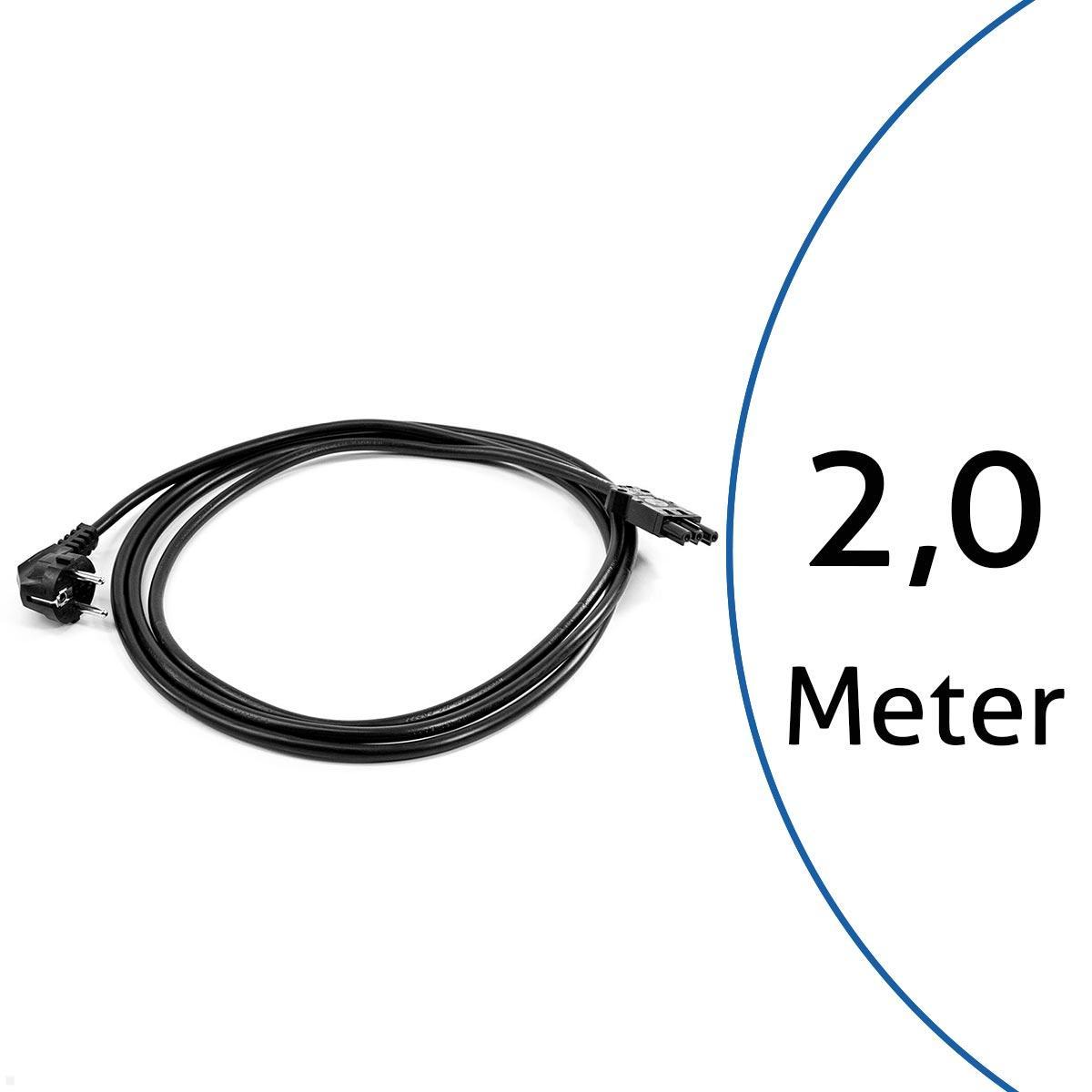

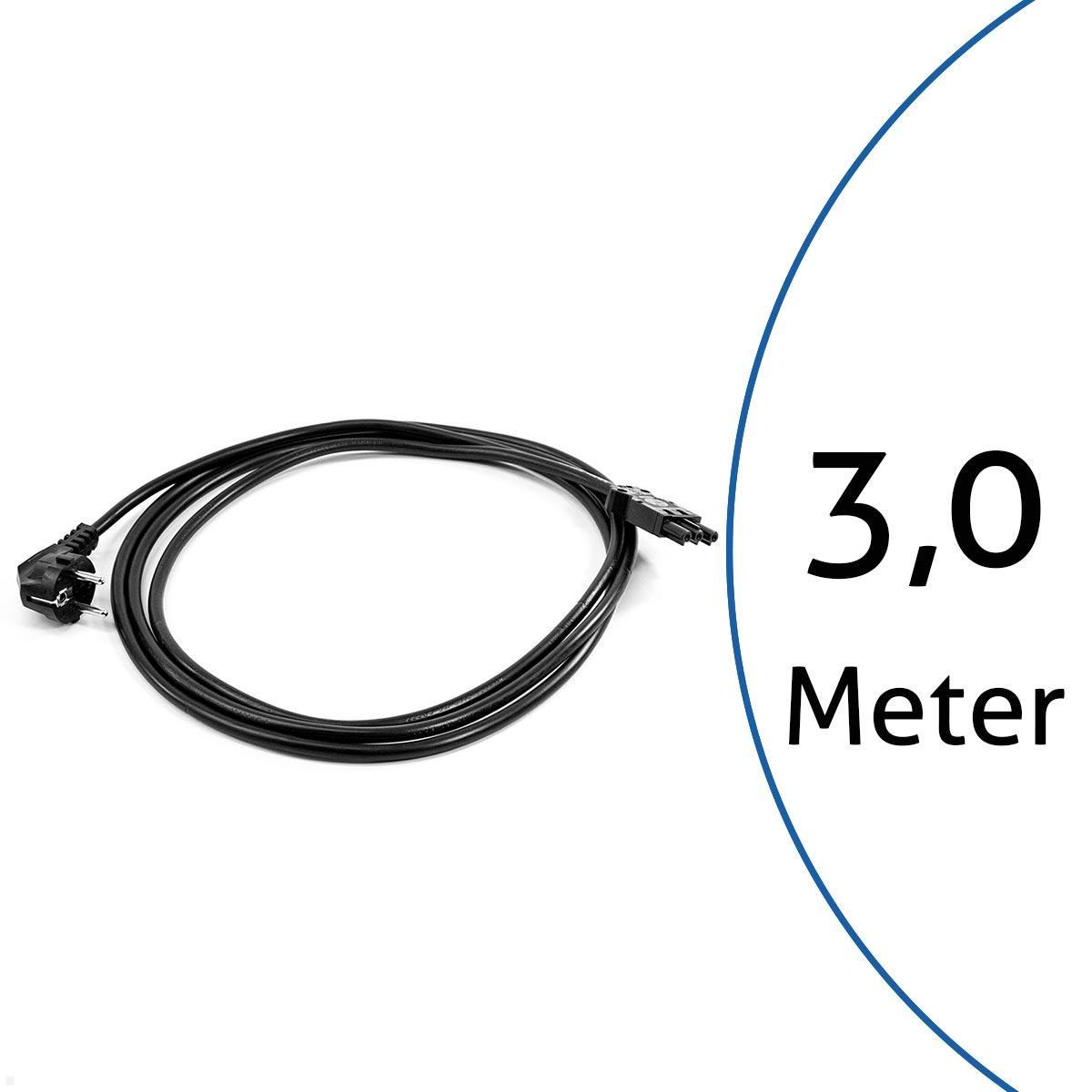

• Power cable, mounting bracket and adhesive plate are available separately

Plug connection as standard

The standard power connection is designed with a Wieland plug connector built into the profile on the back and offers the option of safe power supply and at the same time flexibility in terms of the length of the cable. The lines can be exchanged if necessary, e.g. to use longer or shorter power feed lines. As standard, we use the GST18 connector from Wieland, which is used all over the world. The plug-in connection has a prescribed latch and can be unlocked again if necessary. The contact connections of the plug connection are safe to touch. A power output socket offers the option of passing power on to the next module.

Bachmann DESK 1 plus Bachmann STEP in combination

The ideal overall solution at the individual office workstation is the combination of Bachmann DESK 1 and Bachmann STEP socket unit. Bachmann DESK 1 offers easy access to power and data connections for various devices (laptop, smartphone, USB, etc.), while the Bachmann STEP socket unit below the table top supplies power to permanently installed devices such as PCs, monitors, printers, etc. The Bachmann STEP socket unit is screwed under the table top or positioned in an under-table channel. With the integrated Wieland plug-in system, several socket units can be connected one after the other in accordance with the standard.

Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips must be checked every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be checked annually. Further information can be found in the download area under "Manufacturer's declarations"
