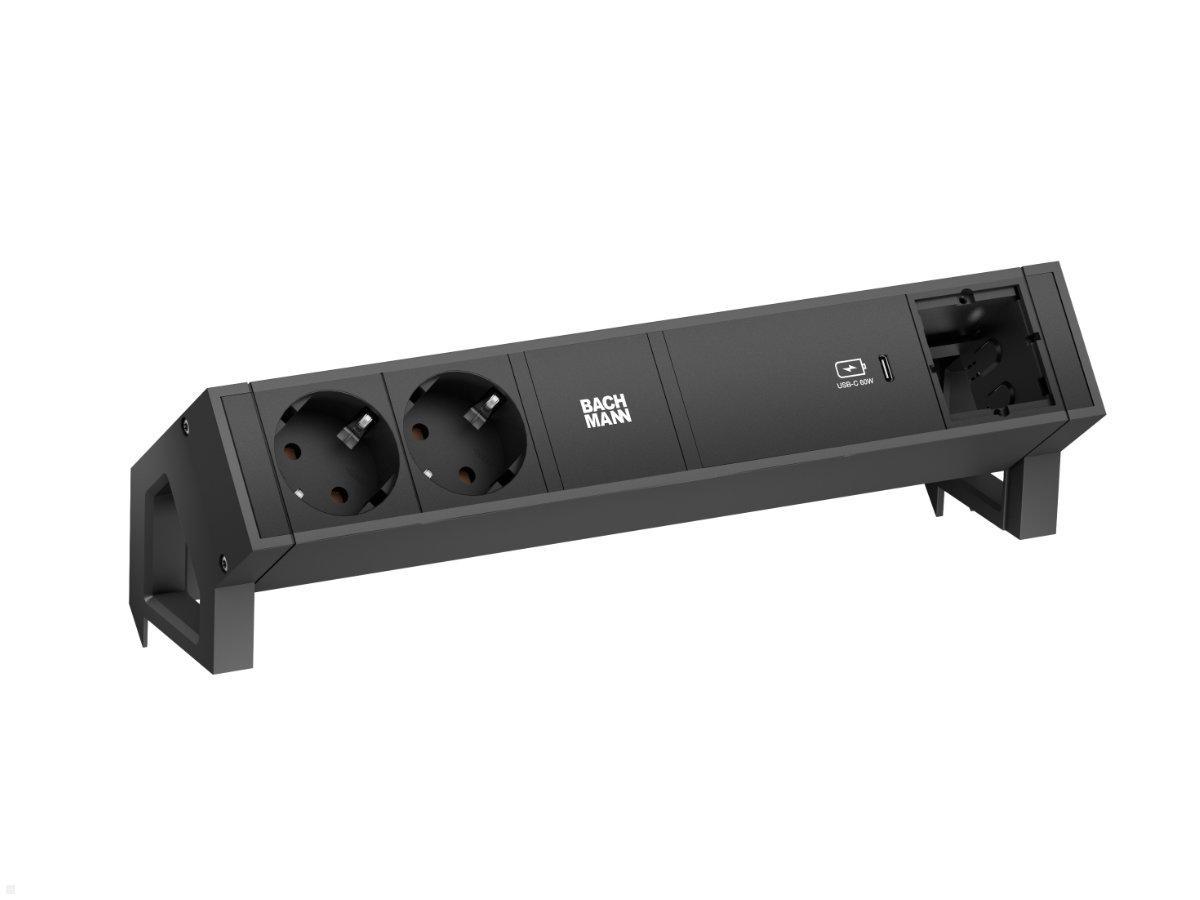

Bachmann DESK 2, 2x socket, USB-C Charger 60W, CM (902.967) black
The Bachmann DESK 2 desk connection panel consists of 2x power socket, 1x USB C Charger 60W and a Custom Module (CM) and can be quickly and easily attached to the desk using the supplied mounting bracket set or an optionally available adhesive base.
Configurable desk connection panel with sockets, USB-C Charger and CM

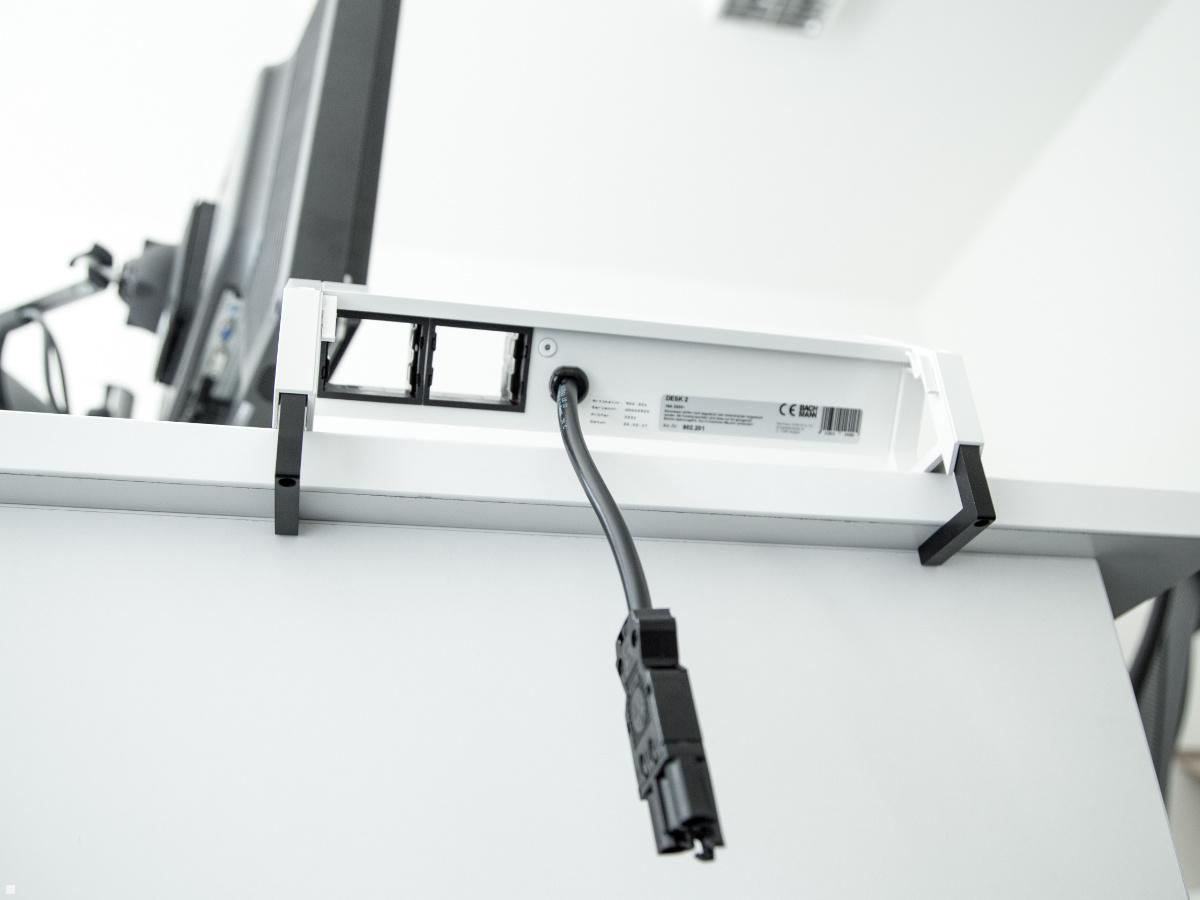

The DESK 2 desk power socket is quickly and easily mounted to the edge of the desk without damage using the bracket set (an adhesive base is optionally available). The configurable socket strip with two protective contact sockets, a USB C 60W Charger and a Custom Module (CM) allows easy access to data and power connections for various devices of the newer type (smartphones, tablets, laptops). The clear and simple design of this Configurable desk connection panel with sockets, USB-C Charger and CM in black has already earned the DESK 2 the red dot design award and the IF Product Design Award. High-quality and durable materials determine the workmanship of this socket outlet. Matching custom modules (CM) can be easily attached with a screwdriver. You can choose between pre-configured or individually assembled custom modules (available separately). If several DESK 2 desk connection panels are to be mounted next to each other, a distribution block (e.g.: 375.102, 375.105, etc) facilitates the connection and distribution of cables.
Key features DESK 2 (902.967)
- Finish: Black, similar to RAL9005

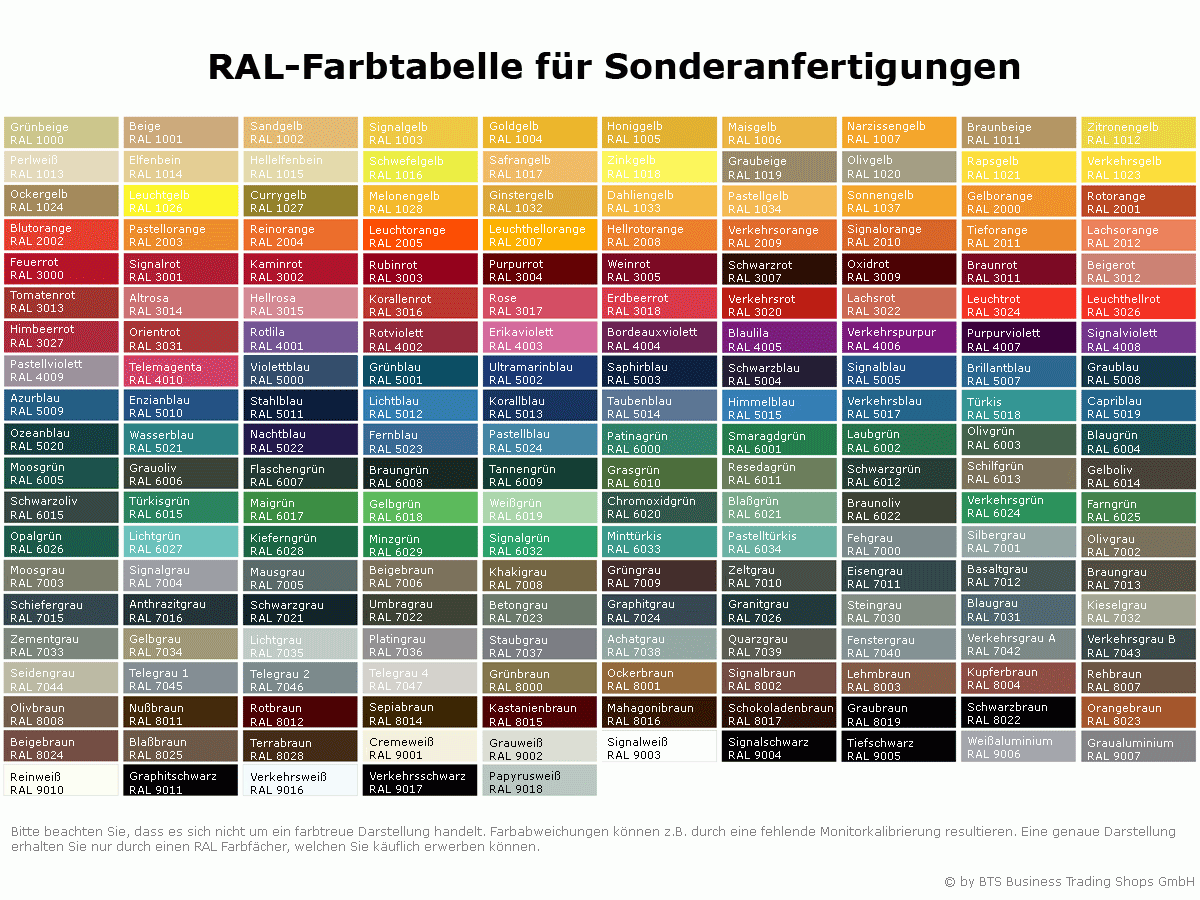

- Available in over 200 RAL colours on request
- 1x USB-C Charger 60W
- Custom module (CM)
- 2x black socket outlets with earthing contact, rotated 35°
- Incl. mounting bracket set
- Construction: table top thickness 10 - 40 mm
- Supply cable: 0.2m H05VV-F3G1.5mm² black with GST18i3 plug

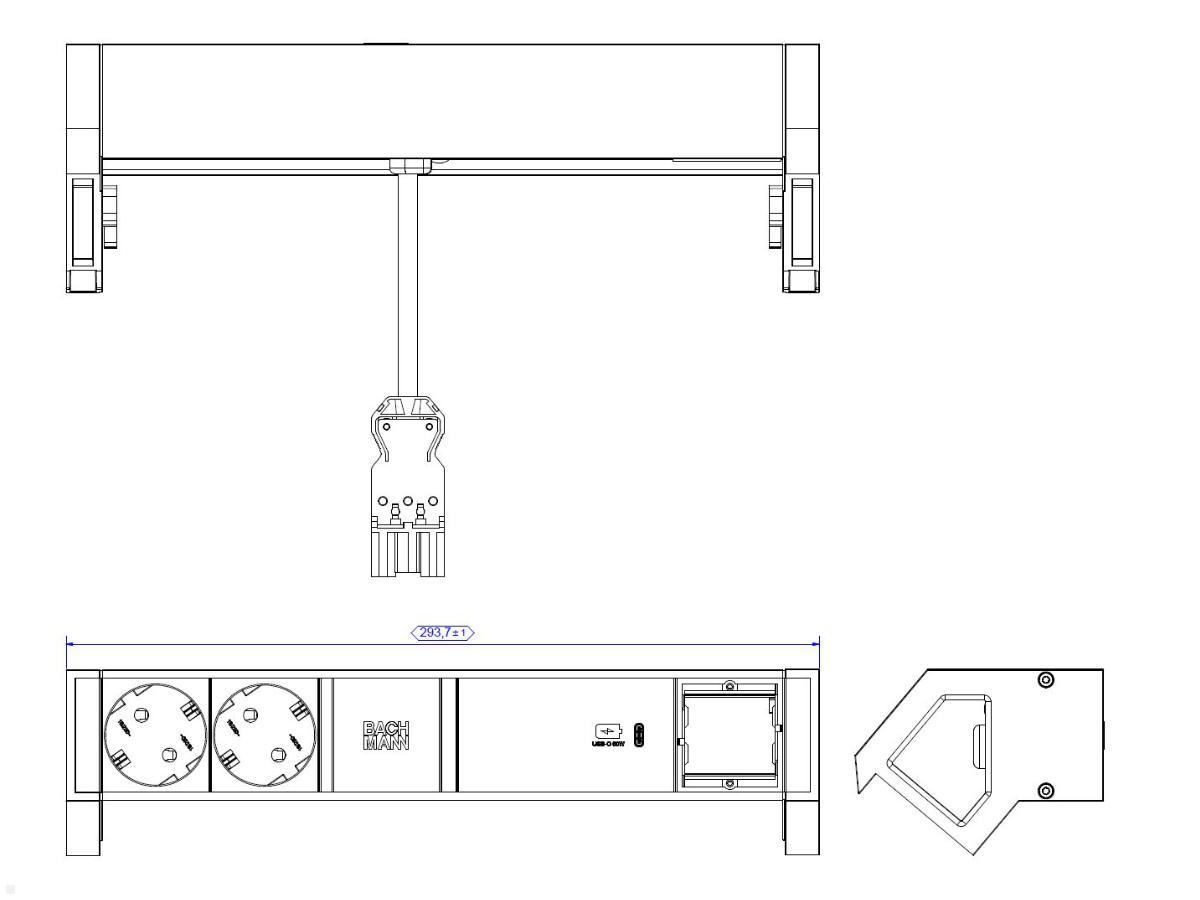

- Dimensions (LxWxH): approx. 294x74x93 mm
Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips must be checked every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be checked annually. Further information can be found in the download area under "Manufacturer's declarations"
| Product sheet: |  [pdf, 172 kb] |
|---|---|
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf, 115 kb] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 2 |
| color: | Black |
| USB-Charger: | USB C |
| Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
