Bachmann Device supply cable halogen-free GST18 5m (375.046)
The Bachmann Device supply cable halogen-free GST18 5m (375.046) is for the Bachmann facility products (SLIDE, CONFERENCE, TOP FRAME, CONI, LIFT, POWER FRAME, DESK1, DESK2, STEP) with Wieland GST18 plug-in connectors.

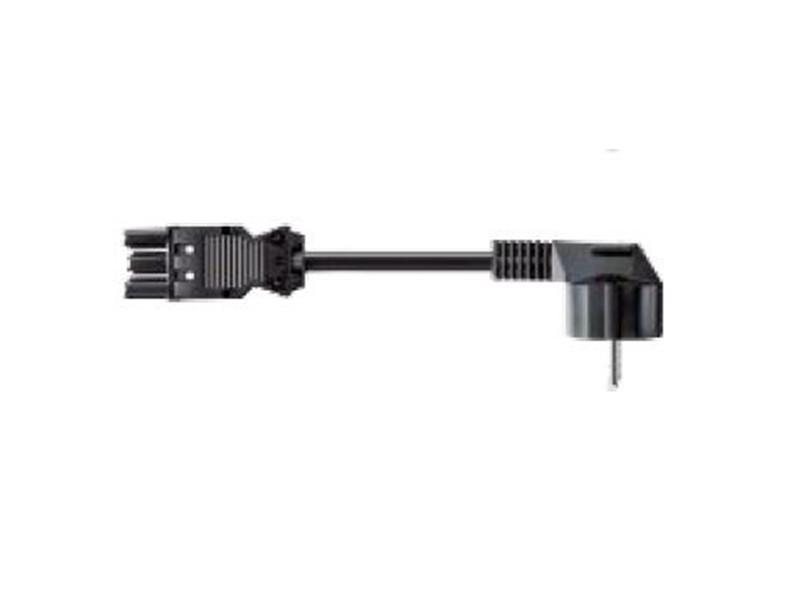

Bachmann Device supply cable halogen-free GST18 5m
Cables fitted with Wieland GST18 plug-in connectors are available to connect Bachmann facility products to the mains power supply. The advantages of these cables and their connectors, which are used all over the world, are flexibility in terms of length, the possibility of exchanging them should length requirements change, and availability for a variety of countries. Even extending the power supply to other power strips presents no problem and can usually be done without tools.
Halogen-free cable insulation
The insulation of the Bachmann supply cable is made of halogen-free plastic, which is characterized by low smoke emission in the event of fire. In contrast to halogen-containing plastics, no toxic or corrosive gases are released. The use of halogen-free cables is usually mandatory, particularly for electrical installations in public areas.
Key features Bachmann Device supply cable halogen-free GST18 5m (375.046)
- Colour black
- Length 5m
- Cable: S05Z1Z1-F3G 1.5 mm²
- End 1: right angle plug with earthing contact
- End 2: Wieland GST18i3 socket
- Free from potentially harmful halogens
[pdf]
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
