Bachmann DUE 1x power strip, 1x USB Charger (929.040)

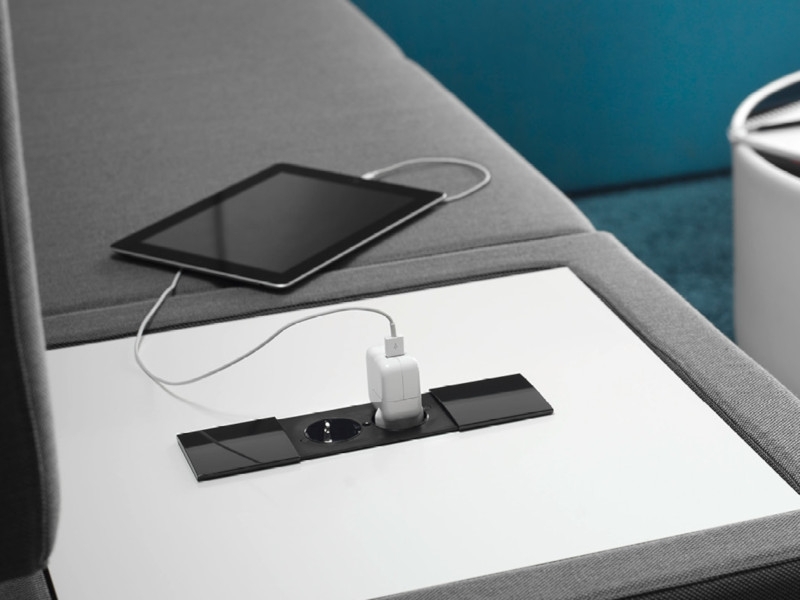

The Bachmann DUE 1x socket, 1x USB Charger flush-mounted socket (929.040) with its low installation depth of 45 mm enables a space-saving integration in kitchen countertops, desks and the installation of drawers.
Bachmann DUE 1x power strip, 1x USB Charger 929.040
Bachmann (929.040) DUE is the ideal power outlet for the kitchen. Alternatively used in the office and in other areas, it guarantees an elegant power connection. Interchangeable covers offer the possibility to customize the look of the optics even after installation and to adapt it to their surroundings or deliberately set highlights.
Perfect power outlet for many applications

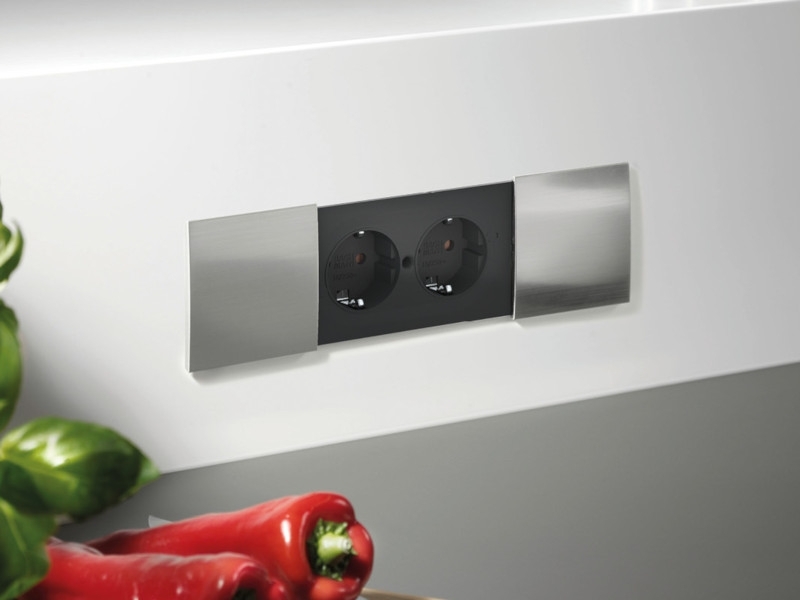

Bachmann DUE flush-mounted socket (929.040) can, thanks to the split cover, be flexibly pushed on as required, and also convinces during use in terms of design. The low installation depth of less than 45 mm allows space-saving integration in kitchen worktops, desks and the installation of drawers. Also on the wall, the Bachmann DUE presents itself perfectly in form and function.
Key features Bachmann DUE built-in socket 929.040
- 1x safety socket
- 1x USB Charger
- Sockets with child protection, turned 90 °
- Socket color: black
- Material: Plastic
- Dimensions (WxHxD): 139x47x49 mm
- Mounting depth without cable: 45 mm
- Table mounting plate thickness: 10-40 mm
- Power input: 0.2 m cable with GST18i3 plug
- Scope of delivery: Socket unit, 0.2m cable, GST18 plug, installation template
- Space saving even when open

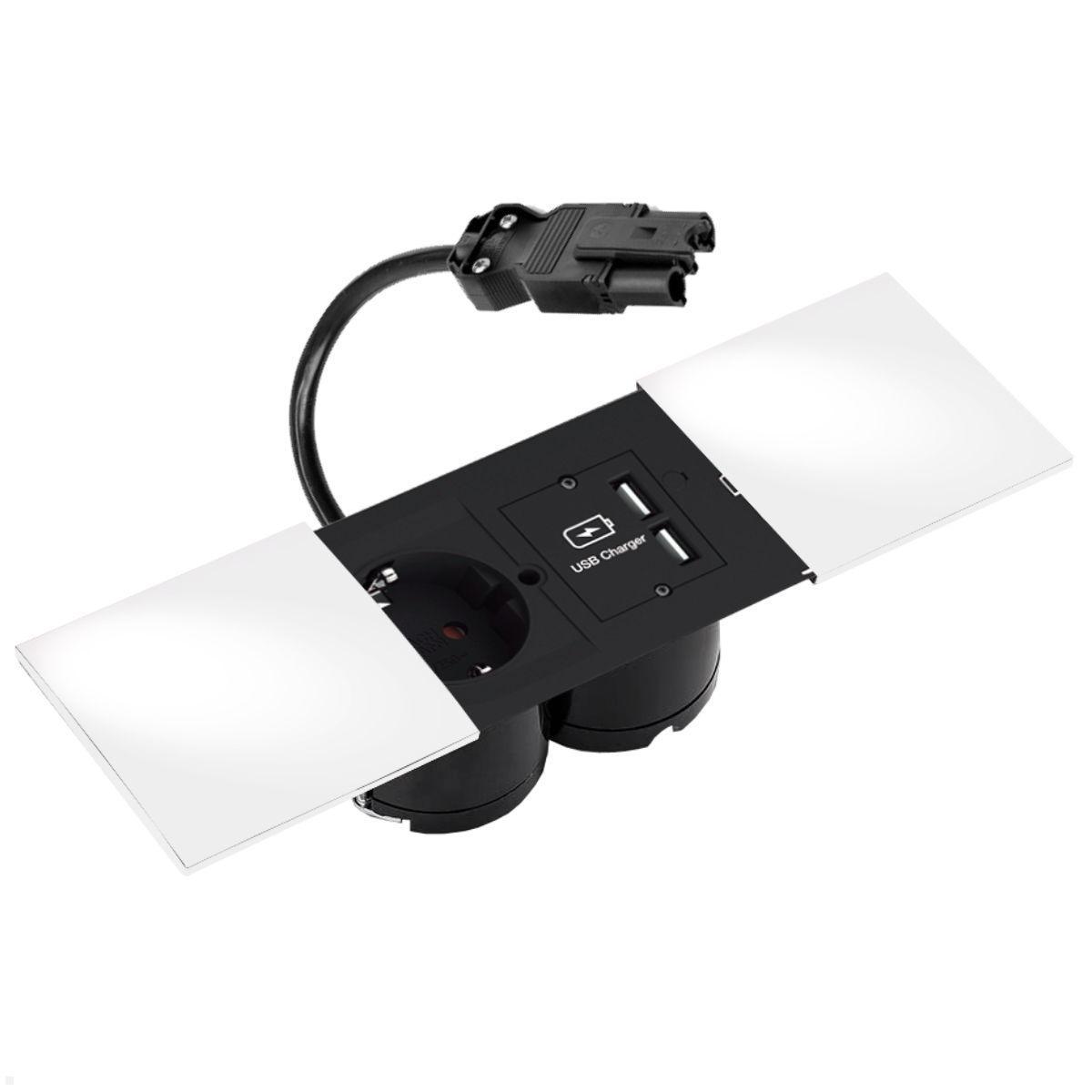

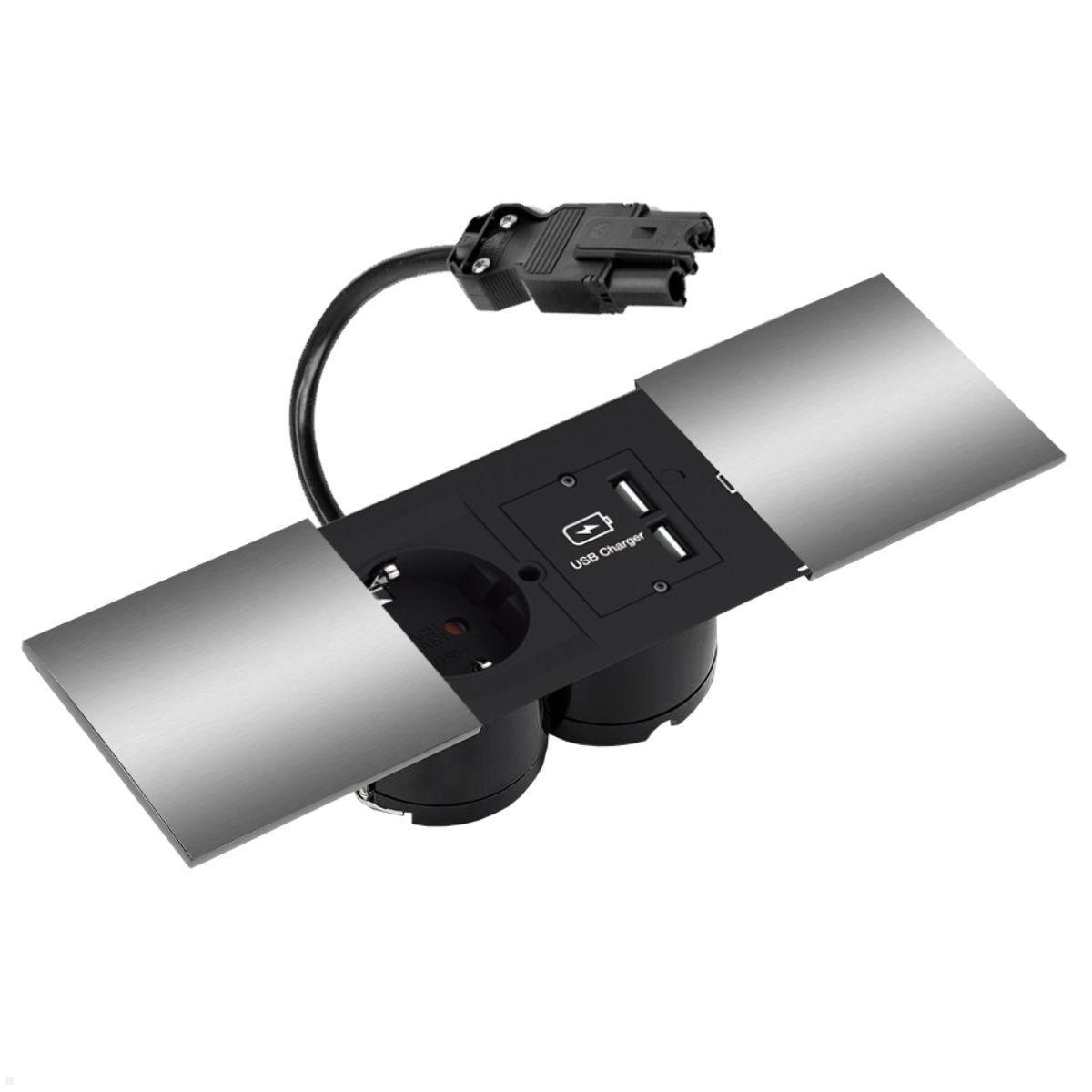

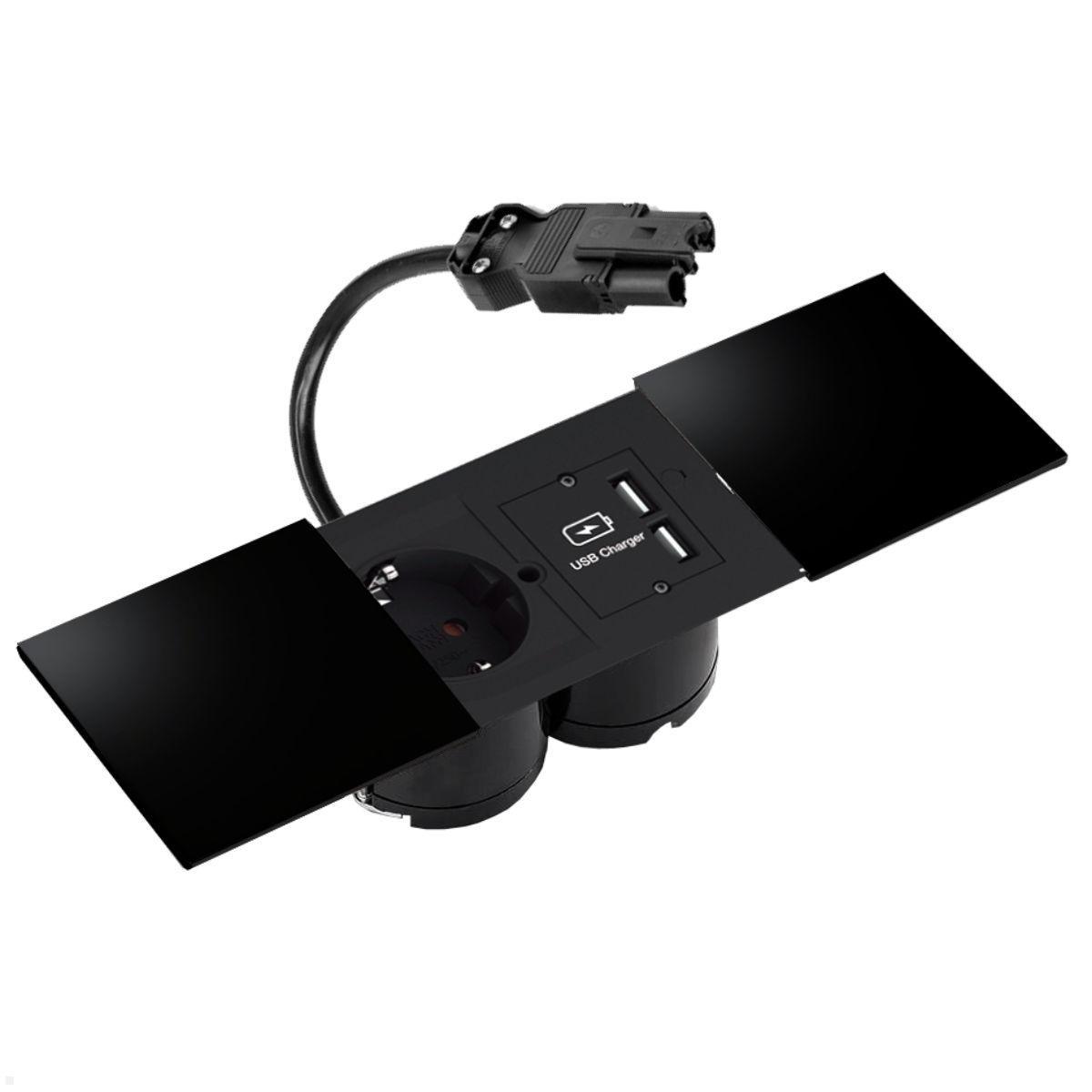

- Cover not included (optional in black, white and stainless steel look)
Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips must be checked every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be checked annually. Further information can be found in the download area under "Manufacturer's declarations"
| Product sheet: |  [pdf] |
|---|---|
| RoHS / REACH: | [pdf, 110 kb] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 1 |
| color: | Black |
| USB-Charger: | USB A/A |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
