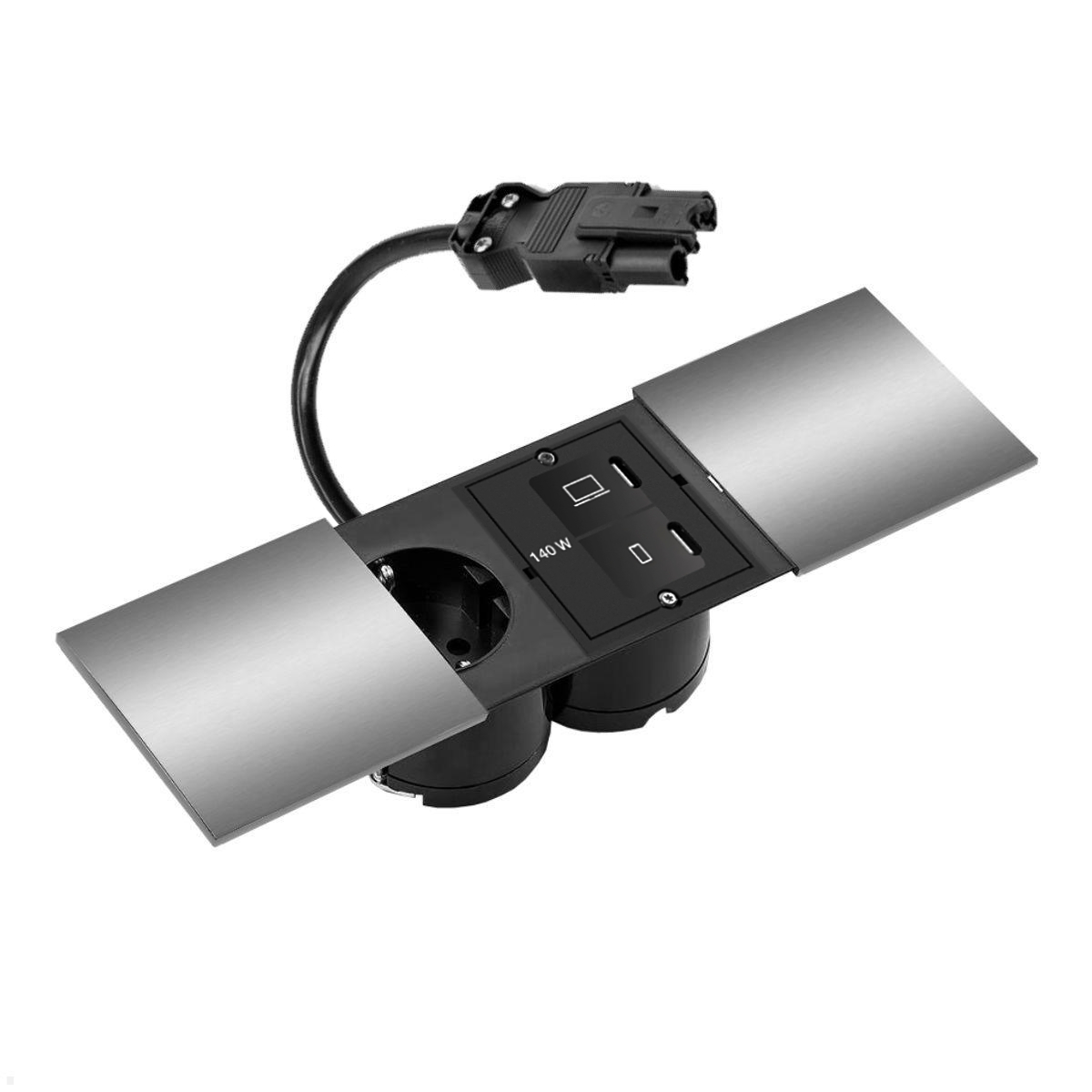

Bachmann DUE flush-mounted socket, 1x socket, 1x USB-C module, cover
The Bachmann DUE socket unit offers a compact 2-in-1 solution with a grounded socket and a high-performance USB-C module (140 W). Thanks to its shallow installation depth, interchangeable cover, and integrated lid, it is ideal for kitchens, offices, and modern workspaces.
Bachmann DUE Socket Unit – Flexible, Elegant and Powerful
The Bachmann DUE socket unit is the ideal solution for kitchens, offices or any other workspace where functionality meets modern design. Thanks to its flexible configuration options, the socket unit can be individually adapted to your specific requirements. Whether classic power outlets or modern USB-C charging options – DUE combines both functions in one compact and elegant unit. A particular highlight is the interchangeable cover, which allows the appearance of the socket unit to be adapted to its surroundings even after installation or to create targeted design accents. The split cover can be slid to the side when required, ensuring that design and convenience are maintained even during use.
With an installation depth of only approx. 45 mm, the DUE socket unit is especially space-saving. It can be easily integrated into kitchen worktops, walls or even above drawers without taking up unnecessary space. The DUE is equipped with a protective contact socket and a USB-C module, providing immediate access to both power supply and modern charging options. In addition, the unit can be expanded with optional custom modules to create even more flexible combinations of power sockets and USB-C charging ports, perfectly tailored to everyday needs.
Key features Built-in Socket with USB-C
- Socket unit with 2-way configuration
- 1x protective contact socket
- 1x USB-C module
- USB-C module: Custom USB C/C/C 140W CEE7/7 bundle
- USB-C 140 W charger CM (3 ports)
- 180 W AC power supply
- USB 2.0 PD connection cable 240 W, 5 A, length 1.0 m, type C–C
- Power connection cable H05VV-F 3G0.75 mm², length 1.0 m, CEE7/7 / IEC C5
- Including cover
- Supply cable 0.2 m H05VV-F 3G1.5 mm², black
- With GST18 installation plug and supplied mounting plug
- Low installation depth: approx. 45 mm
- Flexible, replaceable cover for individual design options
- Ideal for integration into worktops, walls or above drawers
- Optimized for offices, kitchens and other areas with power and charging requirements
By choosing the Bachmann DUE socket unit, you opt for a product that combines maximum flexibility, functionality and timeless design. It is ideal for modern work environments and for anyone who wants to customize their power socket solution.
| Scope of delivery: | 1x DUE socket unit (929.030) | 1x Custom module USB C/C/C 140W CEE7/7 (BM0021867) | 1x DUE cover | Installation material |
|---|---|
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 1 |
| RCM-Differenzstrommessung: | Nein |
| Schalten: | Nein |
| USB-Charger: | USB C |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Modern Socket Unit for Flexible Workspaces
The Bachmann DUE socket unit is a well-thought-out solution for anyone who wants to combine functionality, design, and future-proofing. It is ideal for modern kitchens, offices, and workspaces where reliable power supply and high-performance charging options are required. Its compact design allows the socket to be integrated discreetly and harmoniously into different room concepts. At the same time, it offers high everyday practicality by combining power supply and USB-C charging in a single unit. The socket unit features a grounded socket and a USB C/C/C module, meeting the needs of modern users who want to operate and charge both traditional electrical devices and mobile devices. Its clear design language and subtle cover ensure that the Bachmann DUE presents itself as visually unobtrusive yet high-quality.
High-Performance USB-C Charging and Space-Saving Installation
A key feature of the Bachmann DUE socket unit is the integrated USB C/C/C module with high charging capacity. It allows multiple devices to be charged simultaneously via USB-C and is also suitable for power-intensive applications such as laptops, tablets, or monitors. This makes the workspace tidier by eliminating the need for additional chargers and power adapters. With an installation depth of only about 45 mm, the Bachmann DUE is designed to be particularly space-saving. It can be easily integrated into kitchen countertops, furniture, walls, or even above drawers without losing valuable storage space. This compact design makes the socket unit an ideal solution for modern living and work areas with high demands on functionality and design.
Flexible Cover and Versatile Applications
The flexible, retrofittable cover is another advantage of the Bachmann DUE socket unit. It can be slid to the side when needed, allowing easy access to the connections while keeping the appearance neat and tidy. Additionally, the cover can be adapted to new color schemes or interior designs even after installation. Thanks to its high-quality construction and thoughtful design, the Bachmann DUE socket unit is suitable for long-term use in kitchens, offices, and other work areas. It combines reliable power supply, modern USB-C charging options, and timeless design into a solution that meets the demands of today’s and tomorrow’s everyday life.
