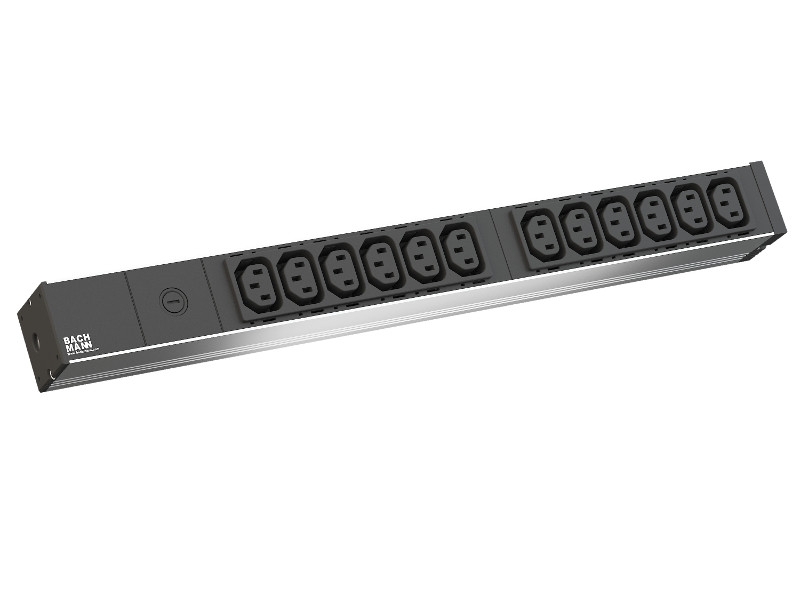

Bachmann IT PDU 12x power strip C13 1U (800.2284)
The Bachmann power strip 800.2284 is a 12-way PDU power strip with 1U Alu-Profile for the power distribution at a Datacenter or to be integrated into your 19inch IT rack. The power distribution unit contains 12x C13 socket outlets with a 2,0m power supply cable with C14 plug.
Bachmann 12-way power strip 1U C13 socket outlets (800.2284)
With its IT PDU Basic 1U, BACHMANN provides a huge choice of PDUs in a high-quality aluminium profile. With their extremely compact size of just 1 height unit and 44 mm in depth the power distribution unit 800.2284 can be easily integrated into your 19inch IT rack. Their multi-functional mounting brackets allow the units to be easily mounted in various ways (e.g. inwardly recessed). Our high quality standards ensure that the contact is reliable.
Key fetaures Bachmann 12x power strip 1U C13 socket outlets (800.2284)
- IT PDU Basic 1U (230V / 50Hz)
- Suitable for 19 inch IT rack installation
- Plug: C14
- 12x C13 socket outlets
- Power supply: 2,0m H05VV-F 3G 1,50 mm²
- Phase(s):1
- Rated voltage: 230V
- Current per phase: 16A
- Non rewireable
- Fuse: 10A
- Incl. 2x mounting metal flanges

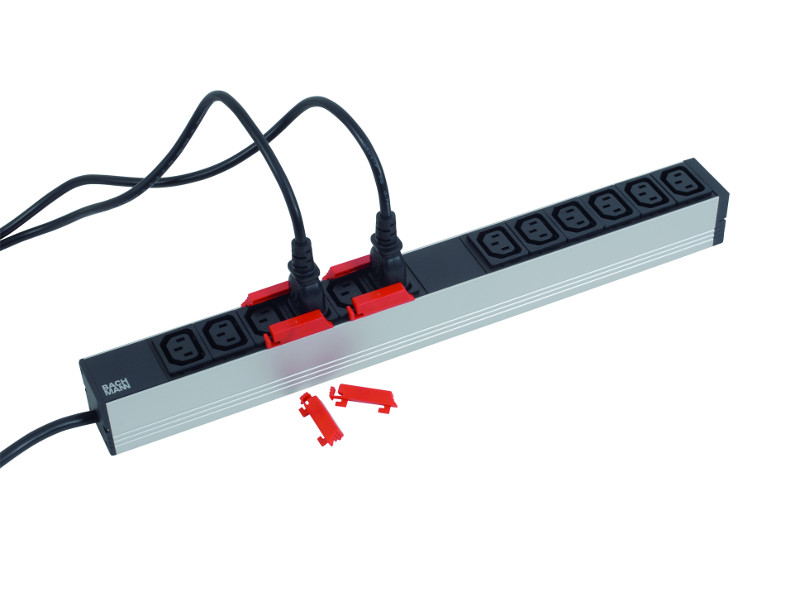

- Incl. interlocking red of IEC C13
- Finish profile: grey
Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips must be checked every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be checked annually. Further information can be found in the download area under "Manufacturer's declarations"
| Product sheet: |  [pdf, 1,2 MB] |
|---|---|

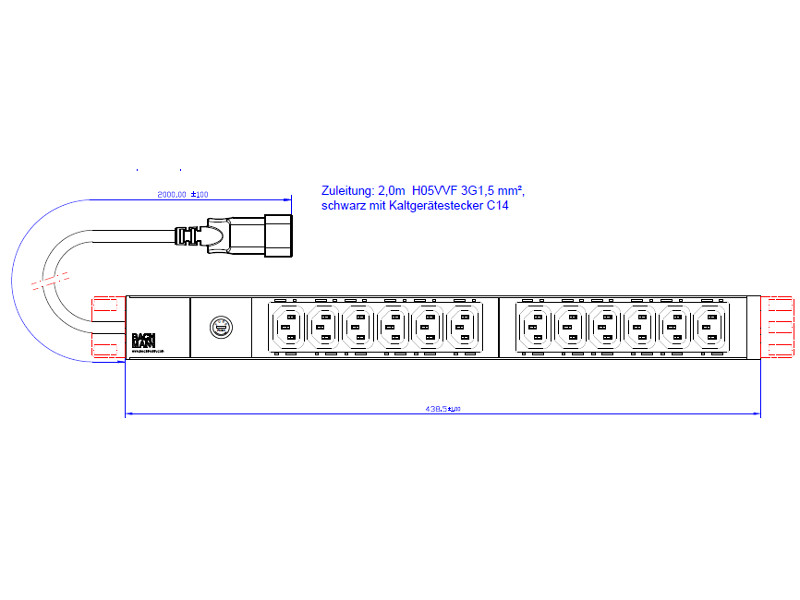

| Technical drawing: | [pdf, 185 kb] |
| RoHS / REACH: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Silver/Anthracite |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
