Bachmann IT PDU 19-inch power strip 9x sockets pots green (800.3479)

Why is the Bachmann IT PDU Basic power strip ideal for server racks?

Die Bachmann IT PDU Basic (800.3479) was specially designed for use in professional 19" server racks. With 9 CEE 7/3 Schuko sockets (green, similar to RAL 6018) it provides sufficient outlets for typical IT infrastructure such as servers, switches, patch panels and other rack devices. The rated current of 16 A at 230 V~ ensures stable power supply even under higher loads. The anodized aluminum housing is not only robust and durable but also lightweight, which makes handling in the rack easier. The included universal mounting kit allows the rack power strip to be mounted quickly and without additional tools – ideal for system integrators and IT administrators who value efficiency. Bachmann has been a reliable partner for professional power distribution for decades and with the IT PDU Basic relies on proven quality: the green coloring of the sockets enables quick visual identification in the rack and simplifies management of connected devices. Anyone looking for a reliable, low-maintenance and standards-compliant PDU for 19" rack operation will find the right choice with the Bachmann IT PDU Basic.

What technical features distinguish the Bachmann PDU 19" 9-way?

The Bachmann PDU Basic 800.3479 impresses with well-thought-out technology: the 2.0 m supply cable with CEE 7/7 plug (Type E/F) offers optimal flexibility when positioning in the rack. With a conductor cross-section of 1.5 mm² with 3 conductors, the cable is rated for continuous operation at 16 A. The cover made of PA6 GF30 (850°C) and fire protection class Eca according to the CPR standard provide maximum safety in professional environments. The PDU Basic meets all relevant standards: CE, UKCA, RoHS and REACH – making it certified for use in Germany and the United Kingdom. The 9 sockets are arranged at a 35° angle, which significantly facilitates plugging and unplugging device plugs in the confined rack environment. With a protection rating of IP20, the power strip is designed for use in enclosed indoor areas such as server rooms and network cabinets. The single-phase power supply at 50/60 Hz makes the Bachmann PDU Basic flexibly usable in different network infrastructures. In addition, the product meets the requirements of DIN EN IEC 60884-1 as well as other relevant standards for electrical installations.

For which environments is the Bachmann 19" power strip suitable?

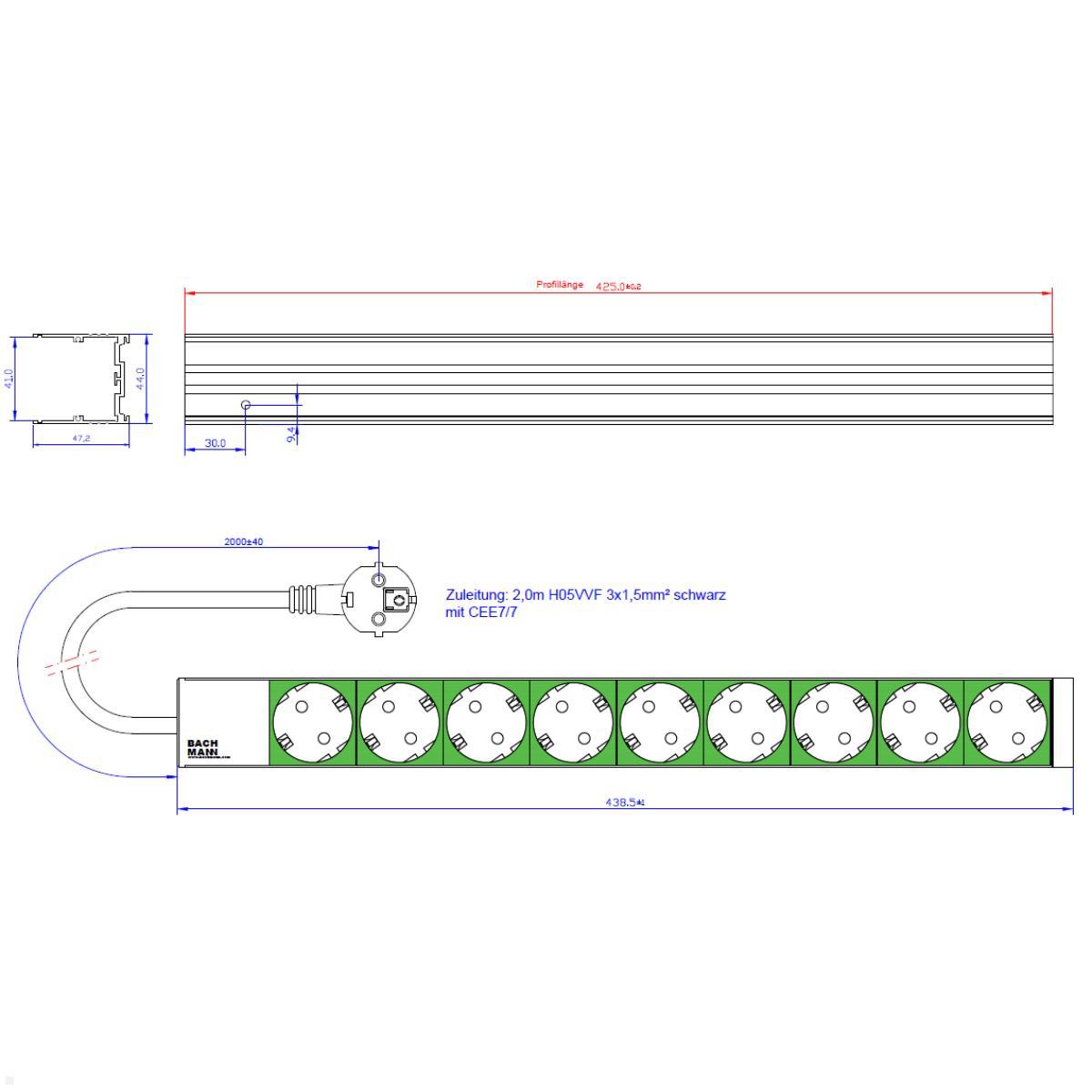

The Bachmann IT PDU Basic rack power strip is designed for continuous operation at ambient temperatures from -5 °C to +45 °C and can withstand extreme storage conditions from -15 °C to +65 °C. It is suitable for data centers, server rooms, network cabinets and industrial IT environments where reliable and standards-compliant power distribution is required. The compact dimensions of 437.4 x 44.5 x 47 mm and the 19" form factor make it compatible with almost all common server racks on the market. A relative humidity of up to 95% (non-condensing) and a maximum operating altitude of up to 3,000 m underline the versatile applicability of the PDU. Whether in a small office server room or a large data center – the Bachmann IT PDU power strip with 9x recessed sockets (green) reliably supplies power where it is needed. The combination of a robust aluminum housing, standards-compliant design and easy rack mounting makes it the first choice for IT professionals who value quality and operational reliability.
