Bachmann IT PDU vertical power strip 24xC13 6xC19 6xLS ALU 1U (800.2338)
Power strip for server rack

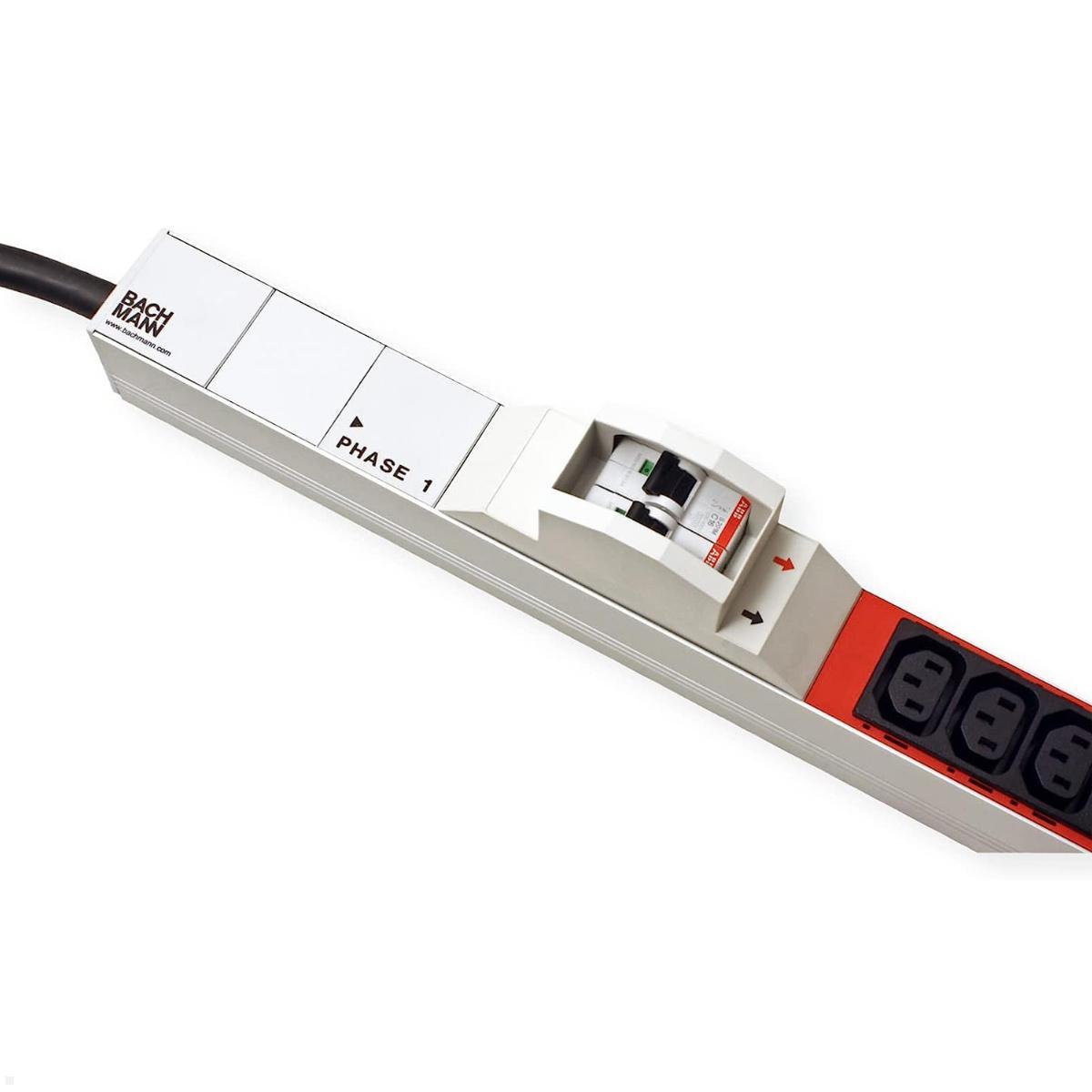

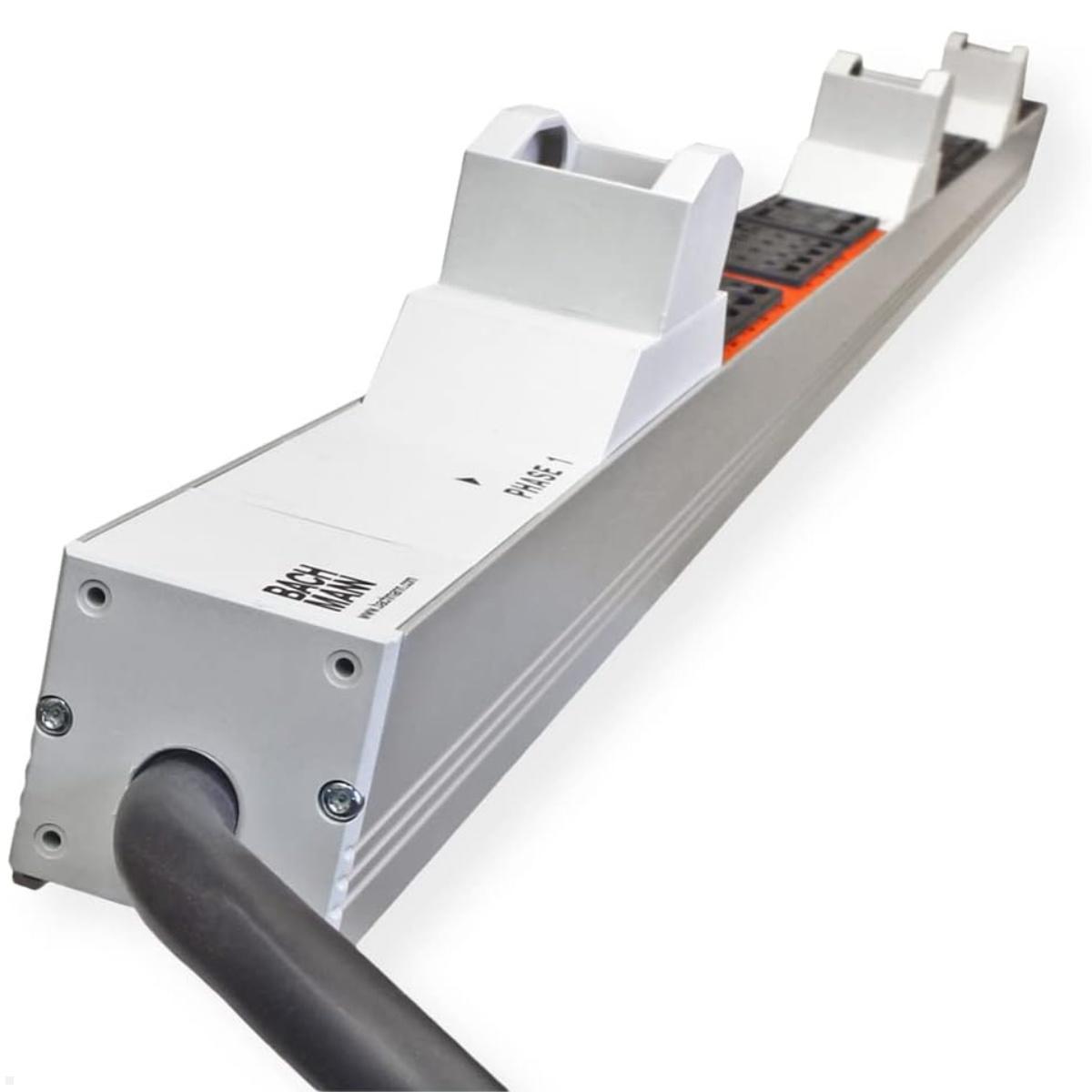

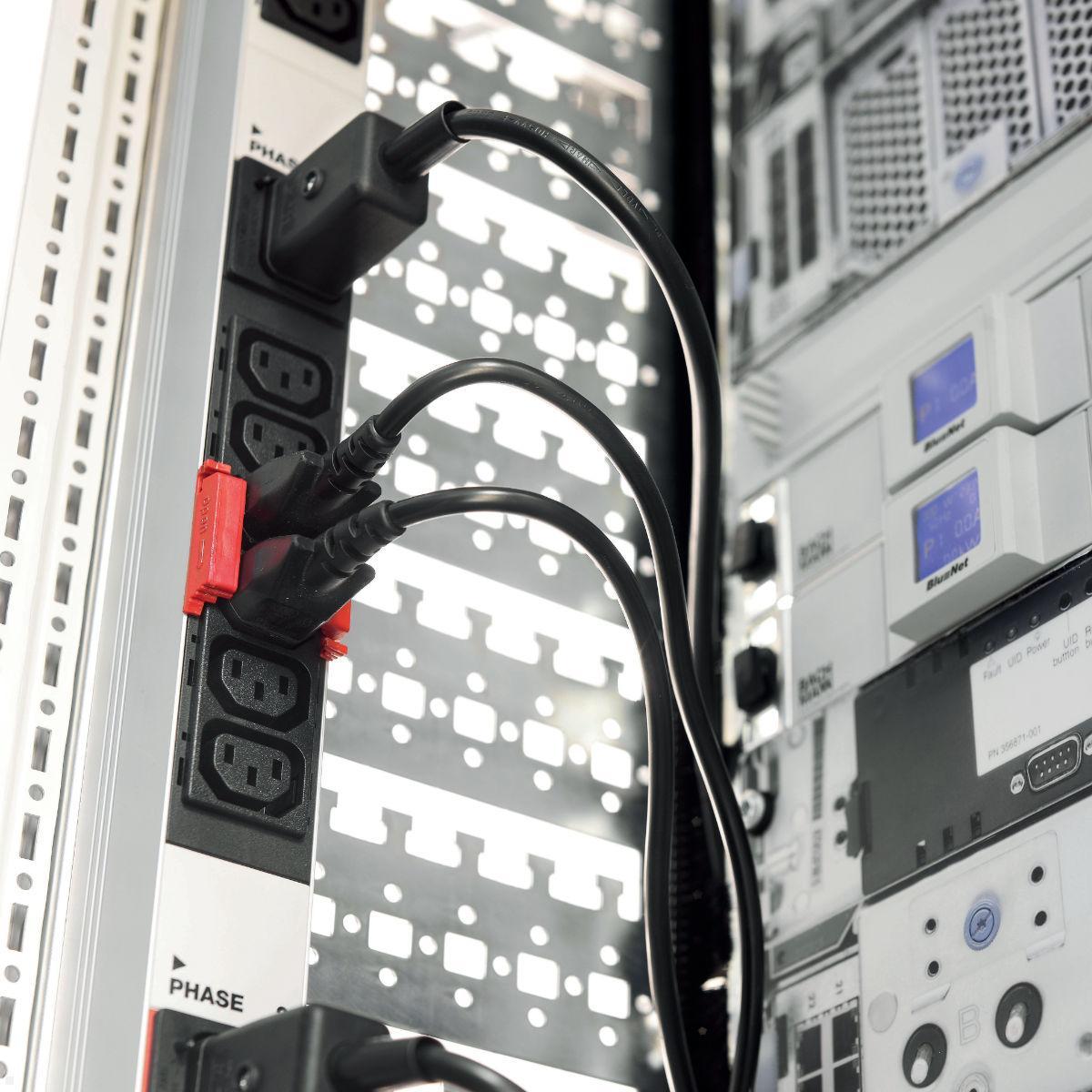

With the IT PDU Basic series, Bachmann offers a highly efficient power distribution in the data center, server cabinet or network rack. The power strip in the stable aluminum profile is designed for vertical mounting in the server rack and impresses with its compact dimensions. The space-saving design leaves enough room for data cabling and air ducting. In total, the Power Distribution Unit is equipped with 24x C13 sockets, 6x C19 sockets as well as 6 circuit breakers, which are distributed over 3 color-coded phases. 2 enclosed mounting brackets facilitate the mounting.
Key features Bachmann IT PDU 1HE Basic Vertical power strip 24xC13 6xC19 6xLS (800.2338)
- Space-saving and modular expandable power distribution for server rack / network cabinet
- Rated current / rated voltage: 32A / 400V
- Frequency: 50 / 60Hz
- 24x C13 cold socket, 6x C19 cold socket, 6x circuit breaker

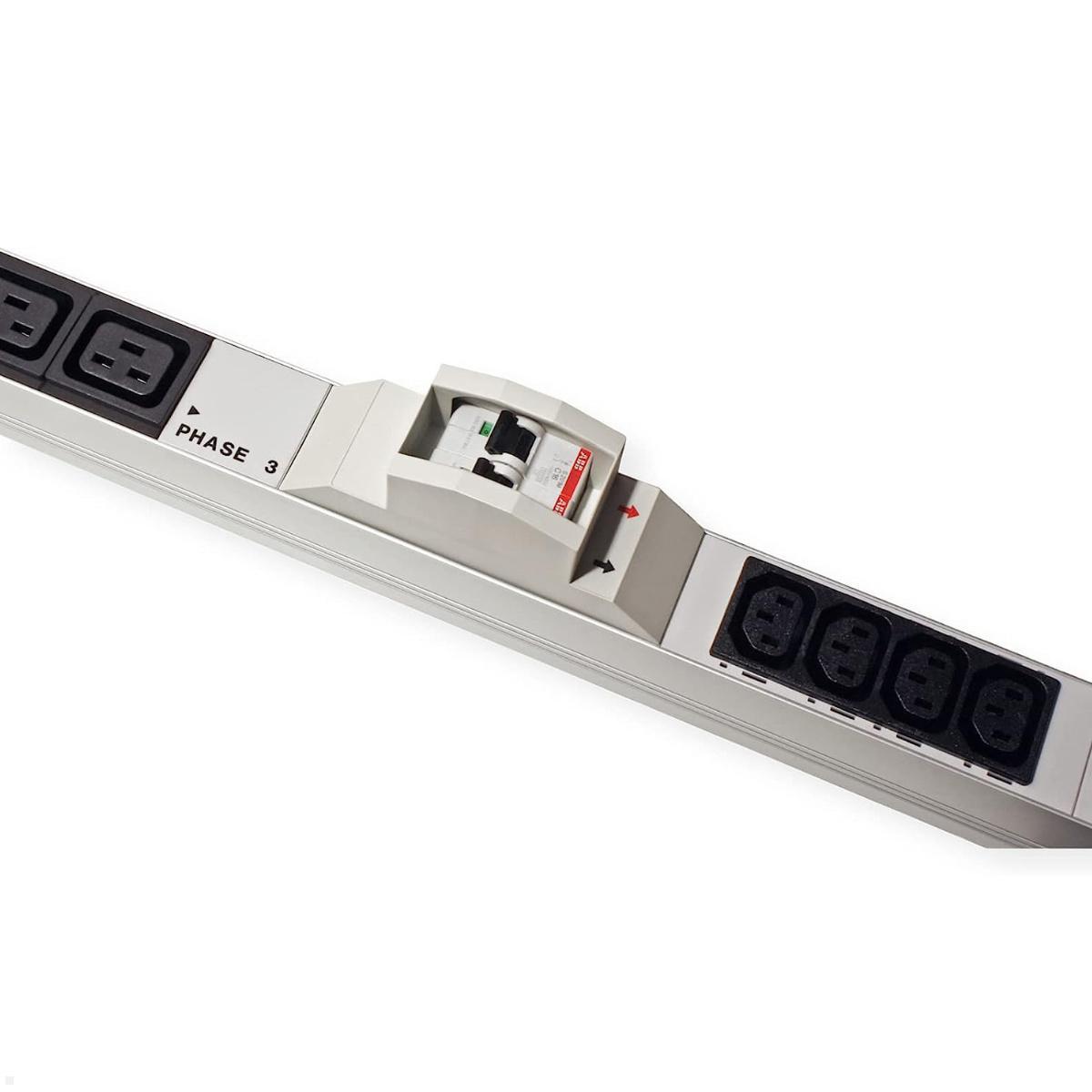

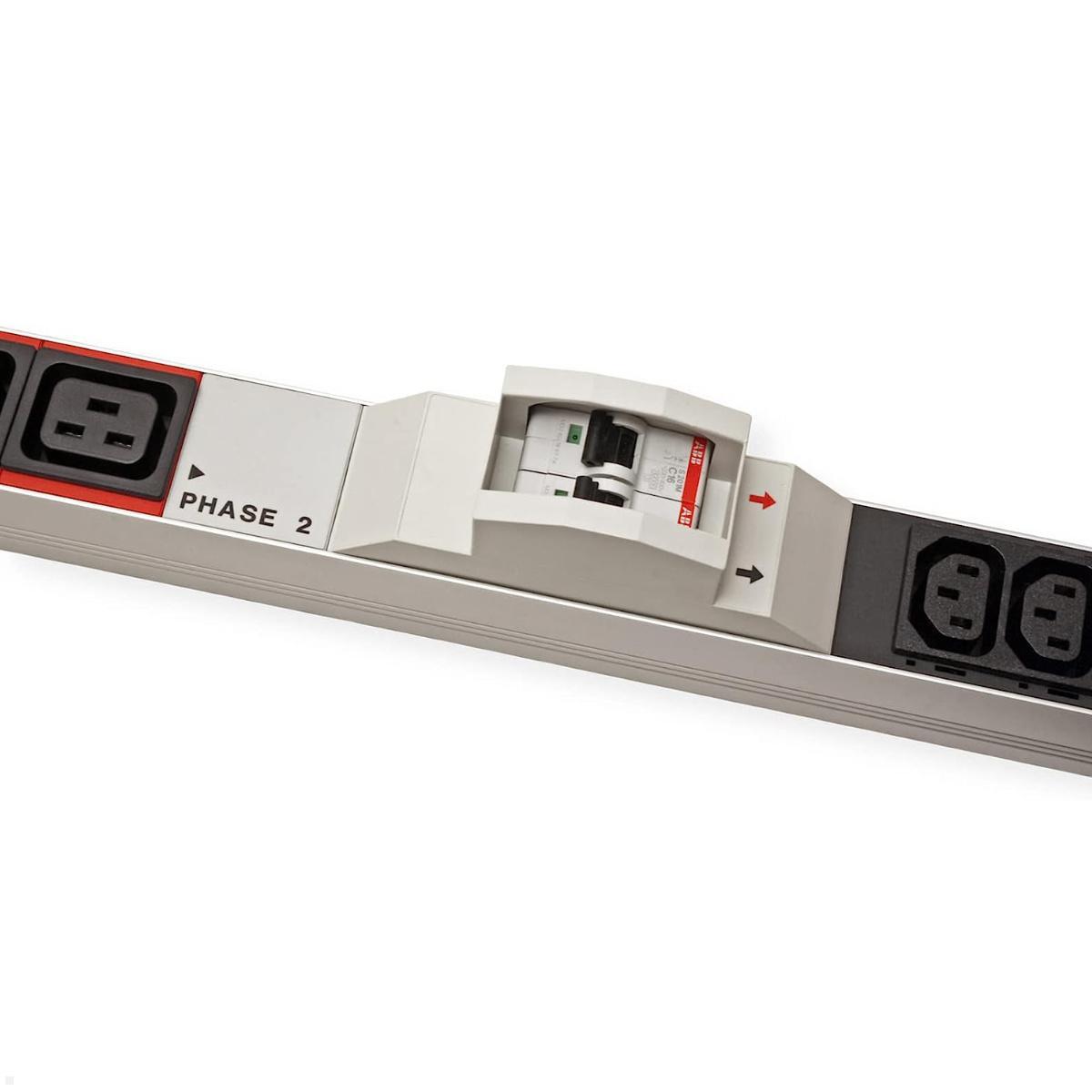

- Divided into 3 color-coded phases with 8x C13 2x C19 2x LS each
- Supply line: 3,0m H05VV-F 5G4,0mm² with CEE plug 3-phase 32A
- Protection class: IP20
- Dimensions (WxHxD): 44 x 1586 x 47 mm
- Platform: 1HE
- Profile: Vertical mounting
- Incl. 2 mounting brackets
- Material housing: Anodized aluminum
- Material cover: plastic
Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips must be checked every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be checked annually. Further information can be found in the download area under "Manufacturer's declarations"
| Product sheet: |  [pdf] |
|---|---|

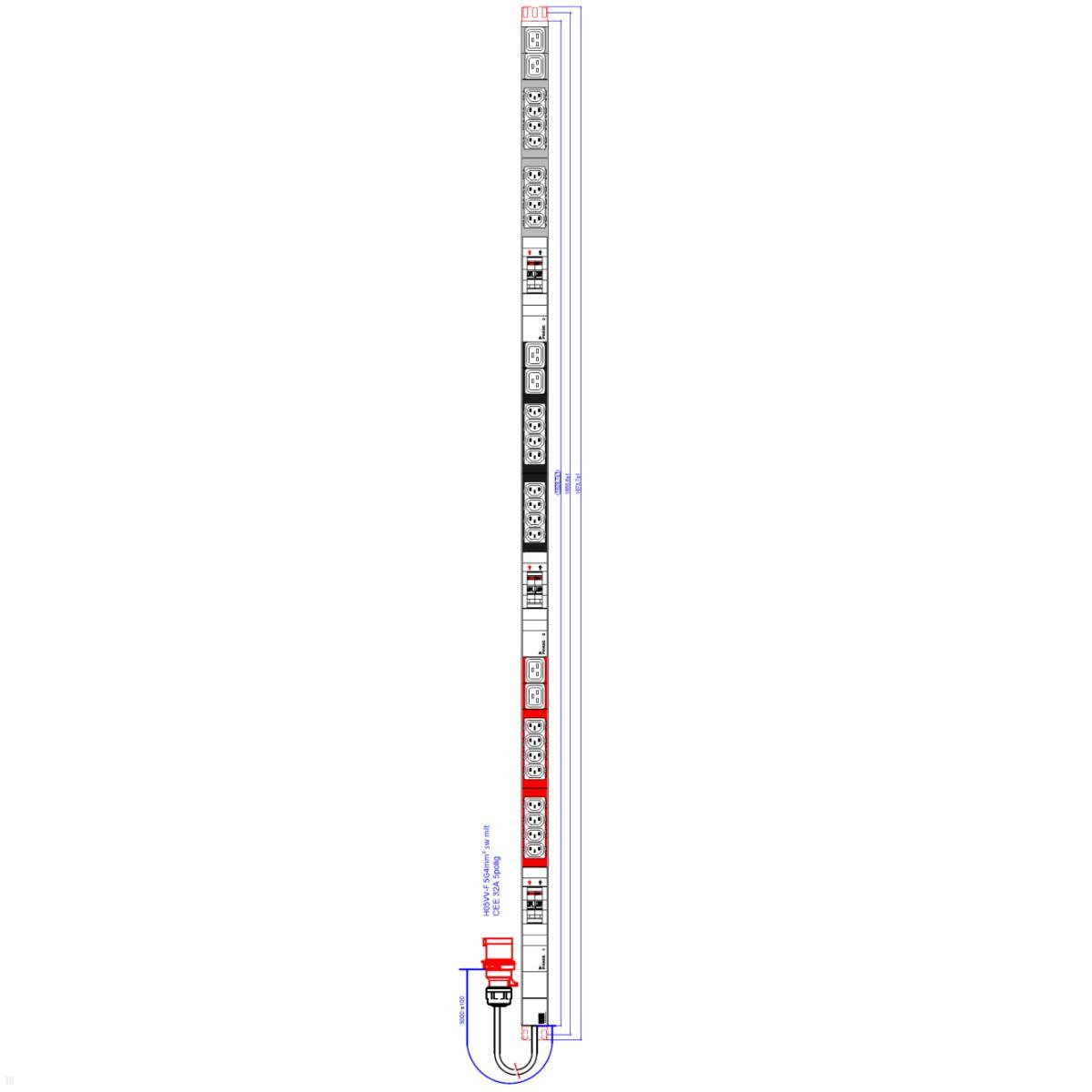

| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Packaging dimensions (LxWxH in mm): | 1590 x 40 x 50 |
| Scope of delivery: | 1x ALU 1HE VM power strip | 2x mounting bracket |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 24 |
| color: | Others |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
