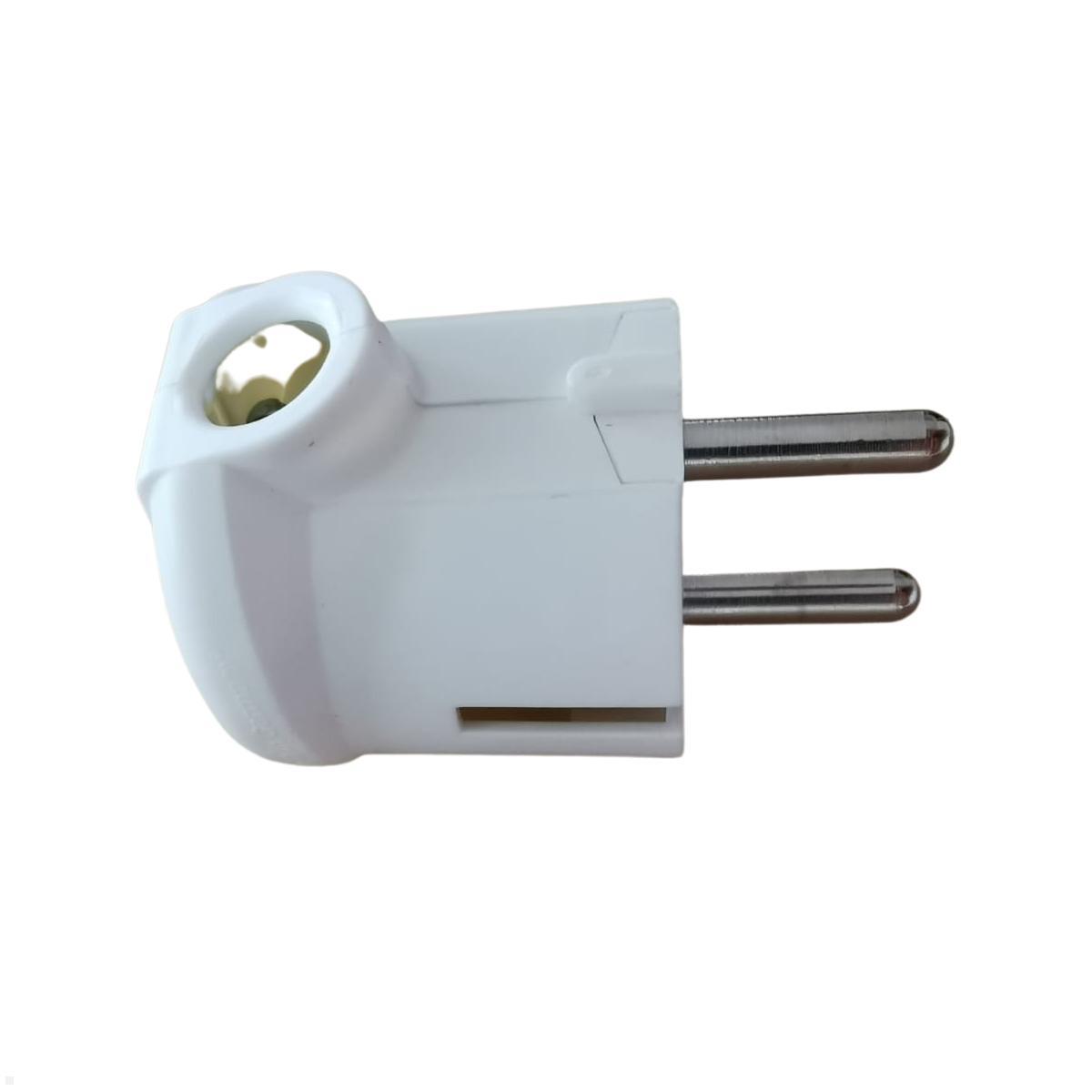

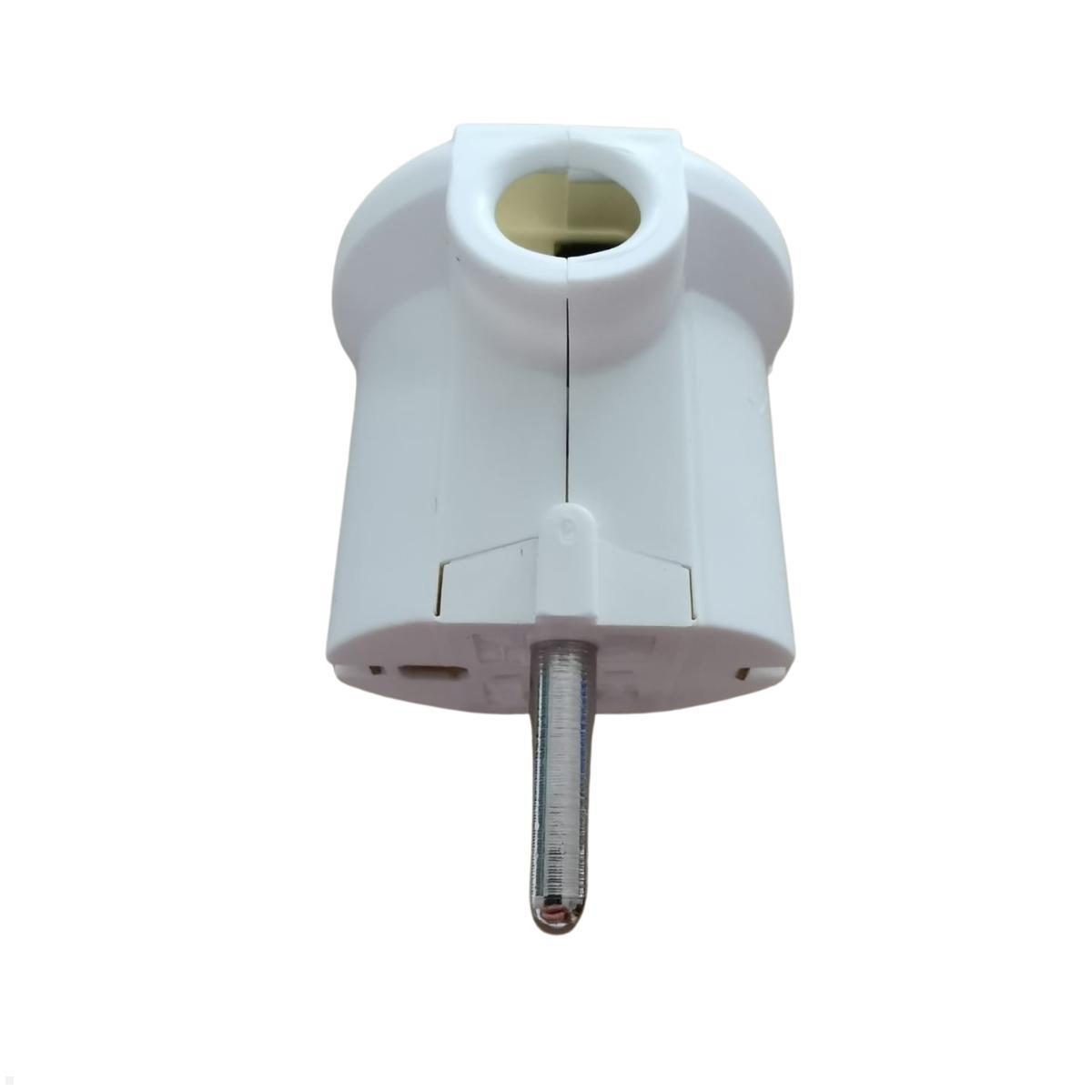

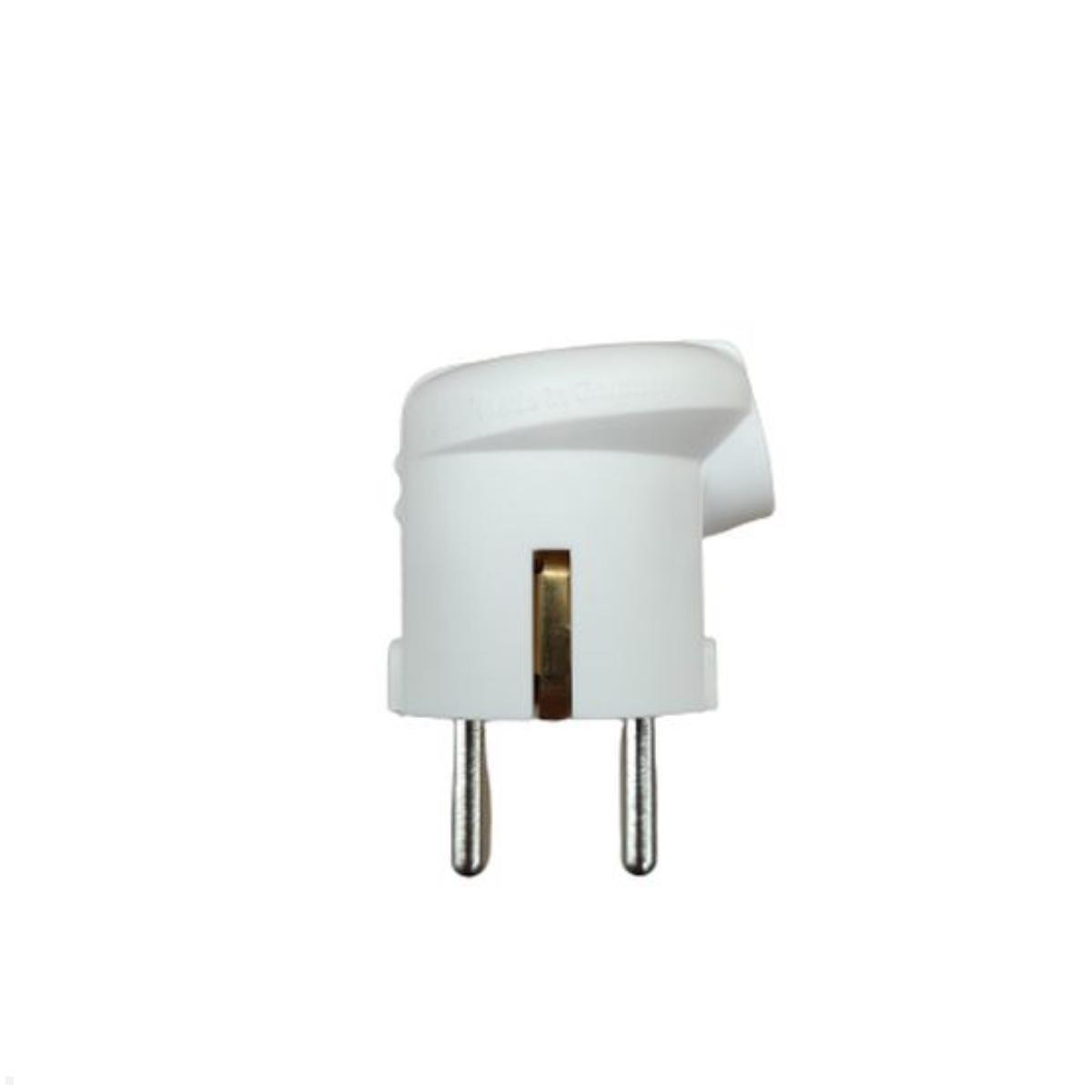

Bachmann protective contact angled plug 90 degrees, white (911.276)
The Bachmann 90 degree angle plug in white (911.276) is suitable for connecting cables from 0.75 to 2.5 mm². It is robustly made and can be installed quickly and easily.
Protective contact angled plug
The earthing protective angled plug 90 degrees from Bachmann (911.276) is designed for fixing 0.75 to 2.5 mm² cables. For a quick installation of the cables inside, only the screws need to be loosened. The contact angle plug has protection class I and is made of high-quality, unbreakable plastic.
Key features Bachmann - earthing contact right-angle plug / mounting plug 90° (911.276)
- Length: 58.6 mm
- Width / diameter: 36.5 mm
- Weight: 0.03 kg
- Connection cable: 0.75 to 2.5 mm²
- Design: SCHUKO
- Material: plastic / thermoplastic
- Plug-in direction: Right-angled
- Connection system: Screw terminal
- Number of poles: 2
- Rated voltage: 250 V
- Rated current: 16 A
- Finish: white (similar to RAL 9010)
| Product sheet: |  [pdf] |
|---|---|

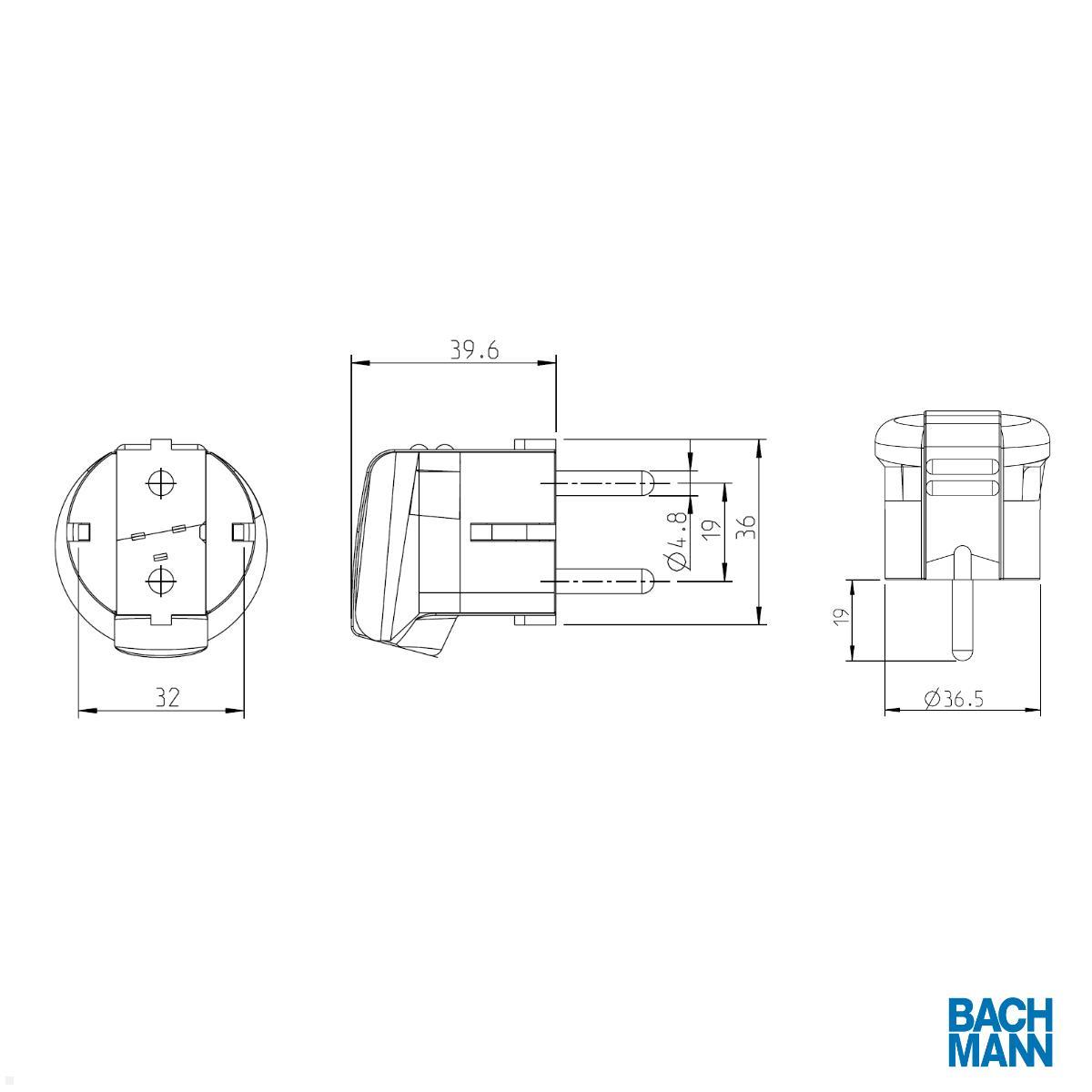

| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Suitable for: | Connection cable from 0.75 to 2.5 mm² |
| Packaging dimensions (LxWxH in mm): | 270 x 230 x 50 |
| Scope of delivery: | 1x Protective contact angled plug |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Weiß |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
