Bachmann protective contact angled plug with switch, black (911.171)
Earthing contact plug with switch
The earthing contact plug with switch from Bachmann (911.171) is designed for mounting on 3G 1.5 mm² cables. Equipped with a 2-pole rocker switch, it is convenient to handle in everyday use. The black angled plug has IP20 protection and is made of high-quality processed, break-resistant plastic. To quickly attach the cables inside, you only need to loosen the screws.
Key features Bachmann mounting plug black (911.171)
- Rated current: 16A / 250V
- Frequency: 50 Hz
- Supply cable: suitable for H05VV-F 3G 1.5 mm² cables
- Plug: CEE 7/7 (type E/F)
- Switch: rocker switch, 2-pole
- Protection type: IP20
- Dimensions (WxHxD): 52 x 66 x 75 mm
- Material: unbreakable polycarbonate
- Color: black (similar to RAL 9005)
| Product sheet: |  [pdf] |
|---|---|

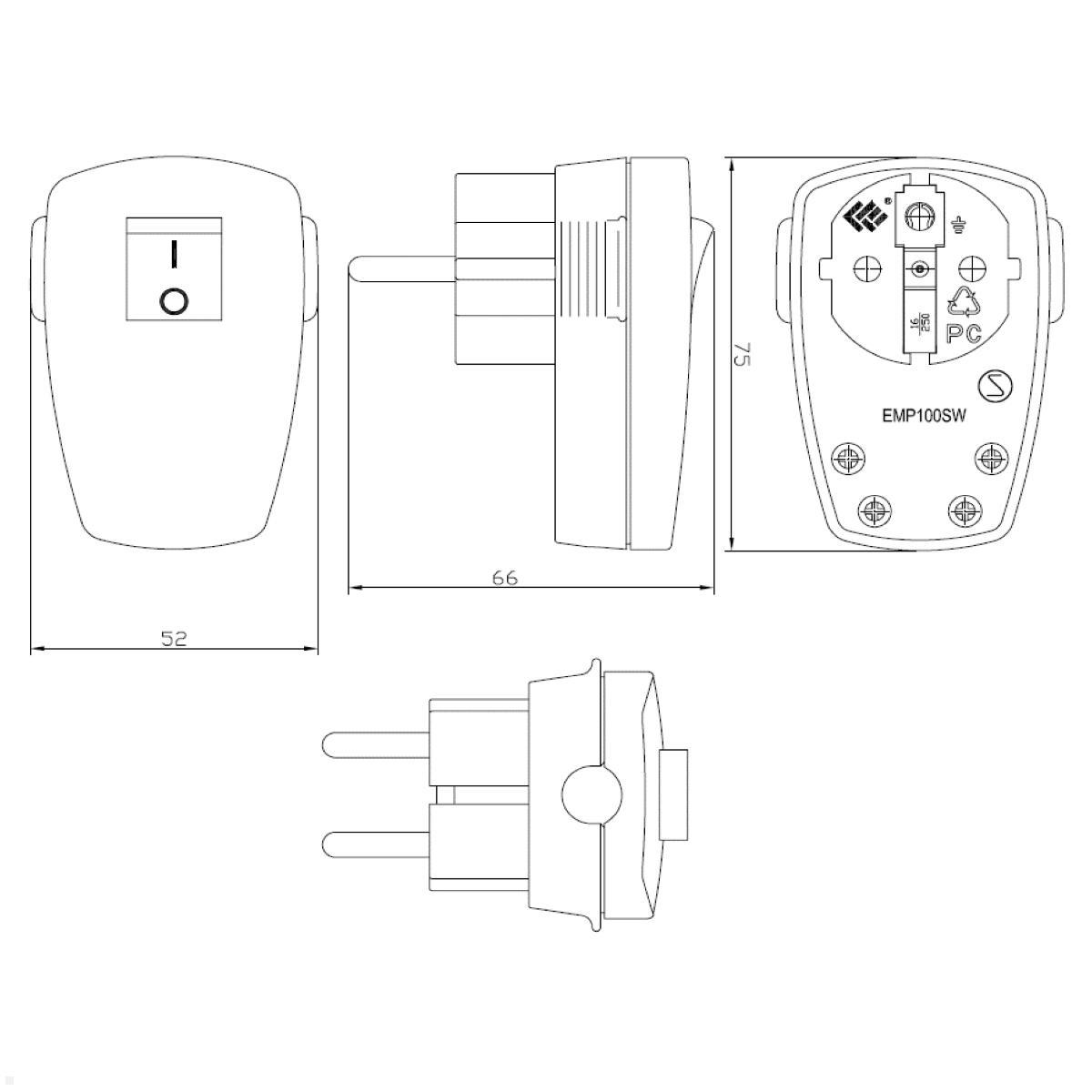

| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Suitable for: | H05VV-F 3G 1,5 mm² cables |
| Packaging dimensions (LxWxH in mm): | 270 x 230 x 50 |
| Scope of delivery: | 1x protective contact angle plug with switch |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
