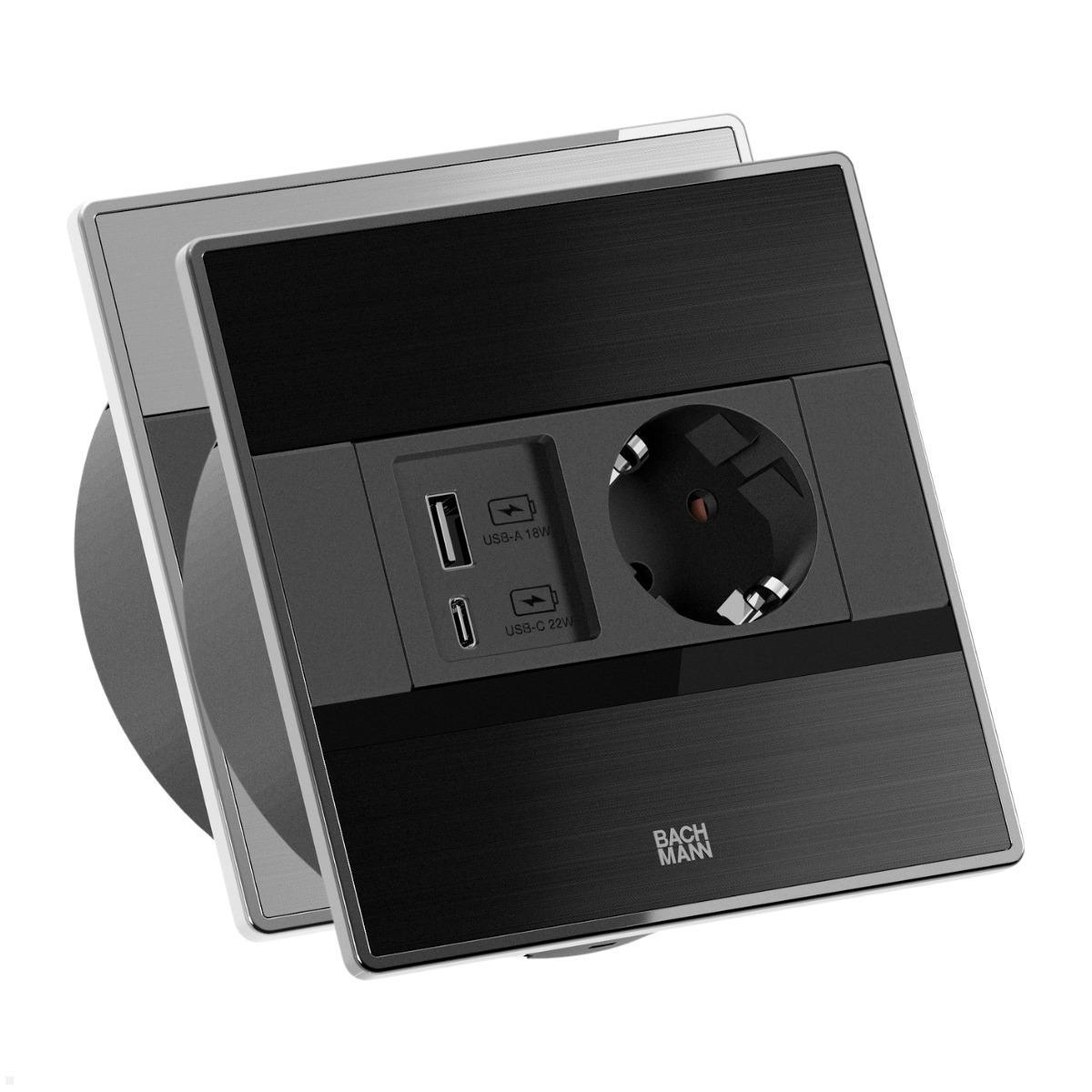

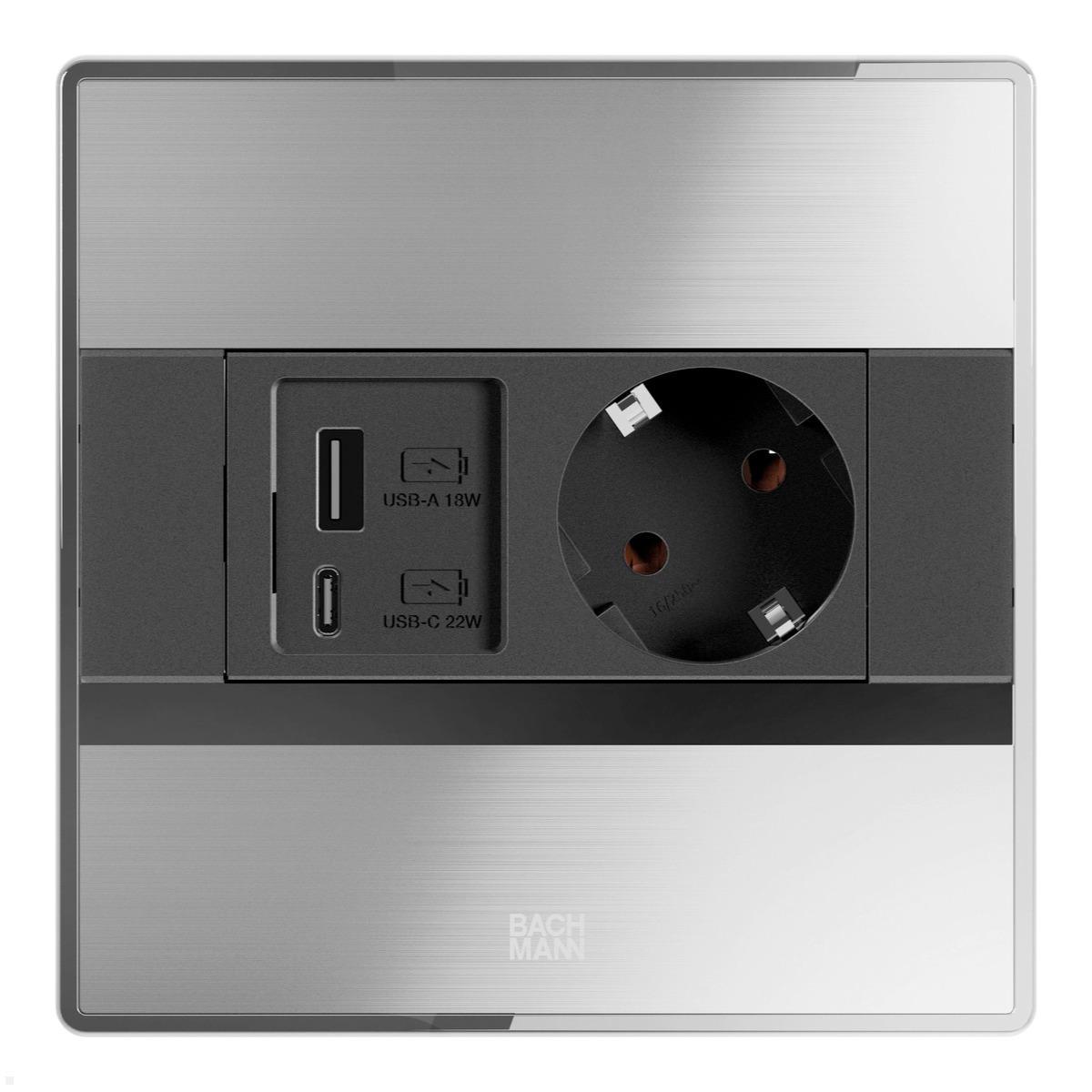

Bachmann SENSE built-in socket 1x socket, 1x USB-A, 1x USB-C
Highlights
- Automatic opening and closing via proximity sensor – no button press required
- 1x Schuko socket CEE 7/3 (Type F) with enhanced touch protection
- Integrated 22-watt USB-A/C charger for fast charging of smartphones and tablets
- Only 40 mm installation depth – even fits above drawers
- Lock function via 3-second touch, stainless-steel look design, IP20
Bachmann SENSE built-in socket – the smart kitchen outlet with USB-A and USB-C fast charging

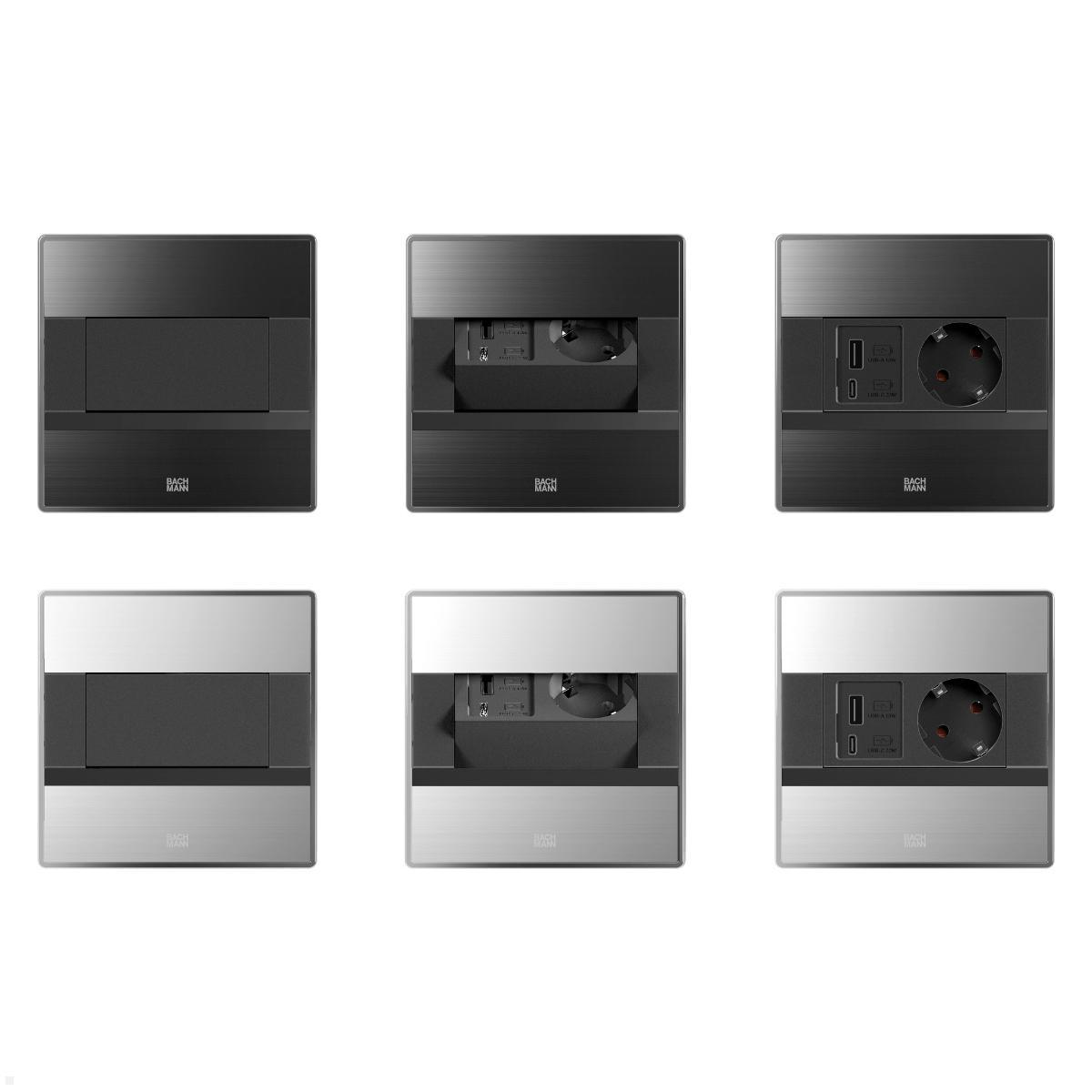

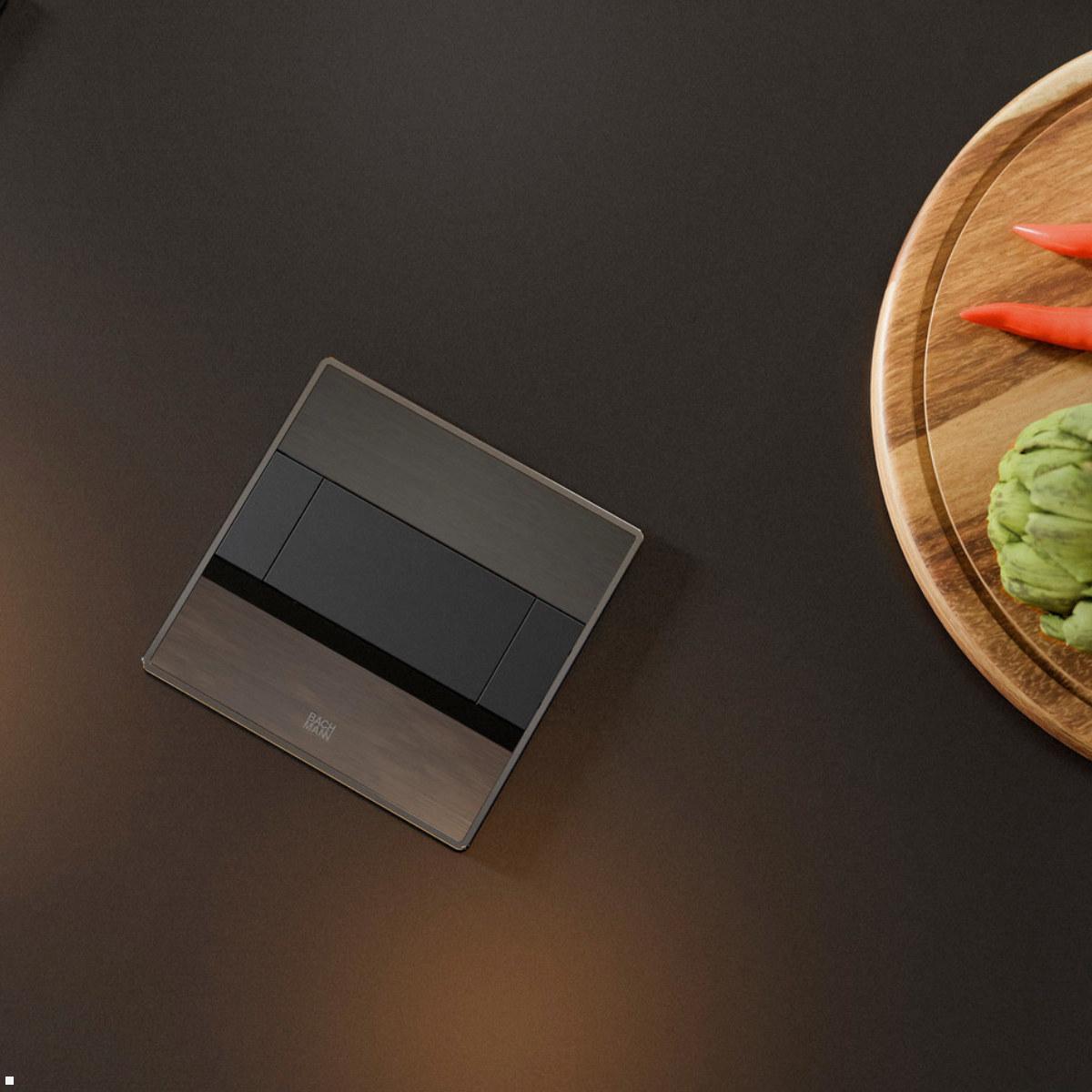

The Bachmann SENSE built-in socket (BM0016392) is the first intelligent built-in socket for kitchens with automatic sensor control – and thanks to the integrated 22 watt USB-A/C charger it simultaneously fast-charges smartphones, tablets and more. Without any button press, SENSE detects when it is needed via a high-precision proximity sensor and automatically opens the protective-earth socket as well as the USB ports. When no device is plugged in, it closes smoothly and automatically again. No smudged surfaces, no manual opening.

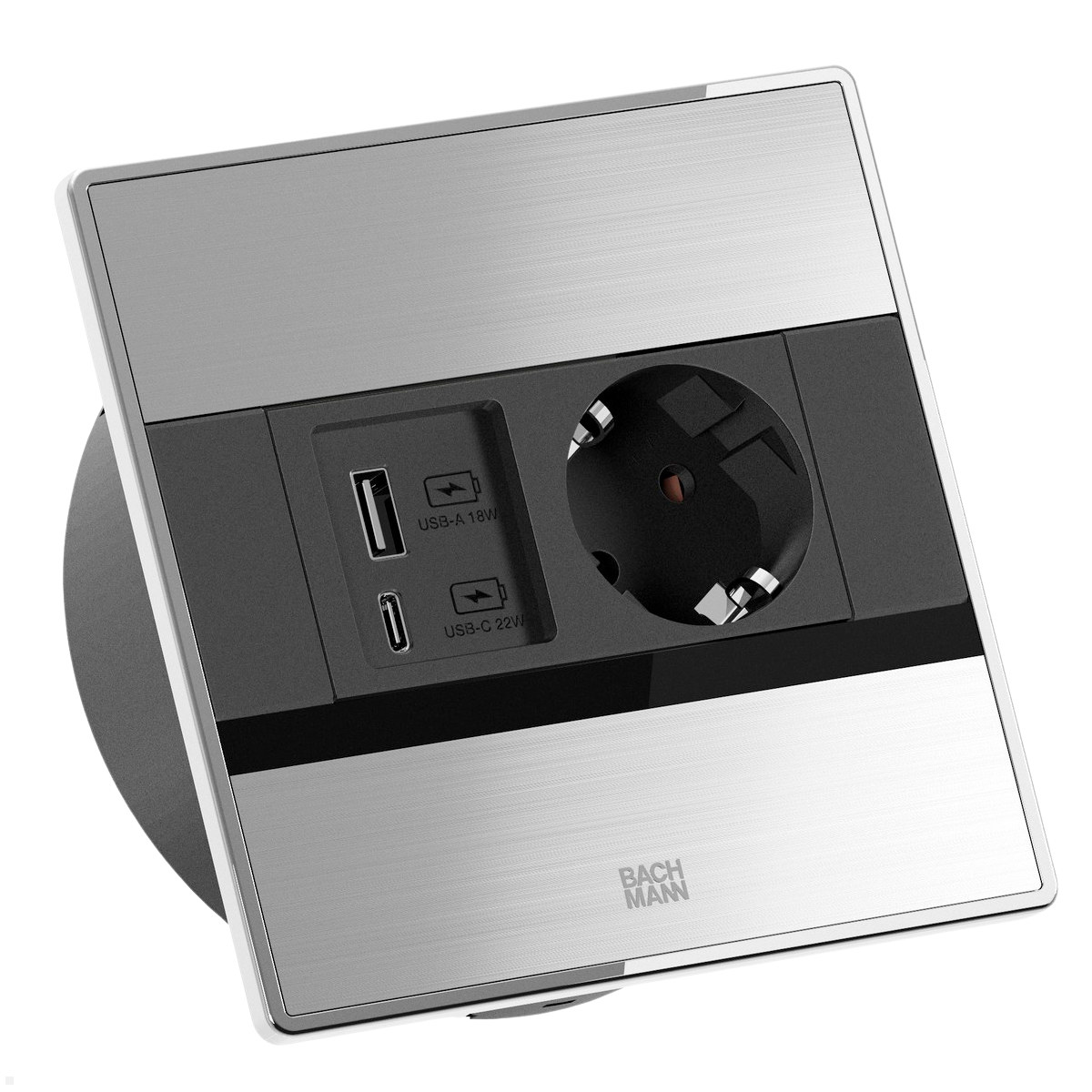

With an installation depth of only 40 mm and the compact dimensions of 129 x 129 mm, the Bachmann SENSE even fits above drawers – a real innovation compared to classic power strips or tower sockets. The integrated lock function can be activated by a 3-second touch, ideal for cleaning the worktop. The timeless design in stainless-steel look meets the highest standards in modern kitchens.

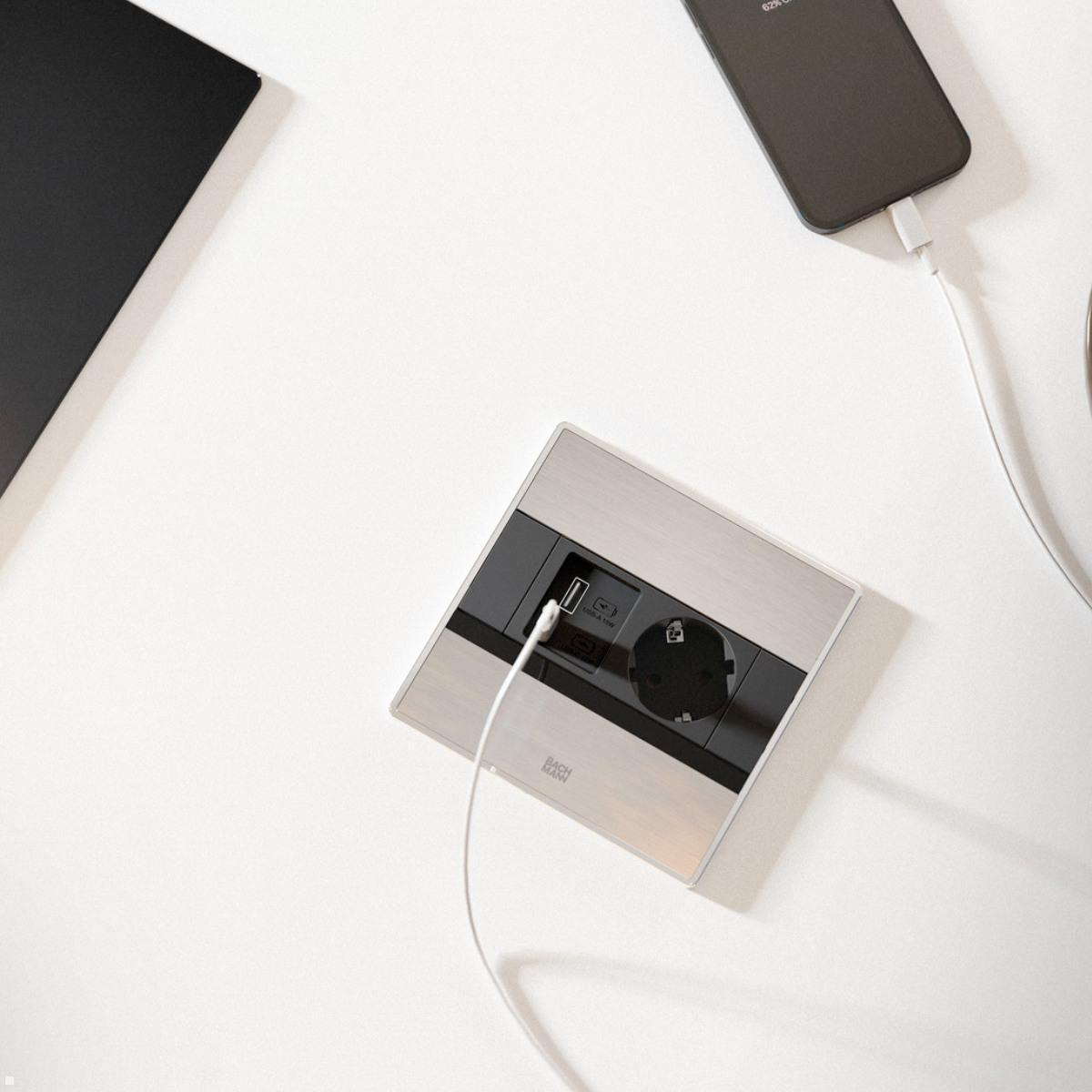

Ideal for kitchens, islands and worktops – wherever smart power supply and fast USB charging need to be combined in a space-saving way.
Technical details Bachmann SENSE built-in socket 1x socket with USB-A and USB-C charger
- Sockets: 1x protective-earth socket CEE 7/3 (Type F) with enhanced touch protection
- USB ports: 1x USB-A port, 1x USB-C port (22 watt USB-A/C charger)
- Sensor control: automatic opening and closing via proximity sensor
- Lock function: Yes (touch for 3 seconds to activate/deactivate)
- Installation depth: 40 mm

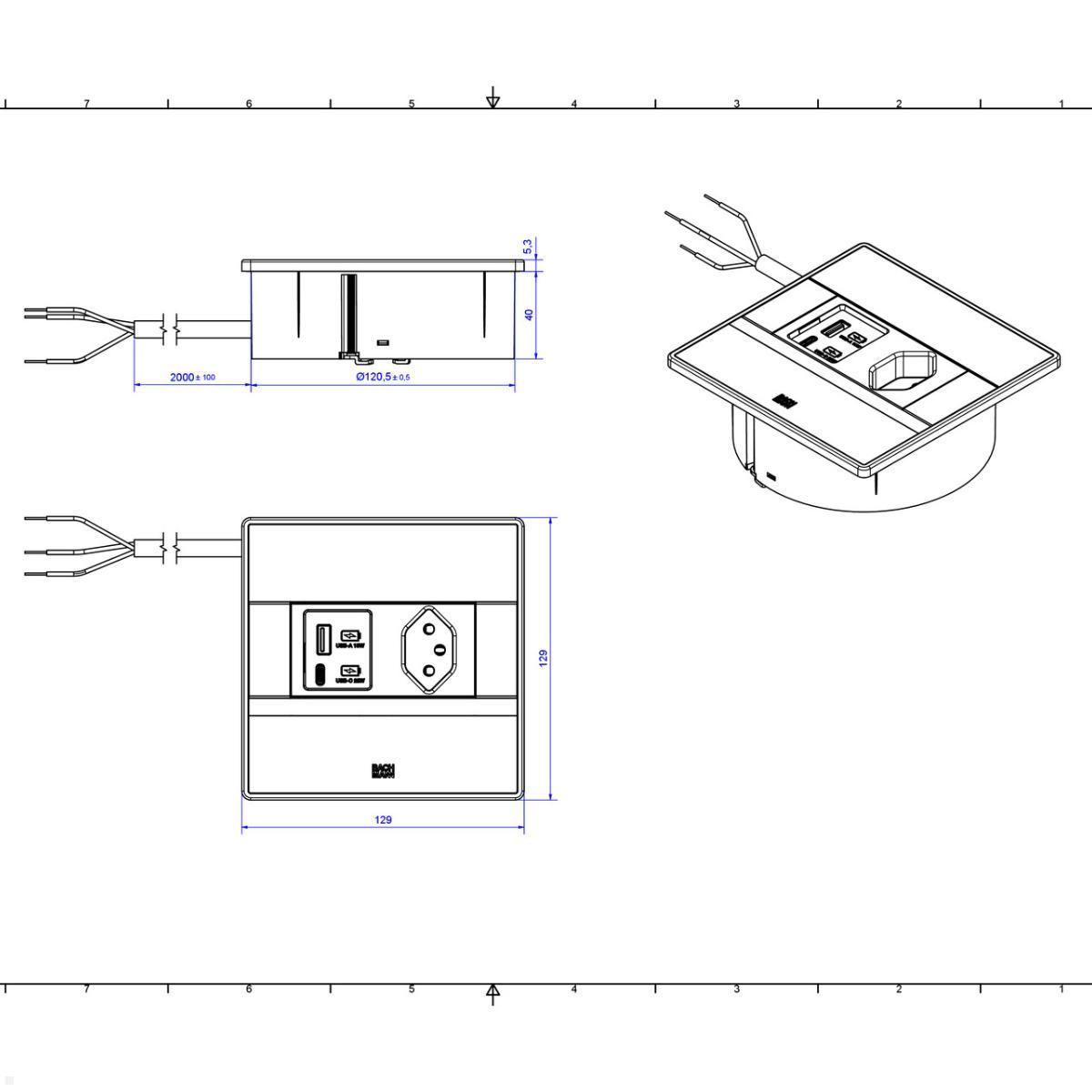

- Dimensions (L×W×H): 129 x 129 x 45 mm
- Weight: 0.65 kg
- Protection rating: IP20
- Rated voltage: 250 V
- Operating temperature: 5–35 °C
- Version: built-in, square
- Material: plastic
- Supply cable: 2.0 m H05VV-F3G1,5mm² black with ferrules and protective-earth assembly plug
- Surge protection: No
| Product sheet: |  [pdf] |
|---|---|
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Contains installation material: | + |
| Warranty: | 3 years |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 1 |
| RCM-Differenzstrommessung: | Nein |
| Schalten: | Nein |
| USB-Charger: | USB A/C |
| Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Bachmann SENSE in-wall socket?
The Bachmann SENSE in-wall socket is the first intelligent built-in kitchen socket with automatic sensor control, and it charges devices quickly via the integrated 22W USB-A/C charger.
-
What ports does it have?
It has 1x protective socket (CEE 7/3 Type F) and 1x USB-A port and 1x USB-C port (22W USB-A/C charger).
-
How does the sensor control work?
It opens and closes automatically via a proximity sensor; it detects when a device is needed and opens the socket and USB ports, and it closes again when no device is plugged in.
-
How do you use the lock function?
The lock function can be activated or deactivated with a 3-second touch, ideal for cleaning the workspace.
-
What are the dimensions and installation depth?
Installation depth is 40 mm. Overall dimensions are 129 × 129 × 45 mm (L × W × H); weight about 0.65 kg.
-
Where is it suitable?
Ideal for kitchens, islands and work surfaces where smart power and fast USB charging are desired.
-
What are the technical specifications?
Rated voltage: 250 V; operating temperature: 5–35 °C. IP20 protection; 2.0 m cable (H05VV-F3G1,5mm² black) with protective contact mounting plug; surge protection: No.
What makes the Bachmann SENSE built-in socket with USB special?
The Bachmann SENSE built-in socket combines intelligent sensor control with practical USB fast charging in a single, compact built-in unit. As the first built-in socket for kitchens that opens and closes fully automatically via a proximity sensor, it sets new standards in terms of comfort and hygiene. The integrated 22-watt USB-A/C charger additionally enables fast charging of smartphones, tablets and other USB devices directly at the kitchen worktop – without additional chargers or cable clutter. No pressing, no swiping, no smudged surfaces: the Bachmann SENSE makes power supply in the kitchen as simple and hygienic as never before.
How is the Bachmann SENSE with USB installed?
With dimensions of 129 x 129 mm and an installation depth of only 40 mm, the Bachmann SENSE built-in socket can be integrated into almost any kitchen worktop – even above drawers, which is often not possible with conventional built-in sockets. The supplied 2.0 m long supply cable (H05VV-F3G1,5mm²) with ferrules and protective-earth plug ensures uncomplicated installation. Protection rating IP20 and an operating temperature of 5–35 °C guarantee reliable operation in everyday kitchen use.
Who is the Bachmann SENSE built-in socket with USB-C suitable for?
The Bachmann SENSE built-in socket with USB-A and USB-C is the perfect solution for modern kitchens, kitchen islands and work surfaces where, in addition to kitchen appliances, smartphones and tablets also need charging. The lock function via a 3-second touch makes it particularly family-friendly. The timeless design in stainless-steel look blends seamlessly into high-quality kitchen furnishings – and convinces both in functionality and aesthetics.
