Bachmann SENSE built-in socket 2x socket
Highlights
- Automatic opening and closing via proximity sensor – no button press required
- 2x Schuko sockets CEE 7/3 (Type F) with enhanced touch protection
- Lock function via 3-second touch – ideal for cleaning the work surface
- Only 40 mm installation depth – fits even over drawers

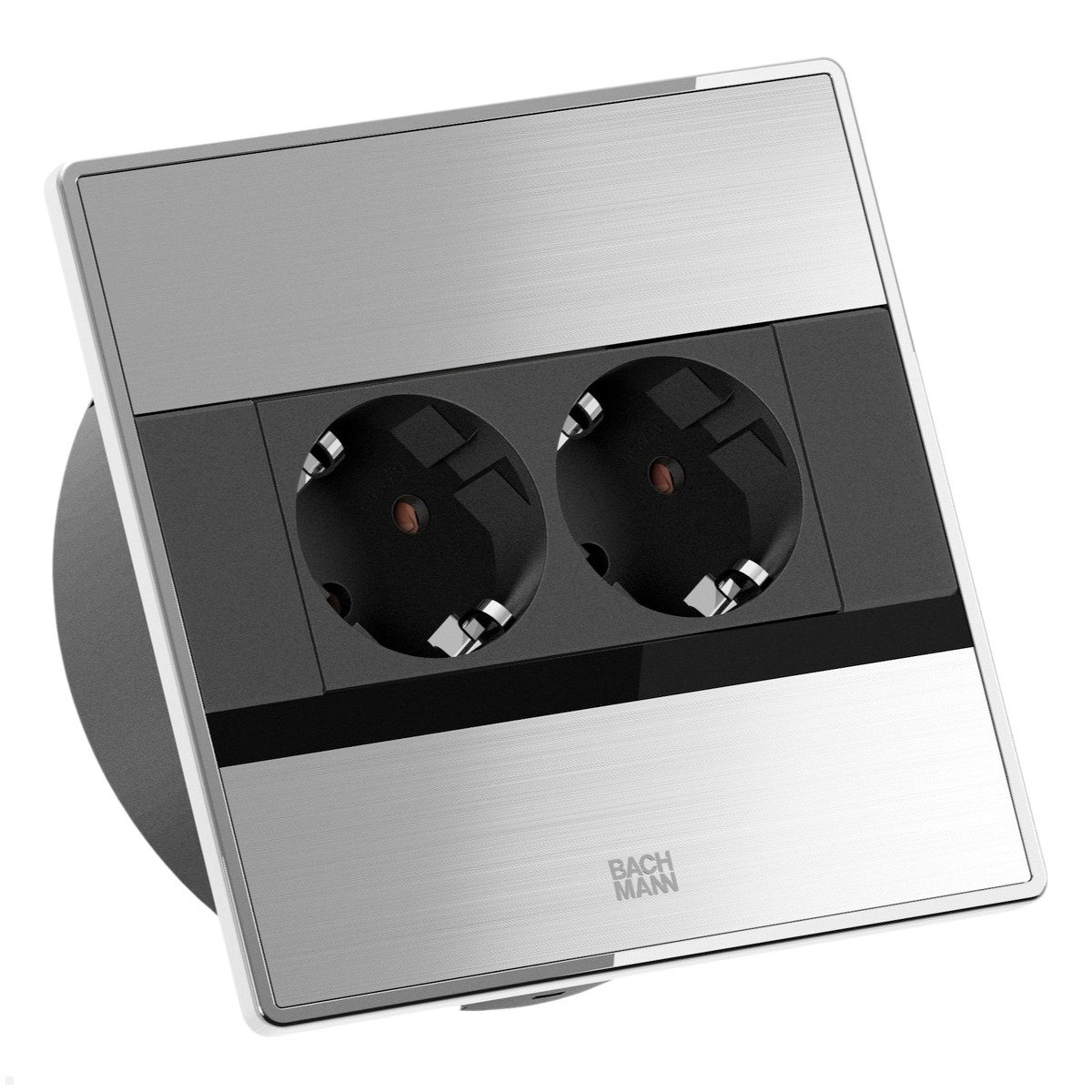

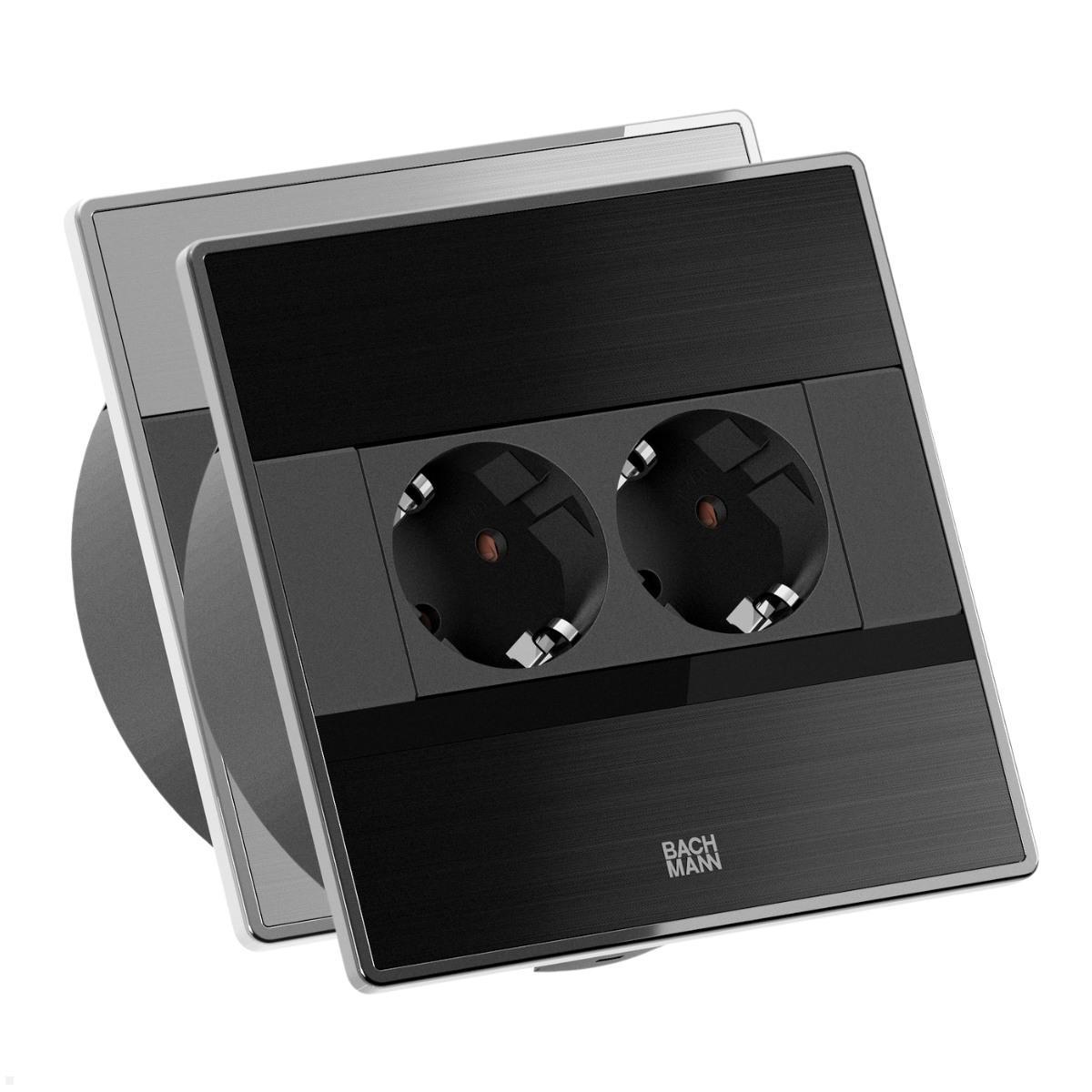

- Timeless stainless-steel look, 129 x 129 mm, IP20

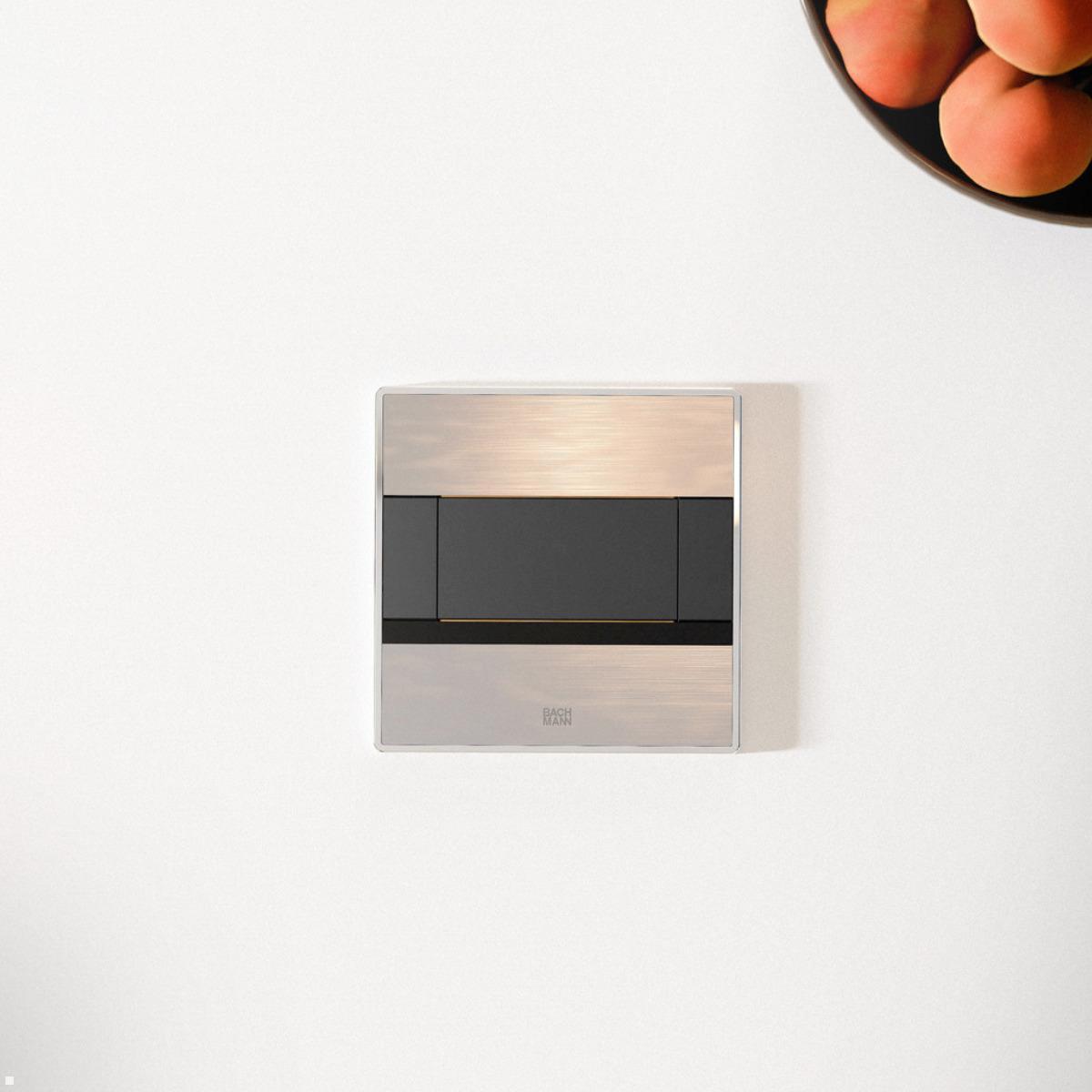

Bachmann SENSE built-in socket – the intelligent kitchen socket with sensor control

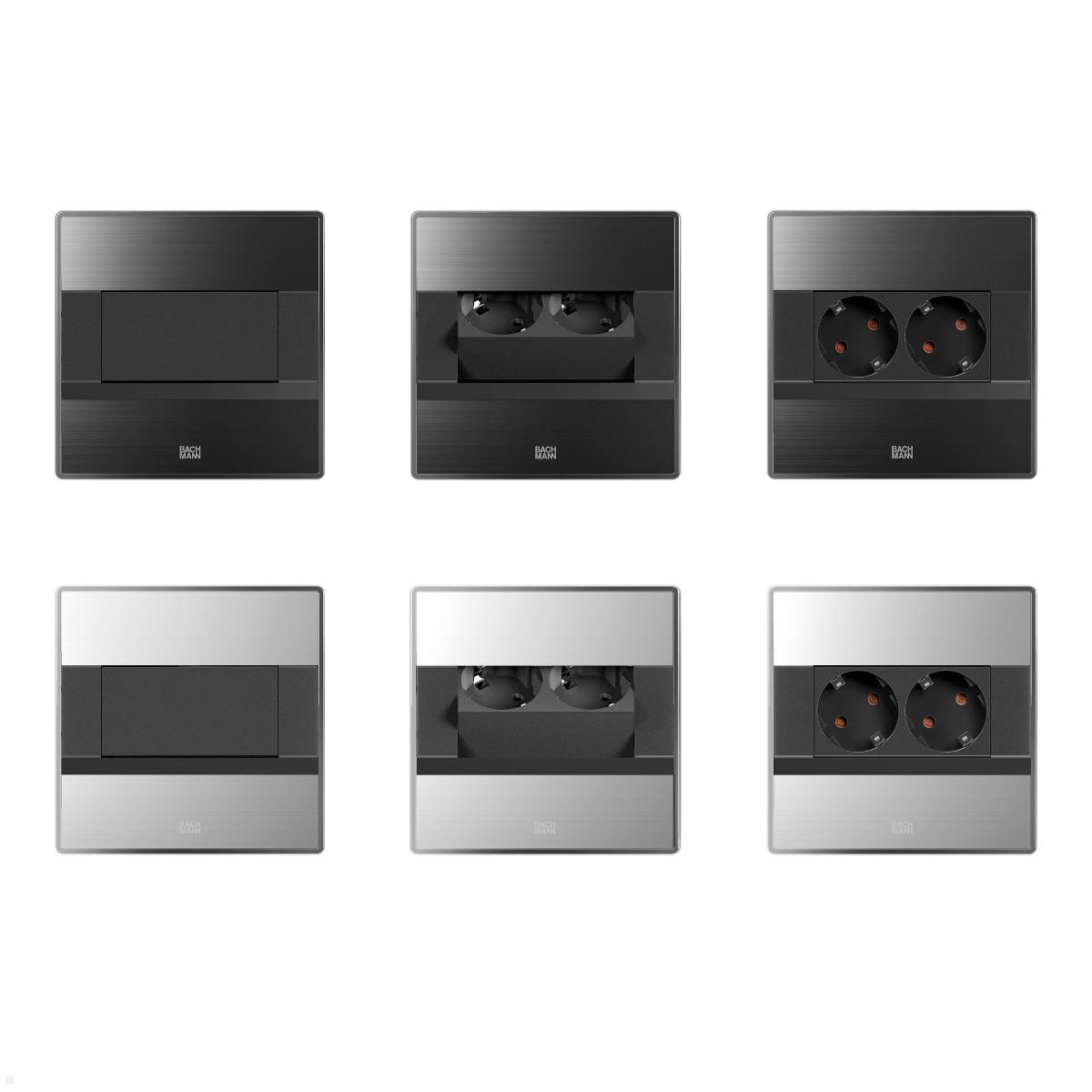

The Bachmann SENSE built-in socket (BM00160171) is the first intelligent built-in socket for kitchens that automatically opens and closes thanks to a highly precise sensor control – completely without pressing a button or touching the surface. As soon as SENSE detects that it is needed, it automatically positions the 2 protective contact sockets for direct access. When no device is plugged in, it closes gently and automatically again. No pressing, no swiping, no smudged surfaces.
With a installation depth of only 40 mm and compact dimensions of 129 x 129 mm, the Bachmann SENSE even fits above drawers – a real innovation compared to classic power strips or socket towers. The integrated lock function can be activated by holding for 3 seconds, ideal for cleaning the work surface. The timeless design in stainless steel look meets the highest demands in modern kitchens.

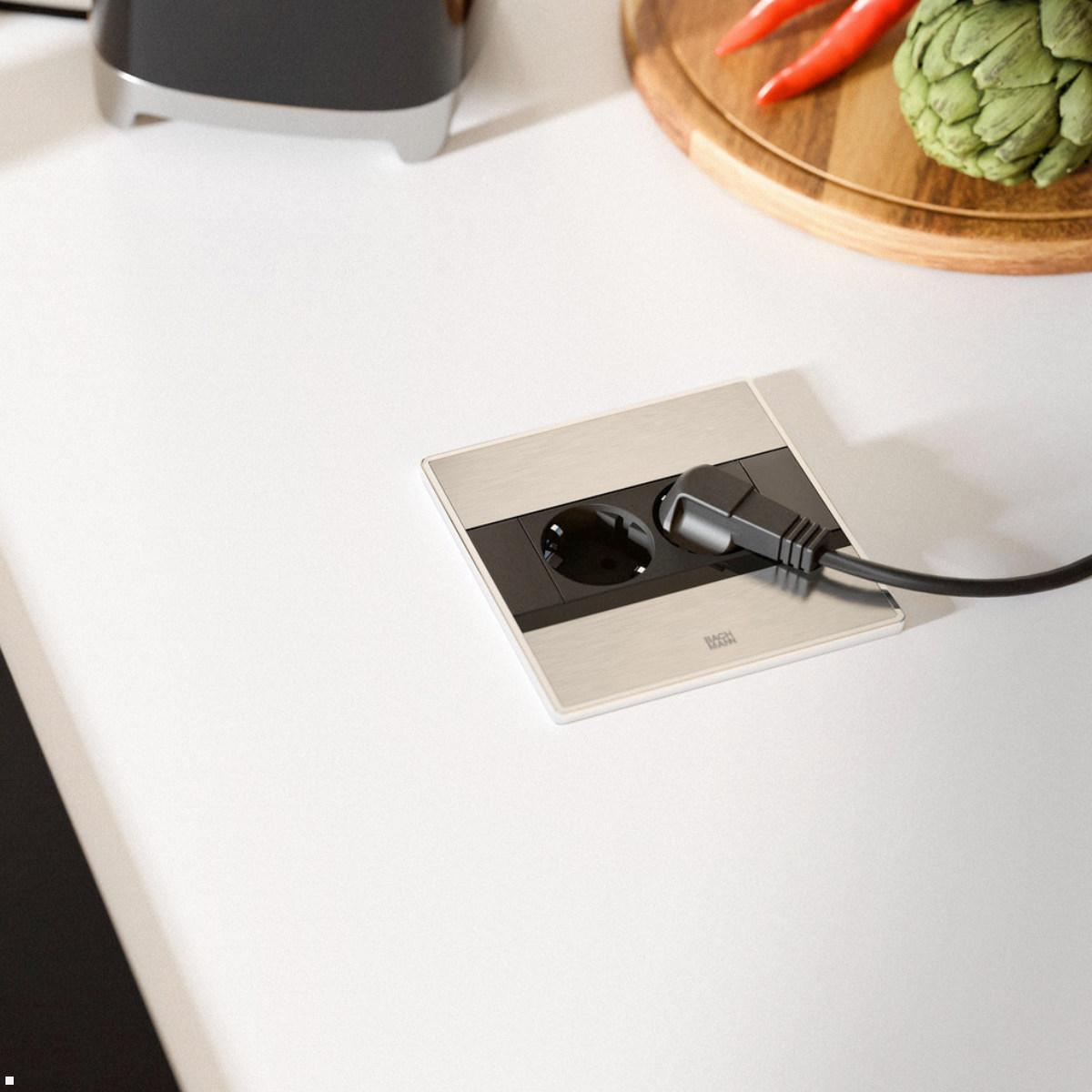

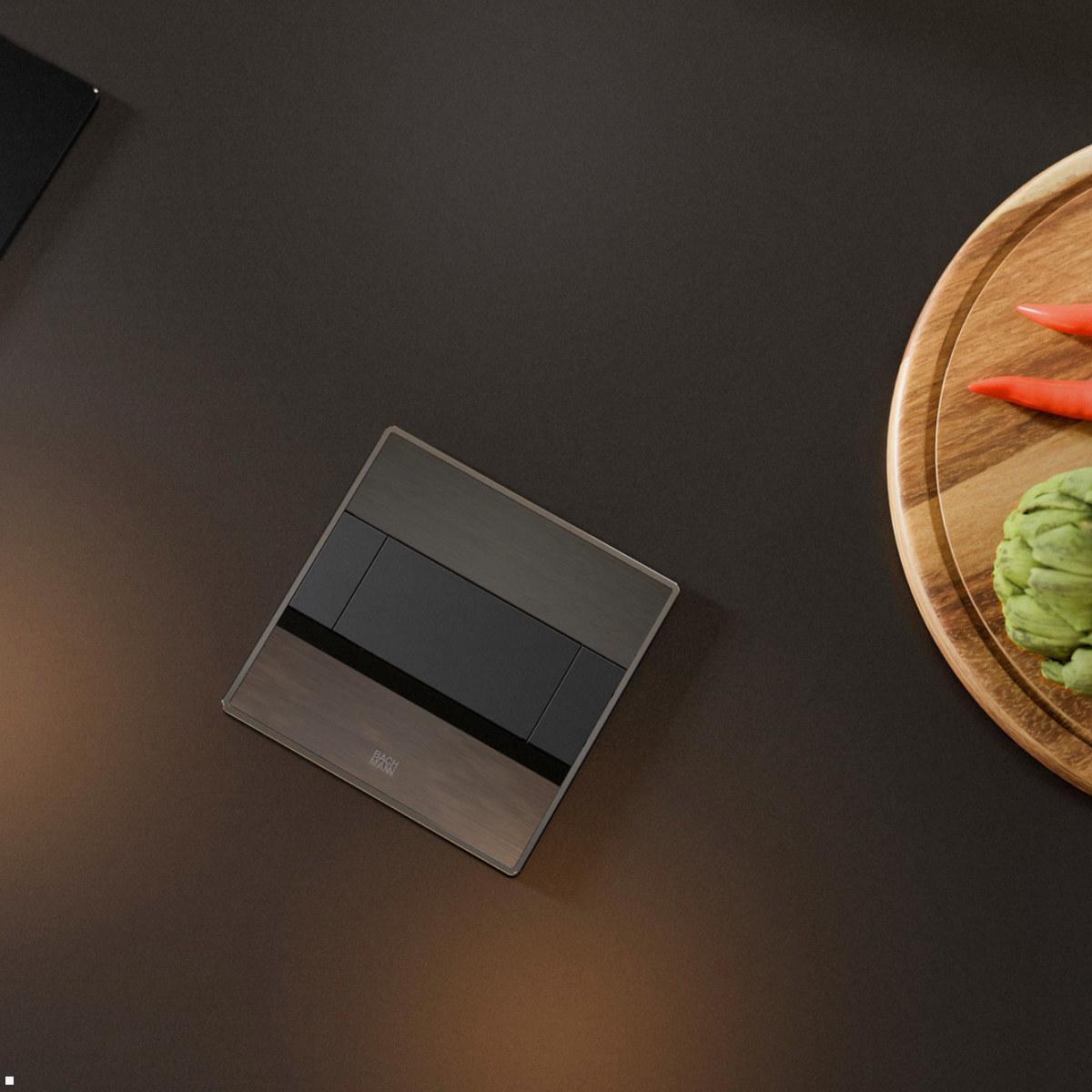

Ideal for kitchens, cooking islands and worktops – everywhere that a smart, space-saving and hygienic power supply is required.
Technical details Bachmann SENSE built-in socket 2x socket with sensor opening

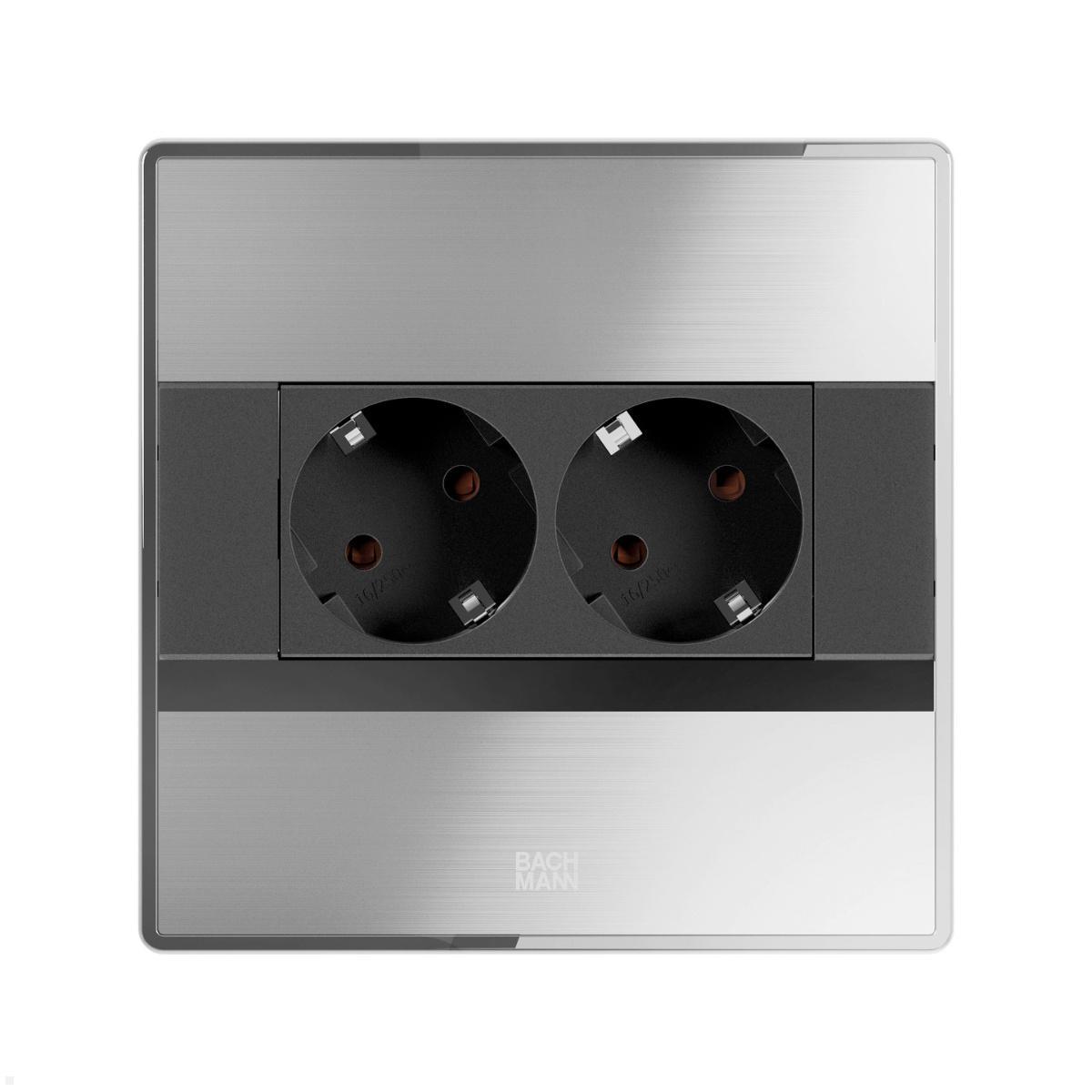

- Sockets: 2x protective contact socket CEE 7/3 (Type F) with enhanced contact protection
- Sensor control: automatic opening and closing via proximity sensor
- Lock function: Yes (3 seconds touch to activate/deactivate)

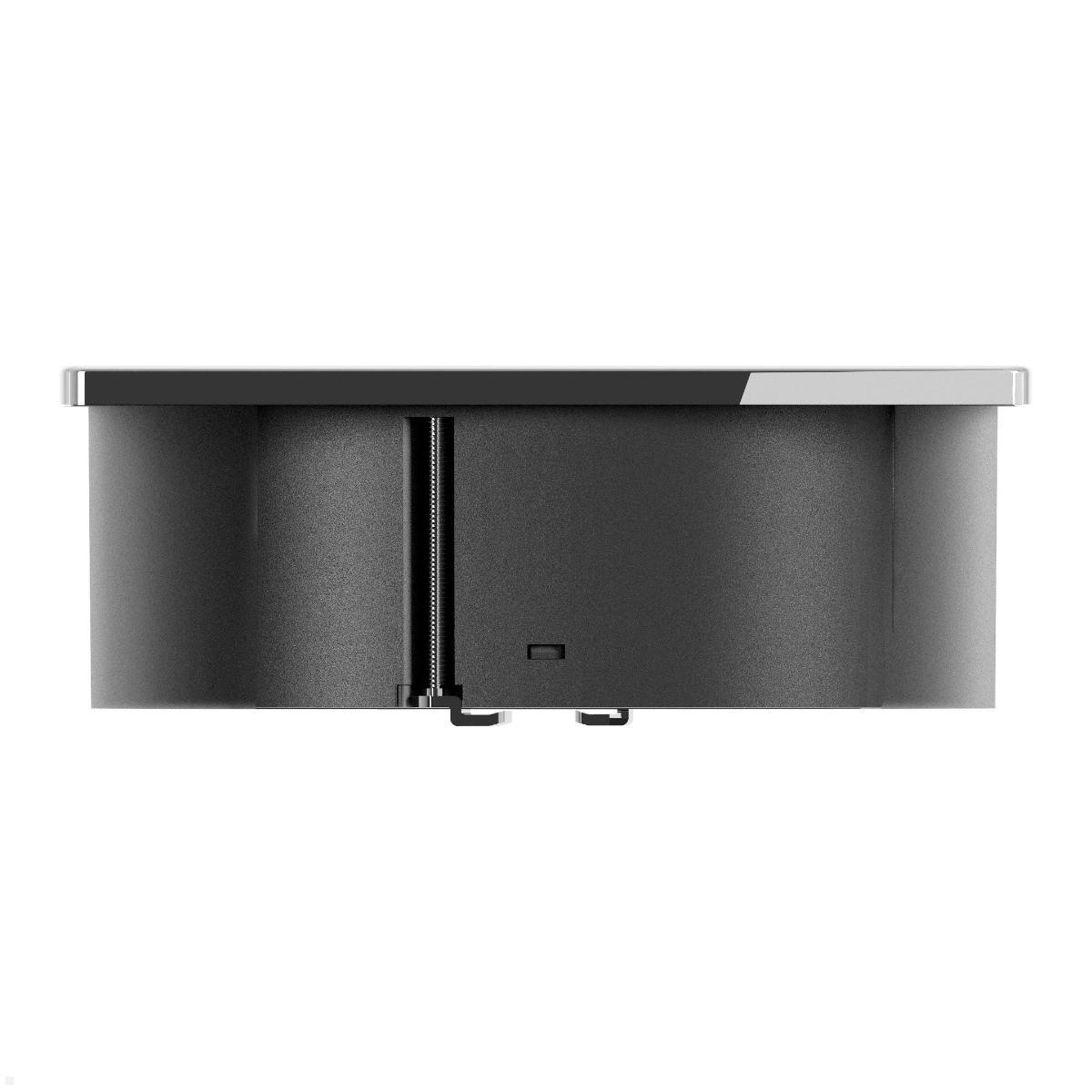

- Installation depth: 40 mm

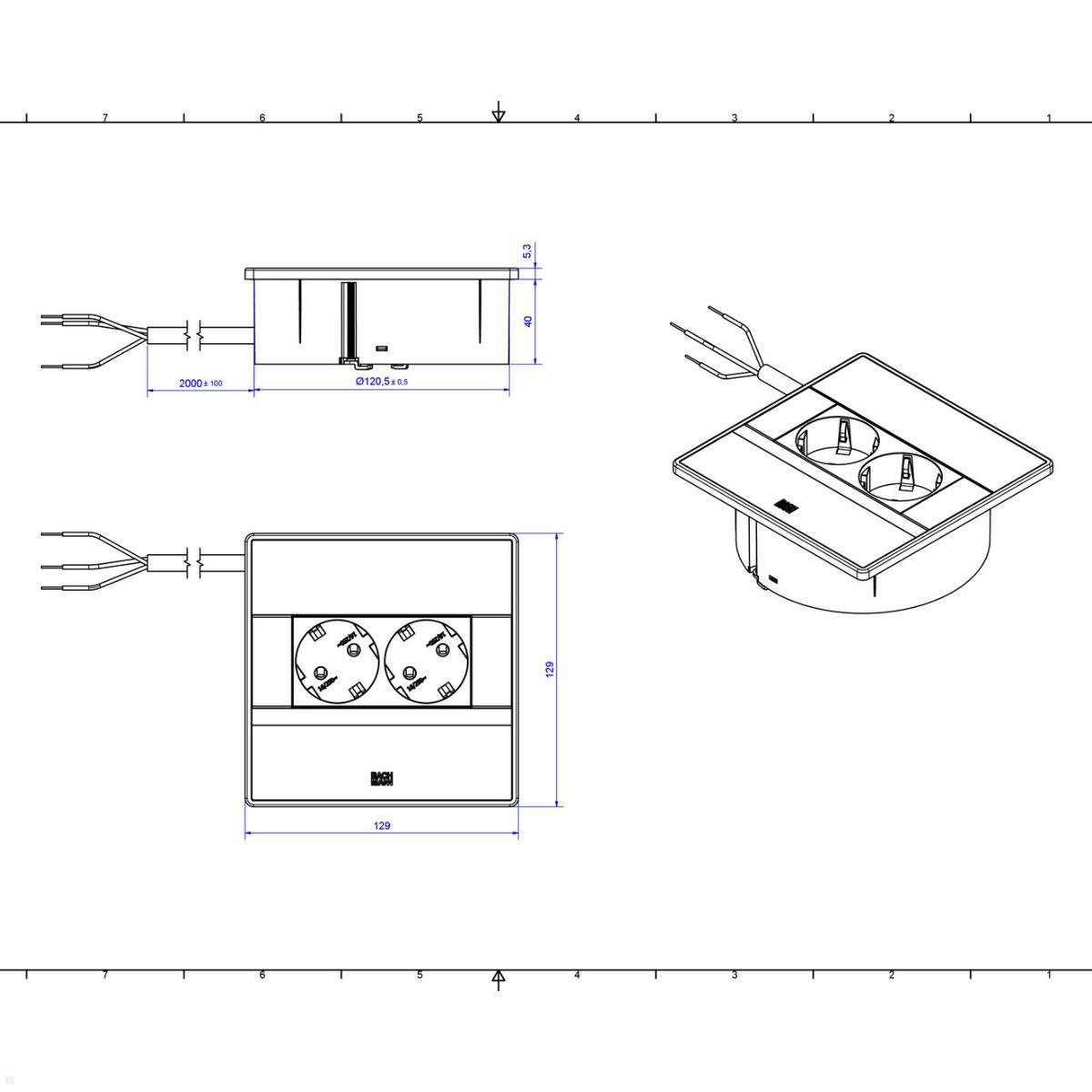

- Dimensions (L×W×H): 129 x 129 x 45 mm
- Weight: 0.65 kg
- Ingress protection: IP20
- Rated voltage: 250 V
- Operating temperature: 5–35 °C
- Type: built-in, square
- Material: plastic
- Supply cable: 2.0 m H05VV-F 3G1.5 mm² black with ferrules and protective-contact mounting plug
- USB-A ports: 0 | USB-C ports: 0
- Surge protection: No
[pdf]
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Bachmann SENSE built-in socket?
The first intelligent built-in kitchen socket with sensor control; it automatically opens and closes via a proximity sensor and positions the two protective sockets for direct access.
-
How does the sensor control work?
It opens and closes automatically via a proximity sensor.
-
How does the lock function work?
The lock can be activated or deactivated with a 3-second touch to clean the work surface.
-
What are the dimensions and weight?
Installation depth is 40 mm; dimensions are 129 x 129 x 45 mm; weight 0.65 kg.
-
What sockets does it include and what protection do they have?
2x Schutzkontakt sockets CEE 7/3 Type F with enhanced touch protection.
-
Are there USB ports?
No USB-A or USB-C ports.
-
What are the materials and design?
Made of plastic, square, timeless stainless-look design.
-
What are the electrical specifications?
Nominal voltage 250 V; operating temperature 5–35 °C; IP20 protection.
What makes the Bachmann SENSE built-in outlet special?
The Bachmann SENSE built-in outlet revolutionizes power supply in the kitchen. As the first intelligent built-in outlet with sensor control, it opens and closes fully automatically – without the user having to press a button or touch the surface. A highly precise proximity sensor reliably detects when the outlet is needed and automatically positions the two grounded protective-contact sockets for direct access. If no device is connected anymore, the Bachmann SENSE closes gently and automatically. This ensures a consistently tidy work surface and hygienic, smudge-free operation – a genuine added value compared to conventional multi-socket units or power strips.
How is the Bachmann SENSE built-in outlet installed?
Thanks to its compact dimensions of 129 x 129 mm and a mounting depth of only 40 mm, the Bachmann SENSE built-in outlet can be flexibly integrated into almost any kitchen worktop – even directly above drawers. This is a clear advantage over conventional built-in outlets, which often require considerably more space. The outlet is supplied with a 2.0 m supply cable (H05VV-F3G1,5mm²) as well as ferrules and a protective-contact mains plug, and is therefore ready for immediate use. The IP20 protection rating and an operating temperature of 5–35 °C make it a reliable solution for permanent kitchen use.
Who is the Bachmann SENSE built-in outlet suitable for?
The Bachmann SENSE built-in outlet is the ideal choice for modern kitchens, kitchen islands and work surfaces – wherever smart, space-saving and hygienic power supply is required. The integrated lock function, activated by a 3-second touch, makes it especially safe for families with children. The stainless-steel look design blends seamlessly into high-quality kitchen furnishings. Those who want even more flexibility can optionally combine the SENSE with a 22-watt USB-A/C charger – for fast charging of smartphones, tablets and kitchen appliances directly at the work surface.
