Dual monitor mount

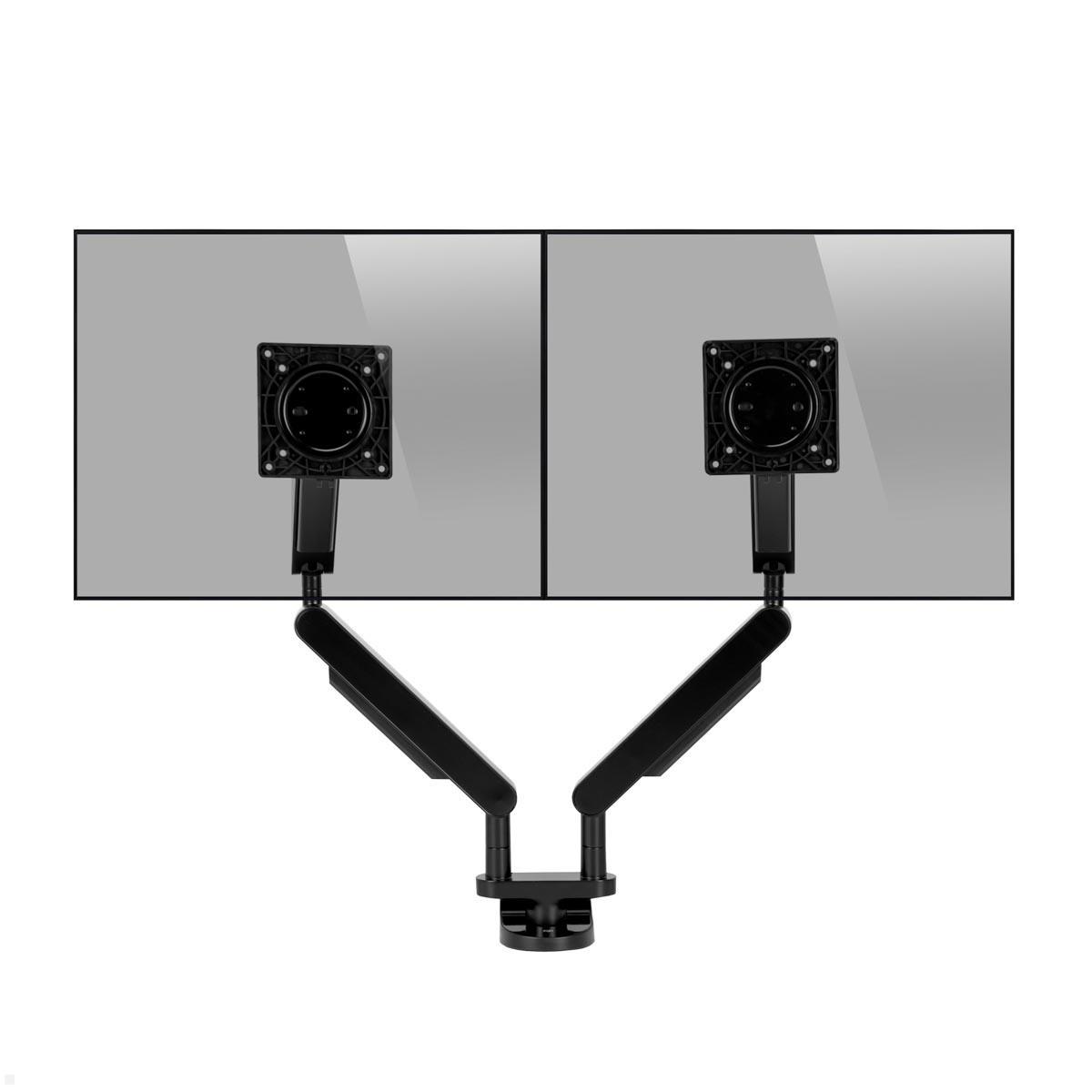

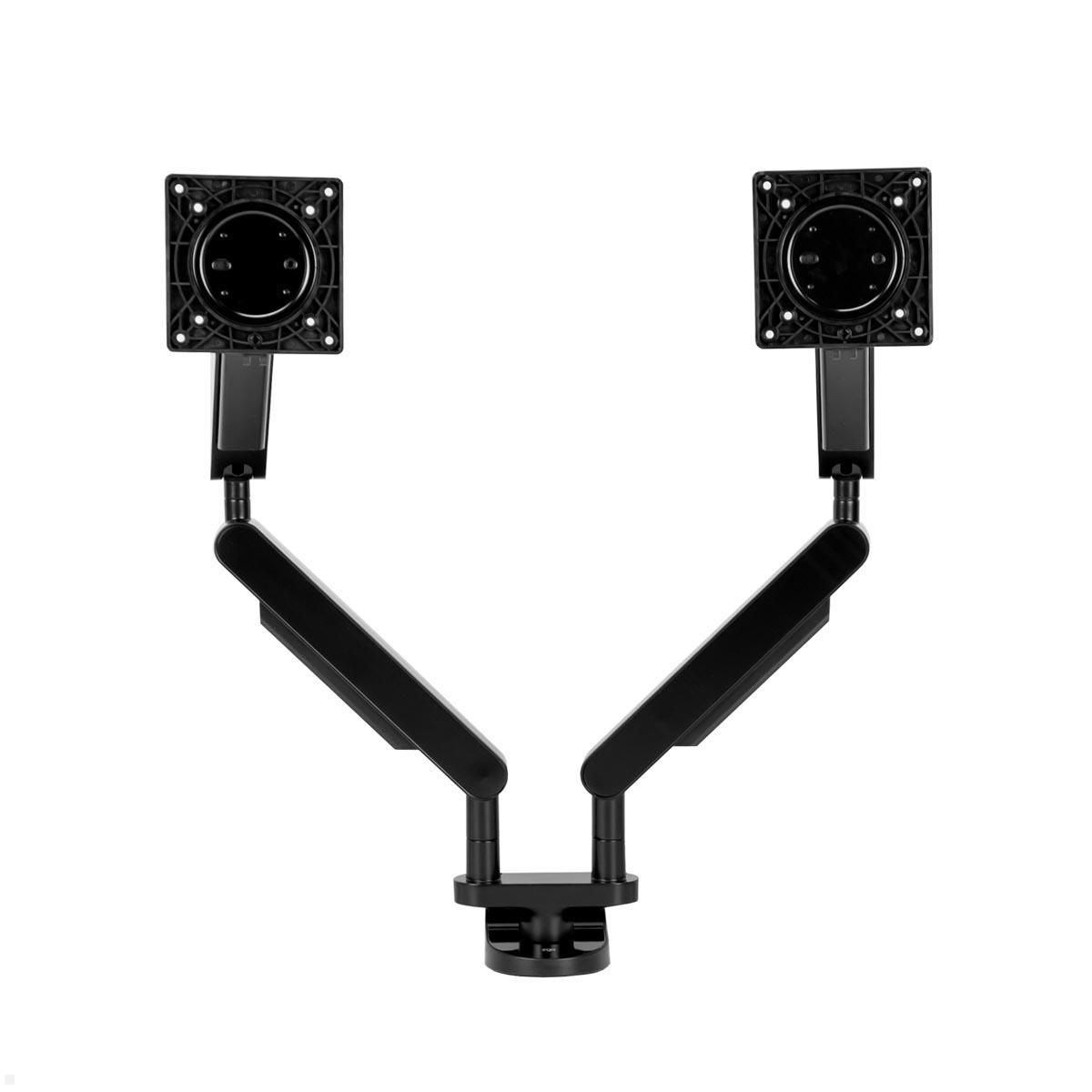

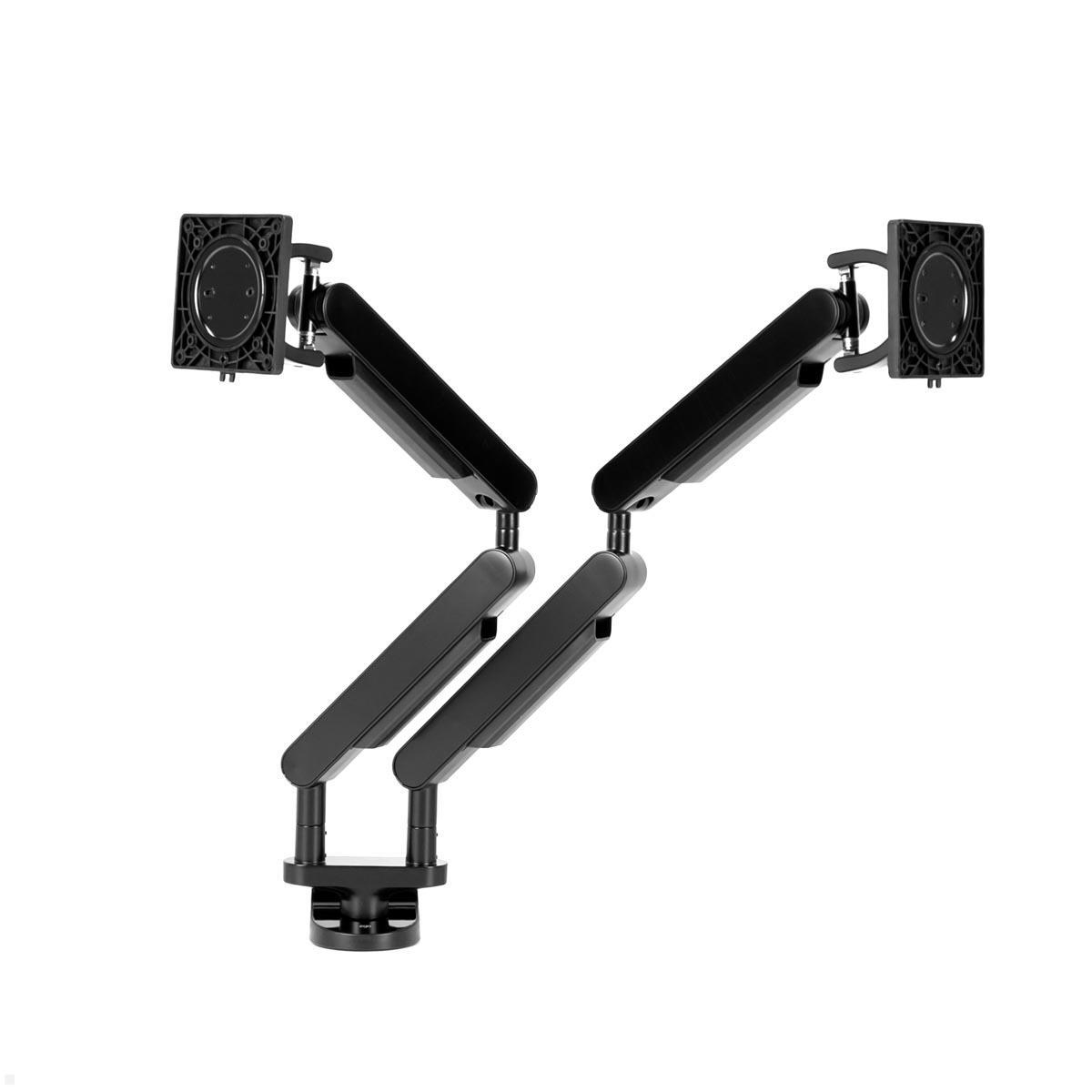

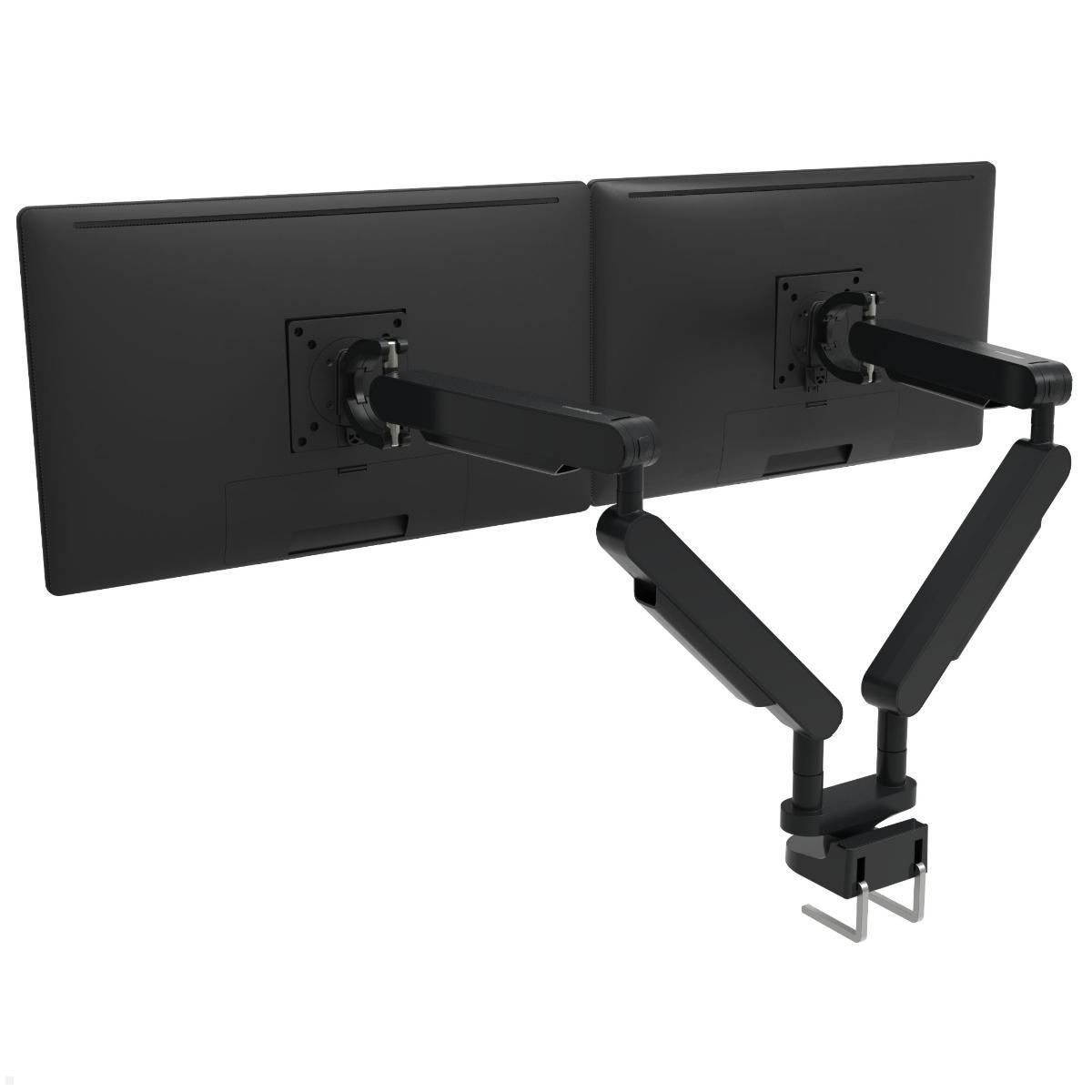

A setup with 2 monitors side by side has become standard at many workstations to make parallel work with multiple applications more comfortable. The dual monitor mount ZG2 from Bachmann offers a lot of flexibility and promotes an ergonomic posture. Both support arms can be independently adjusted in height, swiveled 360° and tilted 55°. Additionally, the built-in 180° lock feature allows the swivel range to be limited to protect the screens from potential collisions. The dual monitor desk mount in black has a load capacity of 11 kg per monitor and is suitable for displays between 17 and 30 inches. With the help of the clamp, it can be quickly and easily attached to the desk. The design of the mount for 2 monitors is rounded off by an integrated cable management.
Key features Bachmann ZG2 monitor desk mount (945.010)
- Screen sizes: 17" - 30 inch per monitor
- Load capacity: 22 kg (11 kg per monitor)

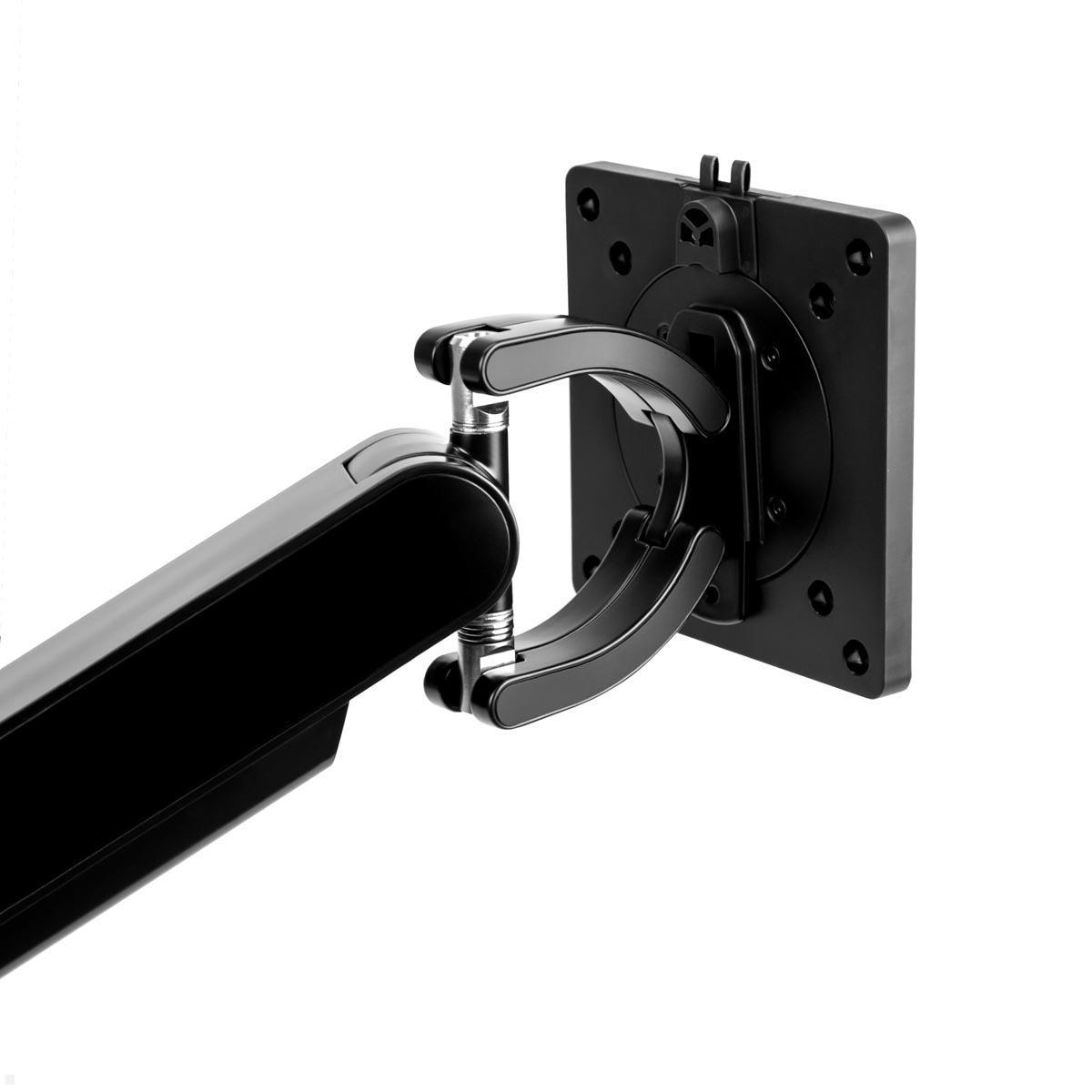

- VESA mount: 75x75, 100x100 mm
- Swivel: 360 degrees

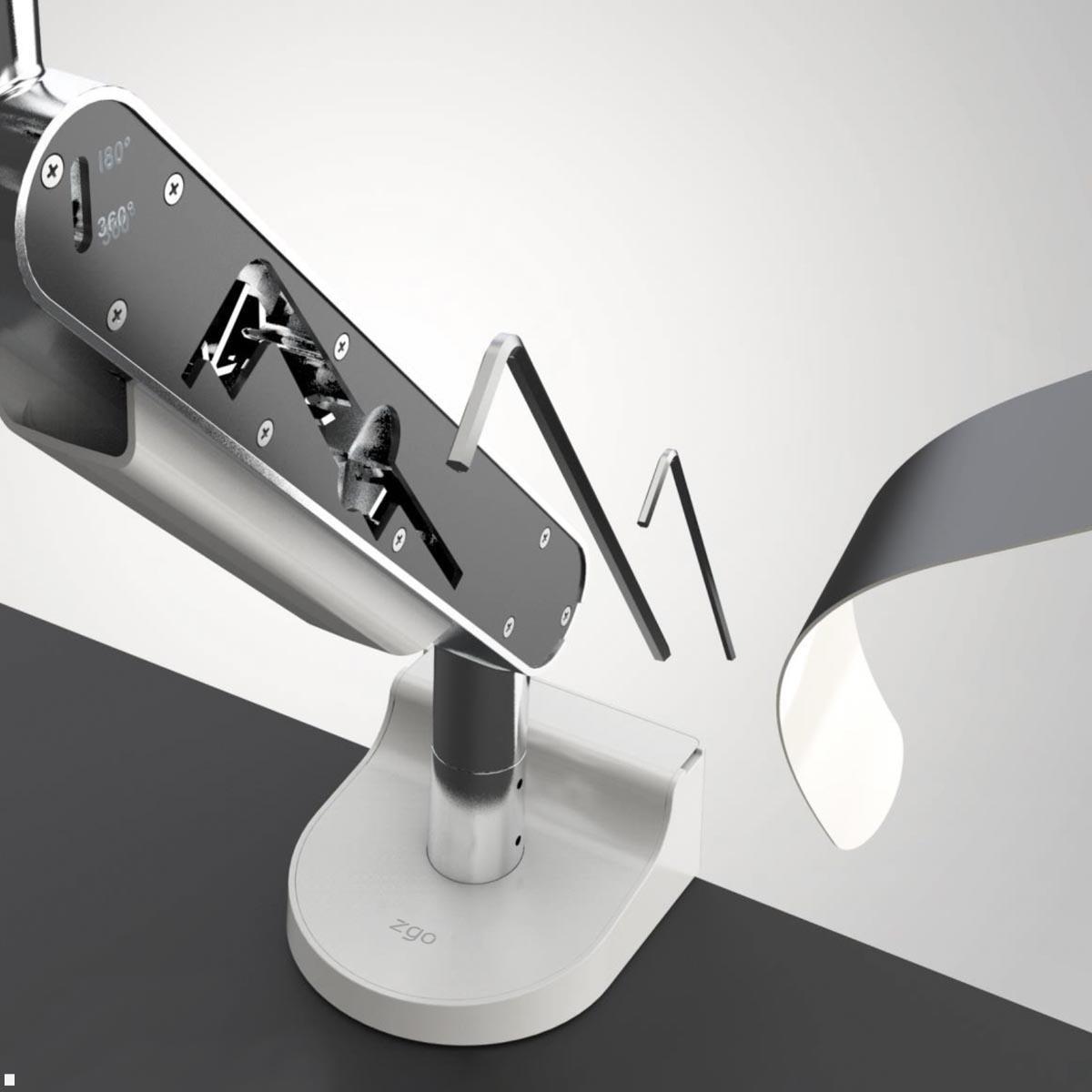

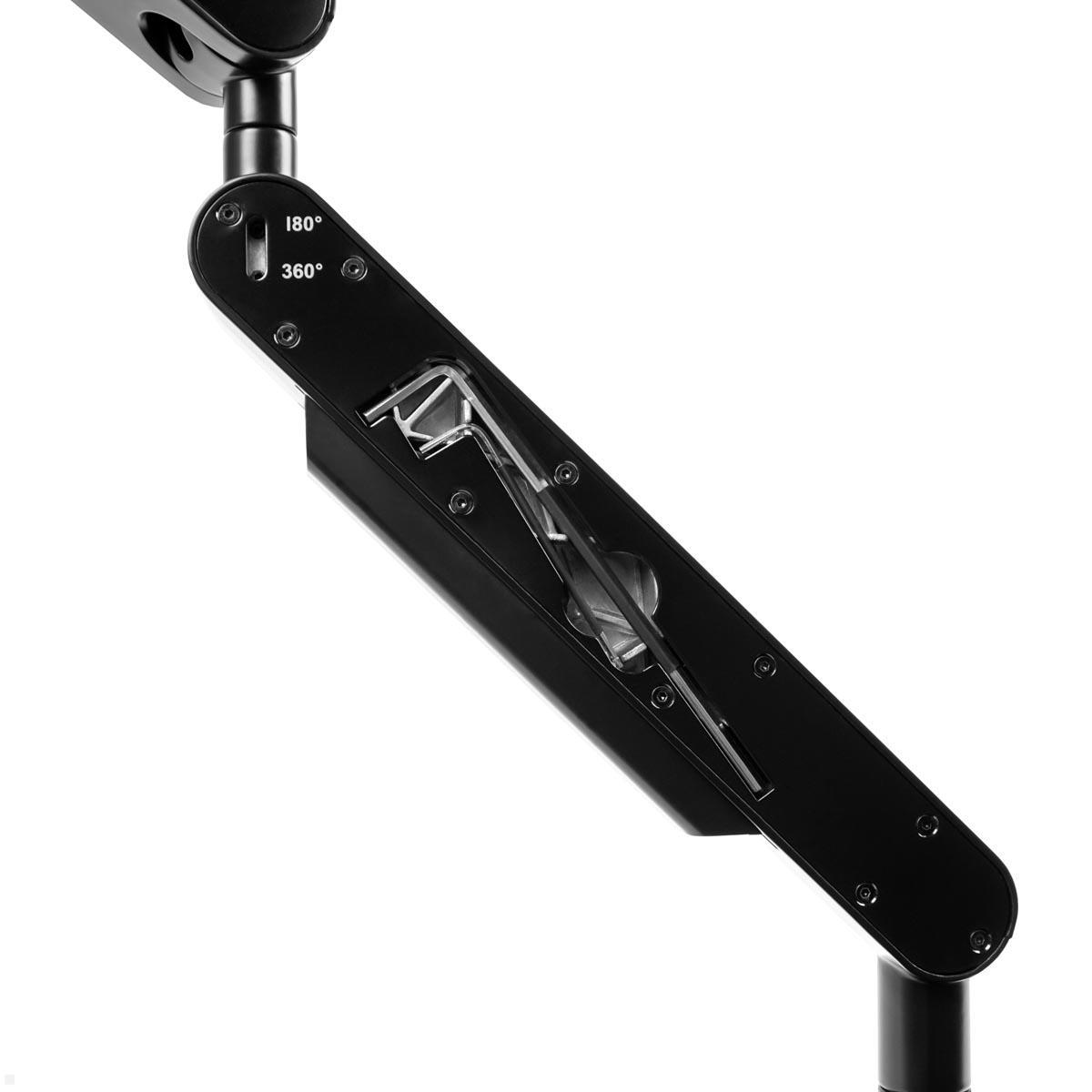

- 180° lock feature for collision protection

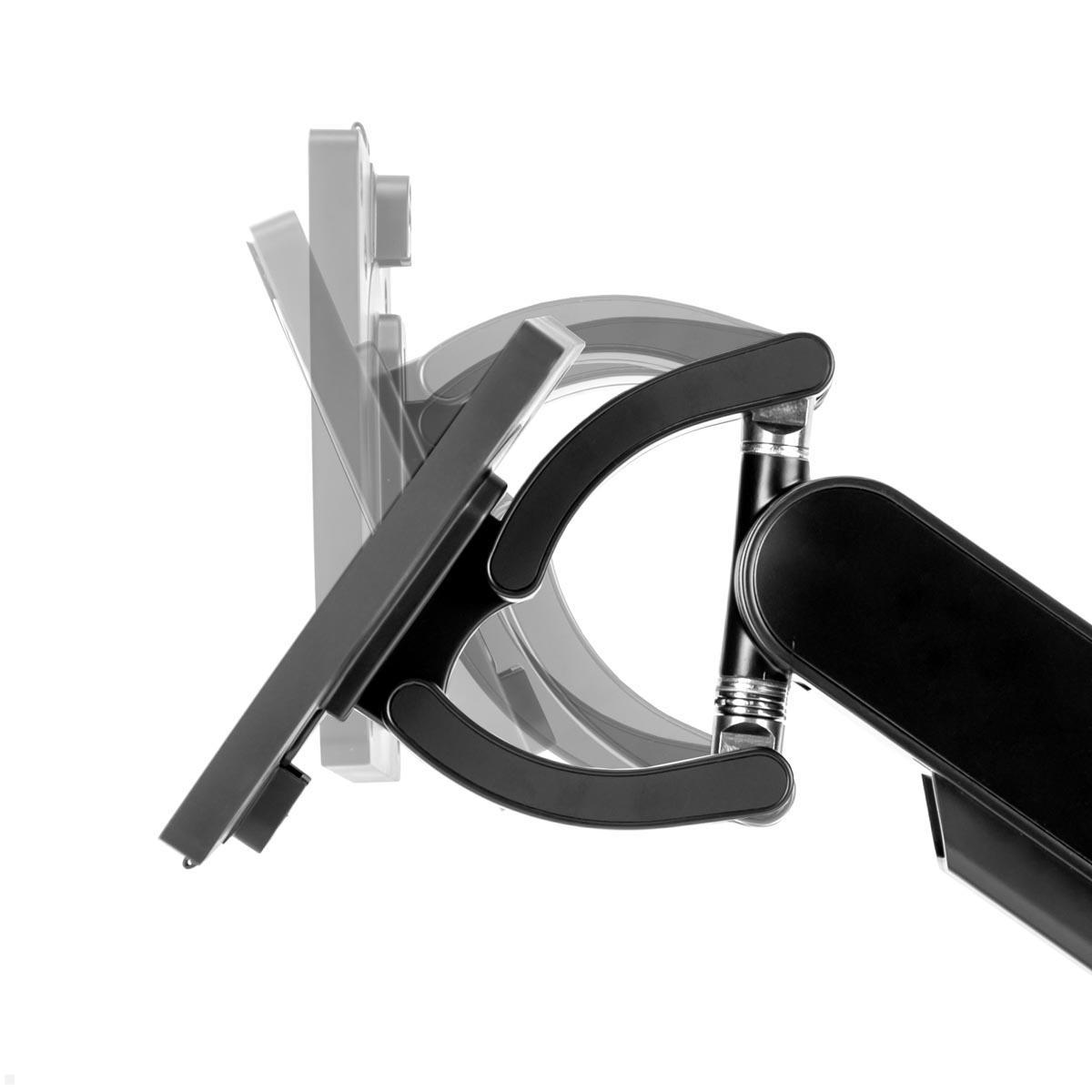

- Tilt: 20° down, 35° up

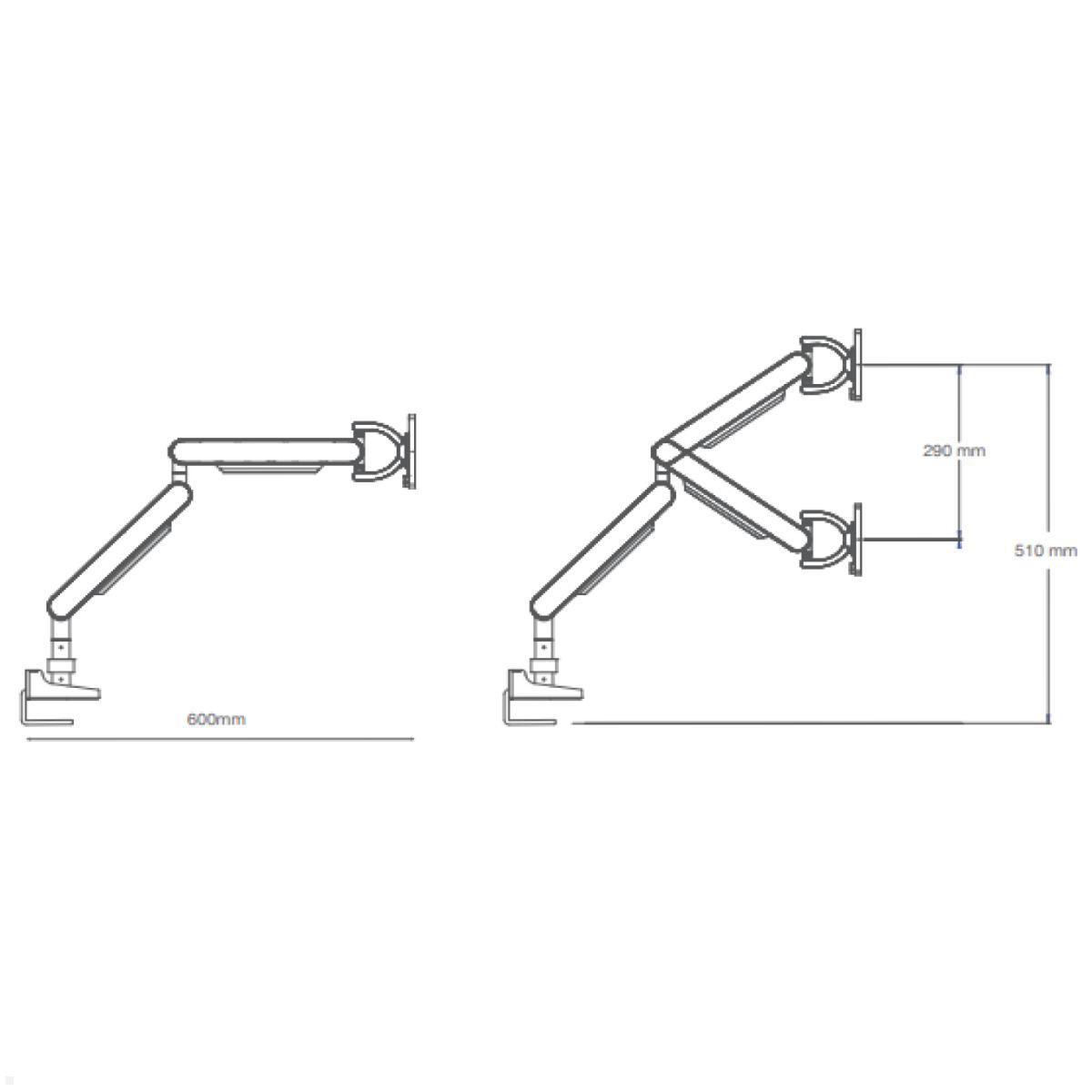

- Infinitely height adjustable: 290 - 510 mm
- Depth: 600 mm

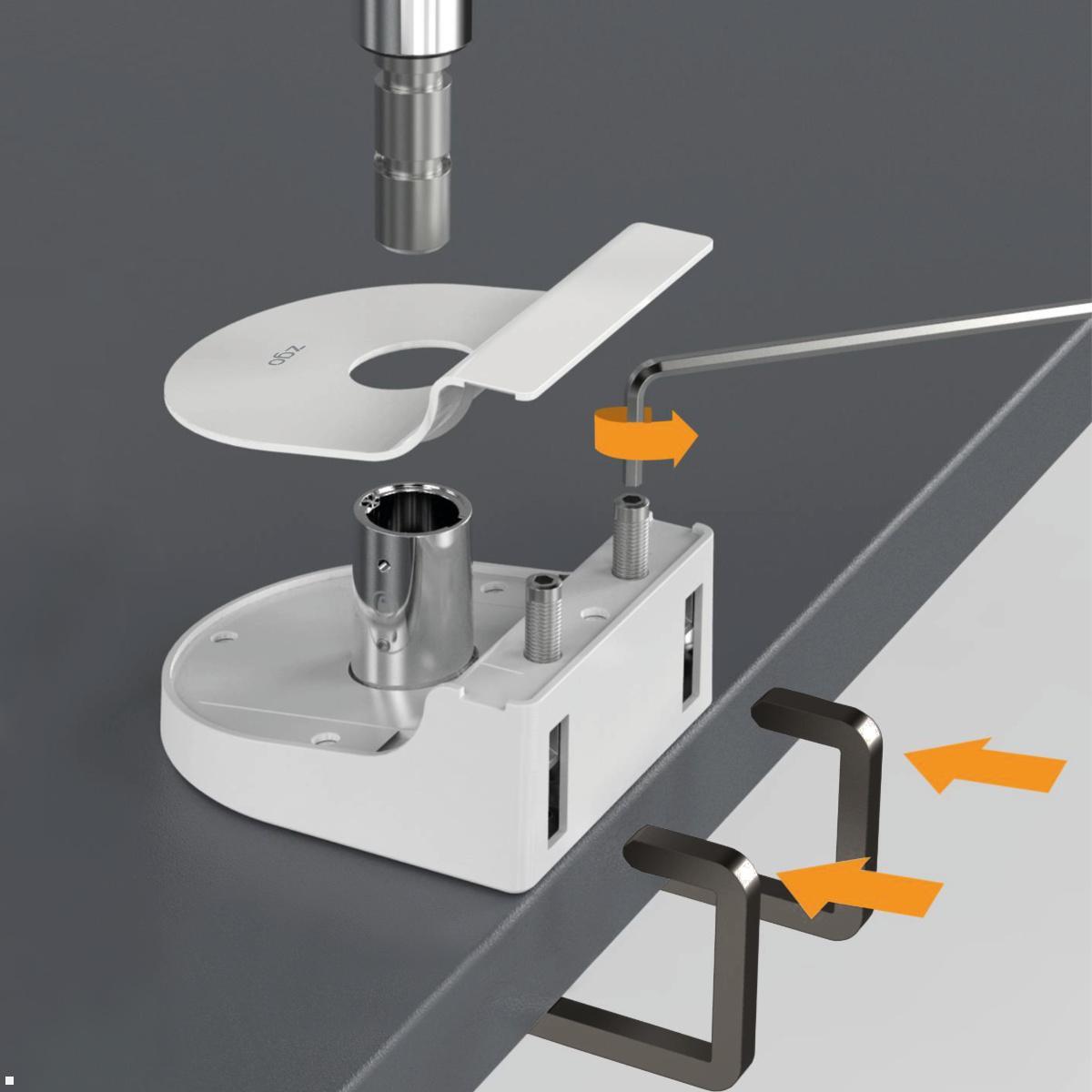

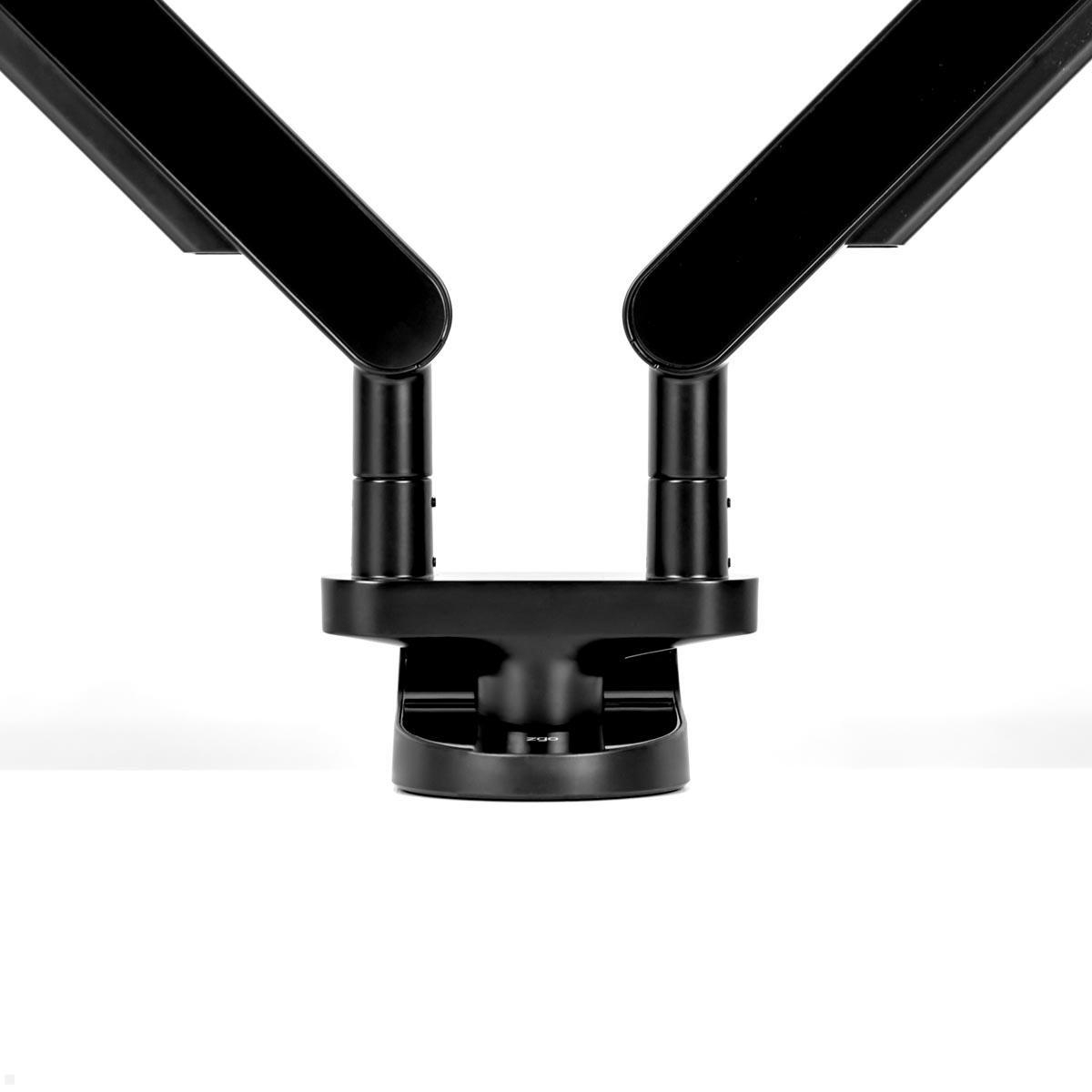

- Mounting via desk clamp (table thickness: 16 - 33 mm / 33 - 50 mm)
- Integrated cable management
- Finish: black
Does your screen or display fit the monitor mount?
We would be happy to check whether your monitor is suitable for this Bachmann ZG2 dual monitor bracket 945.010. Just tell us your model (manufacturer + model number) in the comment field at the end of the order process. We will then check for you if the monitor or display fits the monitor mount and if not, we will contact you.
VESA Standard - Learn more about the VESA standard of monitor mounts!
| Product sheet: | |
|---|---|

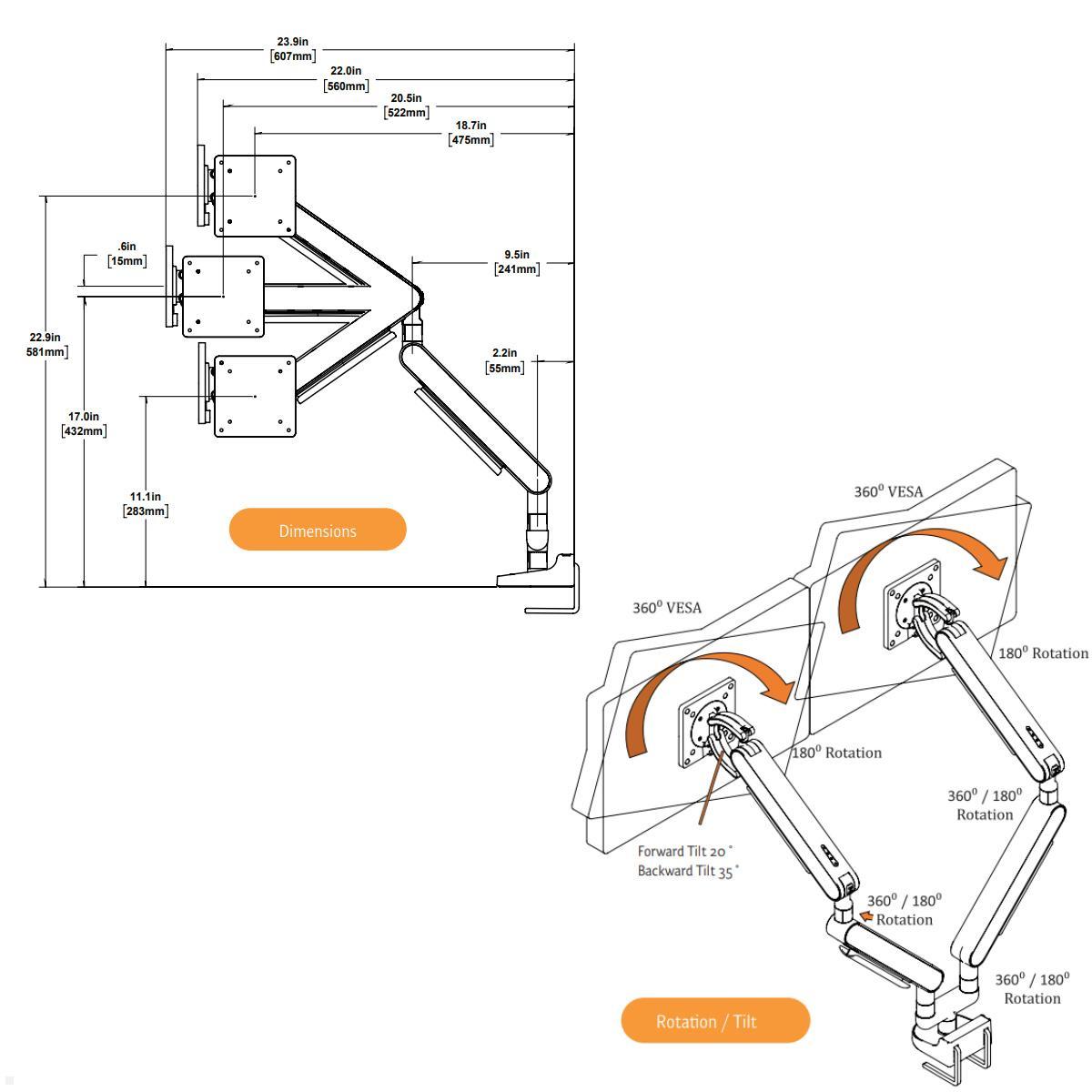

| Technical drawing: | |
| Installation manual: | |
| Warning/safety instructions: | |
| Minimum weight: | 3 kg |
| Capacity: | 3 - 11 kg per monitor |
| Tilt: | 55° |
| Height range (mm): | 290 - 510 |
| Swivelling range: | 360° |
| Length of the swivel arm: | 600 |
| Screen size: | 17 - 30" |
| Thickness of table (mm): | 16 - 33 / 33 - 50 |
| Material: | Aluminum |
| Old model no.: | 945.010 |
| VESA Standard: | 75x75, 100x100 mm (www.vesa-standard.com) |
| Packaging dimensions (LxWxH in mm): | 600 x 400 x 320 |
| Scope of delivery: | 1x ZG2 arm | 1x mounting bracket set | 1x display mount | panels | M4 screws |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Inch size: | 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch, 28 inch, 29 inch, 30 inch |
| Mobility: | height adjustable , swivelling, tilting |
| Mounting type: | desk - clamp |
| Multi-monitor mount: | 2 monitors side by side |
| color: | Black |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
0 of 0 reviews
Average rating of 0 out of 5 stars
Questions & Answers
-
What screen sizes are compatible with the Bachmann ZG2 monitor mount?
The mount is suitable for monitors sized from 17 to 30 inches.
-
What weight can each monitor support?
Each monitor can weigh up to 11 kg, with a total load capacity of 22 kg.
-
Does the mount feature cable management?
Yes, the monitor mount includes integrated cable management.
-
What is the height adjustability range?
The mount can be adjusted in height between 290 mm and 510 mm.
-
How does the 180° Lock feature work?
This feature limits the swivel range of the screens to prevent collisions.
-
How is the mount attached to the desk?
The mount is easily attached using a desk clamp, suitable for desk thicknesses of 16 to 50 mm.
-
Can I check if my monitor is compatible?
Yes, just provide your monitor model in the comments at checkout, and we will verify compatibility.
Kunden kauften auch
Average rating of 5 out of 5 stars
Average rating of 0 out of 5 stars
Average rating of 5 out of 5 stars
FAQ - Häufig gestellte Fragen
Warum lohnt sich eine Dual Monitorhalterung für den modernen Arbeitsplatz?
Ein Arbeitsplatz mit zwei Monitoren ist in vielen Büros und Home-Office-Umgebungen längst Standard geworden. Besonders bei Tätigkeiten, die den parallelen Einsatz mehrerer Anwendungen erfordern – etwa Programmieren, Grafikdesign, Trading, Projektmanagement oder Video-Meetings – bietet ein Dual-Monitor-Setup enorme Vorteile. Damit die beiden Bildschirme nicht nur nebeneinander stehen, sondern sicher, ergonomisch und platzsparend befestigt werden können, lohnt sich der Blick auf eine professionelle Dual Monitorhalterung. Die Dual Monitorhalterung Bachmann ZG2 überzeugt hier mit zahlreichen Funktionen, die sowohl den ergonomischen Komfort steigern als auch für Ordnung auf dem Schreibtisch sorgen.
Mit ihrer stabilen Konstruktion und der Tragfähigkeit von jeweils bis zu 11 kg pro Monitor eignet sich die Halterung für Displays zwischen 17 und 30 Zoll. Dank der VESA-Norm 75x75 oder 100x100 lässt sich eine große Bandbreite an Monitoren verschiedener Hersteller problemlos montieren. Die Tischhalterung ermöglicht eine sichere Fixierung am Schreibtisch und schafft gleichzeitig mehr freie Arbeitsfläche, was besonders bei kleineren Schreibtischen ein echter Vorteil ist.
Welche ergonomischen Vorteile bietet die Bachmann ZG2 Dual Monitorhalterung?
Ein entscheidender Pluspunkt der Bachmann ZG2 Monitor Tischhalterung liegt in ihrer ergonomischen Flexibilität. Beide Monitorarme lassen sich unabhängig voneinander stufenlos in der Höhe verstellen, was eine optimale Positionierung der Displays ermöglicht. Wer täglich viele Stunden am Bildschirm verbringt, weiß, wie wichtig ein ergonomisch eingestellter Arbeitsplatz für die Gesundheit von Rücken, Schultern und Nacken ist. Durch die Möglichkeit, die Monitore individuell zu schwenken, zu neigen und anzupassen, wird die natürliche Körperhaltung unterstützt und Verspannungen können effektiv vorgebeugt werden.
Die beiden Arme sind zudem 360° schwenkbar sowie bis zu 55° neigbar (20° nach unten, 35° nach oben). Besonders interessant ist das integrierte 180°-Lock Feature, das verhindert, dass die Monitore im Dauereinsatz miteinander kollidieren. Dieses praktische Sicherheitsfeature ist vor allem in engen Arbeitsumgebungen sinnvoll.
Wie einfach ist die Installation und wie wird das Kabelmanagement gelöst?
Auch die Montage der Dual Monitorhalterung gestaltet sich unkompliziert. Die Tischklemme sorgt für einen festen Halt und ist für unterschiedliche Tischstärken geeignet. Im Gegensatz zu klassischen Fußaufbauten bleibt hier die Arbeitsfläche nahezu gänzlich frei. Davon profitieren sowohl minimalistische Workstations als auch professionelle Büroarbeitsplätze.

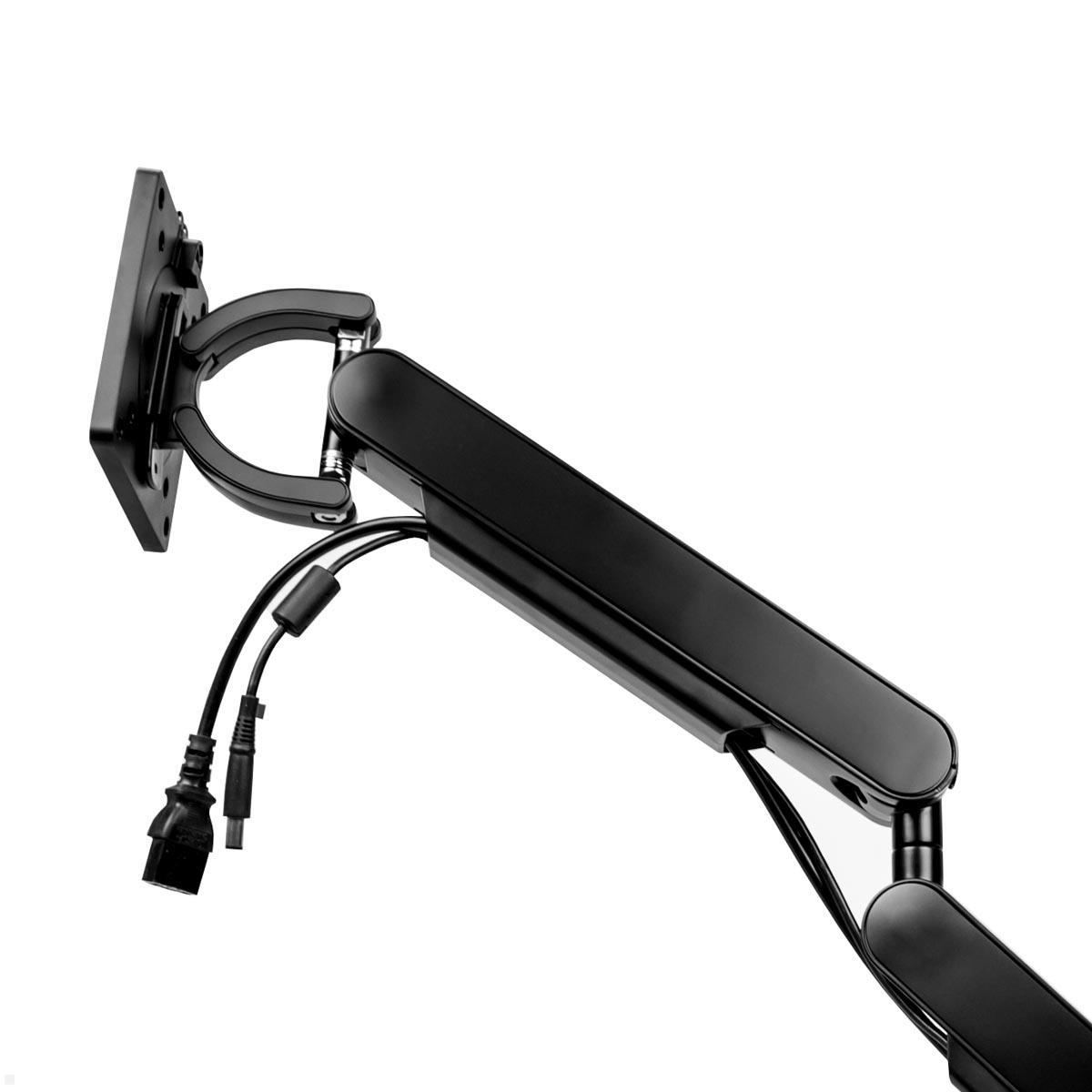

Ein weiteres wichtiges Detail – häufig unterschätzt, aber entscheidend für ein ordentliches Setup – ist das integrierte Kabelmanagement. Es sorgt dafür, dass die Kabel beider Displays sauber geführt und fixiert werden, was nicht nur optisch besser wirkt, sondern auch die Nutzbarkeit des Arbeitsplatzes erhöht. Kein störender Kabelsalat, keine herumhängenden Leitungen und ein insgesamt professioneller Look.
Für wen ist die Bachmann ZG2 Monitor Tischhalterung besonders geeignet?
Die Kombination aus stabiler Mechanik, ergonomischer Anpassungsfähigkeit, einfacher Installation und hoher Tragkraft macht die Bachmann ZG2 zu einer idealen Wahl für Büros, Home-Office, Gaming-Setups, Kreativarbeitsplätze und professionelle Multi-Screen-Anwendungen. Wer Wert auf Funktionalität, Ergonomie und ein aufgeräumtes, modernes Arbeitsplatzdesign legt, findet in dieser Dual Monitorhalterung eine hochwertige Lösung. Als direkter Nachfolger der Artikelnummer 945.010 setzt die Bachmann ZG2 neue Standards bei Dual Monitorhalterungen — ideal für ergonomische Arbeitsplätze im Büro oder Home-Office.
