Barco ClickShare CSC-1 wireless presentation system for boardrooms
The Barco ClickShare CSC-1 presentation system is a wireless stand-alone presentation system for large meeting rooms. Up to 64 users can connect to the base unit simultaneously, with four each sharing their contents wirelessly from their laptop. In combination with the ClickShare app, content can also be shared by the tablet or smartphone.
Barco ClickShare CSC-1 wireless presentation system for boardrooms
Barco has been introducing one of the most innovative meeting room products in years: ClickShare CSC-1, a wireless presentation system. With the know-how and organization of Barco and in support of ClickShare technology, this new product will change meetings forever.

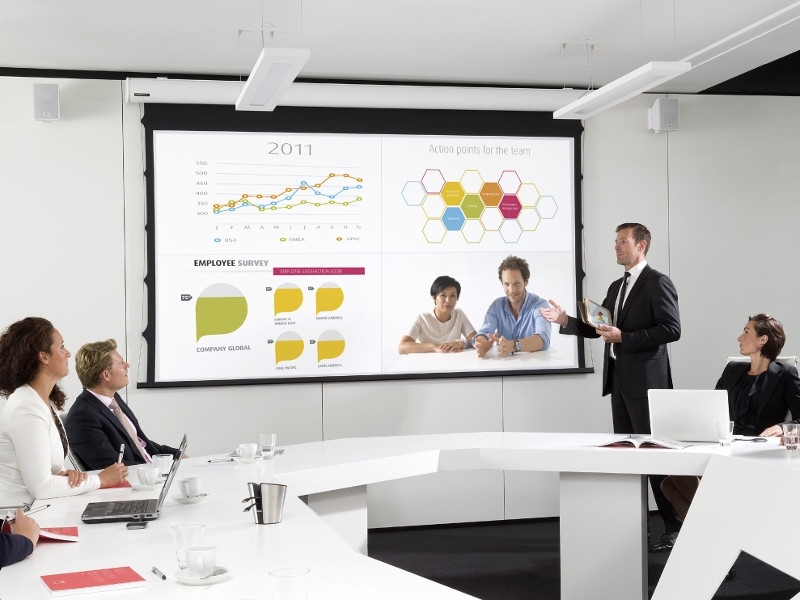

Fully featured, the CSC-1 presentation system is the right choice if you have two projectors, two monitors or a double HD screen. Fully compatible with ClickShare Buttons and mobile device apps, this base unit is designed for use in state-of-the-art meeting rooms and boardrooms.

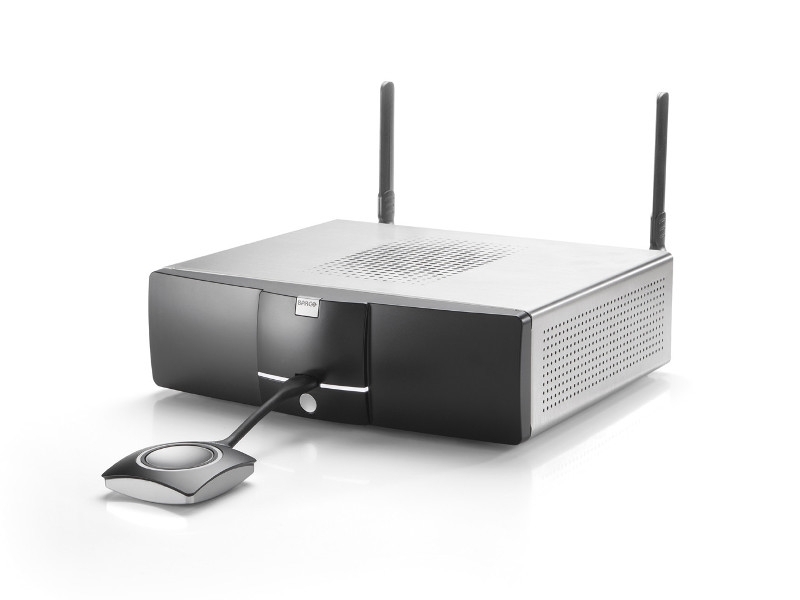

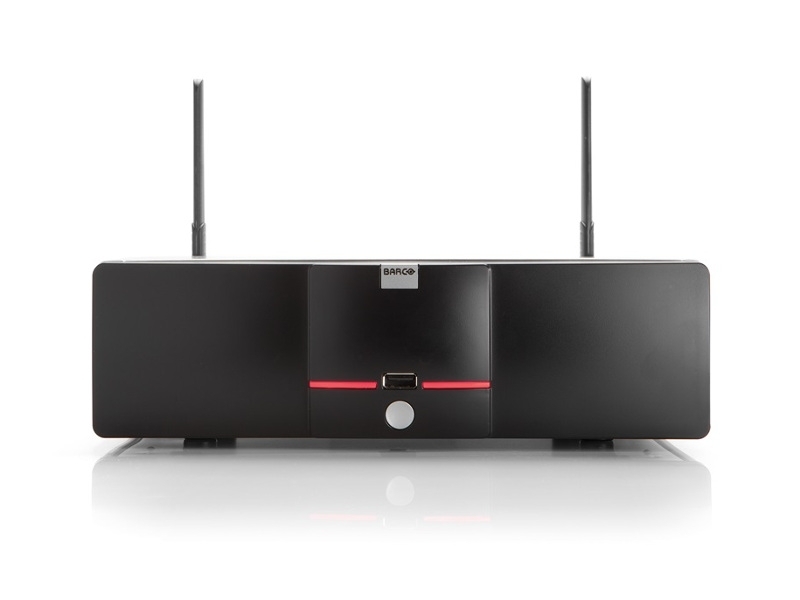

The ClickShare CSC-1 Base Unit provides the full clickshare collaboration experience by allowing the content of up to 4 users to be viewed simultaneously. Up to 64 buttons can be wirelessly connected to the base unit and are ready to share. In addition, perfectly synchronized audio and video playback ensure an optimal movie experience. Dynamic content from iPads, iPhones, and Samsung Galaxy devices can be viewed directly on the screen using the specially designed ClickShare apps.
Key features Barco ClickShare CSC-1 wireless presentation system
- Wireless stand-alone presentation system for large meeting rooms and boardrooms

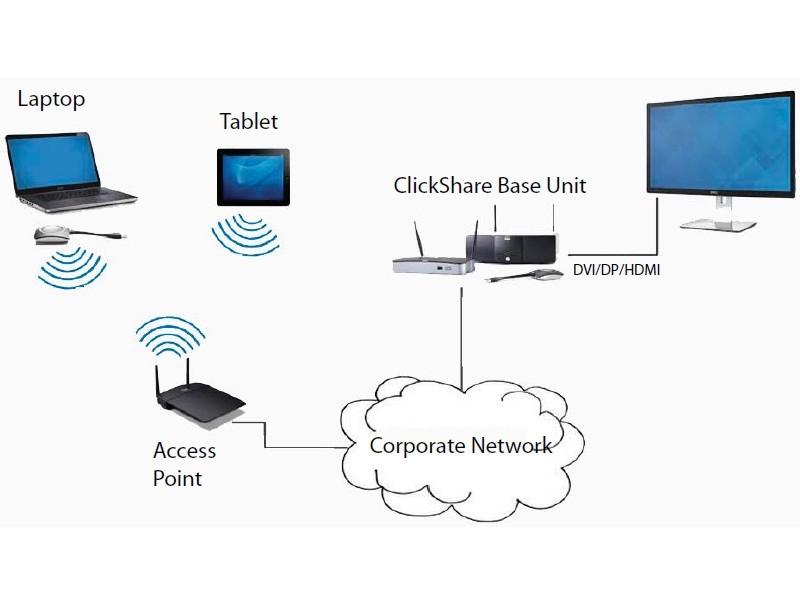

- Wireless connection to the central screen

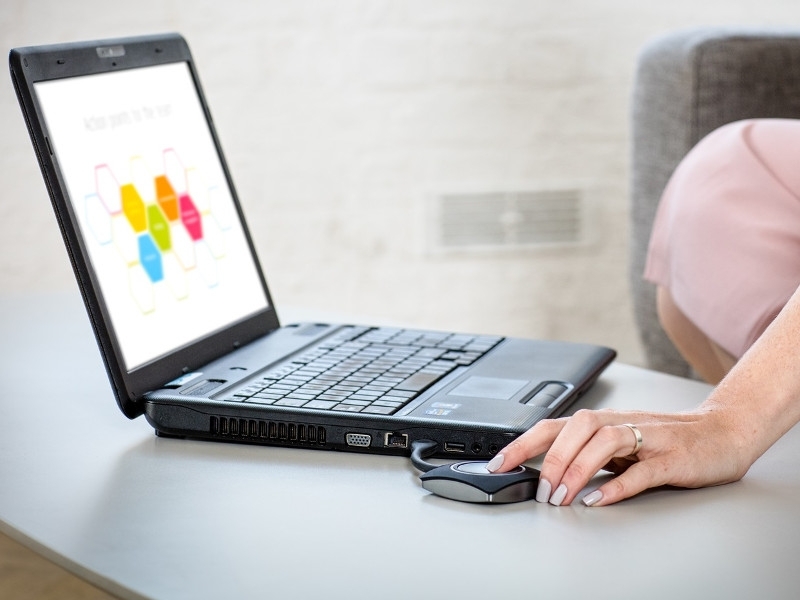

- Share content from laptop, tablet or smartphone
- Operating systems:
Windows 7/8/8.1/10 32 & 64 Bit
Mac OSX 10.10/10.11/10.12 (Sierra)
Android v5 & v6 (ClickShare App)
iOS 8, 9 & 10 (ClickShare-App) - AirPlay support: iOS mirroring (AirPlay) from iOS 9.0 to iOS 10.3
Mac OS 10.11 El Capitan or higher - Number of concurrent sources: 4
- Number of concurrent connections: 64
- Range: max. 30 meters (100 feet) between ClickShare Button and ClickShare Base Unit
- Frame rate: Up to 30 fps (from software version V1.03.00.0001 or higher)
- Output resolution: UHD (3,840 x 2,160) available in conjunction with ClickShare CSC Base Unit Software v01.09.00.22 upwards
- Connections: 1x Ethernet LAN
- 4x USB (back) + 1x USB (front)
- Analog output with mini-jack (3.5 mm)
- Analog input with mini jack (3.5 mm)
- Video outputs: DisplayPort, Single-Link DVI-I
- VGA (via supplied converter, highest resolution only with reduced coverage)

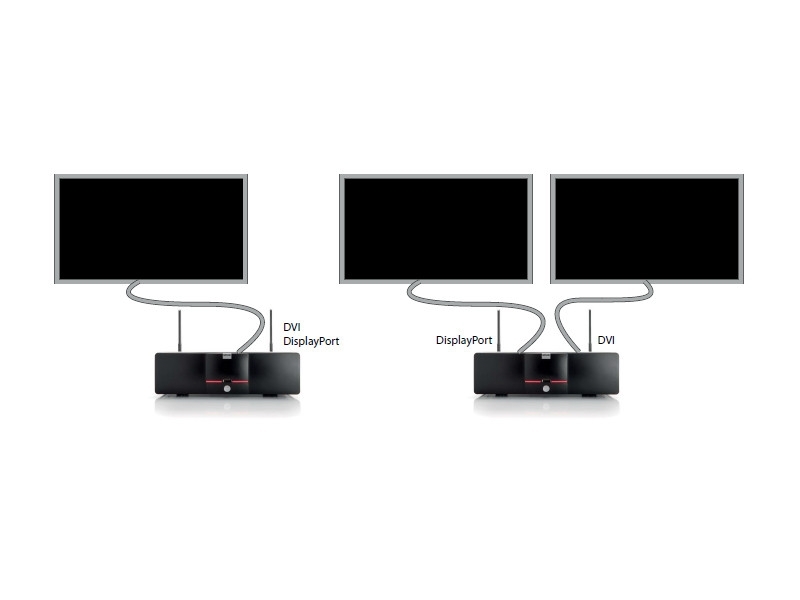

- When using two monitors, the connection is established either via DVI and DisplayPort or via VGA and DisplayPort
- Delivery incl. 4 ClickShare Button
- Dimensions ClickShare basic unit (HxWxD): 181 x 260 x 276 mm (including antennas)

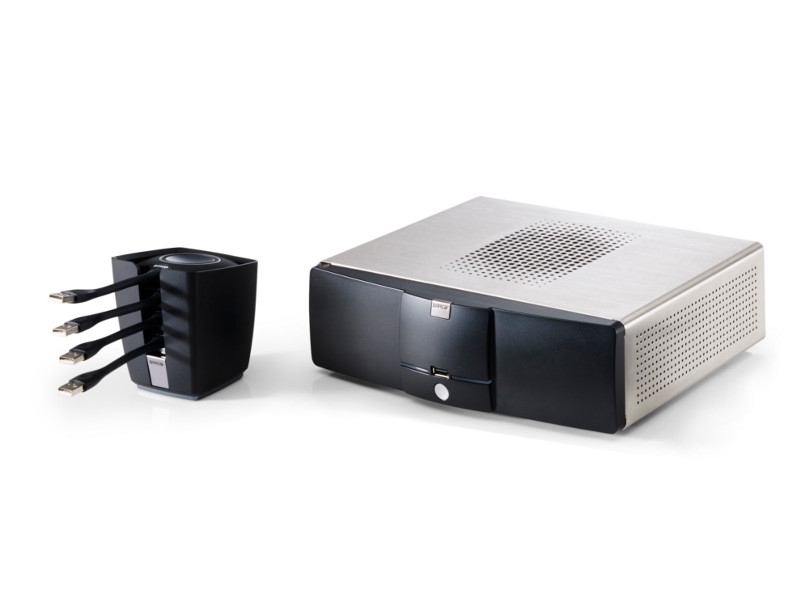

Delivery content Barco ClickShare CSC-1 wireless presentation system
- 1x base unit

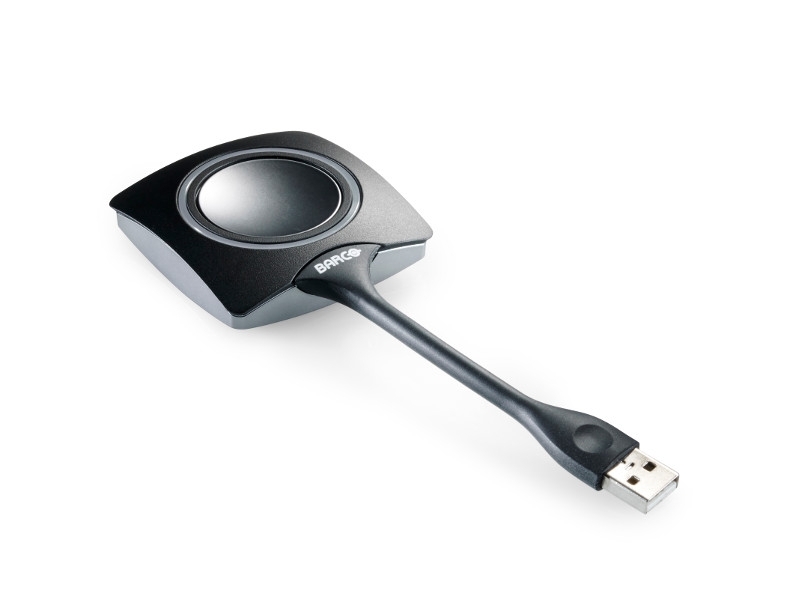

- 4x ClickShare button
- 1x ClickShare button storage container
- Wall mount
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
