Basalte puck USB charger 2A
The basalt 610-02 puck USB charger is a small device that is hidden in the wall box behind the iPad or iPod, so the battery is constantly charged and the device is always ready for use.

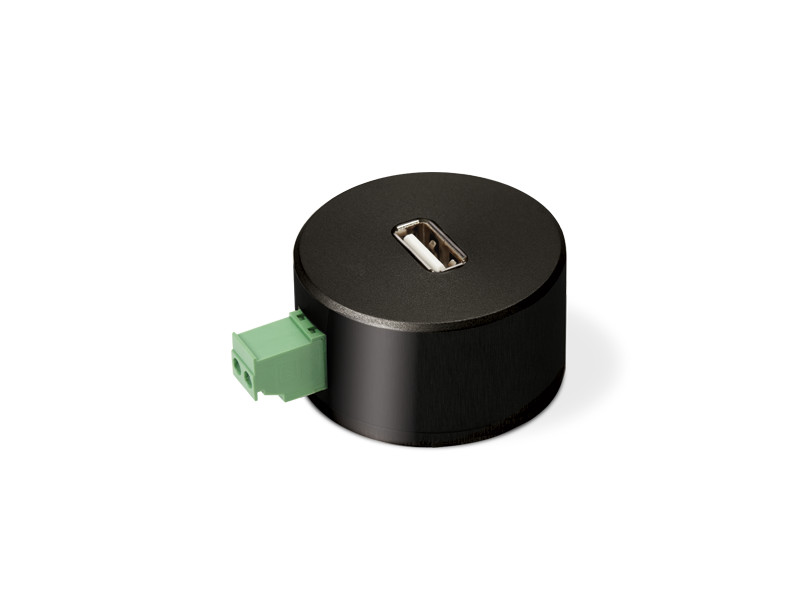

Basalte puck USB charger for Lightning Connector 610-02
The puck USB-charger is a small device that is hidden in the wall box behind the iPad or iPod.

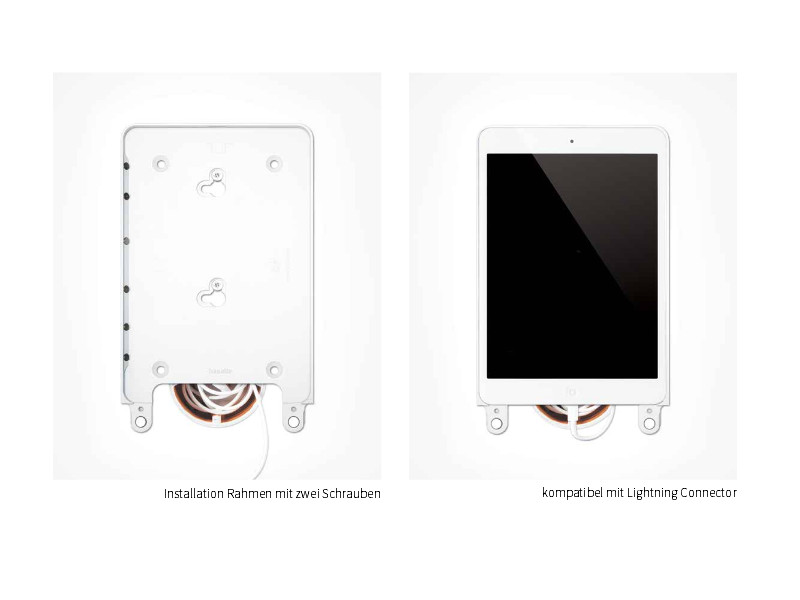

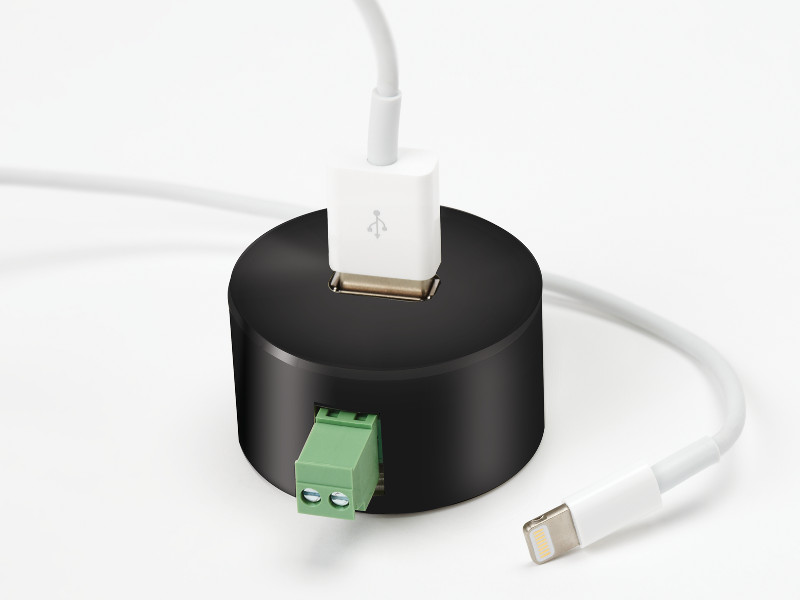

The puck is connected via Apple lightning connector to the iPad or iPod, so the battery is constantly charged and the device is always ready for use. The basalt Eve cover hides unsightly charging cables or connections.
Attention: The delivery includes only the basalt puck USB charger. For a complete bracket you need a basalte Eve cover and a charging cable.
Key features basalte puck USB charger:
- Finish: Black
- Access: USB
- Input voltage: 10V - 30V DC
- Input power: 12W
- Output voltage: 5V DC
- Output max. current: 2A
- Output power: 10W
- Protection class: II
- Type of protection: IP 20
- Suitable for Eve cover (not included in delivery)
Dimensions basalte puck USB charger:
- Length: 54 mm (including connector)
- Width: 42 mm
- Height: 24 mm

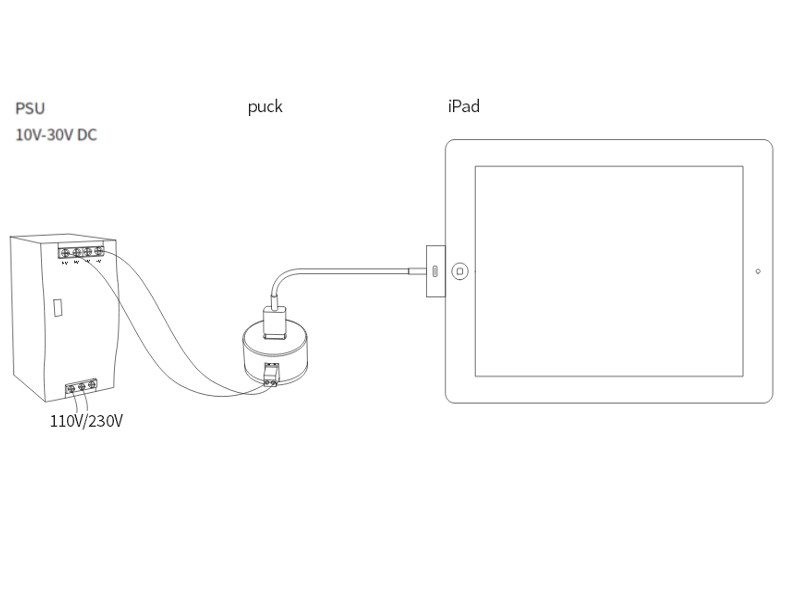

Maximum cable length between DC power supply and puck
Cabel type 12V DC 24V DC
0.8mm² (AWG 19) 50m (164ft) 300m (984ft)
1.0mm² (AWG 18) 60m (197ft) 400m (1312ft)
1.5mm² (AWG 17) 90m (295ft) 500m (1640ft)
| Installation manual: |  [pdf, 92 kb] |
|---|---|
| Contains installation material: | + |
| Warranty: | 2 years |
| Manufacturer/Importer: | Basalte, Fraterstraat 37b, 9820 Merelbeke, Belgien, info@basalte.be |
| Mobility: | fixed |
| color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
