Ceymsa Cinema Mirror - Remote Control included
Ceymsa Cinema Mirror - Remote Control included

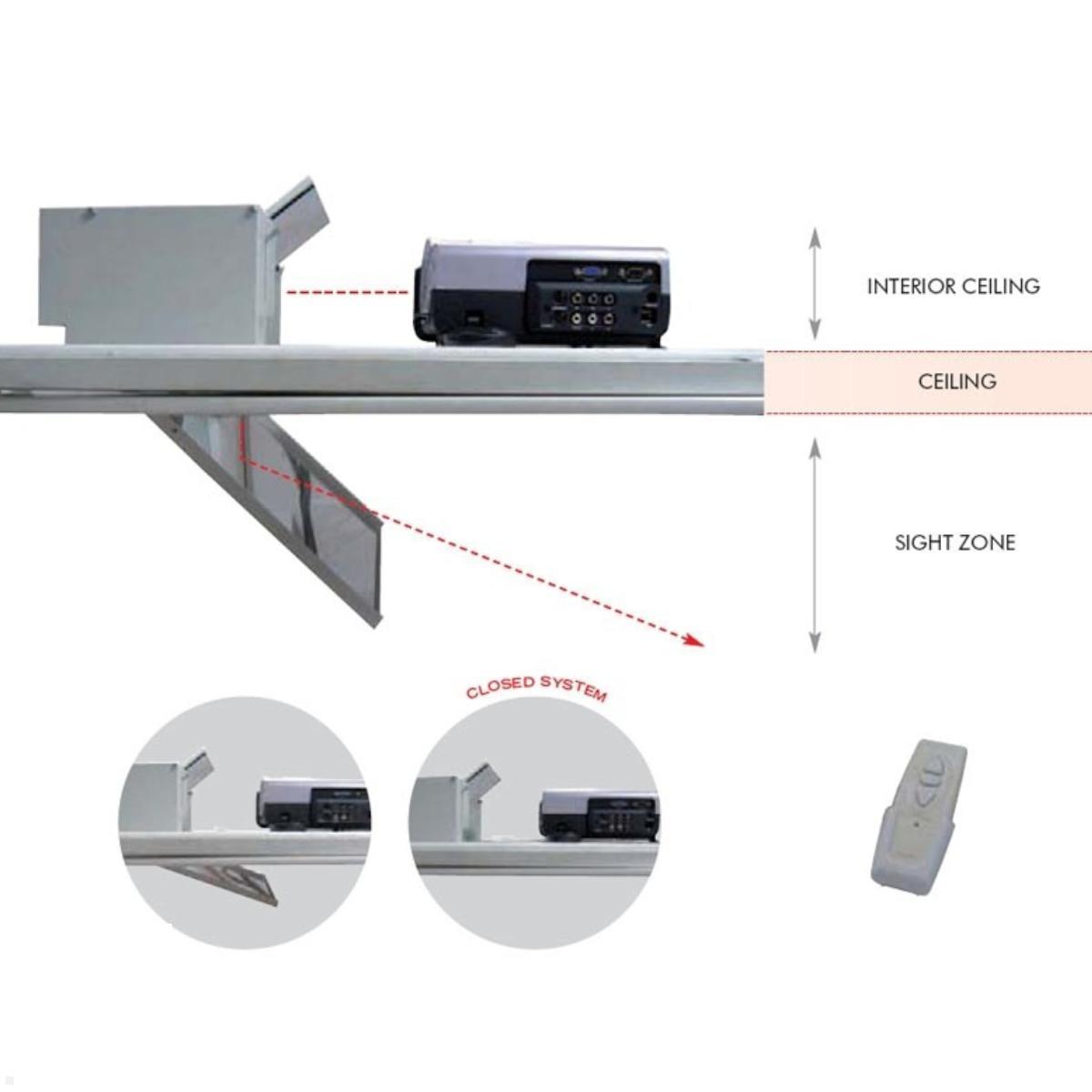

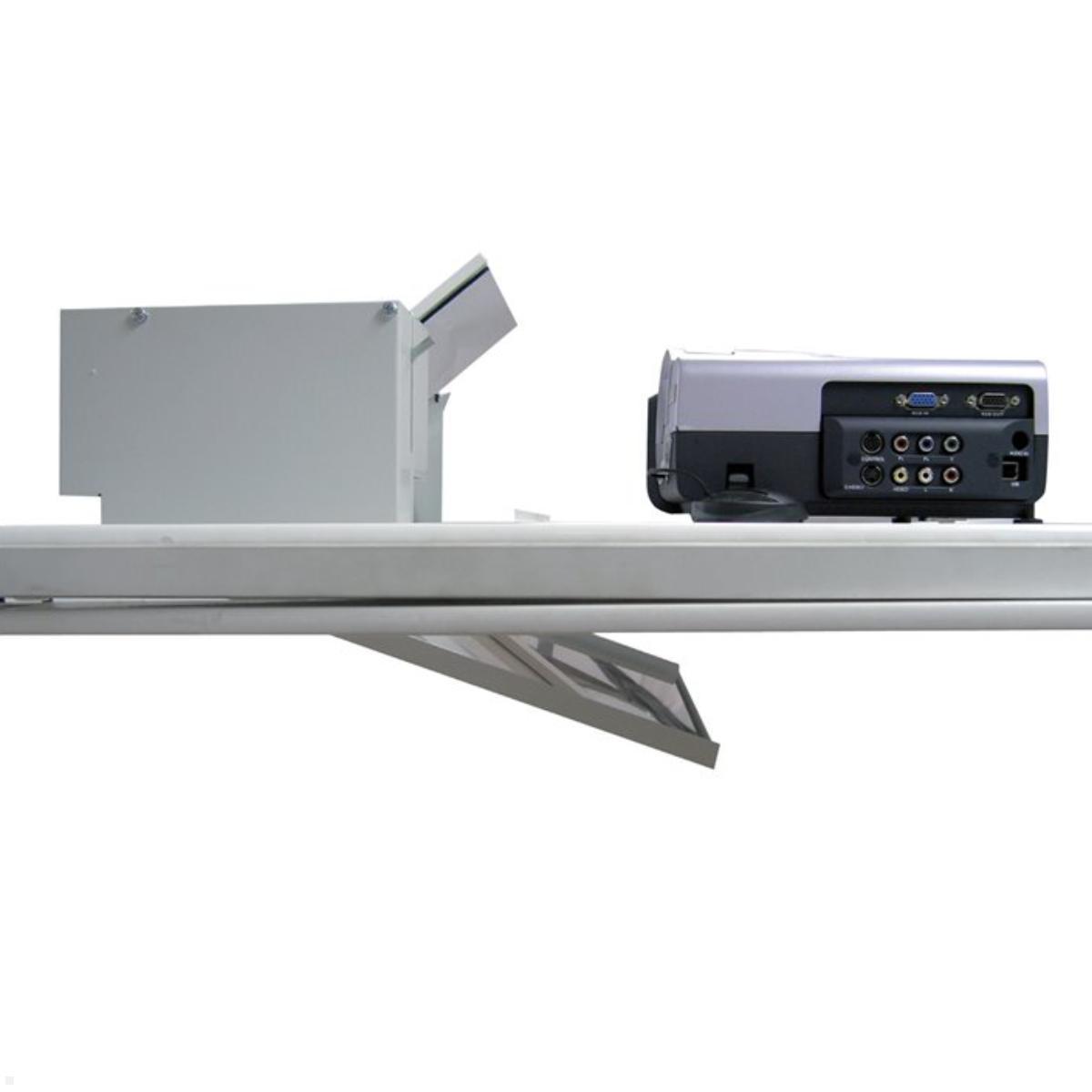

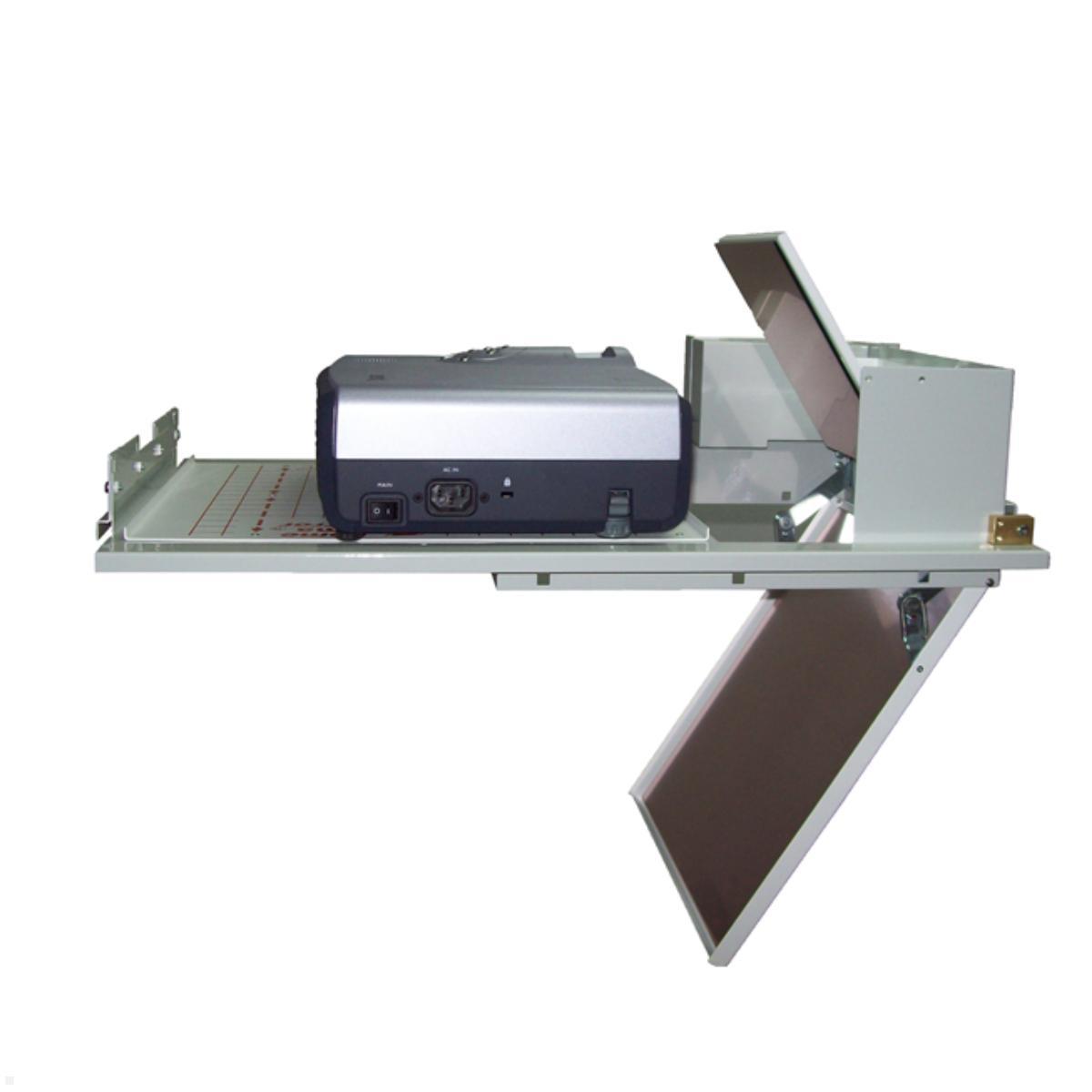

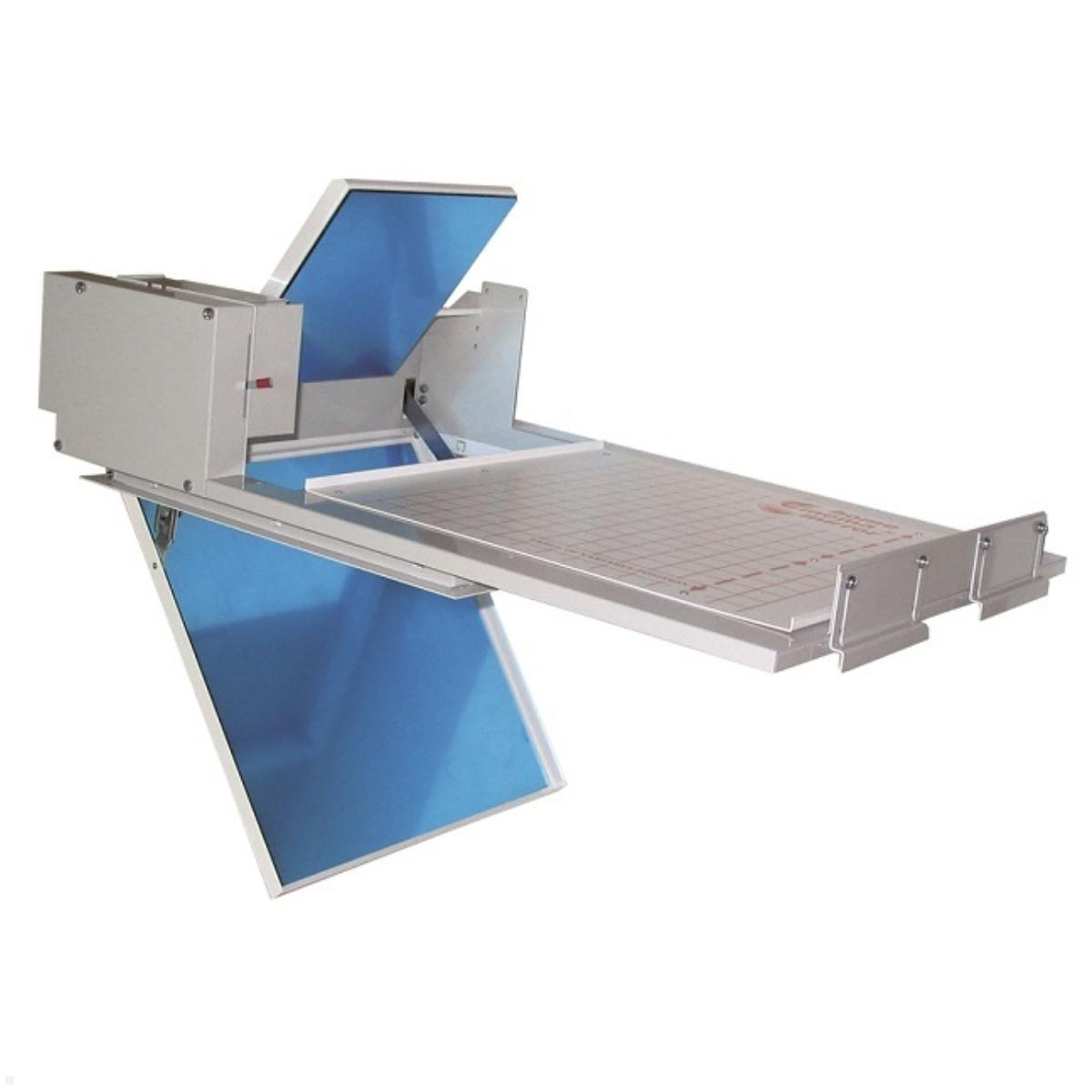

Concealing system for projectors, in the ceiling, one of a kind worldwide system because of its quality/price relation. Distributed in more than 45 countries. Ensuring the aesthetic design of the room and the quality of the projections thanks to the set of optical reflection mirrors.
The significant elements that are incorporated are:
- a variable position table,
- position control of active lense,
- protective casing of electrical equipment,
- protective casing of mechanical equipment,
- 230 VAC connection and ON/OFF switch,
- variable height adjustment mount.
It works with two vacuum-made argento substrate mirrors, implanted on the front face with a 0.005 mm film. 94% reflection over a wave length of 500 nm. Chassis reinforzed by three girders which give strength and reduce the weight of the structure.
| Product sheet: |  [pdf, 150 kb] |
|---|---|
| Installation manual: | [pdf, 308 kb] |
| Capacity: | 5 kg |
| Tilt: | - |
| Rotate: | - |
| Height range (mm): | - |
| Swivelling range: | - |
| Old model no.: | HC37.53EC |
| Scope of delivery: | 1x Ceymsa Umlenkspiegel | Installationsmaterial |
| Contains installation material: | + |
| Manufacturer/Importer: | Ceymsa Audiovisual S.A, CL. Luis I, 31-33 Nave 17, 28031 Madrid, Spain, audiovisual@ceymsa.com |
| Ceiling distance in m: | < 1m |
| Mounting type: | Ceiling mount |
| color: | Silber |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
