Comount Dual USB built-in charger with USB-A/C, LED indicator and push button

Why is a USB built-in charger with on-board voltage display useful in a caravan?

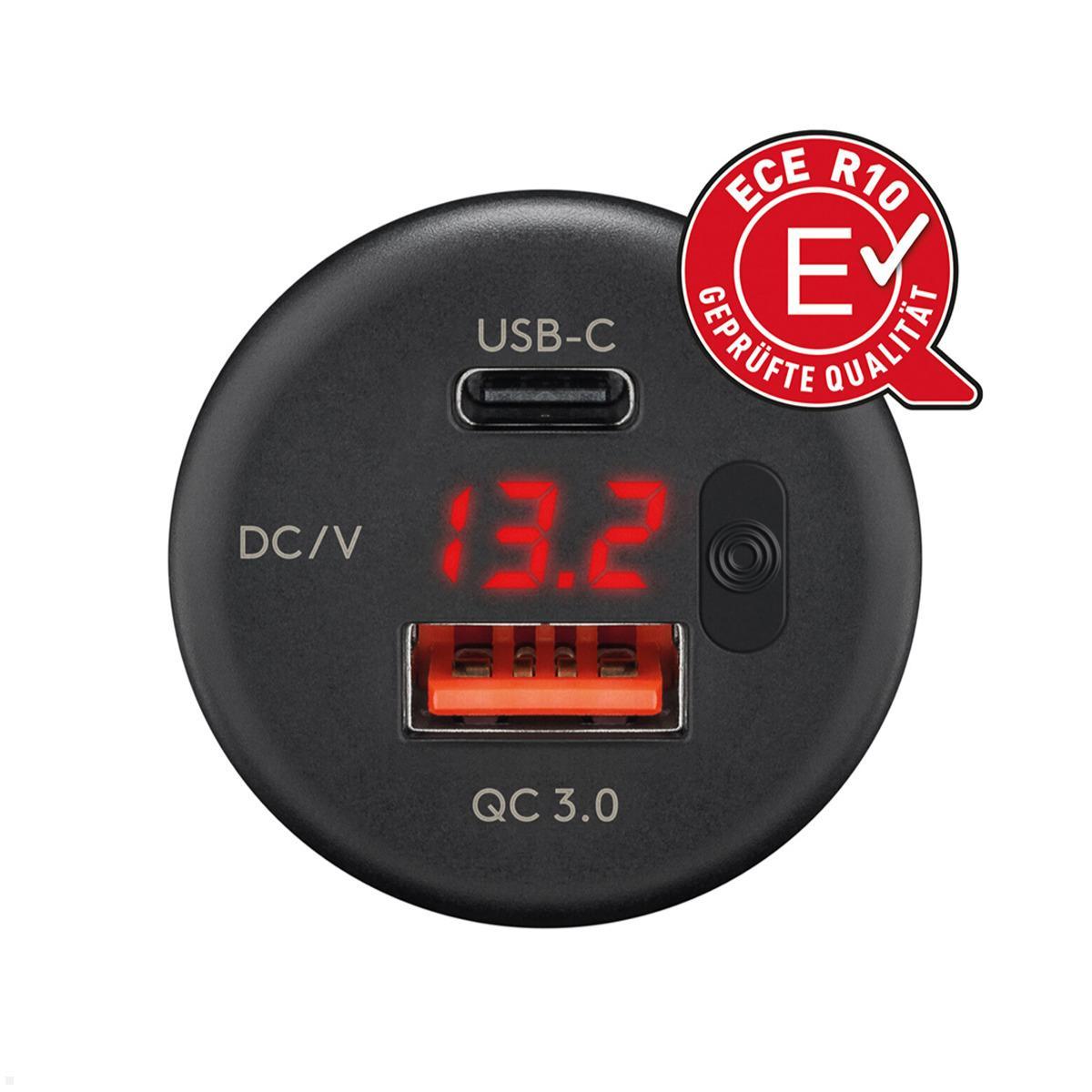

In motorhomes and caravans, monitoring the on-board voltage is an important aspect for worry-free travel. A too-low battery voltage can damage sensitive electronics or prevent the vehicle from starting. The Comount Dual USB built-in charger with USB-A/C, LED display and pushbutton (560027) combines powerful fast charging with a practical 7-segment LED display that shows the current on-board voltage at the push of a button. This way campers and boat owners always keep track of their battery's charge level. If no device is being charged, the voltage display can be activated manually at any time for about one minute. The automatic shut-off at 90 percent battery charge prevents unnecessary energy consumption and preserves the on-board battery during continuous operation. Especially when parked for longer periods at a pitch or in winter storage, the ability to quickly read the on-board voltage is a valuable feature for every traveler. This way you can detect early whether a battery recharge is necessary.

Which fast-charging technologies does the Comount Dual USB built-in charger 560027 support?

The dual-port built-in charger supports an impressive range of fast-charging protocols for maximum device compatibility. At the USB-A port, Quick Charge 3.0, QC 2.0, FCP, AFC, DCP, BC 1.2, SCP, PE 2.0, PE 1.1 and SFCP are available, while the USB-C port additionally offers Power Delivery 3.0 PPS, QC 3.0, QC 4.0 and QC 4+. With 18 watts output power per port, two devices such as smartphones, tablets or rechargeable lamps can be charged simultaneously at high speed. The three power levels on both ports of 15, 18 and 18 watts adapt automatically to the connected device. The wide input voltage range of 12 to 24 volts DC makes the charger suitable for 12‑volt on-board systems in motorhomes as well as 24‑volt systems in trucks and larger boats. The low standby current of 5 to 7 mA conserves the on-board battery during extended periods of non-use and makes separate isolating switches unnecessary in many cases.

For which installation situations is the USB charger with LED and pushbutton suitable?

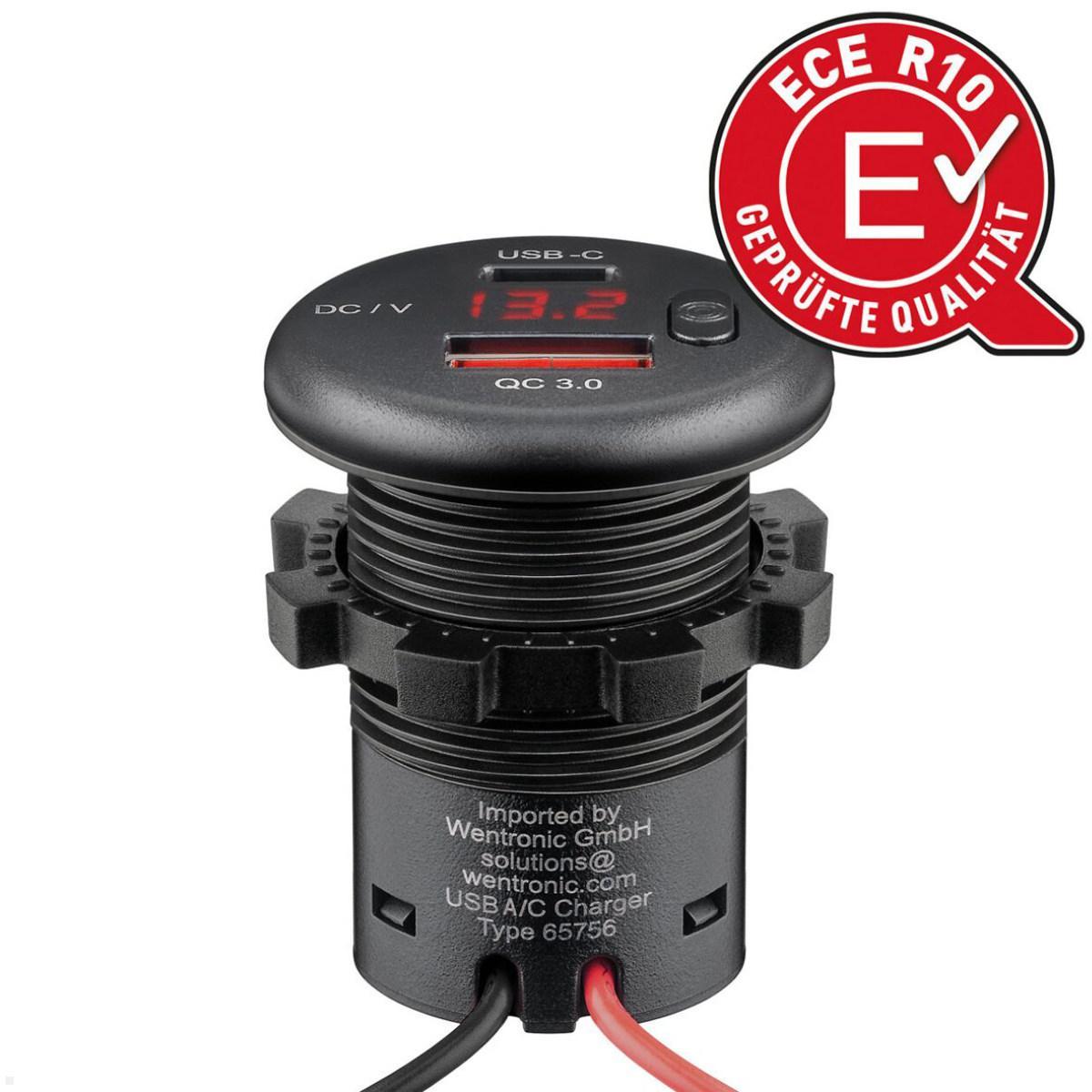

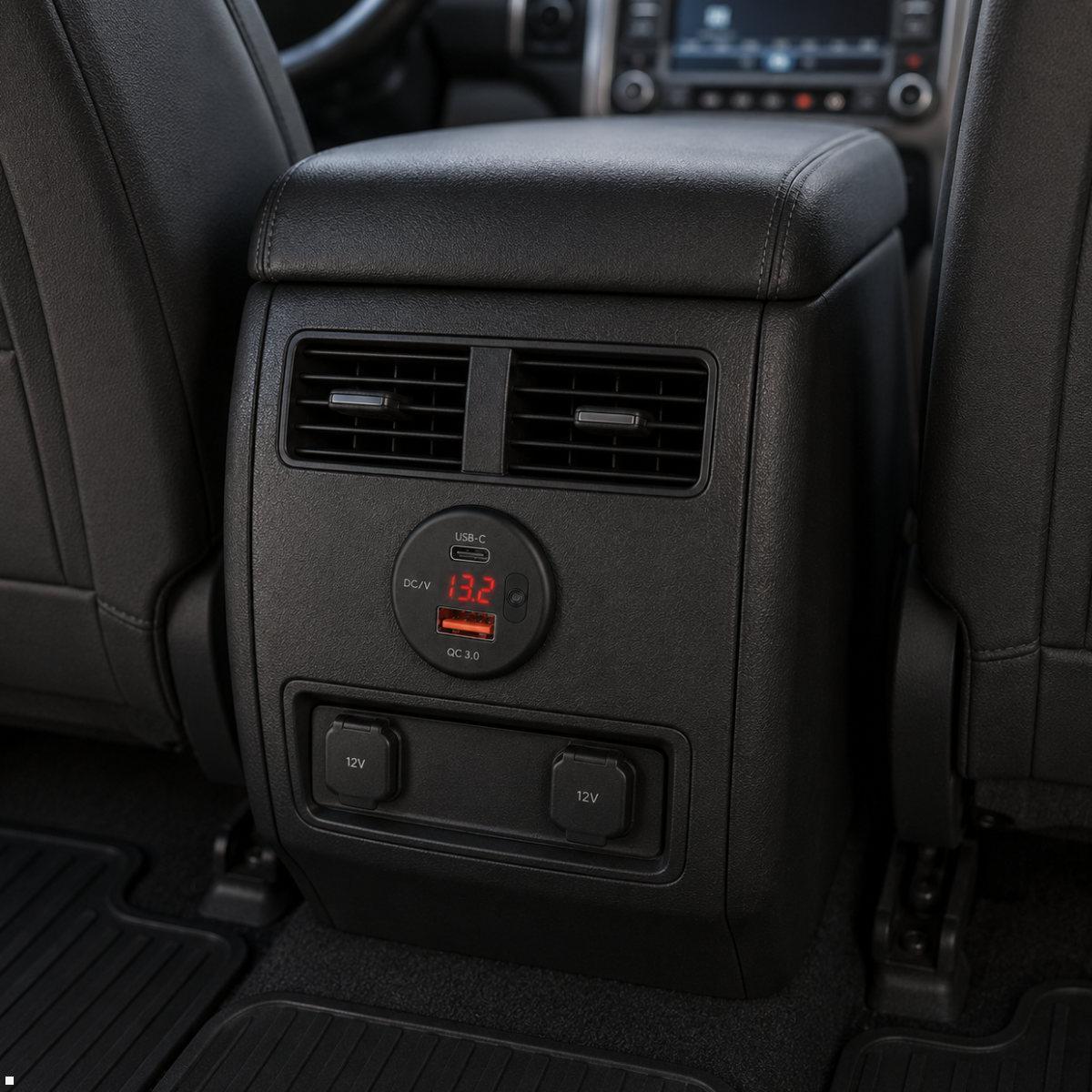

Thanks to the compact installation diameter of 27 mm and the shallow depth of only 45.7 mm, the charger can be integrated in a space-saving manner into almost any surface. Compatibility with the switch systems from Berker and Inprojal allows harmonious integration into existing installations in motorhomes, caravans, boats and furniture. Integrated protection against short circuit, overheating and overvoltage ensures maximum safety in every application, even in humid environments on boats. The wide operating temperature range of -20 to +80 degrees Celsius makes the charger suitable for year-round use under a variety of climatic conditions, from winter temperatures in Scandinavia to the summer heat of the Mediterranean. Optionally, the built-in charger can be equipped with a dust cover to protect the USB port from contamination. The open cable ends with a length of 200 mm allow flexible wiring and easy installation without special tools. Comount products are manufactured at production sites certified to the automotive standard IATF 16949 and comply with CE, UKCA and ECE-R10 type approval standards for maximum reliability in continuous operation.
