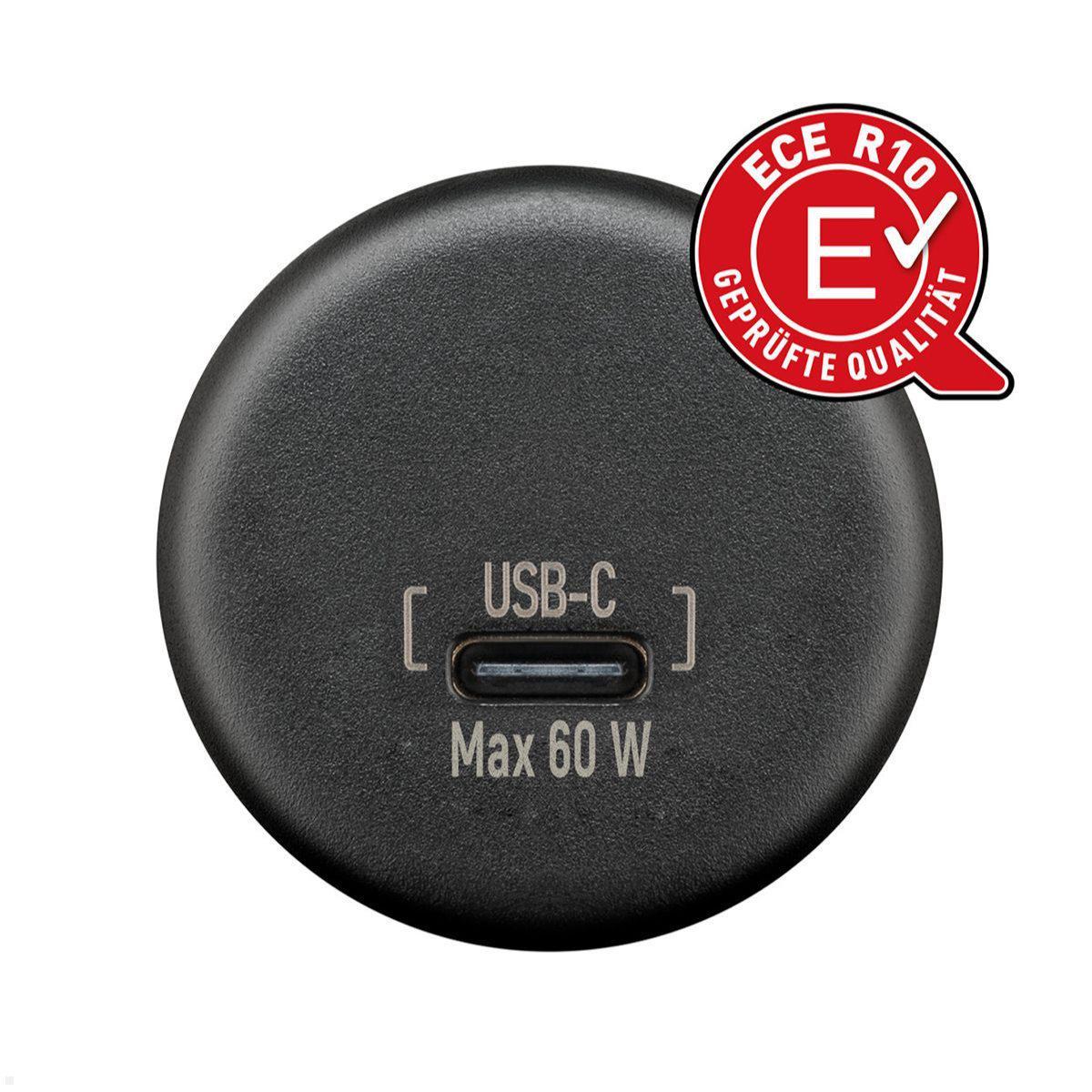

Comount USB-C built-in charger with open cable ends USB-C PD 60W
Highlights
- USB-C Power Delivery up to 60 W
- PD 3.0, QC 5 fast charging technology
- Compact 27 mm installation diameter
- Input voltage 12-24 V DC
- Open cable ends 200 mm

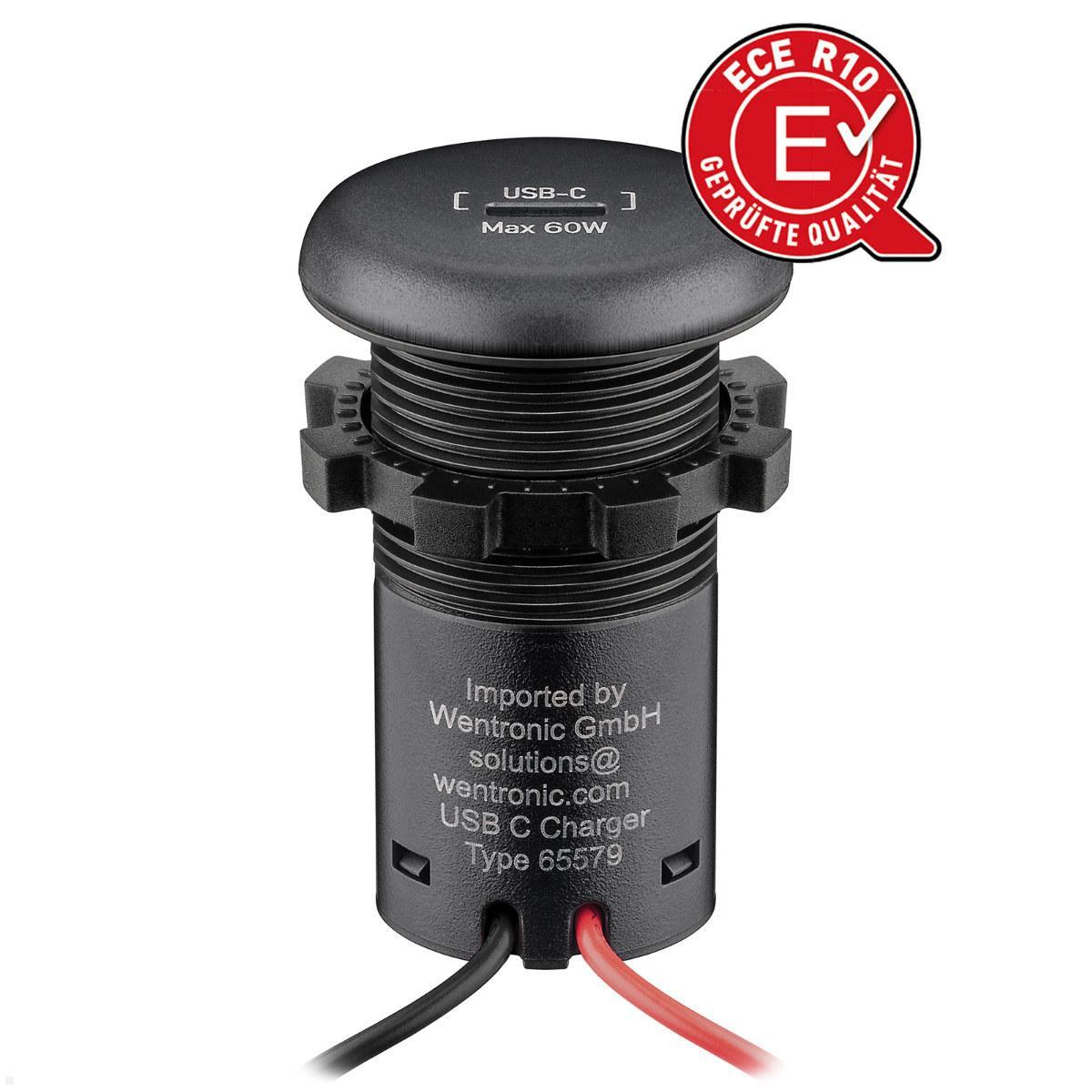

USB-C built-in charger with 60 Watt Power Delivery for caravan and boat
The Comount USB-C built-in charger with open cable ends USB-C PD 60W (560022) delivers up to 60 watts of charging power via USB Power Delivery, enabling ultra-fast charging of smartphones, tablets and laptops in motorhomes, caravans and boats. Thanks to the advanced fast charging technology with PD 3.0, PPS, QC 5 and other protocols, the charger is compatible with almost all modern devices.
The reversible USB-C connector of the Comount USB-C built-in charger with open cable ends USB-C PD 60W is easy to use and is becoming an increasingly important unified charging standard. With a compact mounting diameter of only 27 mm, the charger fits switch systems from Berker and Inprojal/CBE and is suitable for panel thicknesses up to 17 mm. The open cable ends with 200 mm length allow flexible installation. Comount products are certified to the automotive standard IATF 16949 and meet the increased EMC requirements according to ECE-R10 Type Approval.
Technical details Comount USB-C built-in charger 60W with Power Delivery
- Output power: max. 60 watts
- Input voltage: 12-24 V DC
- Power levels: 5.0 V / 3.0 A (15 W), 9.0 V / 2.0 A (27 W), 12.0 V / 3.0 A (36 W), 15.0 V / 3.0 A (45 W), 20.0 V / 3.0 A (60 W)
- Fast charging technology: PD 3.0, PPS, BC1.2, QC 5, QC 4+, QC 3+, QC 3.0, QC 2.0, FCP, AFC, UFCS
- Standby current: ≤ 2 mA
- Mounting diameter: 27 mm / Front diameter: 36 mm / Depth: 55 mm
- Suitable for panel thicknesses up to 17 mm
- Cable length: 200 mm (open cable ends)
- Weight: 30 g
- Operating temperature: -20 °C to +70 °C
- Storage temperature: -40 °C to +90 °C
- Lifetime: approx. 10,000 plug/unplug cycles
- Certifications: CE, UKCA, ECE-R10 Type Approval, RoHS, REACH, FMVSS 201
- Compatible with switch systems from Berker and Inprojal/CBE
- Scope of delivery: 1x Comount USB-C built-in charger with open cable ends
| Scope of delivery: | 1x Comount USB-C built-in charger with open cable ends |
|---|---|
| Contains installation material: | + |
| Warranty: | 2 years |
| Manufacturer/Importer: | RAM Mounts Germany GmbH, Alexander-Meissner-Str. 42, 12526 Berlin, info@rammounts.de |
| RCM-Differenzstrommessung: | Nein |
| Schalten: | Nein |
| color: | Black |
| USB-Charger: | USB C |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Comount USB-C in-wall charger 60W?
The Comount USB-C in-wall charger with open cable ends delivers up to 60 watts via USB Power Delivery and is suitable for charging smartphones, tablets and notebooks in caravans, boats and motorhomes.
-
Which fast-charging technologies does it support?
It supports PD 3.0, PPS, BC1.2, QC 5 and other protocols, and is compatible with most modern devices.
-
What are its dimensions and cable length?
Mounting diameter is 27 mm, front diameter 36 mm and depth 55 mm. Open cable ends are 200 mm long.
-
What input voltage and output power does it have?
Input voltage is 12-24 V DC; output up to 60 W. Power levels: 5V/3A (15W), 9V/3A (27W), 12V/3A (36W), 15V/3A (45W), 20V/3A (60W).
-
Is it compatible with specific switch programs?
It is compatible with Berker and Inprojal/CB switch programs; suitable for wall thickness up to 17 mm.
-
What certifications and quality marks does it have?
Comount products are certified to the automotive standard IATF 16949 and meet EMV requirements per ECE-R10 Type Approval. Certifications include CE, UKCA, ECE-R10 Type Approval, RoHS, REACH and FMVSS 201.
-
What is included in the package?
Package includes 1x Comount USB-C in-wall charger with open cable ends.
-
What is the standby current consumption?
Standby current: ≤ 2 mA.

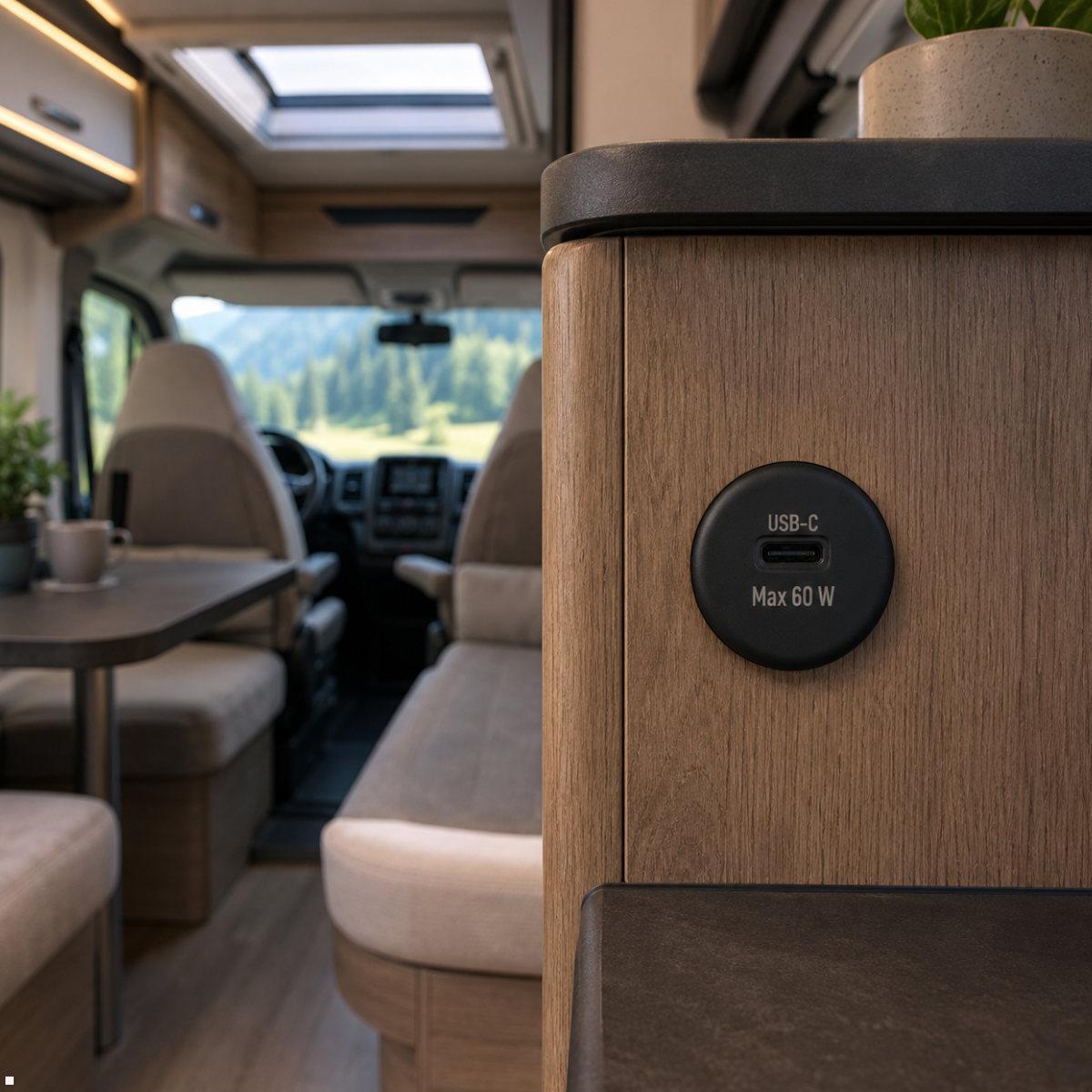

What advantages does a 60-watt USB-C built-in charger offer in a motorhome?
Modern mobile devices such as smartphones, tablets and especially laptops require increasingly higher charging power to be charged quickly and efficiently. A permanently installed USB-C built-in charger with 60 watts Power Delivery offers the decisive advantage in a motorhome that even power-hungry devices can be charged directly from the on-board power system without the need for a separate inverter or an additional mains charger. The Comount USB-C built-in charger with open cable ends USB-C PD 60W (560022) supports PD 3.0 as well as numerous other fast-charging protocols such as QC 5, QC 4+, QC 3+, PPS and UFCS, so practically any modern device is supplied with optimal power. The input voltage of 12 to 24 volts DC makes the charger suitable for 12-volt on-board systems in motorhomes as well as 24-volt systems in larger vehicles and boats. With 60 watts output power, even laptops can be charged during active use, which is a real comfort gain on long trips and when working on the road. The five power levels from 15 to 60 watts automatically adapt to the connected device.
How easy is it to install the Comount built-in charger 560022?
Installation of the USB-C built-in charger is extremely simple and requires only a 27 mm diameter hole in the desired surface. The charger is compatible with the widely used switch ranges from Berker and Inprojal/CBE and can therefore be seamlessly integrated into existing installations without disturbing the overall appearance. The open cable ends with a length of 200 mm offer maximum flexibility for wiring and allow direct connection to the 12- or 24-volt on-board power system. With a mounting depth of 55 mm and a maximum panel thickness of 17 mm, the charger is suitable for most common installation situations in caravans, boats, yachts and furniture. The extremely low standby current of under 2 mA preserves the on-board battery even during prolonged vehicle inactivity and makes additional isolation switches unnecessary in most cases. The elegant front diameter of 36 mm blends discreetly into any surface.
For which applications is the 60W USB-C charger particularly suitable?
The versatile built-in charger is ideal for permanent installation in motorhomes, caravans, trailers, boats, yachts and also in stationary furniture such as desks, workshops or kitchen islands. Thanks to the wide operating temperature range of -20 to +70 degrees Celsius, the charger is also designed for extreme climatic conditions in southern or northern regions. The high service life of around 10,000 plug-in and unplug cycles ensures years of reliable operation without noticeable wear on the USB-C connector. Comount products are manufactured at production sites certified to the automotive standard IATF 16949 and meet all DIN and VDA standards for the automotive sector. The comprehensive certifications including CE, UKCA, RoHS, REACH and the passed FMVSS 201 head impact test demonstrate the high quality and safety of the product. The integrated protection against short circuits, overvoltages and high temperatures ensures maximum operational safety in any installation situation.
