Crestron DigitalMedia 8G+ Transmitter CAT 401-C
TheDM-TX-401-C provides an interface for computers and high-resolution AV sources as part of a completeDigitalMedia system.

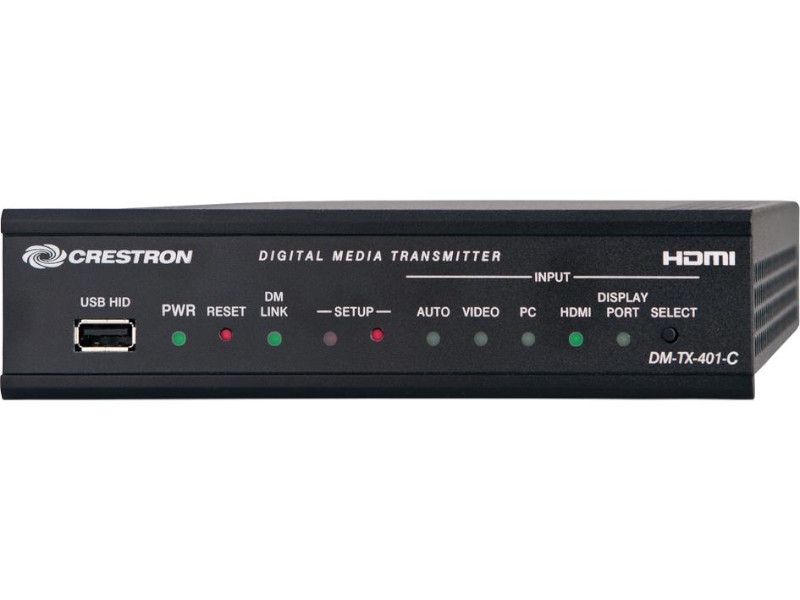

Crestron DigitalMedia 8G+ Transmitter CAT DM-TX-401-C

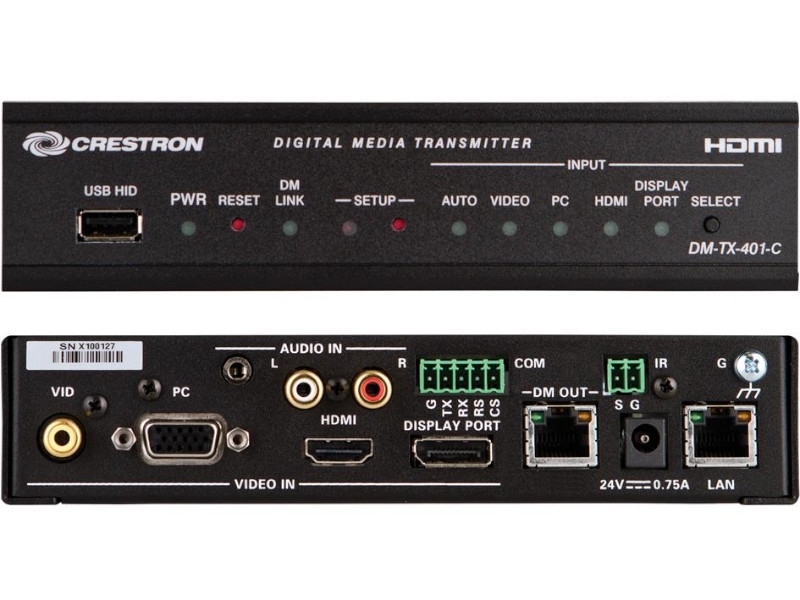

The DM-TX-401-C provides a versatile interface for computers and high-resolution AV sources as part of a completeDigitalMedia system. It acts as a DigitalMedia 8G+ transmitter and switch, providing DisplayPort, HDMI, VGA, composite video and analog audio inputs. It also acts as a control module that provides RS-232 and IR control ports as well as Ethernet and USB HID ports for a total connectivity solution. In addition to DirektMedia 8G+, it is also compatible with HDBaseT, so it can be connected directly to the input of an HDBaseT-certified display device.
Mounting Crestron DM-TX-401-C
TheDM-TX-401-C can be mounted in a rack, placed on a shelf, mounted under a desk, installed in a stationary podium or equipment stand, and provides an ideal solution for integrating rack-mounted sources, switches, and AV Receivers into the DigitalMedia system. Under a table or in a portable lectern or AV cart, it provides an easy way to connect mobile devices, computers, cameras and other "BYOD" sources. In a conference center or auditorium, a portable DM-TX-401-C can be connected to the system via wall panels and floor boxes as needed, with only a single DM 8G+ jack required at each location.
Technical details Crestron DigitalMedia 8G+ Transmitter CAT
- Housing material: metal
- Color: Black
- Input: DigitalMedia 8G+, HDBaseT
- Output: HDMI
- Dimensions (LxWxH): 180 x 223 x 45 mm
- Working temperature: 0° C - 40° C
- Weight: 900 g
- LAN: 10/100 Mbps
More about Crestron DigitalMedia 8G+ Transmitter CAT DM-TX-401-C
This Crestron product does not meet your requirements? We are happy to advise you individually on this product. Do not hesitate to contact us.
| Product sheet: |  [pdf, 236 kb] - Englisch |
|---|---|
| Installation manual: | [pdf, 206 kb] - Englisch |
| Material: | Metall |
| Contains installation material: | + |
| Warranty: | 3 years |
| Manufacturer/Importer: | four traders GmbH / Crestron, Am Marienhof 8, 22880 Wedel, info@four-traders.com |
| color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
