Crestron DigitalMedia Transmitter 8G+ CAT Wall Mount, White
The DM-TX-200-C-2G features a wall-mounted interface for computers and high-definition AV sources.
Crestron DigitalMedia Transmitter 8G+ CAT Wall Mount, White DM-TX-200-C-2G-W-T

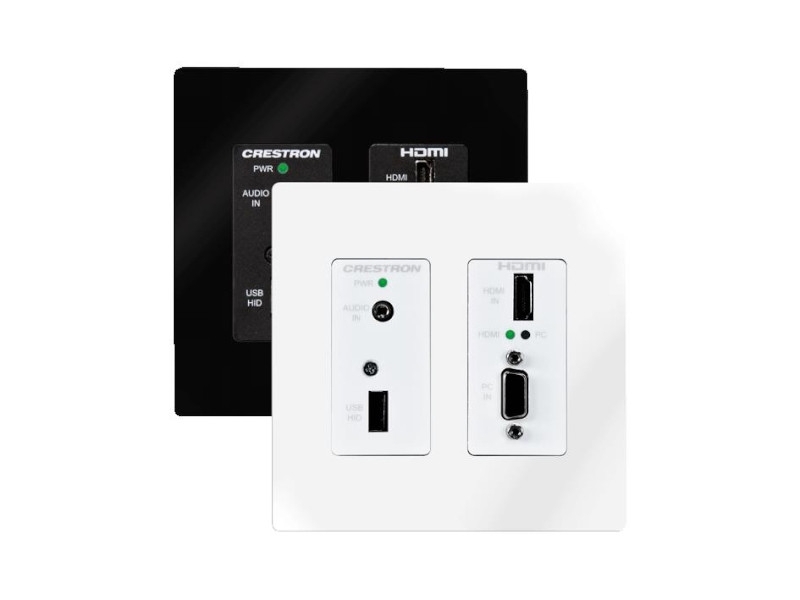

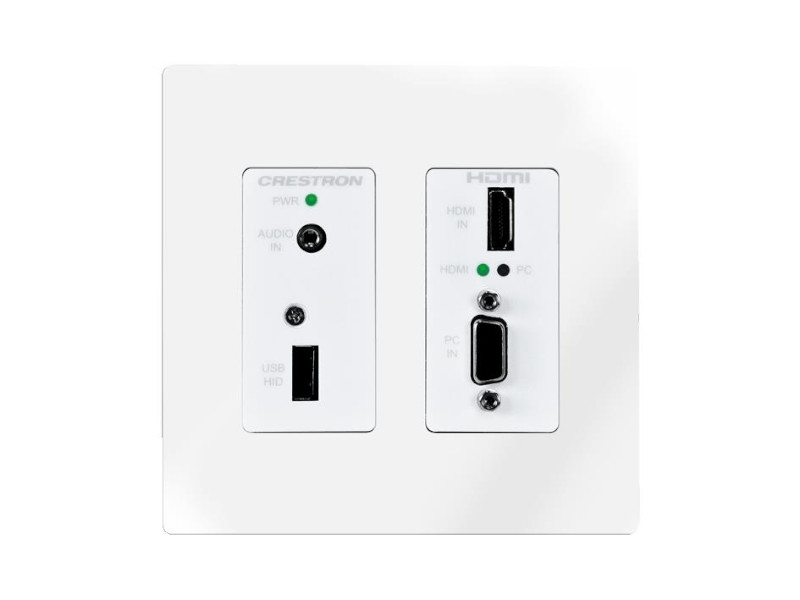

The white DM-TX-200-C-2G provides an interface for computers and high-definition AV sources as part of a complete DigitalMedia system. It is ideal for use as a wall, lectern and floor box in conference rooms, classrooms, auditoriums or living spaces. It acts as a transmitter and switcher with DigitalMedia 8G+ and provides HDMI, VGA and analog audio inputs as well as a USB HID host port. In addition to DigitalMedia 8G+, it is also compatible with HDBaseT and can be connected directly to the input of an HDBaseT-certified display device. It connects to a single CAT twisted pair cable. The DM-TX-200-C-2G allows easy switching between two inputs. The inputs can be configured to automatically switch or select via a control system.
Technical details Crestron DigitalMedia Transmitter 8G+ CAT wall mounting in white
- Housing material: metal
- Input: DigitalMedia 8G+, HDBaseT
- Output: HDMI
- Color: white
- Dimensions (LxWxH): 105 x 89 x 68 mm
- Working temperature: 0° C - 40° C
- Weight: 403 g
- LAN: 10/100 Mbps
- Sufficient heat dissipation must be ensured
- Front panel not included
More about Crestron DM-TX-200-C-2G-W-T
This Crestron product does not meet your requirements? We are happy to advise you individually on this product. Do not hesitate to contact us.
| Product sheet: |  [pdf, 281 kb] - Englisch |
|---|---|
| Installation manual: | [pdf, 403 kb] - Englisch |
| Material: | Metal |
| Contains installation material: | + |
| Warranty: | 3 years |
| Manufacturer/Importer: | four traders GmbH / Crestron, Am Marienhof 8, 22880 Wedel, info@four-traders.com |
| color: | Weiß |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
