EOL - Dataflex AV Solutions LCD/Plasma Ceiling Mount
Suitable for LCD/Plasma flat screen TV's up to 60"
Info Dataflex AV Solutions LCD/Plasma Ceiling Mount:
- Suitable for LCD/Plasma flat screen TV's up to 60"
- Heavy duty steel components
- Height adjustable from 1660 - 2460 mm
- Swivels +45°/-45°
- Ceiling plate thickness 3 mm
- Maximum weight capacity when mounted with the 54.302: 60 kg.
- Maximum weight capacity when mounted with the 54.352: 75 kg.
- Cable management for DVI/HDMI/ RCA>SCART/ POWER cables

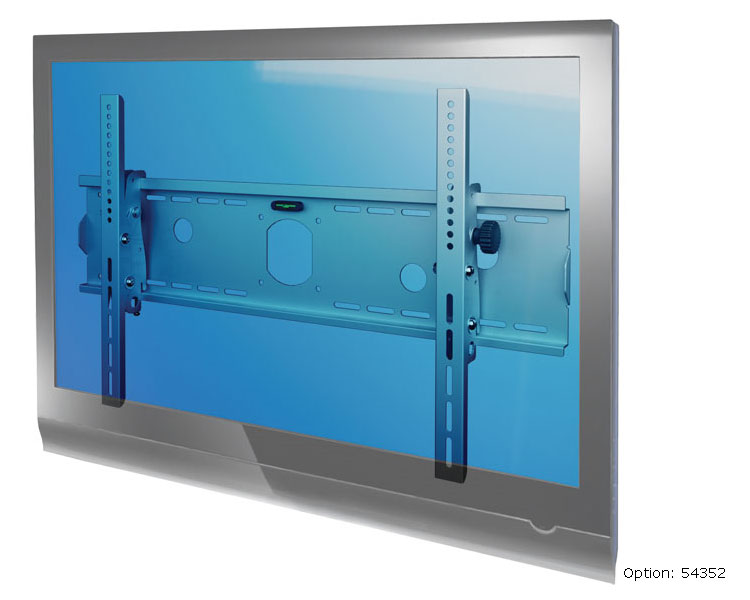

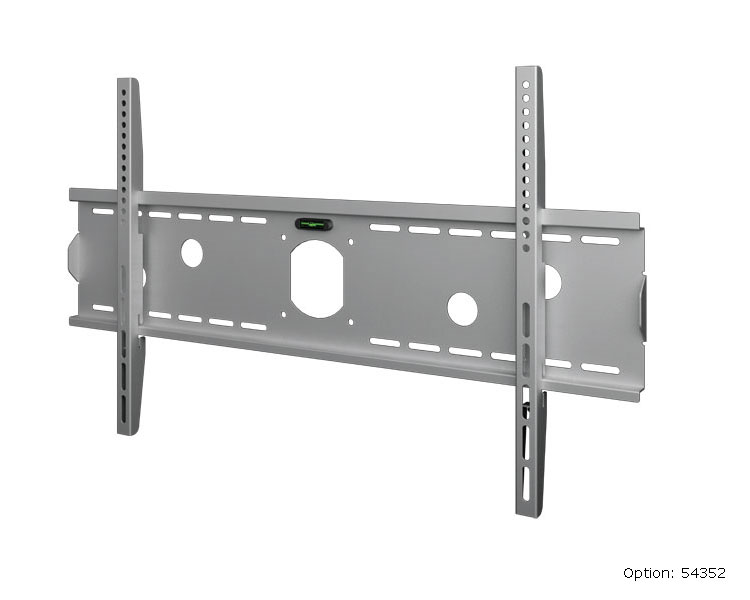

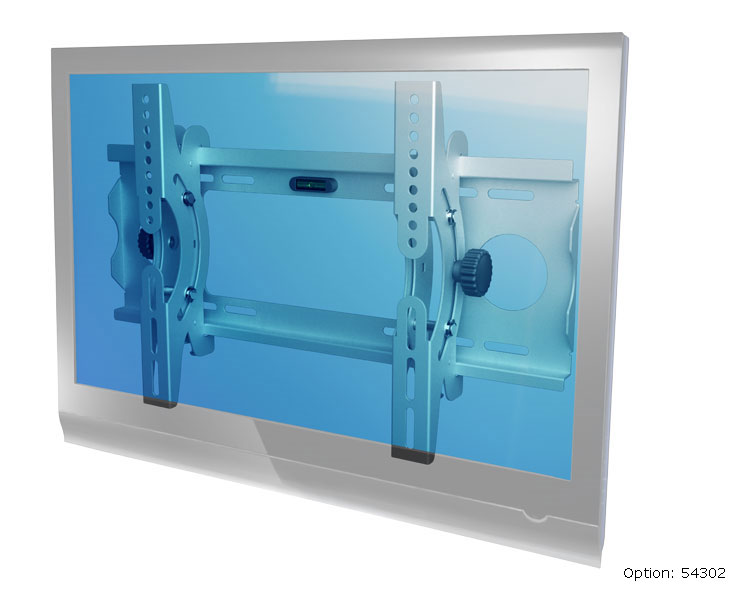

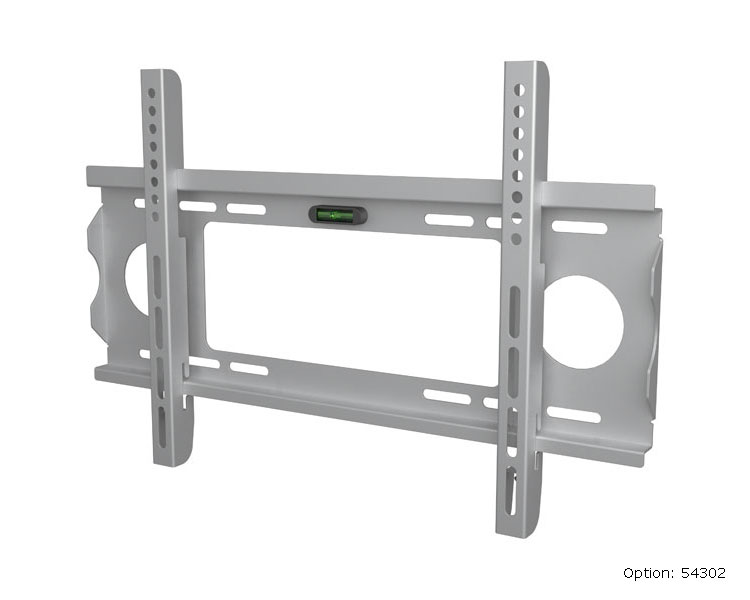

- Combine with AV Solutions Universal LCD/Plasma Mounting Bracket Fixed & tilt 54.302 (23"-37") & 54.352 (32"-60")
- Colour: silver
If you are interested in more information about VESA-Standards for monitorbrackets click here!
| Technical drawing: |  [pdf, 42 kb] |
|---|---|
| Warning/safety instructions: | [pdf] |
| Capacity: | with 54302 - 60 kg, with 54352 - 75 kg |
| Height range (mm): | 1660 bis 2460 mm |
| Swivelling range: | 45° |
| Screen size: | 54302 23"-37"; 54352 - 32"-60" |
| Ceiling distance: | 1660 bis 2460 mm |
| VESA Standard: | with 54302 max. VESA 400x200mm; with 54352 - max. VESA 600x200mm (www.vesa-standard.com) |
| Accessories: | Dataflex LCD/Plasma Wall mount 23-37“ (54302) Dataflex LCD/Plasma Wall mount 32-60“ (54352) |
| Contains installation material: | + |
| Warranty: | 2 years |
| Manufacturer/Importer: | Dataflex International BV, Van Nassauweg 2-6, 2921 LX Krimpen a/d IJssel, Niederlande, info@dataflex.de |
| Mounting type: | Ceiling mount |
| color: | Silber |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
