Dataflex AV Solutions Universal LCD/Plasma Mounting Bracket Fixed & tilt 23-37"

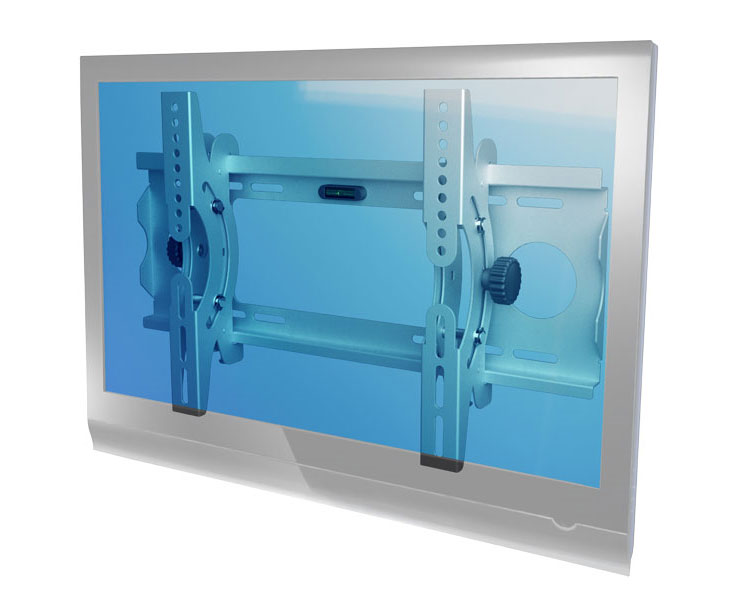

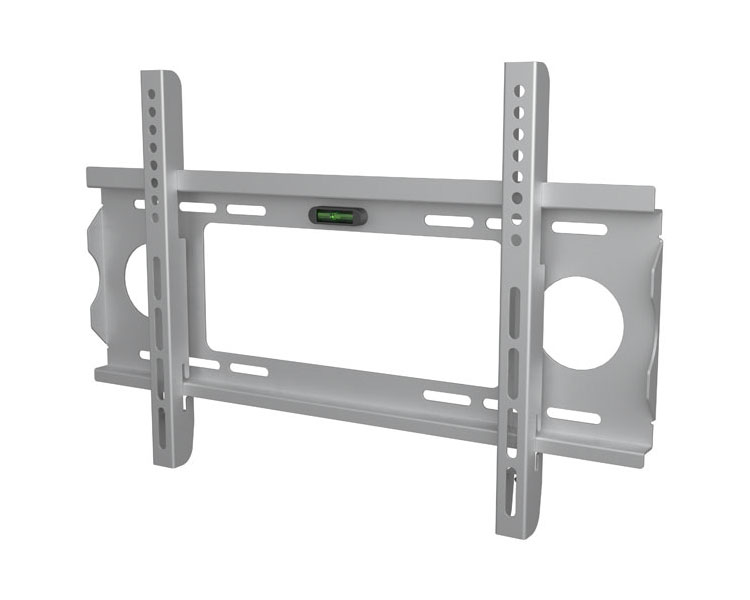

This LCD/Plasma TV mounting bracket is perfect for either a static wall mounting of the flat screen TV using the fixed brackets, or a dynamic wall mounting to tilt the flat screen TV in a more comfortable viewing position.
Both the fixed and tilt frames come with the mounting bracket so you can choose on site how the TV can be positioned on the wall in the best way possible. The built-in level helps to correctly install the bracket with the greatest of ease. All necessary fasteners are included.
Info Dataflex AV Solutions Universal LCD/Plasma Mounting Bracket Fixed & tilt 23-37":
- LCD/Plasma wall mount bracket
- Suitable for screens 23" up to 37"
- Maximum VESA size 400 x 200 mm

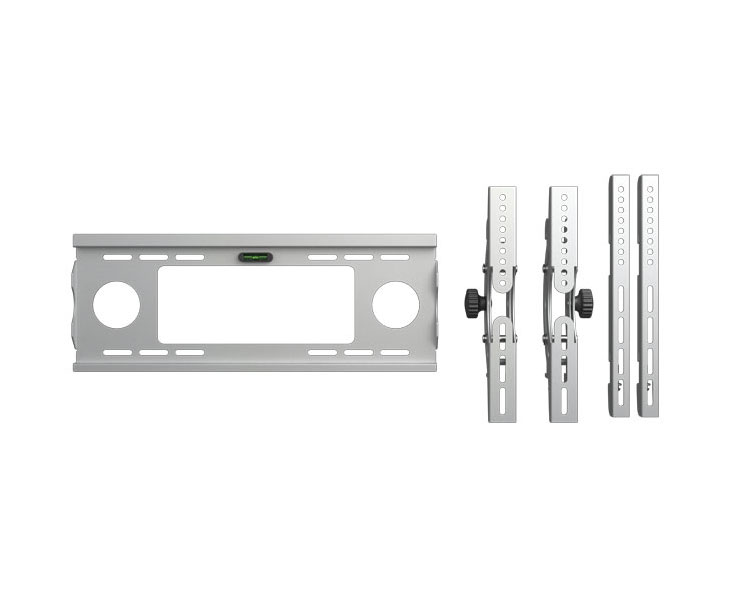

- Comes with both tilt and fixed VESA mounting frames
- Screen distance to wall fixed frame: 36 mm
- Screen distance to wall tilt frame: 82 mm
- With built in level for easy installment
- Comes with all necessary fasteners

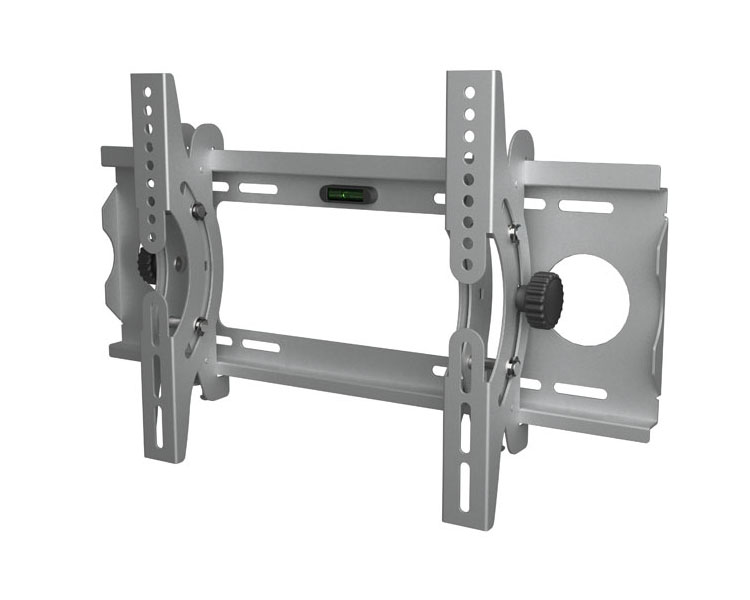

- tilt frame tilts up to 15° downwards
- Maximum weight capacity of 60 kg.
- Colour: silver
If you are interested in more information about VESA-Standards for monitorbrackets click here!
| Technical drawing: |  [pdf, 194 kb] |
|---|---|
| Warning/safety instructions: | [pdf] |
| Capacity: | 60 kg |
| Tilt: | 15° |
| Screen size: | 23 - 37" |
| VESA Standard: | max 400x200 (www.vesa-standard.com) |
| Accessories: | Dataflex AV Solutions LCD/Plasma Ceiling Mount (54232)Dataflex AV Solutions LCD/Plasma Design Trolley (78402) |
| Contains installation material: | + |
| Warranty: | 2 years |
| Manufacturer/Importer: | Dataflex International BV, Van Nassauweg 2-6, 2921 LX Krimpen a/d IJssel, Niederlande, info@dataflex.de |
| Mounting type: | wall mount |
| color: | Silber |
| VESA (in mm): | VESA 100x100, VESA 200x100, VESA 200x200, VESA 300x200, VESA 300x300, VESA 400x200 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
