Dataflex TVmotions® electrically adjustable wall mount
This Dataflex TVmotions® electrically adjustable wall mount flat screen TV bracket is unique when it comes to flexibility, user friendliness and functionality.
TVmotions® is a revolutionary wall bracket that enables users to swivel and tilt their flat screen television to any desired position. This ground-breaking product measures only 60 (!) mm in depth when folded in its HOME position. Mounting a flat screen TV as close to the wall as possible, no longer means losing the flexibility to be able to watch TV from any angle in the room.
This compact package finally allows users to experience the dynamic viewing solution only Dataflex can offer. The TVmotions® is suitable for almost every LCD/Plasma flat screen television. The ease of installation and use makes the TVmotions® not only very attractive for airports, bars, offices and hotels but for home owners as well.
The TVmotions® is available as a quad motorized electrical version with infrared remote control or manual version. Both versions have TÜV/GS, CE approval, RoHS conformity and are patented worldwide.
Its 78 degree maximum swivel range to the left and 90 degree maximum swivel range to the right and counter balance spring supported 15 degree tilt function makes this product very versatile. Easy to install, easy to operate. Watching TV in a whole new dimension.
Info Dataflex TVmotions® electrically adjustable wall mount:

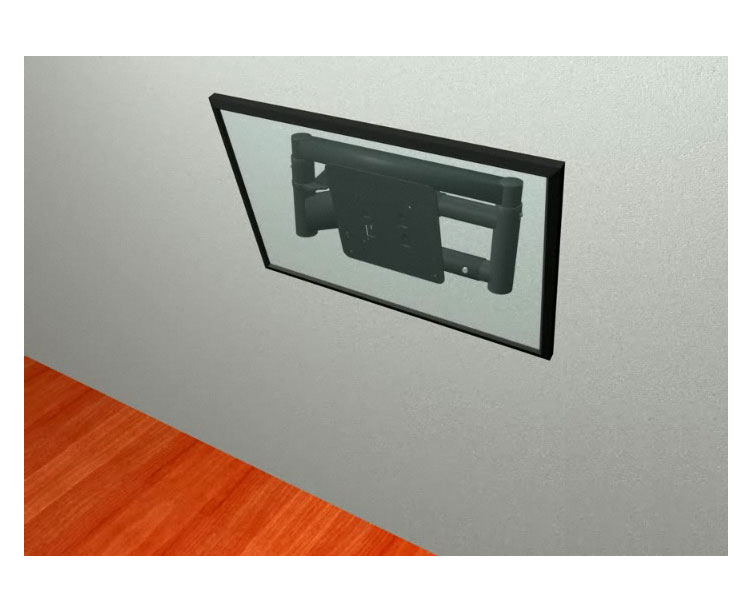

- Measures only 60 mm in thickness when folded in the home position
- Suitable for flat TV's from 26" (66 cm) upto 60" (152 cm)
- Maximum weight capacity of 40 kg.
- Standard VESA 200 x 200 mm

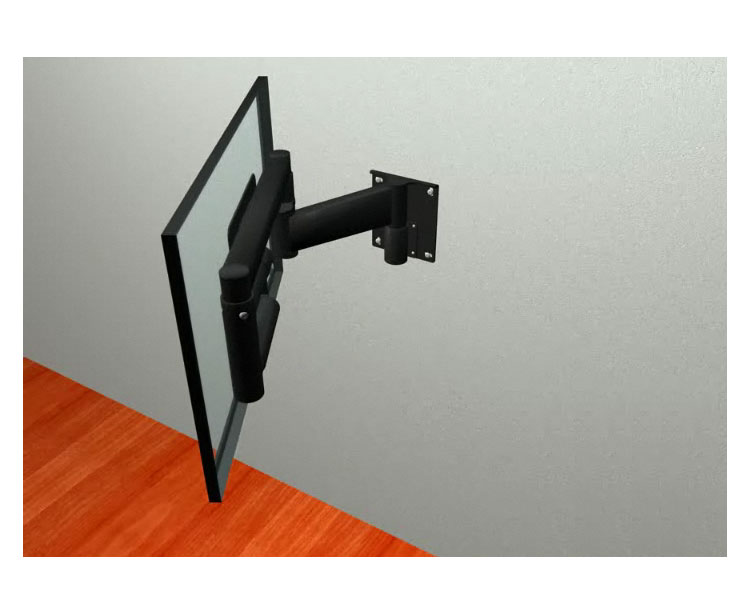

- Swivels up to 60" (152 cm) - 27 degrees to the left, 79(!) degrees to the right and tilts 15 degrees
- Swivels up to 52" (132 cm) - 33 degrees to the left, 90(!) degrees to the right and tilts 15 degrees
- Swivels up to 40" (102 cm) - 55 degrees to the left, 90(!) degrees to the right and tilts 15 degrees
- Swivels up to 32" (81 cm) - 78 degrees to the left, 90(!) degrees to the right and tilts 15 degrees
- TÜV/GS certified
- Patented worldwide
- Colour: black
If you are interested in more information about VESA-Standards for monitorbrackets click here
| Product sheet: |  [pdf, 351 kb] |
|---|---|
| Technical drawing: |  [pdf, 107 kb] |
| Installation manual: | [pdf, 661 kb] |
| Warning/safety instructions: | [pdf] |
| Capacity: | 40 kg |
| Tilt: | 15° |
| Swivelling range: | 60° |
| Screen size: | 26 - 60" |
| VESA Standard: | 200 x 200 mm (www.vesa-standard.com) |

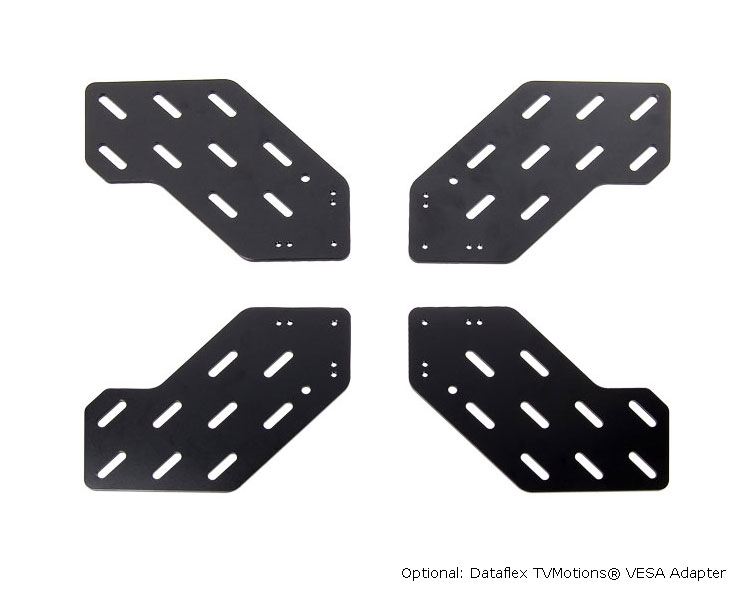

| Accessories: | Dataflex TVMotions® VESA Adapter (54502) |
| Contains installation material: | + |
| Warranty: | 2 years |
| Manufacturer/Importer: | Dataflex International BV, Van Nassauweg 2-6, 2921 LX Krimpen a/d IJssel, Niederlande, info@dataflex.de |
| Mounting type: | wall mount |
| VESA (in mm): | VESA 200x200 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
