Dataflex Viewgo modular monitor mount for 3 monitors up to 32 inches
Highlights
- Triple monitor mount for structured multi-screen workstations
- Modular system for flexible expansion and customization
- Ergonomic alignment with tilt, rotation, and height adjustment
- Tool-free height adjustment along the column
- Space-saving solution with integrated cable management
Dataflex Viewgo modular monitor arm for 3 monitors
The Dataflex Viewgo modular monitor arm – Desk 230 is a powerful solution for workstations with three monitors. The 1x3 configuration allows a structured arrangement of multiple screens and is particularly suitable for demanding applications such as monitoring, trading, development or control rooms.

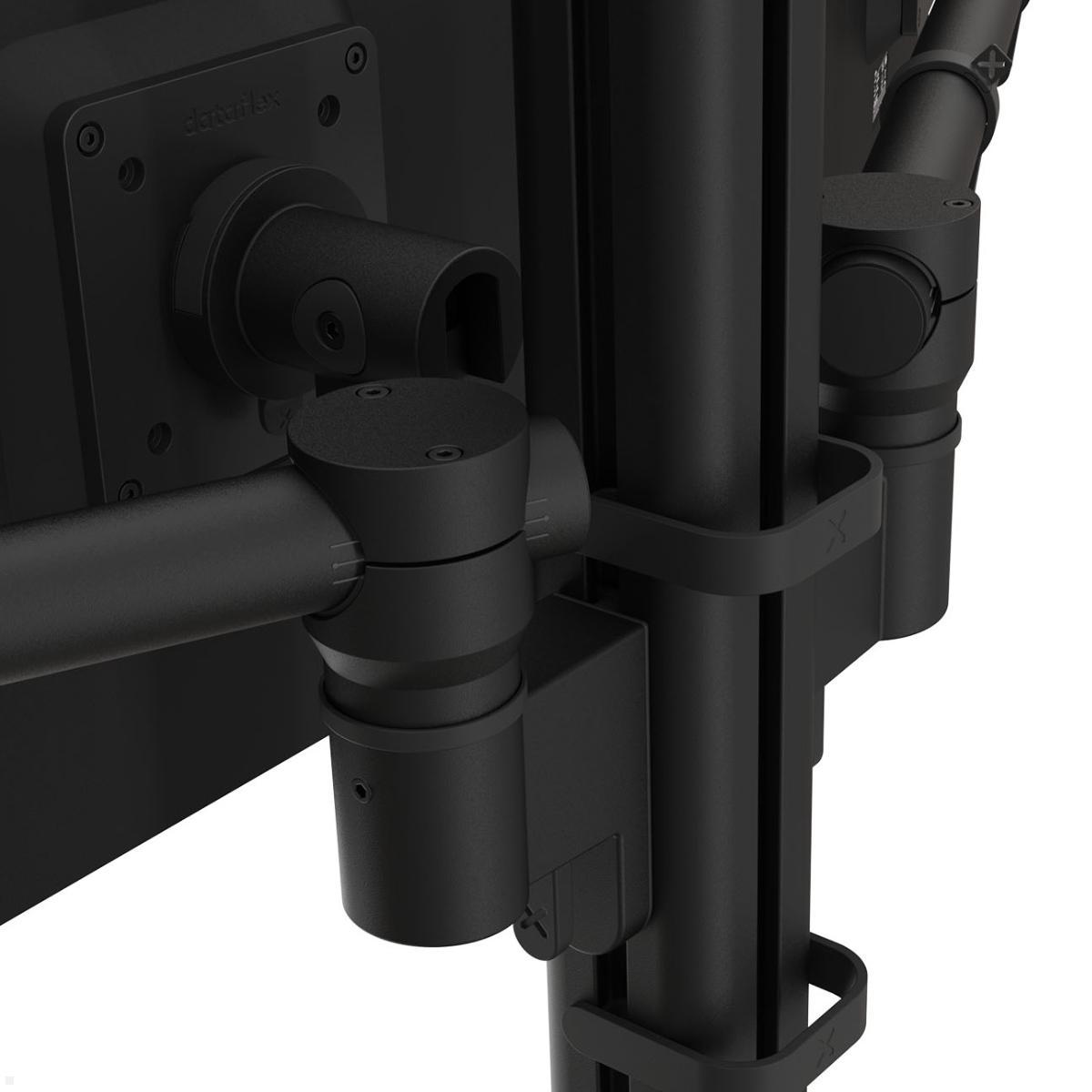

Due to its modular design, the monitor arm can be flexibly adapted to different requirements and expanded if needed. The stable column construction with multiple mounting slots ensures a secure attachment and neat alignment of all monitors.
Ergonomic positioning is supported by a variety of adjustment options. Monitors can be individually tilted, rotated and swiveled, while the tool-free height adjustment allows quick adaptation to different users. This creates a comfortable and efficient working environment with an optimal view of all content. In addition to ergonomic optimization, the monitor holder also provides more desk space. By raising the screens, the work area is significantly expanded and organization improved.
Technical details 3-way monitor desk mount:
- Monitor mount for 3 monitors
- Screen size: up to approx. 32 inches
- Load capacity: up to 9 kg per monitor
- Tilt: approx. +25° / -25°
- Rotation: +90° / -90°
- Swivel range: +90° / -90°
- Arm rotation: up to 360°
- Height adjustment: tool-free along the column
- Height adjustment range: approx. 200–210 mm
- Depth adjustment: flexibly positionable (depending on arm configuration)
- VESA quick-release as standard
- Compatible with VESA mount MIS-D 75x75 and 100x100 mm

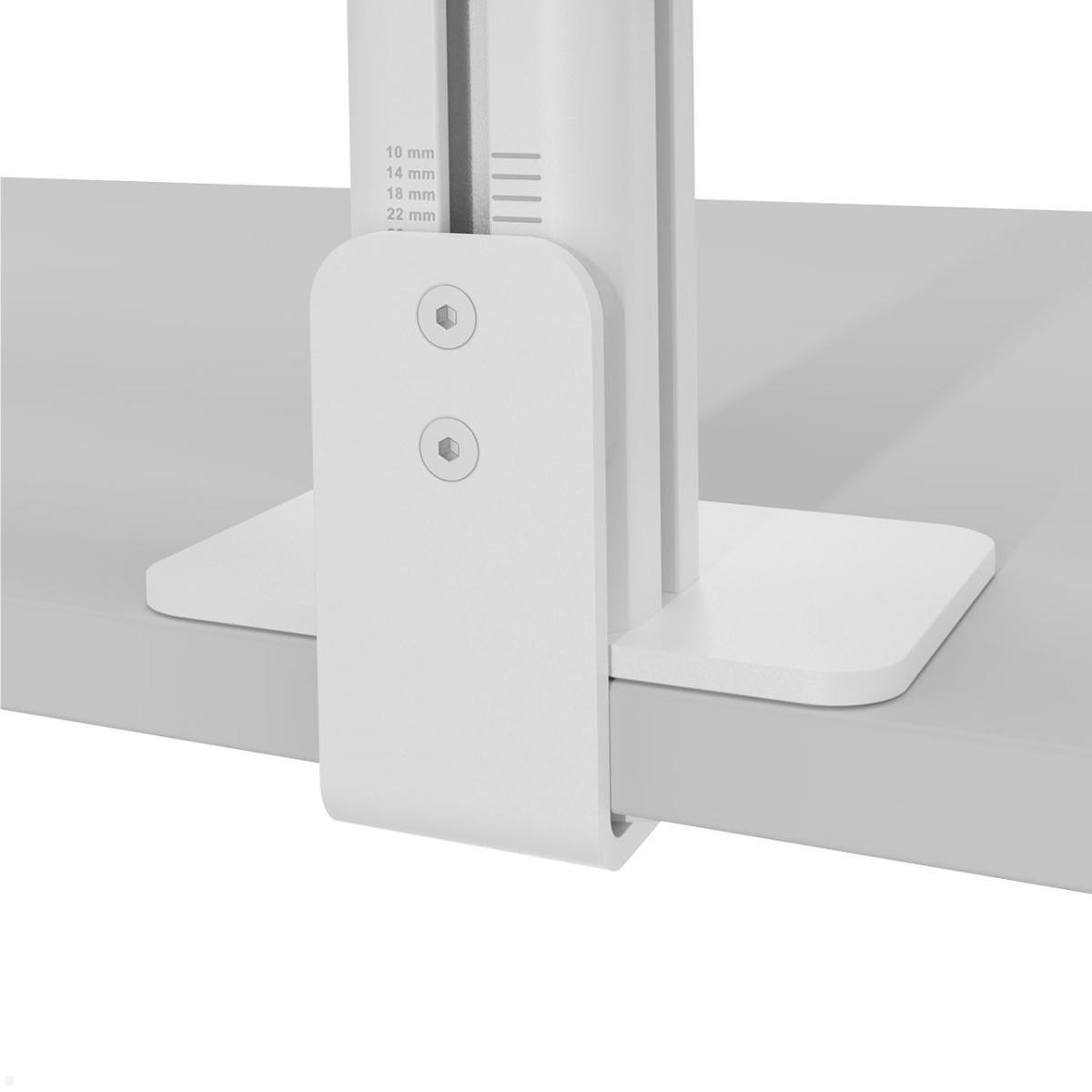

- Desk clamp mounting for desk thicknesses from 5 to 40 mm
- Through-desk mounting for desk thicknesses up to 50 mm
- Maximum width 770 mm per screen
- Maximum height 1,000 mm per screen
- Warranty up to 15 years after registration

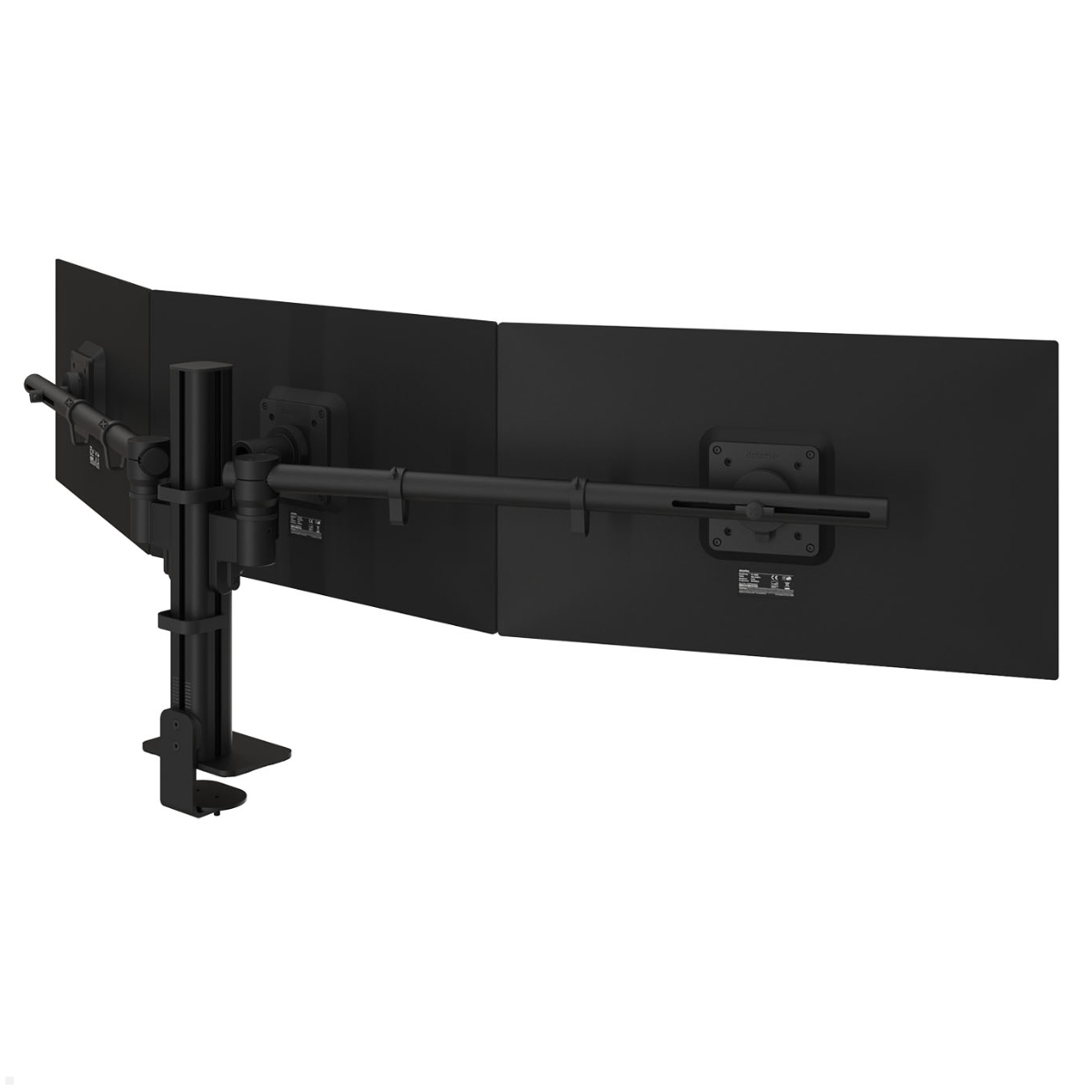

- Available in black (48.233) and white (48.230)
Does your monitor or display fit the monitor mount?
We are happy to check whether your monitor is suitable for this Dataflex Viewgo modular monitor mount. To do so, simply provide your model (manufacturer + model no.) in the comment field at the end of the ordering process. We will then check for you whether the monitor or display is compatible with the monitor mount and, if not, we will contact you.
VESA Standard - Learn more about the VESA standard for monitor mounts!
| Product sheet: |  [pdf] |
|---|---|

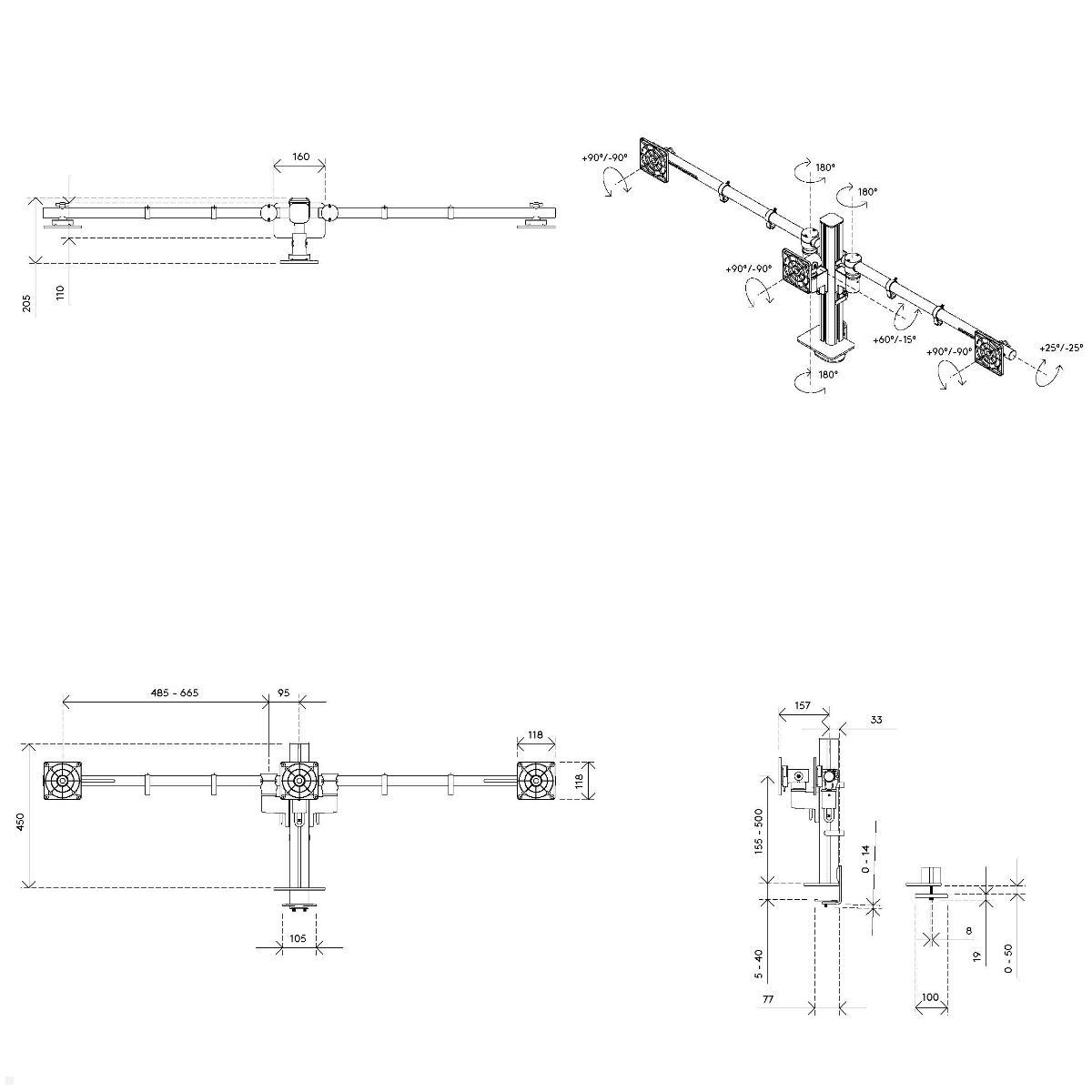

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Capacity: | 9 kg pro Monitor |
| Tilt: | +25°/−25° |
| Rotate: | 90° |
| Height range (mm): | 345 |
| Pivot: | 90° |
| Swivelling range: | +90°/-90° |
| Screen size: | bis 32'' |
| Thickness of table (mm): | Klemme: 5 - 40 mm, Durchtisch: 50 mm |
| Material: | Aluminium, Stahl |
| Special features: | Inklusive Tischklemme und Durchsteck-Befestigungssatz |
| VESA Standard: | 75x75mm, 100x100mm MIS-D (www.vesa-standard.com) |
| Packaging dimensions (LxWxH in mm): | 845x340x180 |
| Scope of delivery: | Dataflex Viewgo modular triple monitor mount | desk clamp | through-desk mounting | installation materials |
| Contains installation material: | + |
| Warranty: | 15 years |
| Manufacturer/Importer: | Dataflex International BV, Van Nassauweg 2-6, 2921 LX Krimpen a/d IJssel, Niederlande, info@dataflex.de |
| Inch size: | 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch, 28 inch, 29 inch, 30 inch, 31 inch, 32 inch |
| Mobility: | Drehbar, height adjustable , rotatable (pivot), swivelling, tilting |
| Mounting type: | desk - clamp, desk - drill screw fastening |
| Multi-monitor mount: | Triple solution |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
How many monitors does the Dataflex Viewgo support?
It supports a 1x3 configuration for three monitors up to around 32 inches.
-
What does the modular design enable?
The modular design lets you flexibly adapt and expand the monitor arm as needed.
-
What ergonomic adjustments are available?
Monitors can be tilted, rotated and swiveled, with tool-free height adjustment along the column.
-
What is the weight capacity per monitor?
Weight capacity up to 9 kg per monitor.
-
What VESA standards are supported?
VESA MIS-D 75x75 and 100x100 mm, with VESA quick-release standard.
-
How is it mounted to the desk?
Desk clamp suitable for desk thickness 5 to 40 mm; through-desk mounting for up to 50 mm.
-
Is there a warranty and colors?
Warranty up to 15 years after registration; available in black (48.233) and white (48.230).
-
What are the maximum width and height per screen?
Maximum width 770 mm and maximum height 1,000 mm per screen.
When is a 3-arm monitor mount the optimal solution?
A monitor arm for three monitors is ideal for workstations where multiple applications are used simultaneously. The Dataflex Viewgo modular monitor arm – Desk 230 offers a structured solution for triple-monitor setups and enables efficient organization of complex content.
Especially in areas such as financial analysis, software development, video editing, or monitoring systems, a 3-way monitor mount is a sensible investment. All relevant information remains visible at the same time, which speeds up workflows and reduces errors.
What advantages does a triple-monitor setup offer in everyday work?
A monitor arm for 3 monitors significantly expands the workspace and allows a clear separation of different applications. Content can be logically distributed across multiple screens, which greatly improves clarity.
Using a monitor mount with three screens reduces the constant switching between programs and ensures a smooth workflow. This not only increases efficiency but also concentration.
How does modular construction support flexible workspaces?
The modular design makes the monitor arm particularly adaptable. Workstations can be expanded or reconfigured at any time without having to replace existing components.
A modular monitor arm for multiple monitors is therefore especially suitable for companies with dynamic requirements. The investment remains worthwhile in the long term because the system can be flexibly adapted to new conditions.
Why is ergonomics particularly important with multiple monitors?
As the number of monitors increases, so does the importance of ergonomic alignment. An ergonomic monitor arm for three screens allows precise positioning of all displays within the field of view.
This reduces unnecessary head movements and ensures even strain. At the same time, posture is improved, which leads to more comfort and fewer complaints in the long run.
What advantages does a desk mount for three monitors offer?
A desk mount for 3 monitors creates additional space on the desk and provides a structured working environment. Cables can be routed neatly, resulting in a tidy overall appearance.
Through the combination of space savings, flexibility, and ergonomics, the monitor arm is an ideal solution for professional multi-monitor workstations.
