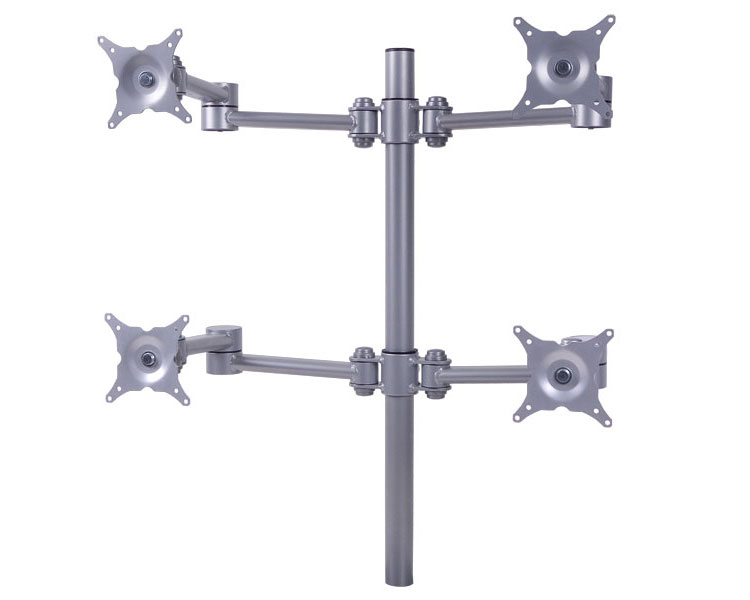

Dataflex ViewMate Modular LCD Quadruple Articulated 2x2
Article number:
86052322
Manufacturer:
dataflex
Manufacturernumber:
52.322
The quick adjust bracket lever ensures easy height adjustment. With two articulating double arms. Meaning four height and depth adjustable monitors.
Info Dataflex ViewMate Modular LCD Quadruple Articulated 2x2:

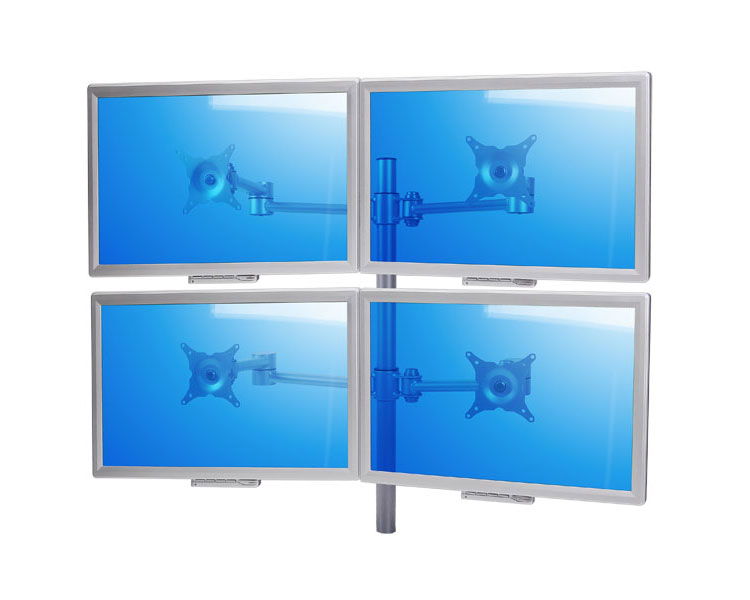

- Mounts four monitors on single post
- Total arm reach 480 mm
- Depth adjustable
- Height adjustable
- VESA: MIS-D 75 x 75/100 x 100 mm compatible
- Rotate 360 °, tilt 180°, lateral 180°
- Max. weight capacity of 8 kg./monitor (up to 22"/22"W)
- Post height 710 mm
- Post diameter 38 mm
- Quick lock/release post bracket
- Colour: silver
If you are interested in more information about VESA-Standards for monitorbrackets click here!
| Technical drawing: |  [pdf, 54 kb] |
|---|---|
| Warning/safety instructions: | [pdf] |
| Capacity: | 8 kg / Monitor |
| Tilt: | 180° |
| Rotate: | 90° |
| Pivot: | 90° |
| Swivelling range: | 180° |
| Length of the swivel arm: | 480 |
| VESA Standard: | 75x75/100x100 mm (www.vesa-standard.com) |

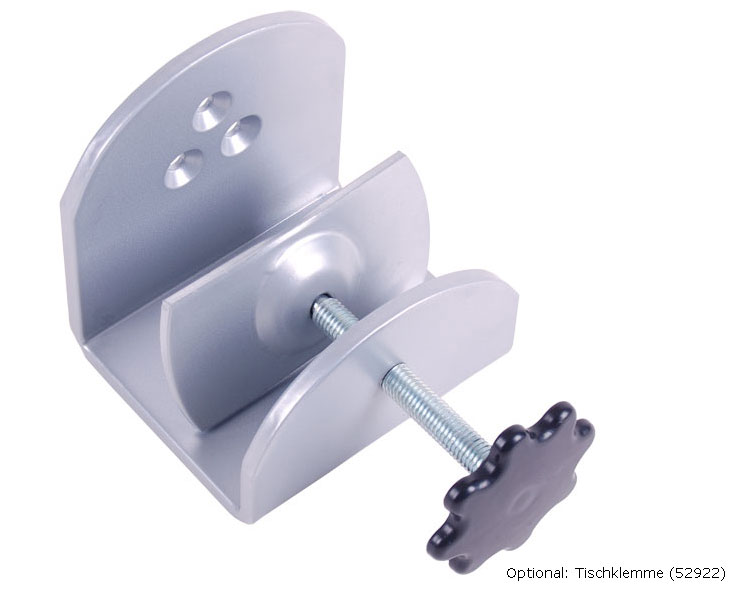

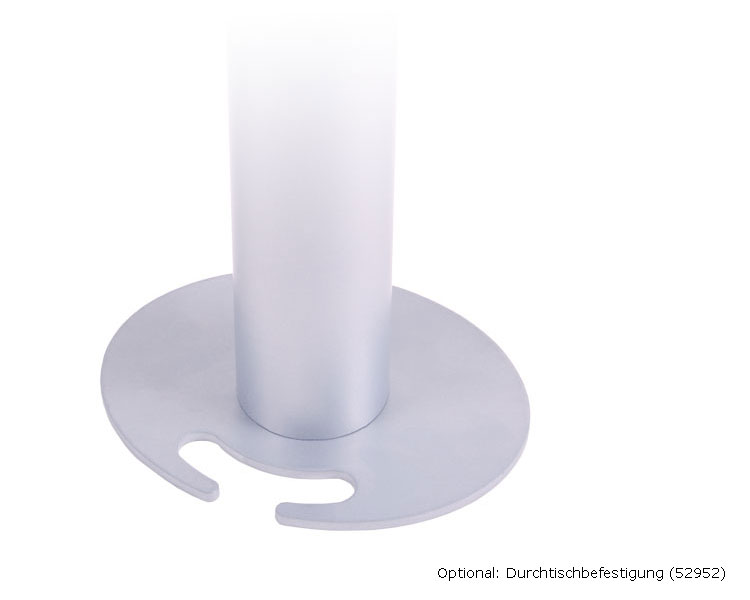

| Accessories: | Dataflex ViewMate Modular Desk Clamp (52922)Dataflex ViewMate Modular Trough Desk Grommet (52952)Dataflex Universal VESA Adapter 100 x 100 - 200 x 100 (51043)Dataflex Universal Keyboard Bracket For Monitor Arms (51592)Dataflex Universal Notebook Support For Monitor Arms (51072)Dataflex ViewMate Modular Small Form Factor Holder (52412)Dataflex ViewMate Modular Thin Client Holder (52402) |
| Contains installation material: | + |
| Warranty: | 2 years |
| Manufacturer/Importer: | Dataflex International BV, Van Nassauweg 2-6, 2921 LX Krimpen a/d IJssel, Niederlande, info@dataflex.de |
| Mobility: | height adjustable , rotatable (pivot), swivelling, tilting |
| Multi-monitor mount: | Quad solution |
| color: | Silber |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
