EOL - Digibird - DVI 45 Grad 4K Video Wall Controller 1x4
The DigiBird DB-VRC4D Video Wall Controllers are the simplest and most cost-effective solution to build an eye-catching and creative video wall. It is an ideal video wall solution for retail stores, shopping malls, restaurants, sport bars, hotel lobbies, trade shows and entertainment venues.
Digibird - DVI 45° 4K Video Wall Controller 1x4

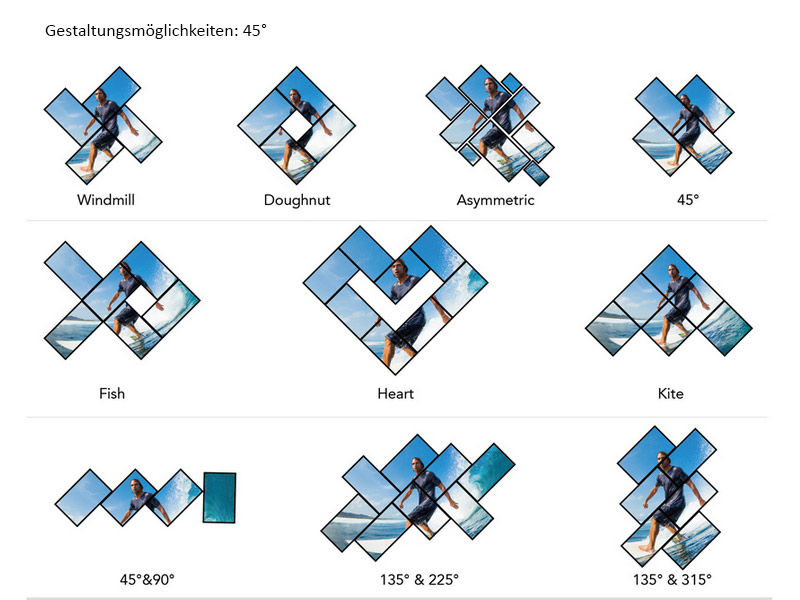

The DigiBird DB-VRC4D Video Wall Controllers are the simplest and most cost-effective solution to build an eye-catching and creative video wall. It is an ideal video wall solution for retail stores, shopping malls, restaurants, sport bars, hotel lobbies, trade shows and entertainment venues.- Supports 45° and/or 90° rotation of displays
- One unit controls up to 4 displays of different size and resolution

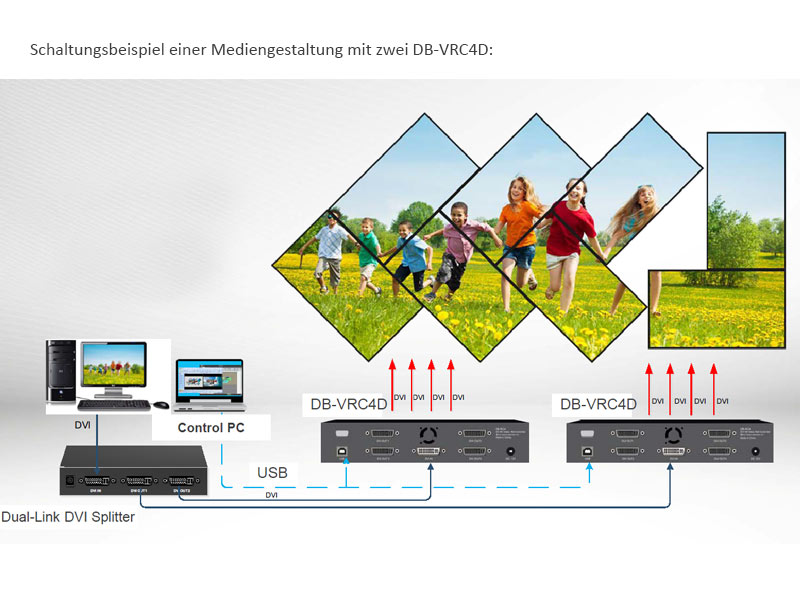

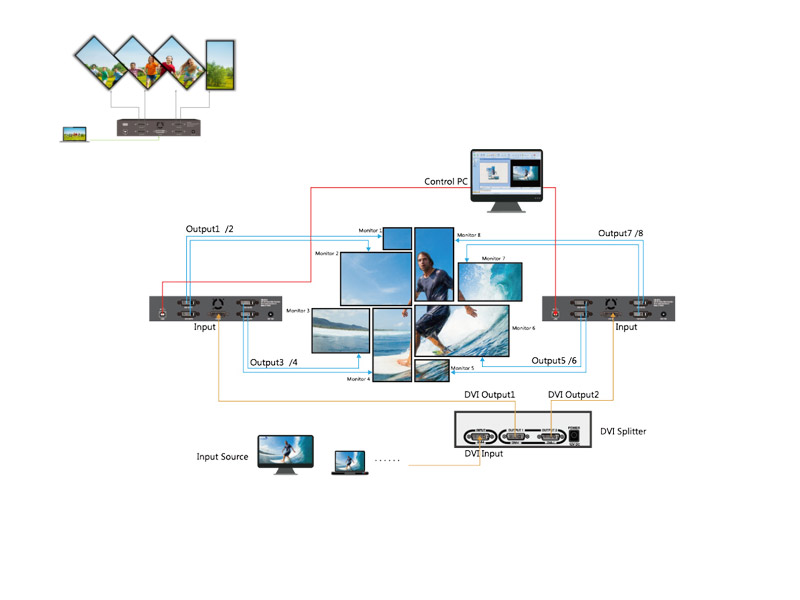

- Cascade multiple units to build large scale video walls
- Auto bezel compensation
- Horizontal and vertical mirroring/flip
- Ultra high input resolution up to 4088x4088 @18Hz
- Output resolution up to 1920x 1200 @60Hz

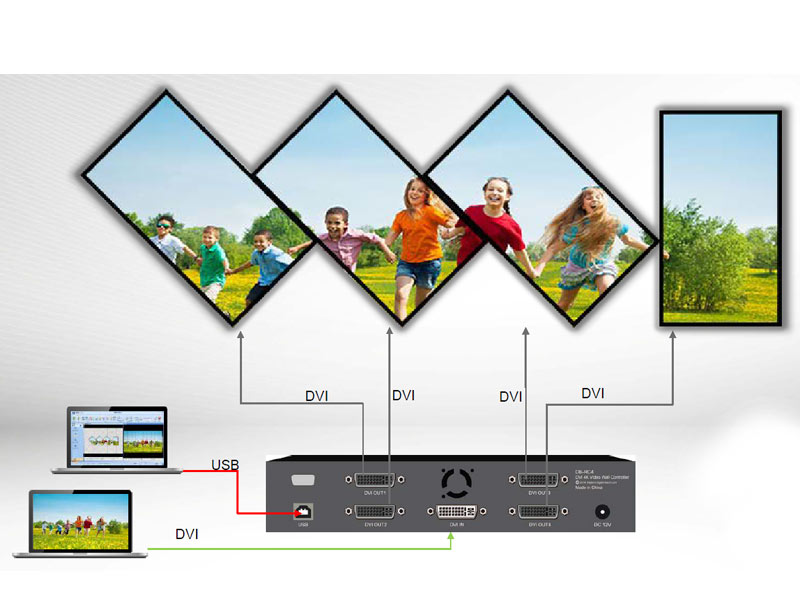

- 1x Single/ Dual-link DVI input port and 4x DVI-I output ports
- Supports arbitrary cropping
- Flexible EDID management
- Windows XP, Windows 7® , Windows 8® , and Windows 10® compatible
Technical Specifications Digibird - DVI 45° 4K Video Wall Controller 1x4
- Input Connectors: 1 x Single-Link or Dual-Link DVI-D female
- Input Resolution: Up to 4088 x 4088 18 Hz
- Input Clock Rate: 330 MHz
- Input Bandwidth: 9.9 Gbps
- Input / output Sync: No
- Output Connectors: 4x Single-Link DVI or analog RGB
- Output Resolution: up to 1920x 1200 60Hz
- Display Sizes: Different display size on each output channel
- Overlap: Yes
- Loop through: No
- Power: Input 110-240V AC, Output 12V DC, Rate max. 40W

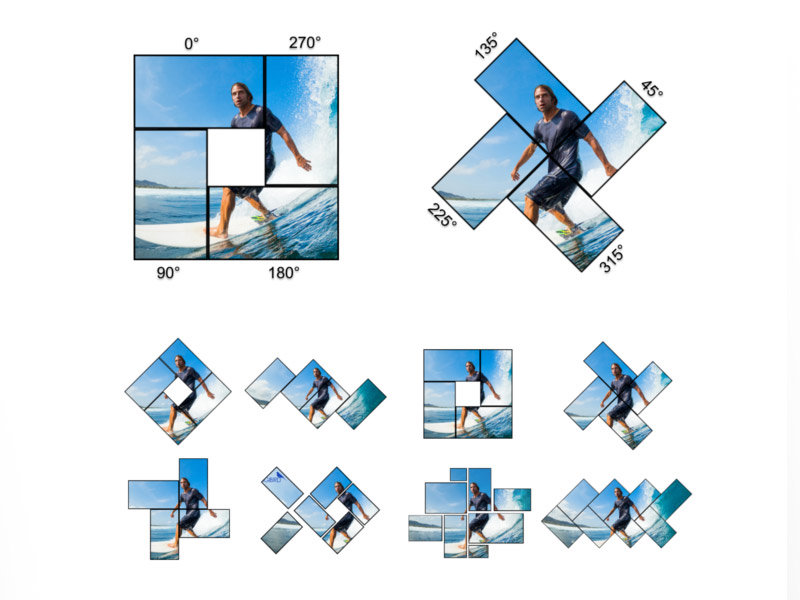

- Rotation: 45°, 90°, 135°, 180°, 225°, 270° or 315°
- Arbitrary Upscaling: Yes
- EDID Management: Yes
- Bezel Compensation: Yes
- Cropping: Yes
- Flipping: Yes
- Cascading: Yes
- Control: USB-B Connector; USB 2.0

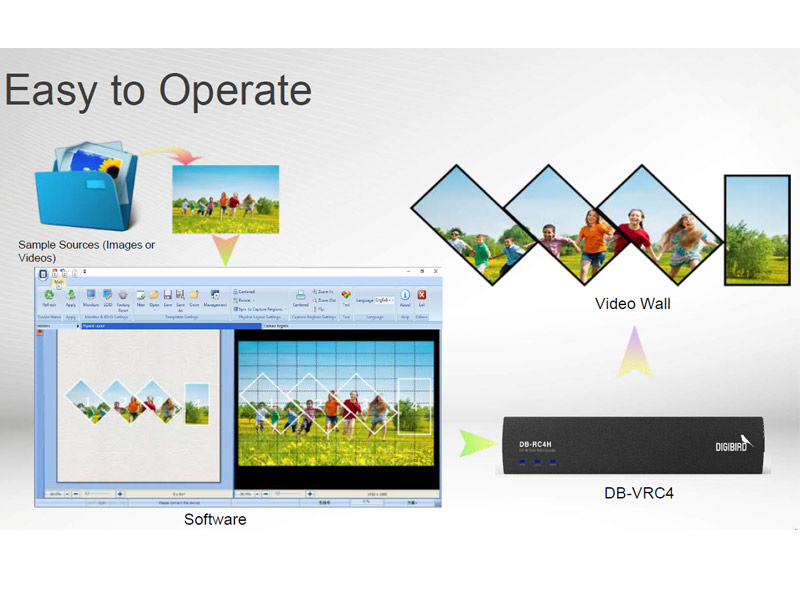

- Software: Windows based GUI software
- Operation Humidity: 90% non condensing
- Operation Temperature: 32° to 104° F (0° to 40° C)
- Net Dimensions: 1.75''H x 8.86''W x 8.66''D (44,5mm x 225mm x 220mm) without rack mount ears, 1.75''H x 10.24''W x 8.66''D (44,5mm x 260mm x 220mm) with rack mount ears
- Net Weight: 1,26kg
- Gross Weight: 2,87
| Product sheet: |  [pdf, 724 kb - Englisch] |
|---|---|
| Installation manual: | [pdf, 3,5 MB - Englisch] |
| color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
