edbak medical LCD monitor swing arm, silver (MSA02S-B)
Edbak Medical LCD monitor wall swing arm, max. 10 kg in silver (MSA02S-B)
Edbak medical LCD monitor swing arm in silver, max. 10 kg (MSA02S-B)

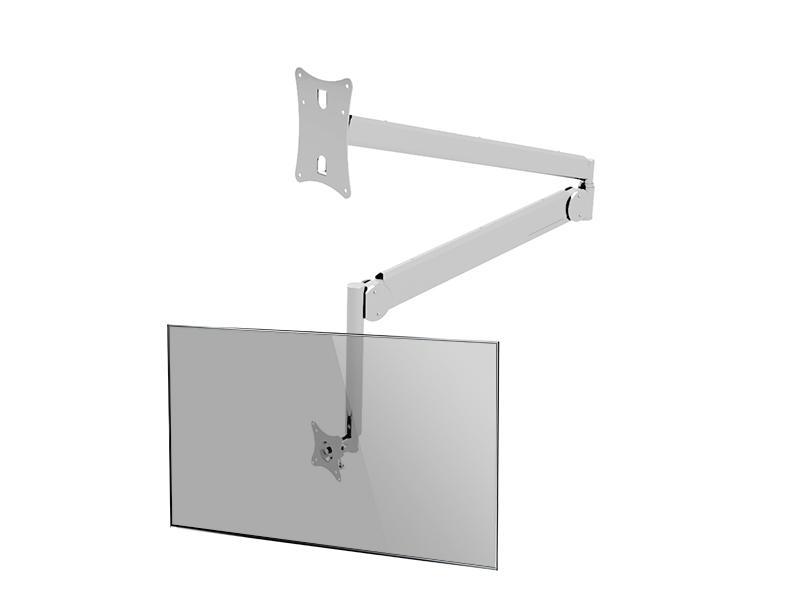

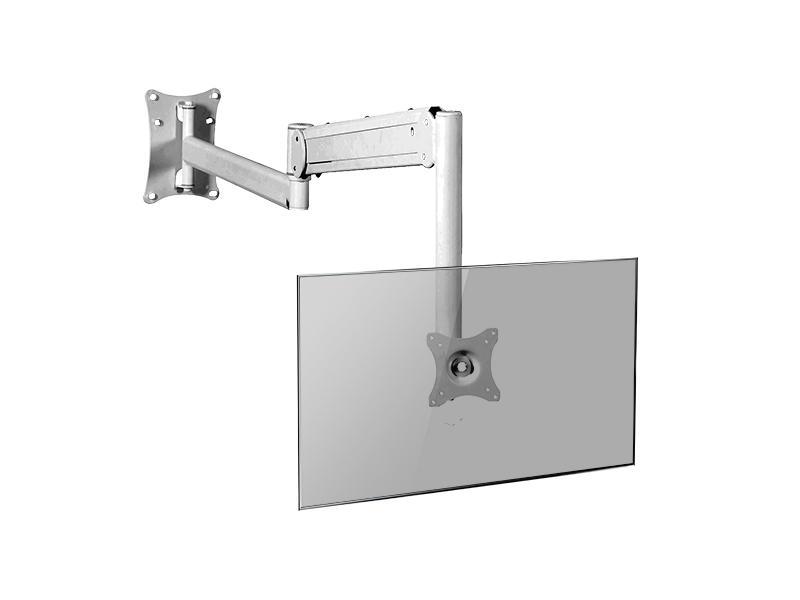

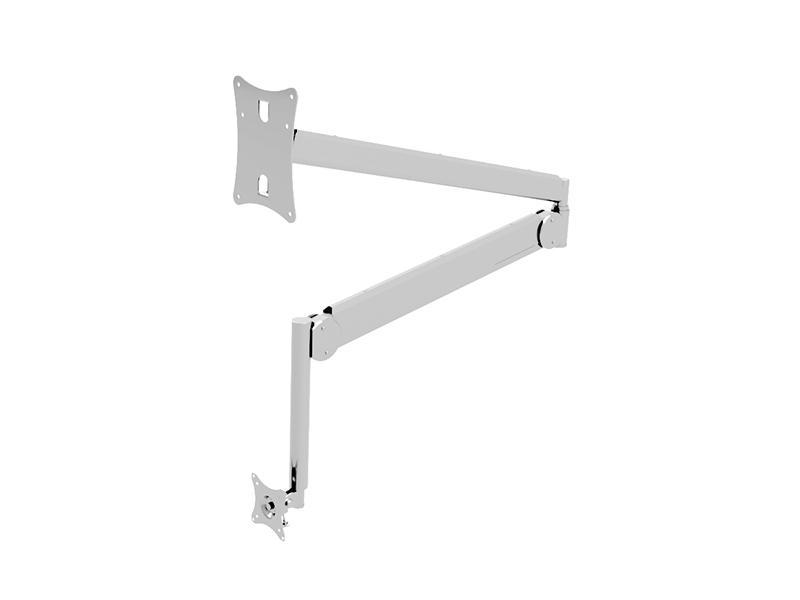

Edbak telescopic wall swing arm for screen size of 19 - 27" and weigth 10kg. It offers easy access to multimedia terminals. Product is dedicated to medical sector mainly.
Gas spring technology offers comfort for users. Thanks to construction of the armit can be adapted in rooms with different heights. There are possible four options of screen position.
Key features edbak Medical LCD monitor wall swing arm, max. 10 kg
- Screen size: 19 - 27"
- Max. capacity: 10 kg
- Distance wall to screen: up to 1610 mm
- Profssional gas spring loaded for smooth vertical adjustment
- Increased flexibility of 3 axis of rotation
- 360° rotation for portrait or horizontal screen option
- Full cable management
- Powder coated steel
- Easy and quick installation
- Checked in medical environment

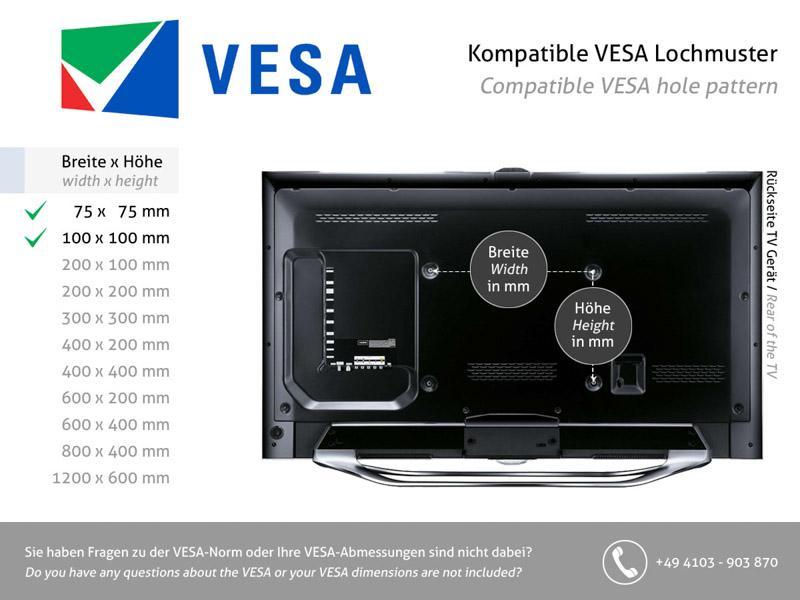

- VESA Standard: min. 75x75 - max. 100x100 mm
- Finish: silver
Does your monitor or display suit?
We will gladly check if your monitor is suitable for this edbak wall bracket. Simply send us at the end of the ordering process in the comment box your model (Manufacturer + model no.). We will then check for you whether the monitor or the display to monitor mount fits and if not, we will contact you.
If you are interested in more information about VESA-Standards for monitorbrackets click here!
| Product sheet: |  [pdf, 640 kb] |
|---|---|

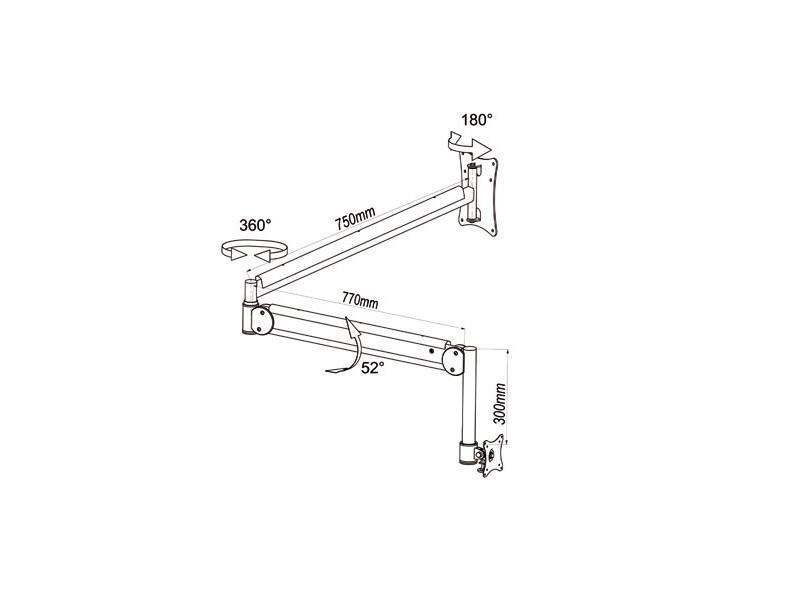

| Technical drawing: | [pdf, 266 kb] |
| Installation manual: | [pdf, 428 kb] |
| Capacity: | 10 kg |
| Tilt: | 52° |
| Swivelling range: | 360° |
| Material: | Steel |
| Contains installation material: | + |
| Manufacturer/Importer: | EDBAK Sp. z o.o., Piotrowice 186, 23-107 Strzyżewice, Poland, info@edbak.pl |
| Mounting type: | wall mount |
| color: | Silber |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
