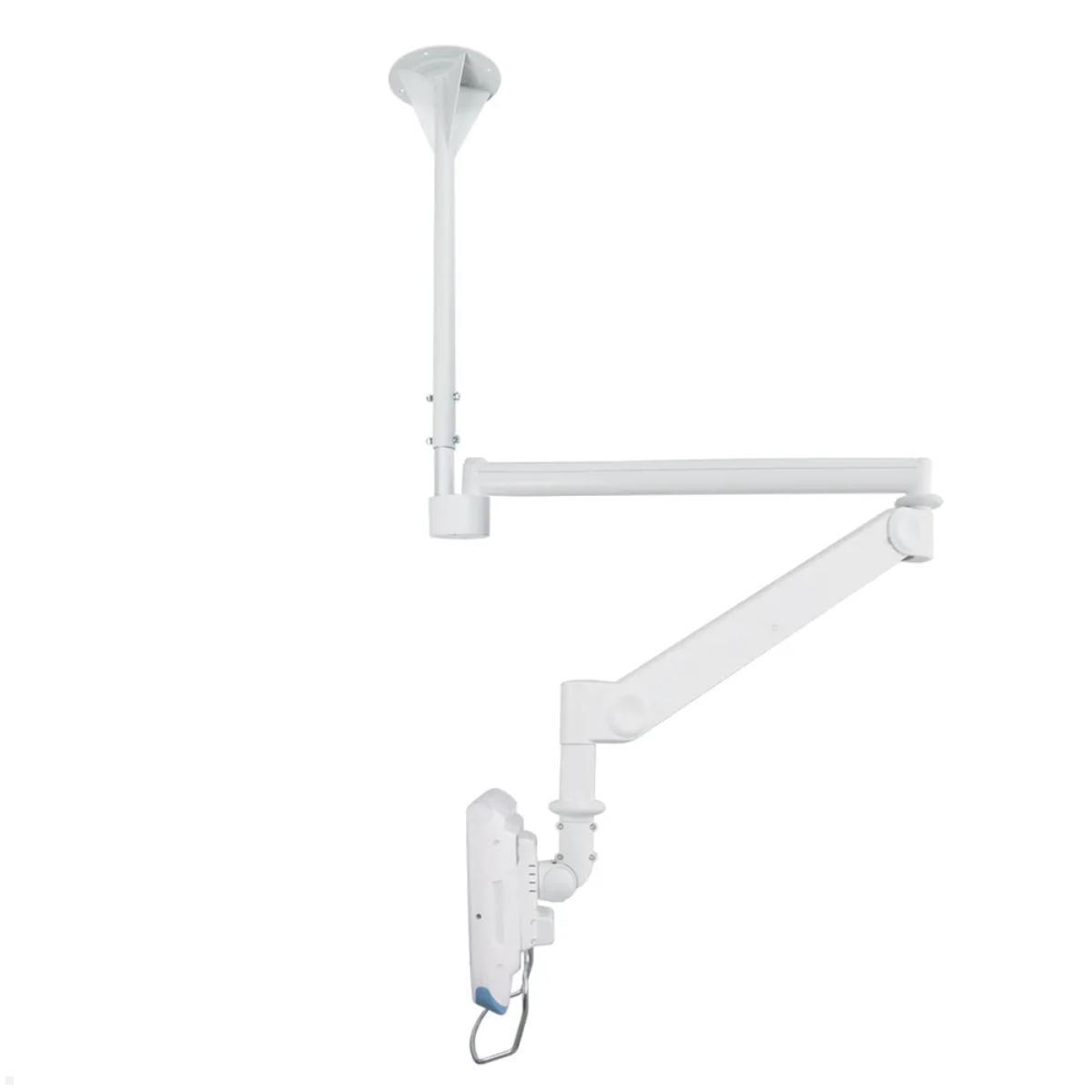

edbak medical LCD monitor ceiling swing arm, white (MSA01w-B)
Edbak Medical LCD monitor ceiling swing arm (MSA01w-B) in white for max. 10 kg
Edbak medical ceiling bracket, max. 10kg in white (MSA01w-B)
Telescopic ceiling swing arm for screen size of 19 - 27" and max. weight 10kg. It offers easy access to multimedia terminals. Product is dedicated to medical sector mainly.
Gas spring technology offers comfort for users. Thanks to the construction of the arm it can be adapted in rooms with different heights. There are possible four options of screen position.

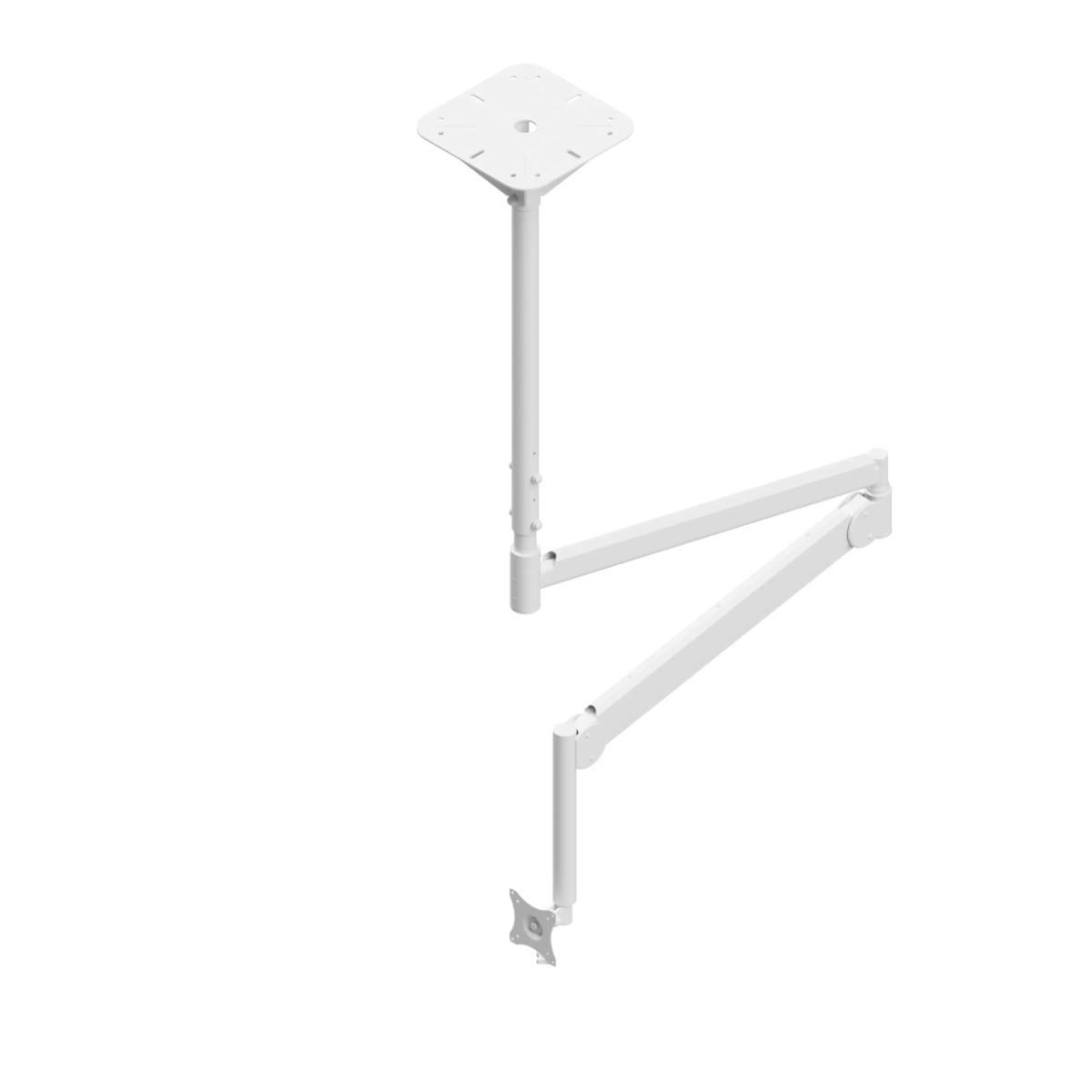

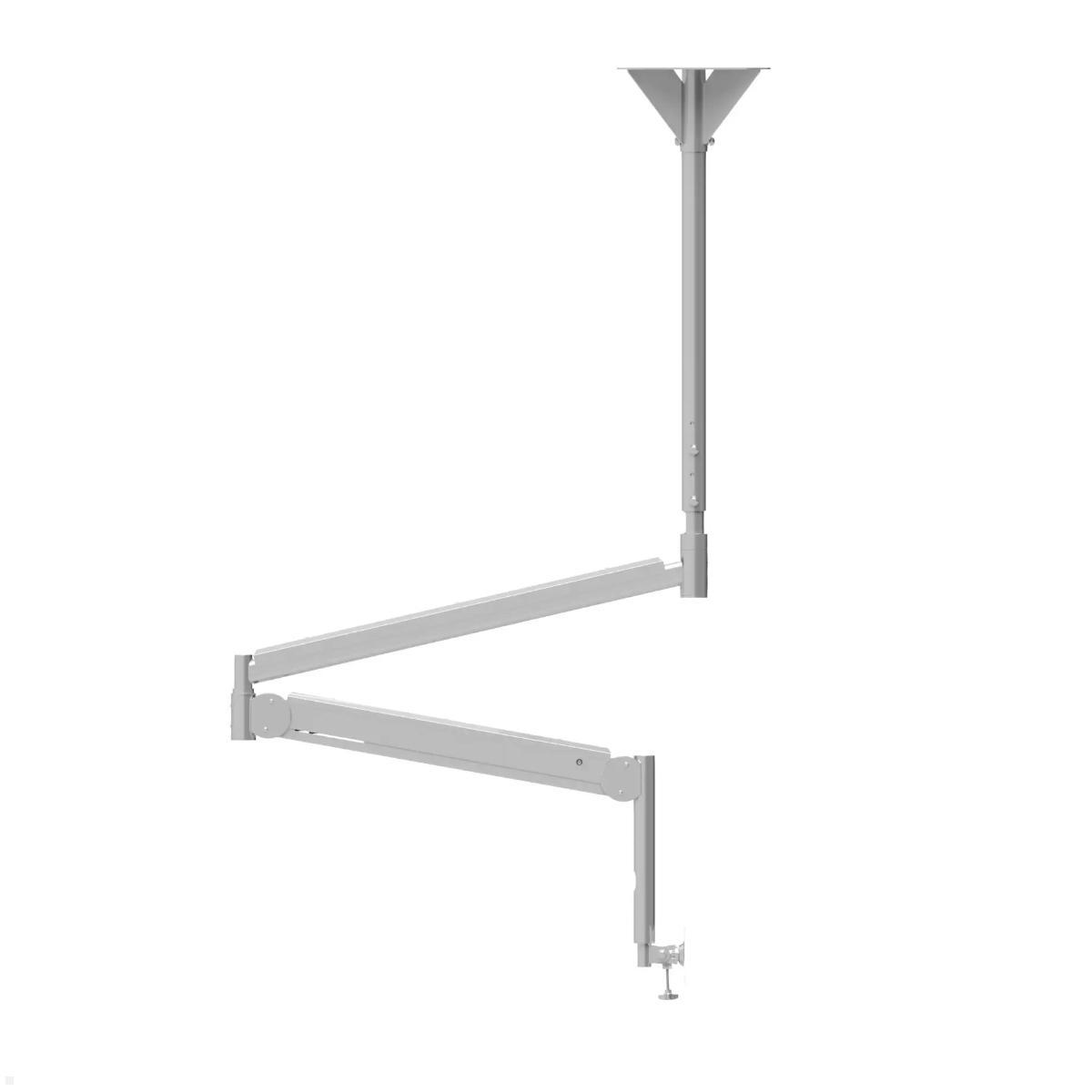

Edbak Medical LCD monitor ceiling swing arm, max. 10 kg
- Distance from the ceiling: 1593 - 2545 mm
- Horizontal and vertical regulation
- Solution for cable management is provided
- Powder coated steel
- Easy and quick installation

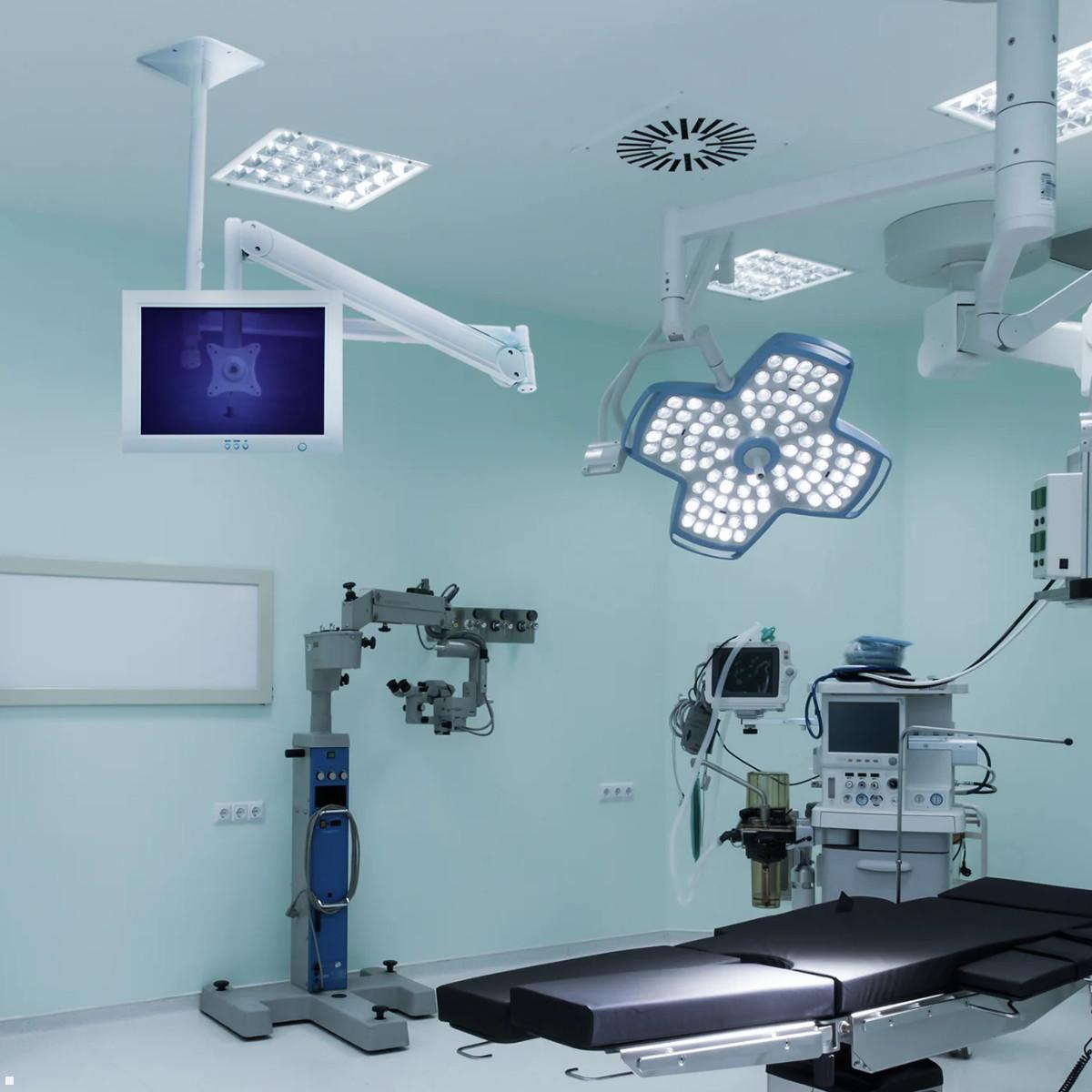

- Checked in medical environment
- Finish: white
Does your monitor or display suit?
We will gladly check if your monitor is suitable for this edbak ceiling bracket. Simply send us at the end of the ordering process in the comment box your model (Manufacturer + model no.). We will then check for you whether the monitor or the display to monitor mount fits and if not, we will contact you.
If you are interested in more information about VESA-Standards for monitorbrackets click here!
| Product sheet: |  [pdf - Englisch] |
|---|---|

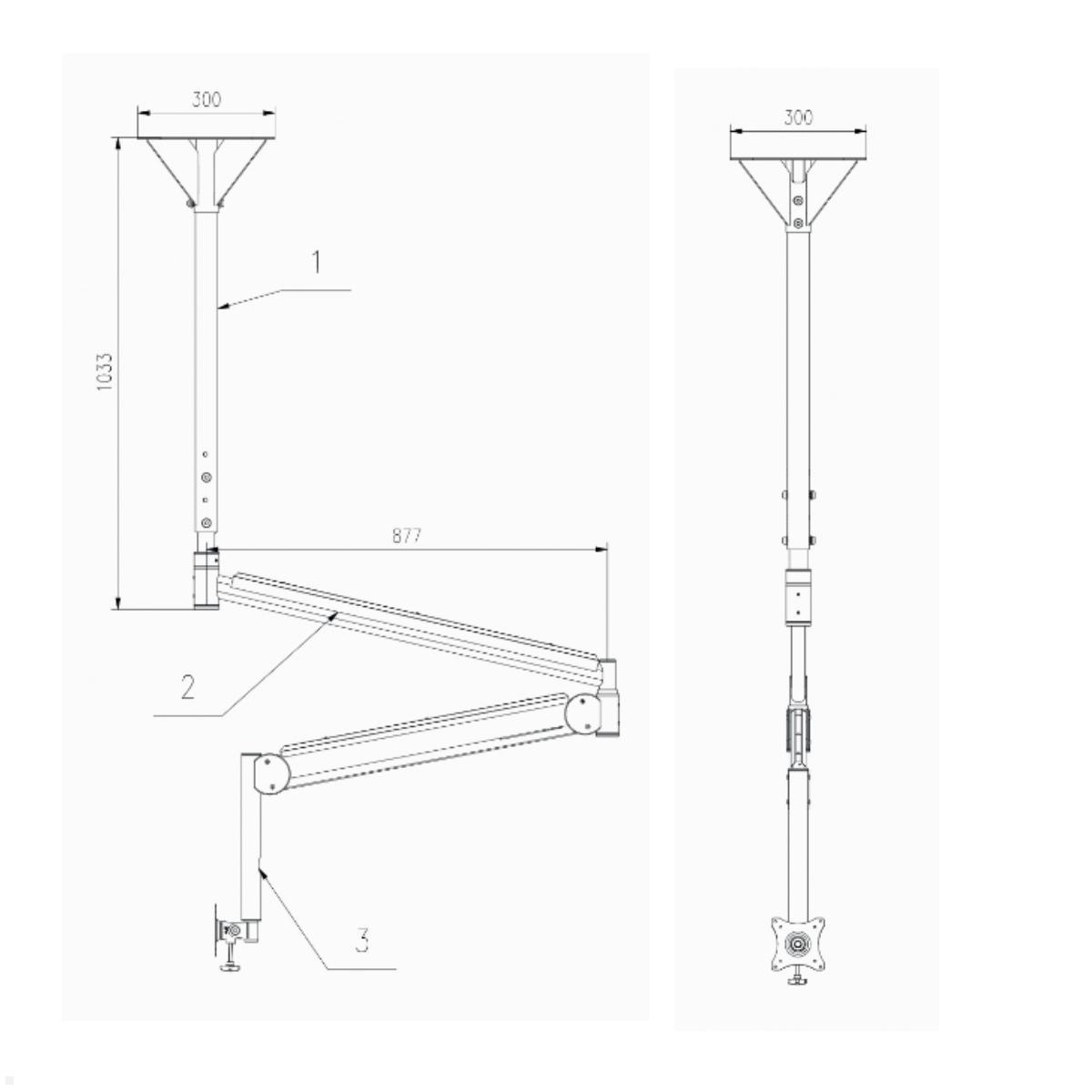

| Technical drawing: | [pdf] |
| Installation manual: | [pdf - Englisch] |
| Capacity: | 10 kg |
| Tilt: | +22,5°/-22,5° |
| Swivelling range: | 360° |
| Screen size: | 19 - 27" |
| Material: | Steel |

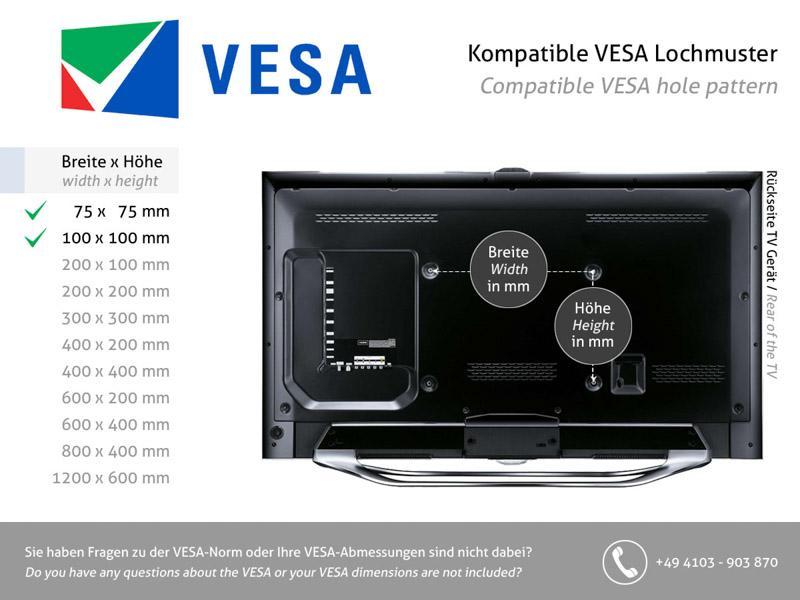

| VESA Standard: | 75x75mm, 100x100mm MIS-D (www.vesa-standard.de) |
| Contains installation material: | + |
| Manufacturer/Importer: | EDBAK Sp. z o.o., Piotrowice 186, 23-107 Strzyżewice, Poland, info@edbak.pl |
| Ceiling distance in m: | < 3m |
| Inch size: | 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch |
| Mobility: | rotatable (pivot) |
| Mounting type: | Ceiling mount |
| Multi-monitor mount: | 1 monitor |
| color: | Weiß |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
