EOL - smart things accessory sCharge S17 8pin in-wall power supply for sDock Fix
Accessory for invisible cables: smart things sCharge S17 8pin, the flush-mounted in-wall power supply especially for smart things sDock Fix iPad wall brackets. The sCharge S17 8pin can be installed in all 35mm standard flush-mounted sockets and permanently supplies power to the iPad in the tablet holder so that it is ready for use at any time.

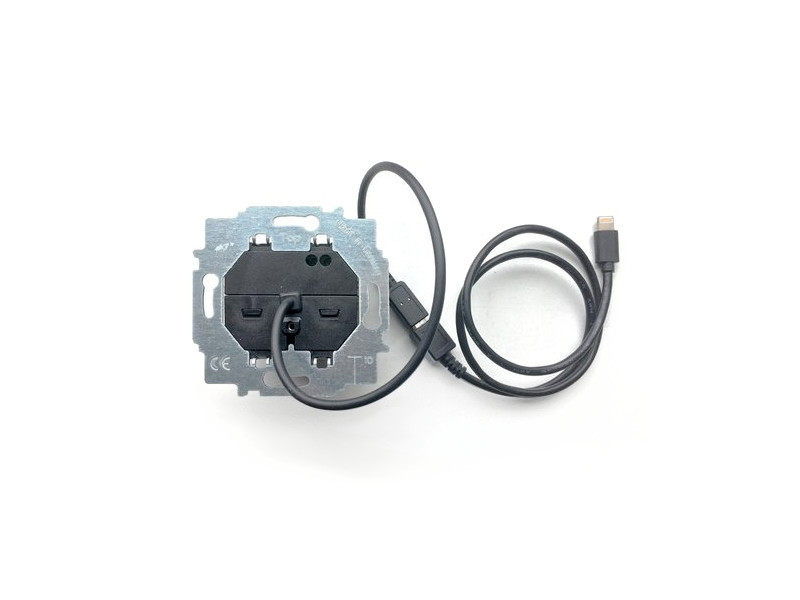

smart things sCharge S17 8pin in-wall power supply for sDock Fix
Hidden Wiring

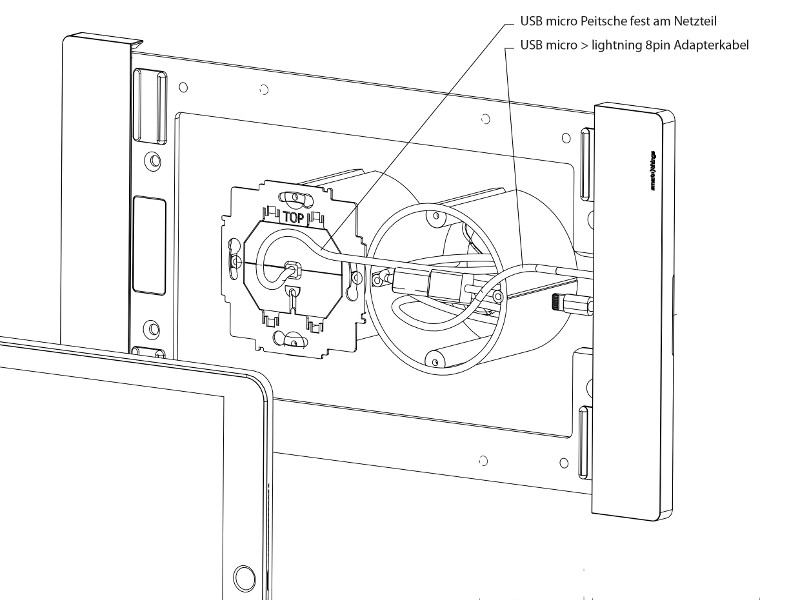

The smart things sCharge S17 8pin flush-mounted power supply specially developed for sDock Fix ensures that the Apple iPad is always charged in the wall mount and is always ready for use! Via the internal USB micro cable, the sDock Fix can be powered from the back of the wall without any visible cables: Ideal for trade fairs and presentation walls or the smart home. Then you have a charging station for all your iOS devices! The sCharge S17 8pin can be installed in all 35mm standard flush-mounted sockets. The cable management needs additional space behind sDock Fix, either a second wall box or a 3mm distance towards the wall.
Key features smart things flush-mounted in-wall power supply for sDock Fixs
- Flush-mounted power supply for all sDock Fixs iPad wall brackets
- Not suitable for sDock Fix

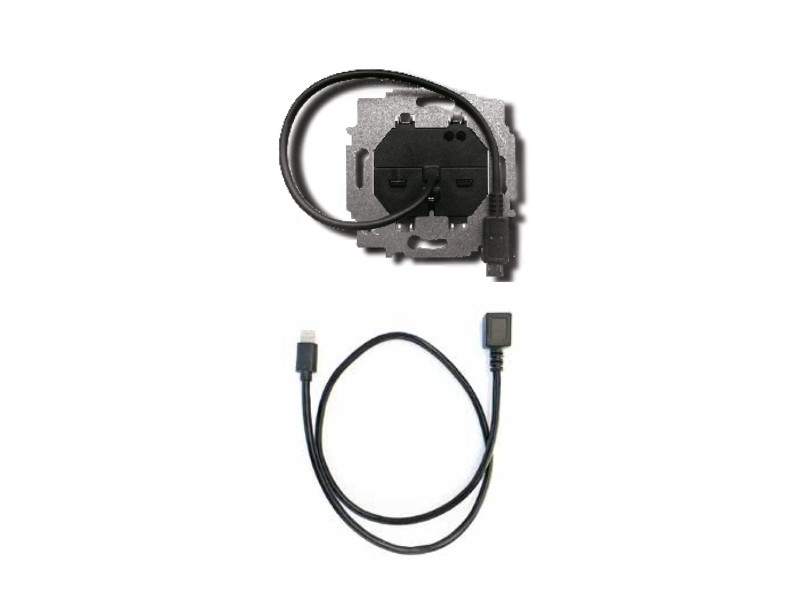

- Direct connection to sDock Fix with USB micro whip
- Suitable for all 35mm standard flush-mounted boxes
- Nominal input: 100 - 240 V ~, ± 10%, 50 - 60 Hz
- Nominal output: 5V, + 5% / -5%, 1400mA
- Material: metal support frame, plastic housing
- Environment: RoHS compatible, WEEE Registration: FWGB
- CE Approval: Low Voltage Directive 2006/95/EC, EMv Directive 2004/108/EC and Ecodesign Directive 2009/125/EC
- The sDock Fix is not included in the scope of delivery and must be purchased separately
- Dimensions 71 x 71 x 33 mm
| Product sheet: |  [pdf, 113 kb] |
|---|---|

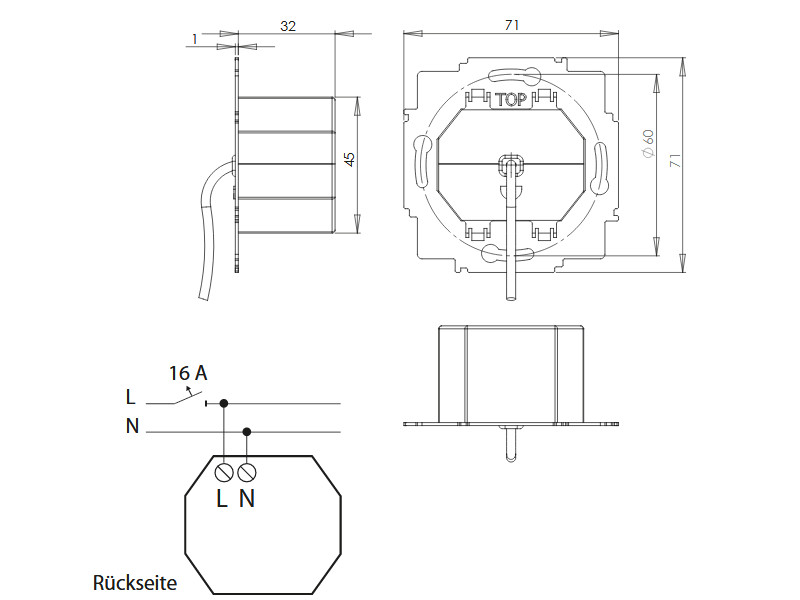

| Technical drawing: | [pdf, 86 kb] |
| Material: | metal, plastic |
| Contains installation material: | + |
| Warranty: | 2 years |
| Manufacturer/Importer: | smart things solutions GmbH, Grubmühlerfeldstraße 54, 82131 Gauting, info@smart-things.com |
| Mobility: | fixed |
| Mounting type: | in-wall solution |
| color: | Others |
| Tablet: | universal |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
