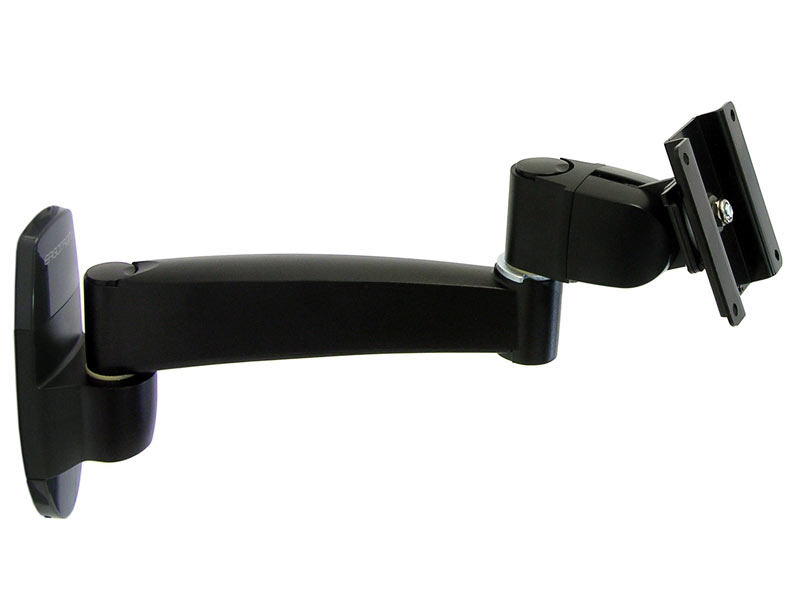

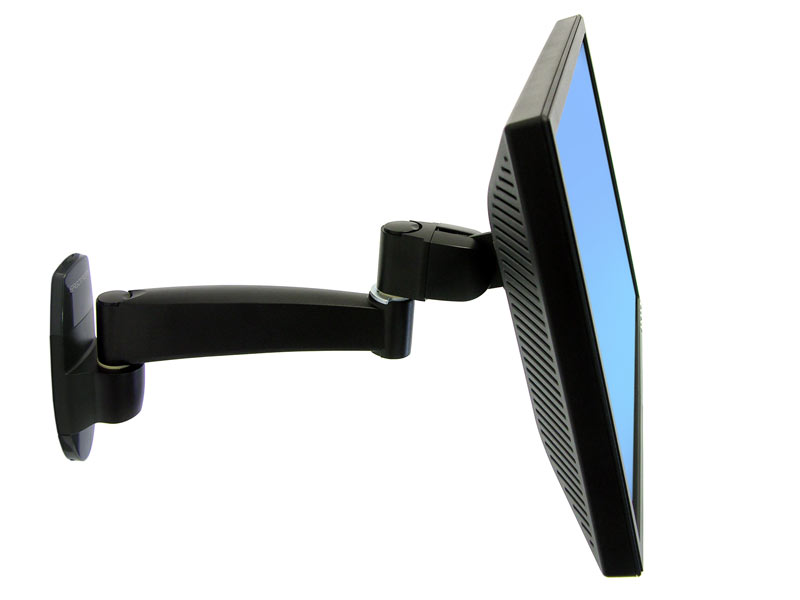

Ergotron 200 Series Wall Mount Arm, 1 Extension (45-233-200)
Ergotron 200 Series Wall Mount Arm, 1 Extension (45-233-200) provides a sturdy platform while allowing the display to swing, tilt, pan, and extend out off the wall. System depth is minimal when pushed back against the wall, perfect for space-constrained areas.
Ergotron 200 Series Wall Mount Arm, 1 Extension (45-233-200)
This unit provides a sturdy platform while allowing the display to swing, tilt, pan, and extend out off the wall. System depth is minimal when pushed back against the wall, perfect for space-constrained areas.
Technical details Ergotron 200 Series Wall Mount Arm 1 Extension
- Extends out almost 15" (38 cm) or folds back to under 6" (15 cm) from wall in storage position
- Swing, tilt, and pan your display; view in either portrait or landscape mode
- Sturdy steel construction

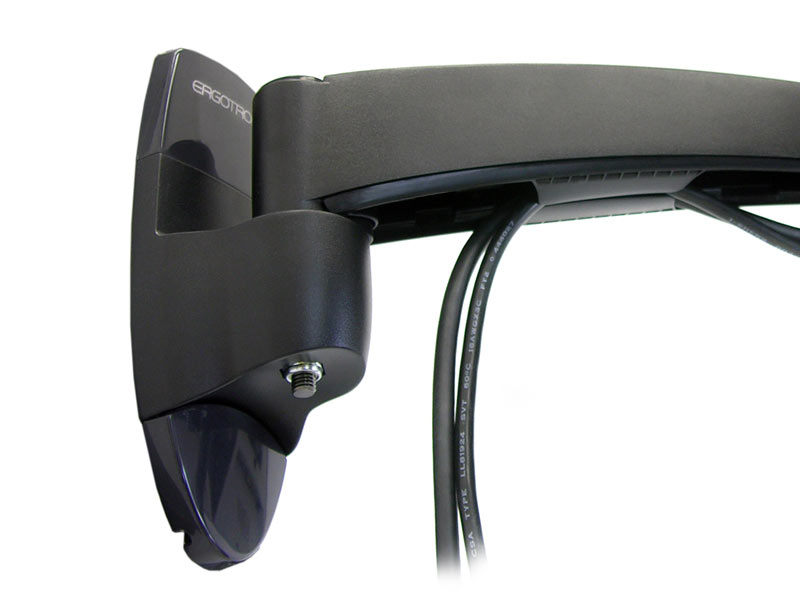

- Cable management system routes and conceals cables under the arm
- Patented friction system provides smooth long-life adjustment while maintaining touch-screen stability
- Mounting Standards: VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
- Extends up to 14.8" (37.6 cm) from the wall and retracts to within 5.8" (14.8 cm), excluding depth of monitor
- Capacity 11.3kg (25lbs)
- Tilt 180°
- Pan 360°
- Rotation 90° Drehung
- Warranty: Five (5) years
If you are interested in more information about VESA-Standards for monitorbrackets click here!
| Product sheet: |  [pdf - Englisch] |
|---|---|
| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Capacity: | 11,3 kg |
| Tilt: | 180° |
| Rotate: | 90° |
| Pivot: | 90° |
| Swivelling range: | 360° |
| Length of the swivel arm: | 376 |
| Screen size: | 15 - 27" |
| Material: | Steel |
| VESA Standard: | 75x75, 100x100 (www.vesa-standard.com) |
| Accessories: | Ergotron Quick Release (60-589-060) Ergotron LX Notebook tray (50-193-200) Ergotron Universal CPU Holder (80-105-064) |
| Contains installation material: | + |
| Warranty: | 5 years |
| Manufacturer/Importer: | Ergotron Europe, Stationsstraat 77H, 3811 MH Amersfoort, Niederlande, info.de@ergotron.com |
| Inch size: | 15 inch, 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch |
| Mobility: | rotatable (pivot), swivelling, tilting |
| Mounting type: | wall mount |
| Multi-monitor mount: | 1 monitor |
| color: | Black |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Ergotron Series 200 Monitor Wall Mount (45-233-200)?
It lets you extend/retract, swivel, tilt and rotate your flat-panel monitor for maximum performance and ergonomic comfort; saves space and features integrated cable management with a sturdy steel construction.
-
Which VESA patterns are supported?
VESA standard 75x75 mm and 100x100 mm.
-
What is the weight capacity?
Weight capacity is 11.3 kg (25 lbs).
-
What is the range of motion?
Tilt 180 degrees, swivel 360 degrees, and a 90-degree rotation via the pivot function.
-
Does it support portrait and landscape orientation?
Yes, it supports portrait/landscape orientation.
-
Does it have cable management?
Yes, it includes integrated cable management.
-
How long is the warranty?
5-year warranty.
-
How can I check if my monitor fits?
We’re happy to check; please provide your monitor model (manufacturer + model number) at the end of the order in the comments field. We will verify compatibility and contact you if it does not fit.
