Ergotron CareFit Combo height-adjustable wall-mounted workstation with keyboard tray, white (45-720-251)
Highlights
- Height adjustment up to 640 mm
- For monitors up to 27 inches
- Compact keyboard tray 520 mm wide

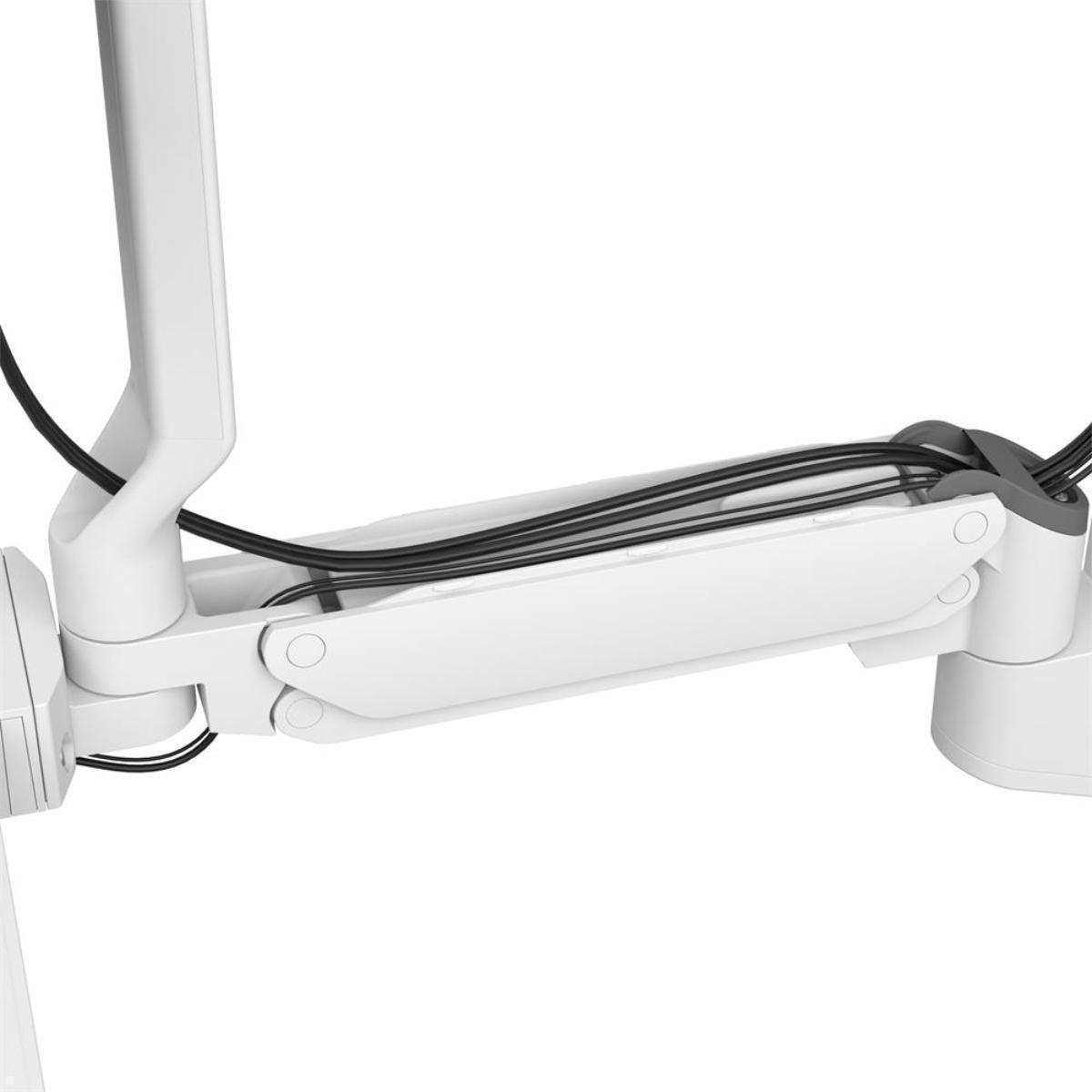

- Concealed cable management for hygiene
- 360° swivel range
Height-adjustable wall-mounted workstation for the medical sector

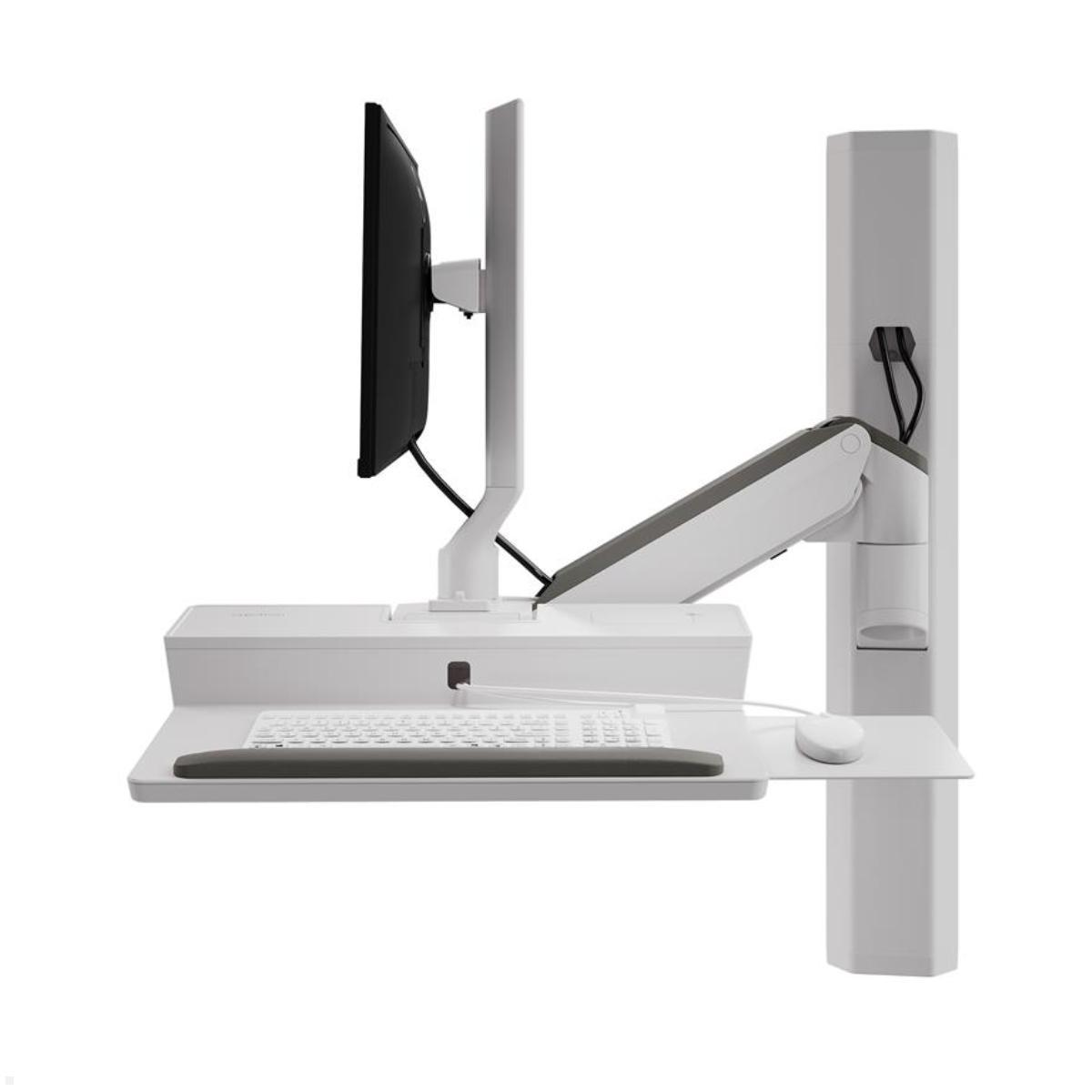

The Ergotron CareFit Combo height-adjustable wall workstation with keyboard tray, white (45-720-251) is a modular wall-mounted workstation specifically designed for use in clinics, medical practices and treatment rooms. Thanks to the ergonomic height adjustment, the monitor arm together with the compact keyboard tray can be adjusted by up to 510 mm, while the monitor can additionally be adjusted independently by 130 mm. The hidden cable management ensures a tidy workspace and facilitates infection control.

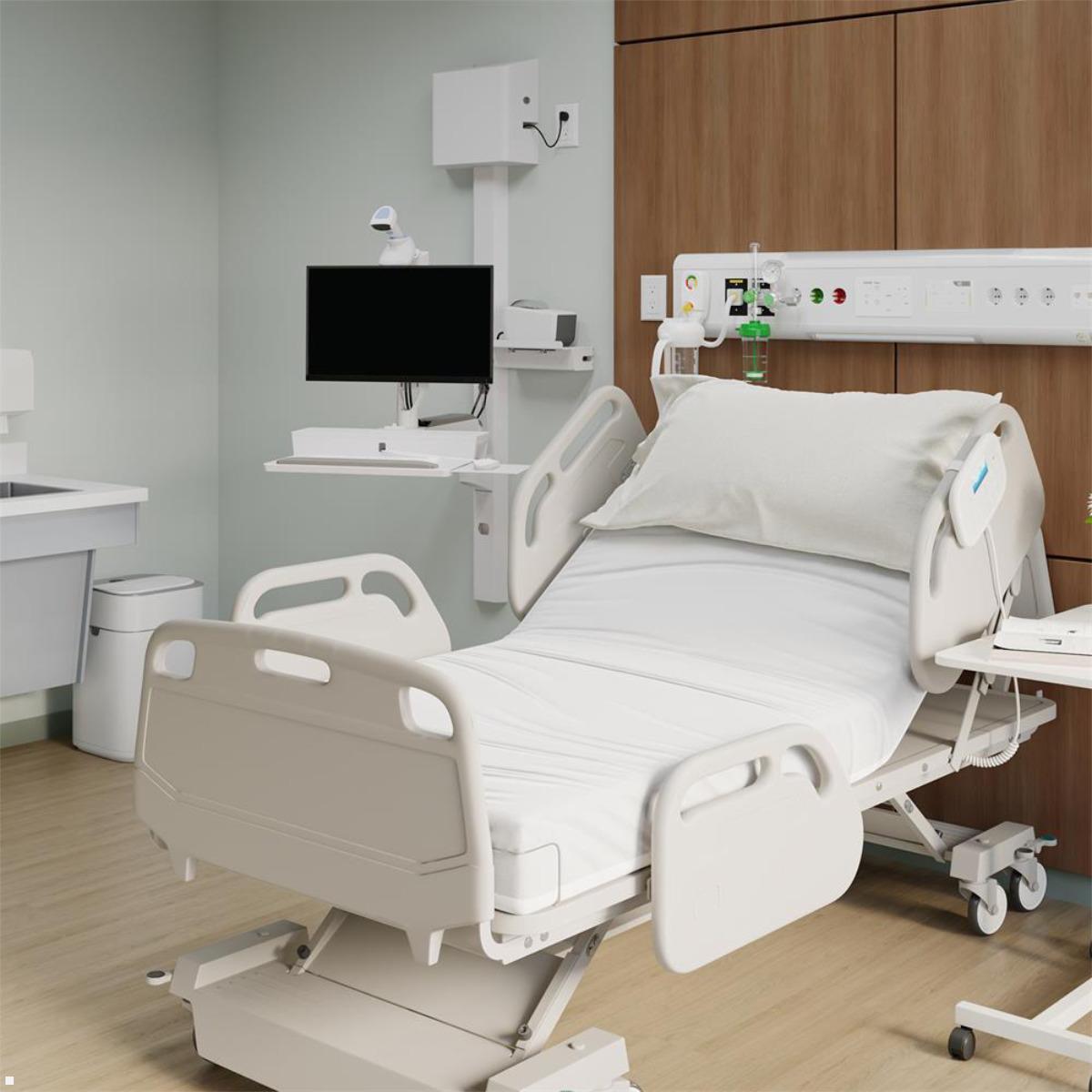

The robust wall-mounted workstation made of aluminum and high-quality plastic is durable and easy to clean. With a swivel range of 360° and a tilt of +20° / -5° the station offers maximum flexibility in screen positioning. In the stowed position it protrudes only 250 mm from the wall. The wall-mounted workstation is ideal as a workstation in healthcare, in medical practices, hospitals or care facilities.
Technical details CareFit Combo monitor mount with keyboard
- Screen size: up to 27 inches
- VESA standard: MIS-D, 75 x 75 mm and 100 x 100 mm
- Screen weight capacity: 3.6 - 10 kg
- Keyboard and mouse weight capacity: 0.7 kg

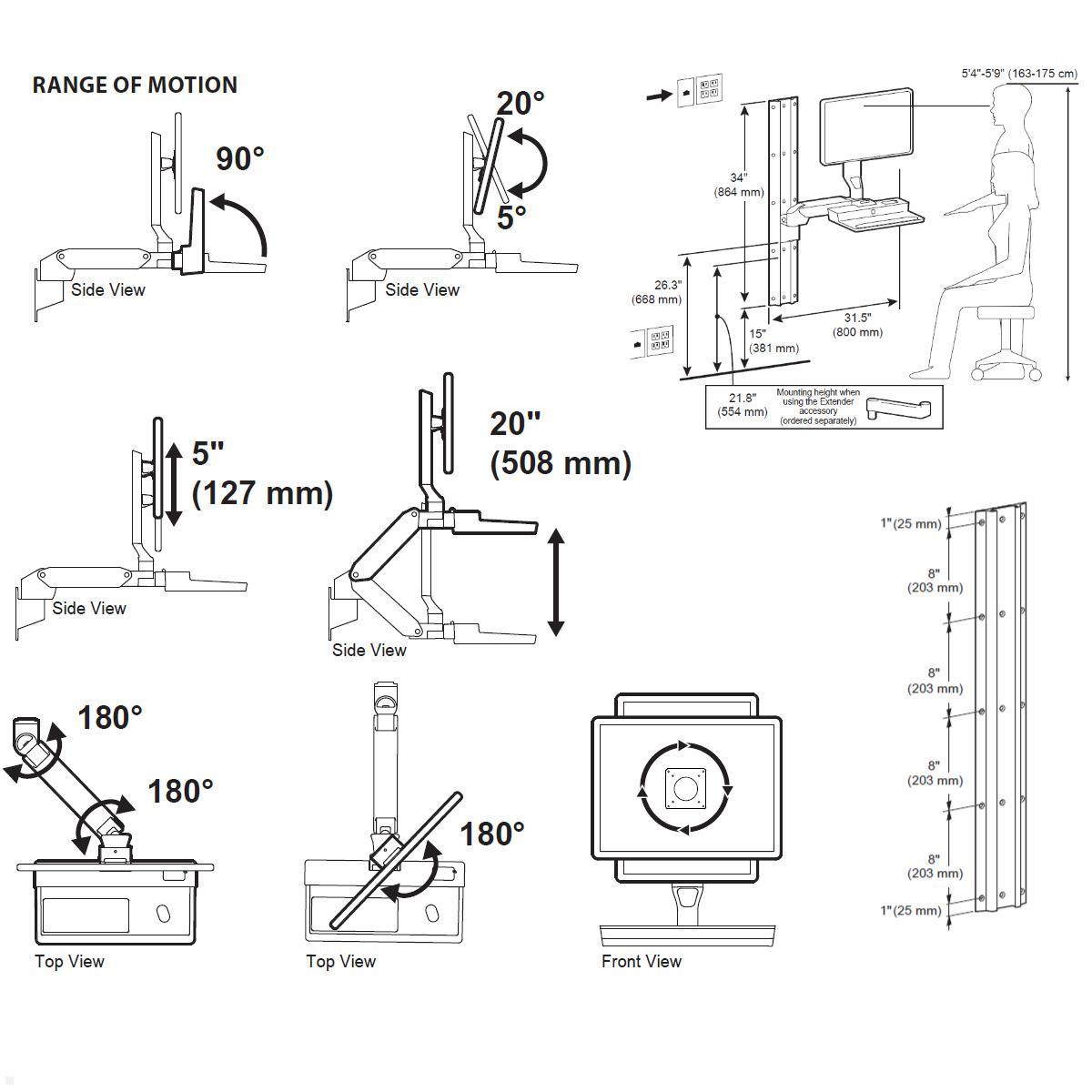

- Height adjustment (monitor and keyboard together): 510 mm
- Independent monitor height adjustment: 130 mm
- Tilt: +20° / -5°
- Swivel range: 180°
- Monitor rotation: 360°

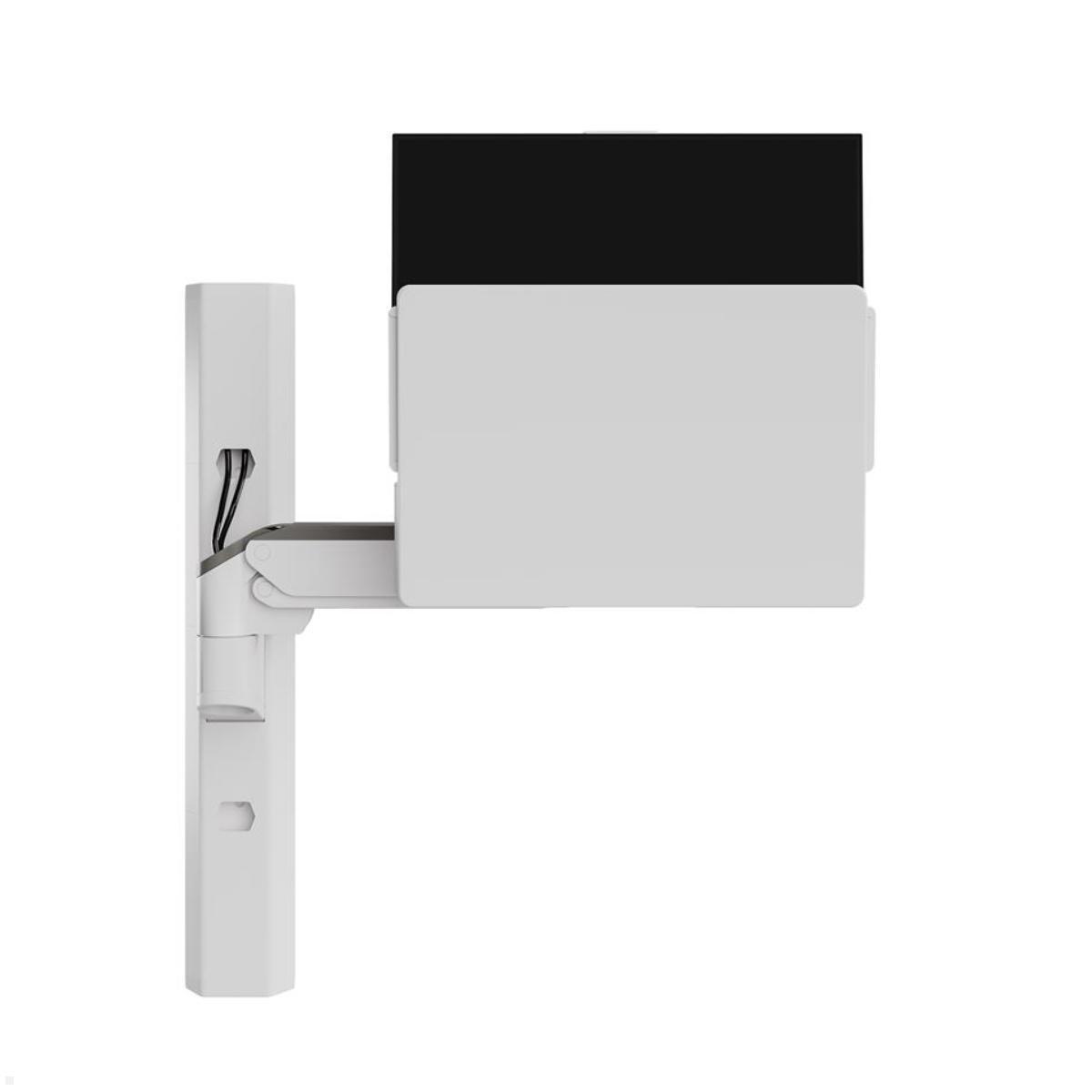

- Distance from wall when stowed: 250 mm

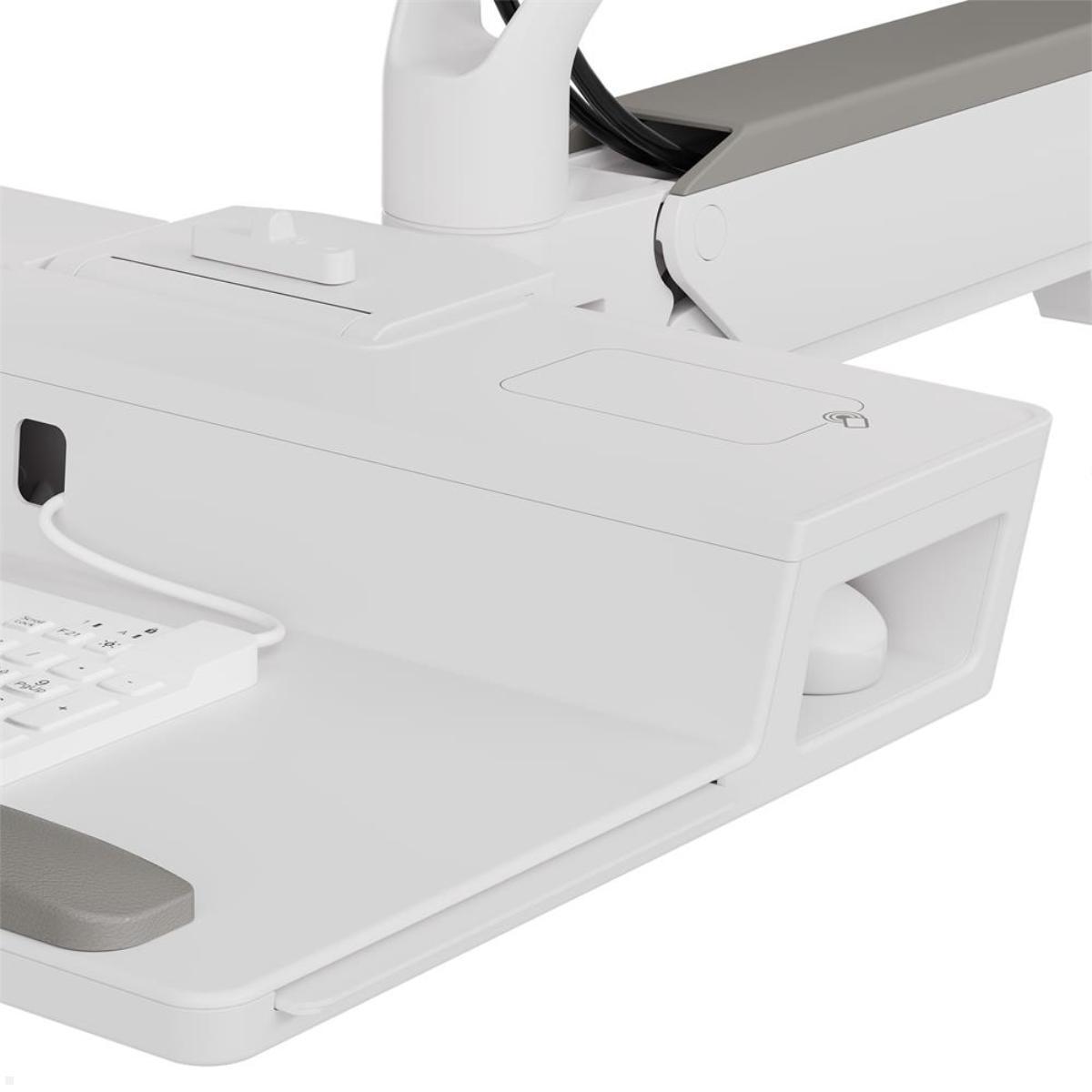

- Keyboard tray width: 520 mm (Compact)
- Product weight: 19.4 kg
- Shipping weight: 25.0 kg
- Packaging dimensions (L×W×H): 1131 x 480 x 295 mm
- Color: White
- Material: Aluminum, plastic
- Warranty: 5 years
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Minimum weight: | 3.6 |
| Capacity: | 10,7 kg |
| Tilt: | +20° / -5° |
| Rotate: | 360° |
| Height range (mm): | 640 |
| Pivot: | 360° |
| Swivelling range: | 360° |
| Length of the swivel arm: | 469 |
| Screen size: | bis 27" |
| Material: | Aluminium, Kunststoff |
| VESA Standard: | 75 x 75, 100 x 100 |
| Packaging dimensions (LxWxH in mm): | 1131 x 480 x 295 |
| Scope of delivery: | Combo arm, compact keyboard tray, pull-out mouse tray, wall-mount base, rail-mount adapter, 860 mm wall rail, rail bracket, wall rail covers, cable ties, mounting hardware |
| Contains installation material: | Ja |
| Warranty: | 5 years |
| Manufacturer/Importer: | Ergotron Europe, Stationsstraat 77H, 3811 MH Amersfoort, Niederlande, info.de@ergotron.com |
| Inch size: | 14 inch, 15 inch, 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch |
| Mobility: | Drehbar, height adjustable , rotatable (pivot), swivelling, tilting |
| Mounting type: | wall mount |
| Multi-monitor mount: | 1 monitor |
| color: | Weiß |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Why is an ergonomic wall-mounted workstation important in healthcare?
In everyday medical practice, doctors, nurses and medical staff face the challenge of attentively caring for patients while reliably completing digital documentation. An ergonomic wall-mounted workstation like the Ergotron CareFit Combo solves this problem by providing a flexible, height-adjustable computer workplace right at the point of care. The screen can be adjusted continuously in height together with the keyboard tray, allowing comfortable work both seated and standing. This not only promotes the health of staff but also improves interaction with the patient, as information on the monitor can be discussed together. In hospitals, medical practices and care facilities, such solutions are indispensable to ensure efficient workflows while meeting the high requirements for hygiene and order.
What advantages does a modular monitor arm with keyboard tray mounted on the wall offer?
A modular wall workstation with integrated keyboard tray saves valuable space in the treatment room. The keyboard tray can be easily folded up when not in use and the entire arm can be swung compactly against the wall. In the stowed position, the system protrudes only a few centimeters from the wall, keeping the room free for patient care. The concealed cable management provides a tidy appearance and makes cleaning easier, which is particularly important in environments with strict hygiene requirements. With a swivel range of 360 degrees, the screen can be positioned flexibly and shared with the patient. Installation is via a concealed wall rail system that provides clean lines and an attractive appearance. Various configuration options allow the system to be individually adapted to the specific requirements of the treatment room.
How can a wall-mounted computer workstation be used optimally in the treatment room?
For optimal use of a wall-mounted computer workstation, the mounting height should be chosen so that the full adjustment range can be utilized. The Ergotron CareFit Combo supports monitors up to 27 inches with a weight of 3.6 to 10 kg and is compatible with the common VESA standards 75 x 75 mm and 100 x 100 mm. The compact keyboard tray with a width of 520 mm offers enough space for a keyboard and mouse without taking up too much room. If necessary, the reach of the arm can be extended with the optional CareFit Extender accessory. The robust design made of aluminium and high-quality plastic stands up to daily use in demanding environments and is easy to clean. With a manufacturer warranty of five years, the wall workstation offers long-term reliability for professional use in hospitals, clinics and medical facilities.
