Ergotron CareFit wall-mount PC workstation with housing, black (61-367-060)
The Ergotron CareFit wall workstation black (61-367-060) is a medical workplace consisting of a monitor holder, computer holder and keyboard holder. The electrically height-adjustable workstation is housed in a lockable case with a flat design.
Wall-mounted PC workstation
The Ergotron CareFit Workstation black is designed for use in hospitals, clinics or care facilities. The wall-mounted PC workstation increases the comfort of nursing staff, strengthens the relationship between nursing staff and patients and facilitates efficient data input / documentation in the healthcare sector. The housing with fold-out work surface accommodates a mini PC, a monitor with max. 27 inch as well as a mouse and keyboard. Thanks to height adjustment, ergonomic positioning for different users is easily possible. When the wall workplace is not in use, it can be folded away and securely locked. With a distance of just 10 cm from the wall when folded away, the sit-stand workstation is ideal for confined spaces in corridors or treatment rooms. The integrated T-slot allows the medical workstation to be extended and personalized using various Ergotron accessories.
Key features Ergotron CareFit wall workstation (61-367-060)
- Screen size: up to 27 inch
- Total load capacity: 4.8 - 10.7 kg
- Load capacity PC mount: 1.4 - 3.6 kg
- Load capacity monitor holder: 3.2 - 5.7 kg
- Load capacity keyboard holder: 0.2 - 1.4 kg
- VESA mount: 75x75, 100x100 mm
- Height-adjustable: 508 mm
- Mouse/keyboard tray with removable work surface
- 10-digit combination lock protects patient data and technology
- T-slot for holding various accessories
- Integrated cable management
- Easy to clean

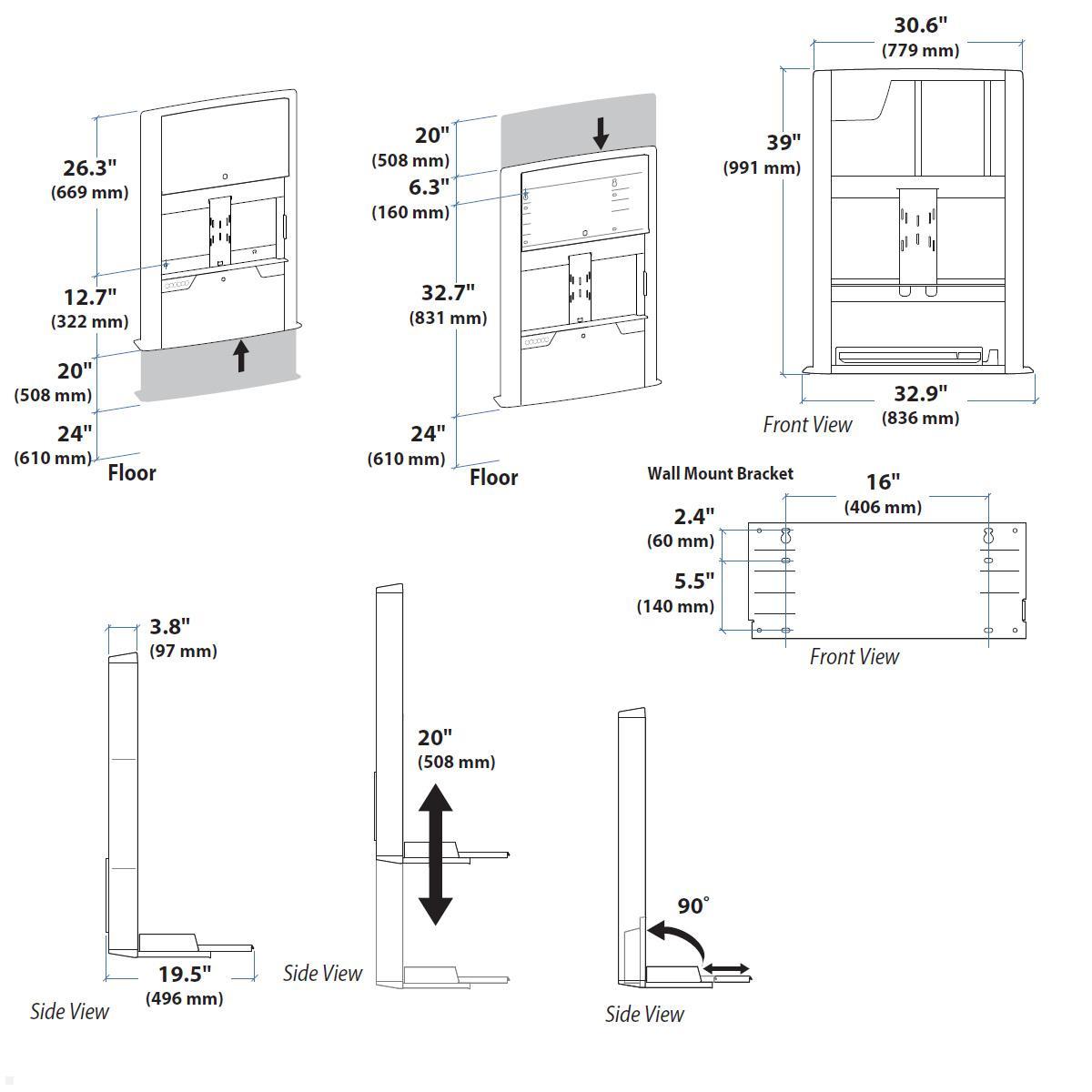

- Dimensions when closed / open (WxHxD): 779 x 991 x 97 / 496 mm
- Max. monitor dimensions (WxHxD): 655 x 368 x 64 mm
- Max. PC dimensions (WxHxD): 272 x 267 x 71 mm
- Max. keyboard dimensions (WxHxD): 615 x 38 x 211 mm
- Color: black
- Warranty: 5 years on mechanical components / 1 year on electrical components
Does your display fit the monitor mount?
We would be happy to check whether your monitor is suitable for this Ergotron CareFit wall-mounted workstation (61-367-060). Just tell us your model (manufacturer + model number) in the comment field at the end of the ordering process. We will then check for you whether the monitor or display fits the monitor mount and if not, we will contact you.
VESA standard - Learn more about VESA!
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| 3D CAD Modell: |  [dwg] |
| Installation manual: | [pdf] |
| Minimum weight: | 4,8 |
| Capacity: | 10,7 kg |
| Height range (mm): | 508 |
| Screen size: | 14 - 27'' |
| VESA Standard: | 75x75mm, 100x100mm MIS-D (www.vesa-standard.com) |
| Packaging dimensions (LxWxH in mm): | 1150 x 950 x 210 |
| Scope of delivery: | 1x housing | 1x wrist support | 1x installation template | mounting material | 2x key | 4x AA battery |
| Contains installation material: | + |
| Warranty: | 5 years |
| Manufacturer/Importer: | Ergotron Europe, Stationsstraat 77H, 3811 MH Amersfoort, Niederlande, info.de@ergotron.com |
| Inch size: | 14 inch, 15 inch, 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch |
| Mobility: | electrical, height adjustable |
| Mounting type: | wall mount |
| Multi-monitor mount: | 1 monitor |
| color: | Black |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
Note on Curved Monitors:
If a curved suitability is not explicitly mentioned with the mount, we do not guarantee that the mount is suitable for curved screens. We are happy to check the compatibility for you! Write us an email with your TV model and the desired monitor mount!
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Ergotron CareFit™ Enclosure – The space-saving wall workstation for ergonomic work
The Ergotron CareFit™ Enclosure is the ideal solution for modern healthcare and care facilities that value ergonomics, efficiency, and hygiene. This wall workstation combines high-quality craftsmanship with intelligent design – perfectly suited for hospitals, medical practices, or nursing homes where every centimeter of space counts. Thanks to the ergonomic height adjustment of up to 51 cm, caregivers can decide whether they prefer to work sitting or standing. This not only increases productivity but also significantly improves comfort during daily work.
Space-saving design with maximum functionality
The CareFit Enclosure impresses with its ultra-slim profile: with a wall clearance of just 10 cm when closed, the workstation blends discreetly into any environment. In narrow patient rooms or tight corridors, this leaves enough freedom of movement – a key advantage for smooth patient care. When not in use, the station can simply be folded up, creating extra space without removing any equipment. At the same time, the robust front protects the monitor and internal components. The T-slot rail allows easy attachment of practical accessories such as proximity readers or scanners. An integrated lock code with up to 10 digits provides additional security – keeping sensitive patient data and equipment safe.
Ergonomic, hygienic, efficient – the ideal workstation for caregivers
The CareFit™ Enclosure is designed to meet the highest demands of daily clinical work. It features an integrated keyboard and mouse tray with a removable work surface that is easy to clean. The cable management system keeps things organized and hygienic by routing cables neatly inside the enclosure. The system is compatible with monitors up to 27 inches and supports standard VESA mounting patterns (100 × 100 mm and 75 × 75 mm). The sturdy steel and polycarbonate construction is also flame-retardant according to NFPA 101, making it especially safe for use in sensitive environments such as hospitals or laboratories. The Ergotron CareFit™ Enclosure offers more than just a monitor mount – it is a complete, ergonomic wall-mounted workstation. Caregivers benefit from comfortable working height, flexible movement, and a tidy environment. Thanks to its space-saving design, there is more room for what truly matters: providing the best possible patient care. With its durable construction, modern look, and intelligent features, the CareFit Enclosure is the perfect choice for forward-thinking workplaces in the healthcare sector.
