Ergotron HX Arm Monitor Mount for 3 Monitors, Black (45-009-003)

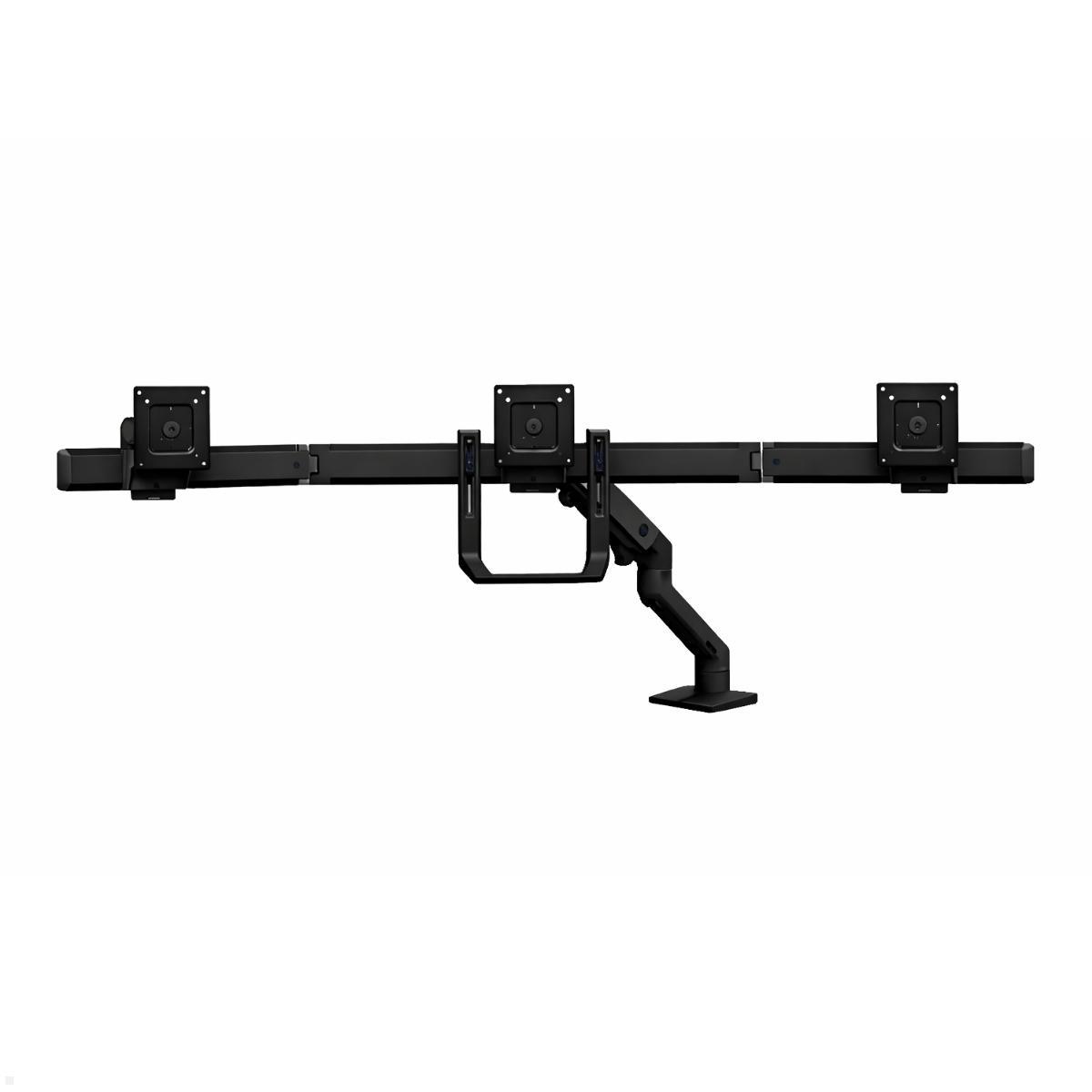

The Ergotron HX Arm triple monitor desk mount 45-009-003 in black is a swivel, tilt, and height-adjustable monitor mount designed for three screens, each up to 26 inches in size and with a maximum weight of 4.6 kg per monitor.
Sleek new design: the Ergotron HX triple monitor mount for 3 monitors in black is the perfect accessory for your displays, offering enhanced flexibility and outstanding ergonomics. The monitor arm can be mounted using the included desk clamp or via through-desk mounting on desktops with a thickness of 10–60 mm.
Ergotron HX
Slim and streamlined, the Ergotron triple monitor desk mount is suitable for monitors up to 24 inches each, with a maximum weight of 4.6 kg per screen. Swivel, tilt, and height adjustment functions significantly enhance user comfort.
Key features Ergotron HX Desk Monitor Mount for 3 Side-by-Side Displays (45-009-003)
- Number of screens: 3

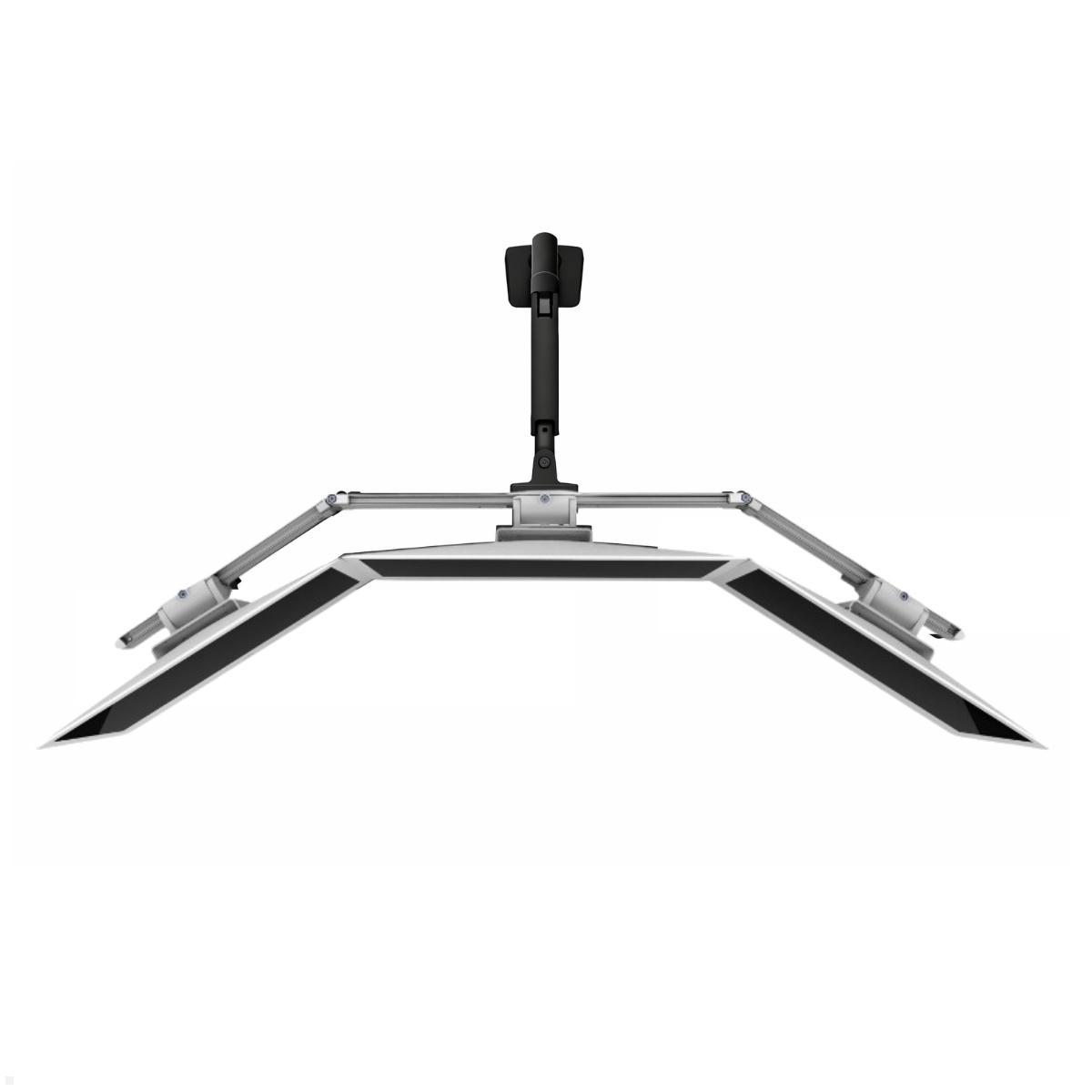

- Configuration: Side by side
- Load capacity per monitor mount: 0.9 kg to 4.6 kg per screen
- Monitor size per screen: Up to 26 inches or 720 mm width per screen
- Swivel: 180 degrees
- Tilt: +70° / -5°
- Rotation: 360 degrees
- Height adjustable: 292 mm
- Color: Black
- VESA mount: 75x75 and 100x100 mm
- Improves viewing comfort: helps reduce strain on eyes, neck, and back
- The patented Constant Force™ tilt and pivot technology positions displays with a light touch
- Eliminates scrolling: rotate the screen for portrait viewing
- The foldable arm creates space in confined work areas
- Passes Ergotron’s 10,000-cycle motion test

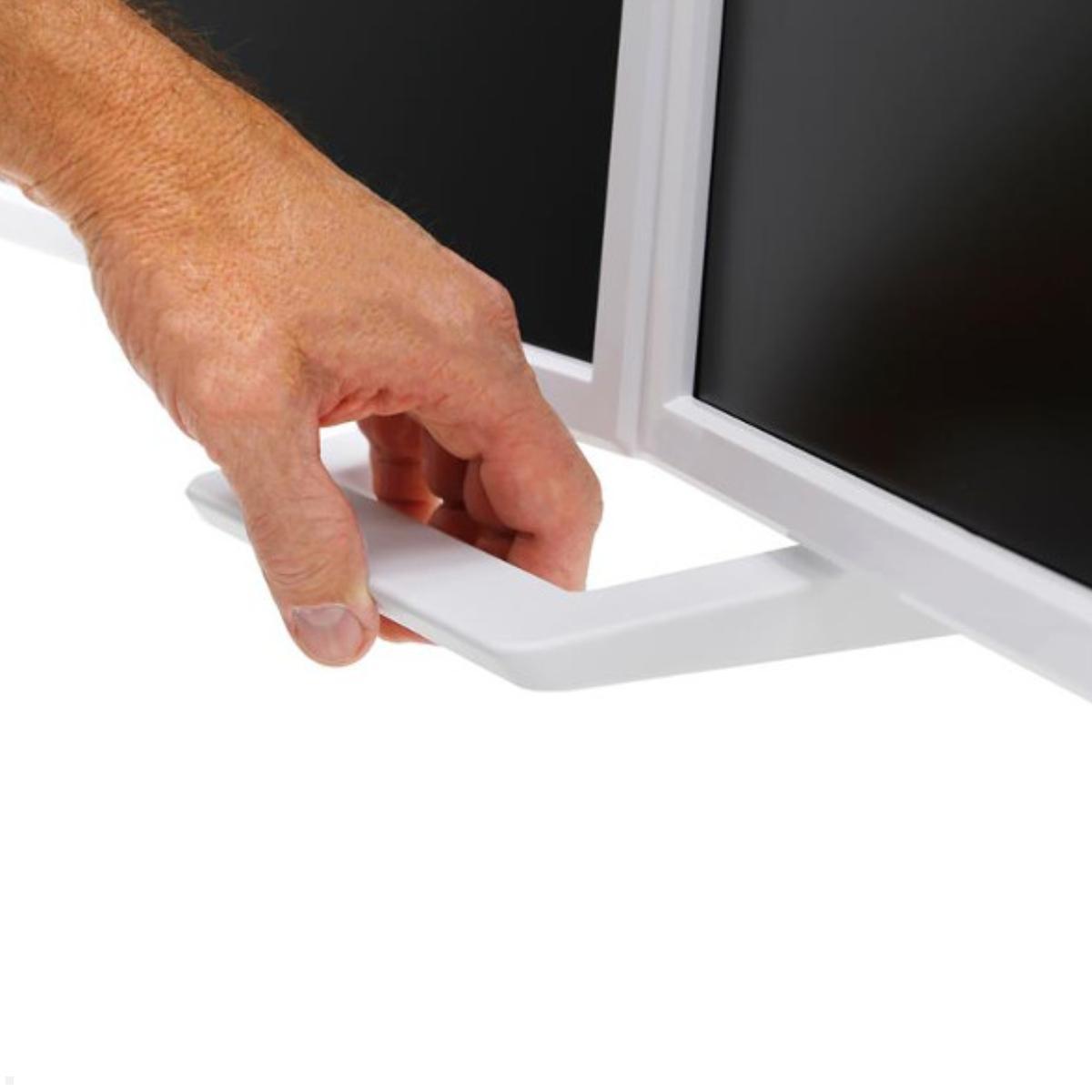

- Includes handle for easy positioning
- Includes desk clamp and through-desk mounting hardware
- For desk thicknesses from 10 to 60 mm
- 10-year warranty
Package Contents:
- Ergotron HX arm desk monitor mount up to 49 inches, black (45-475-224)
- Ergotron HX arm triple monitor kit (98-009-216)
Is your monitor or display compatible?
We are happy to check whether your monitor or TV is compatible with this Ergotron HX mount. Simply provide your model details (manufacturer and model number) in the comment field at the end of the ordering process. We will verify compatibility for you and contact you if the monitor is not suitable.
VESA Standard – Learn more about the VESA standard for monitor mounts !
| Product sheet: |  [pdf] |
|---|---|

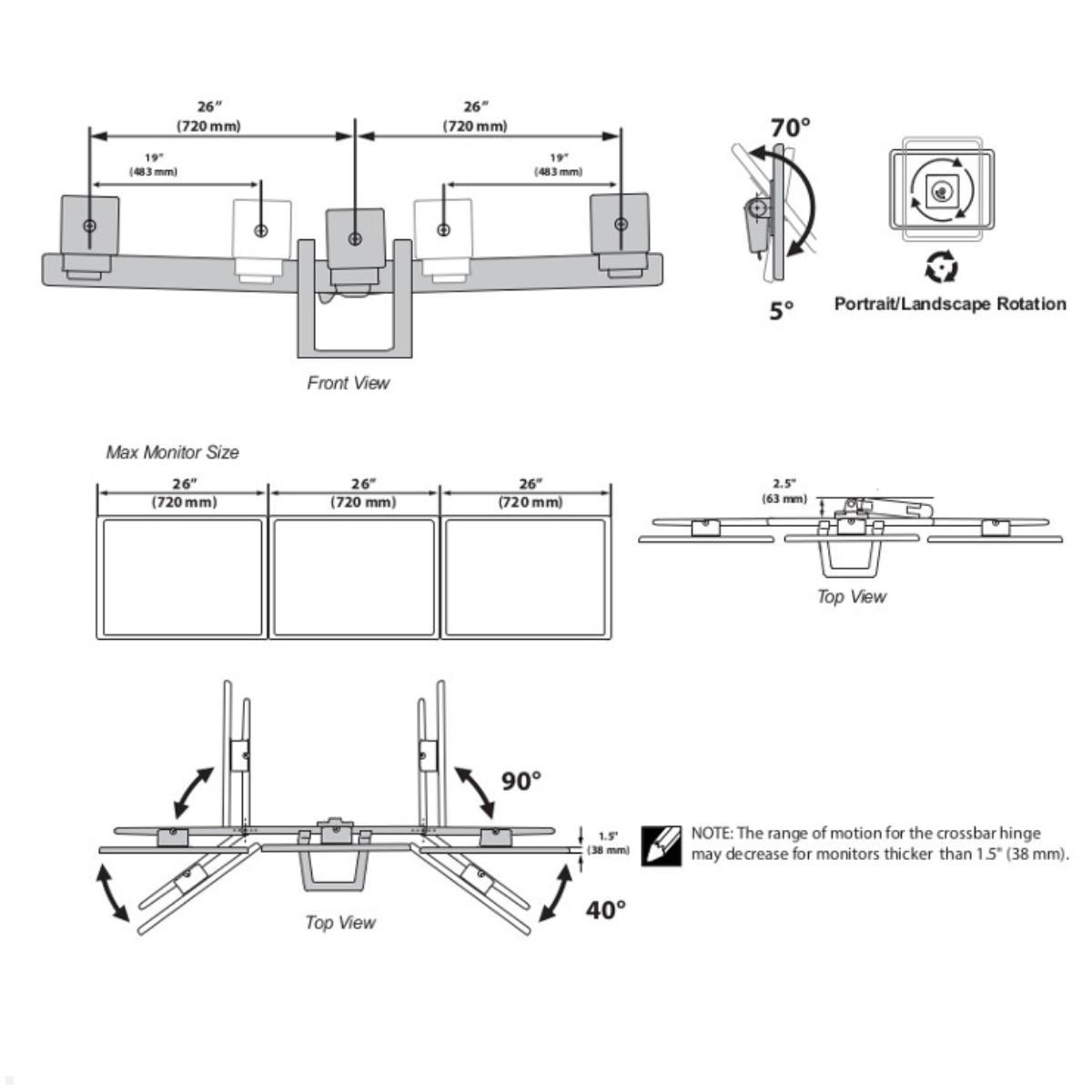

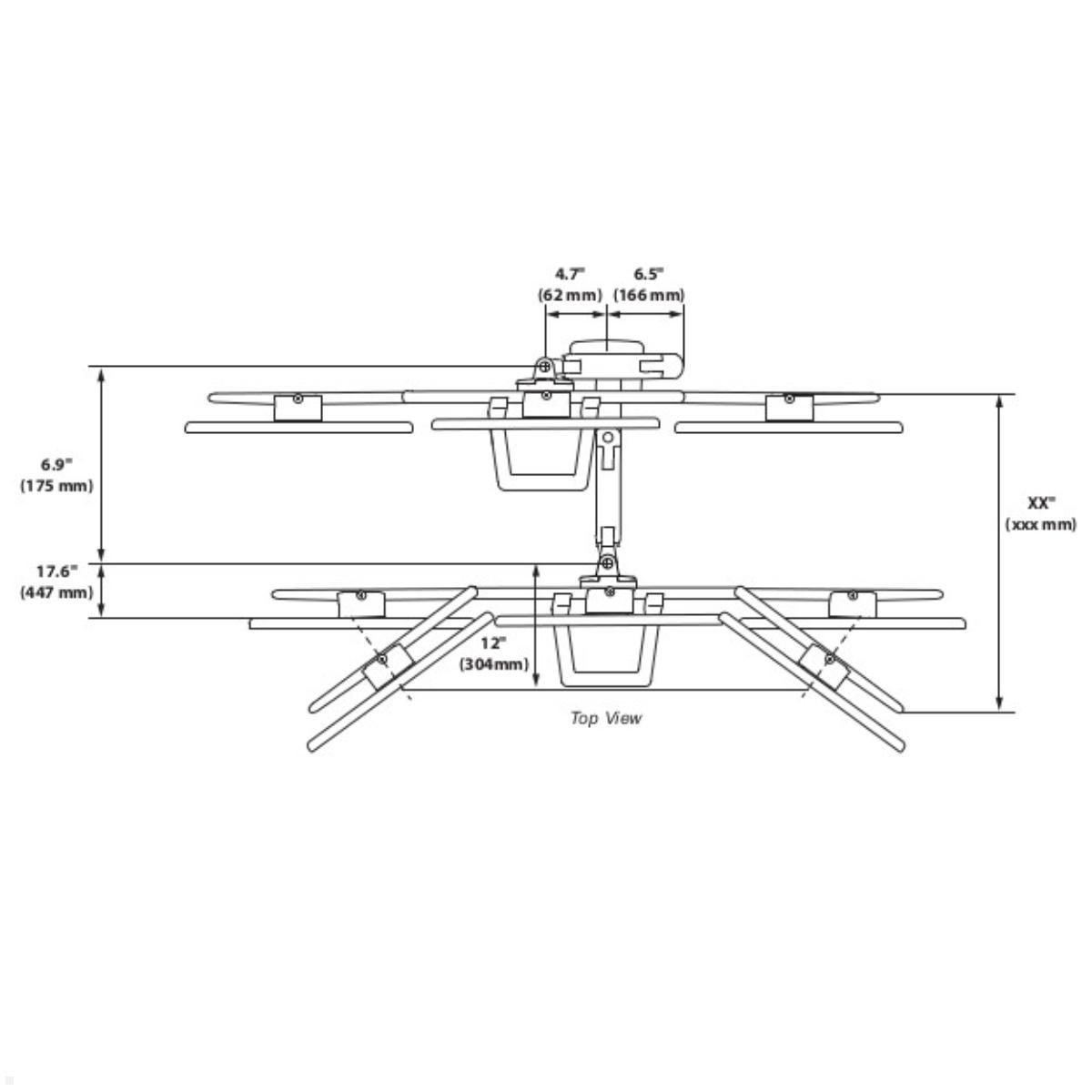

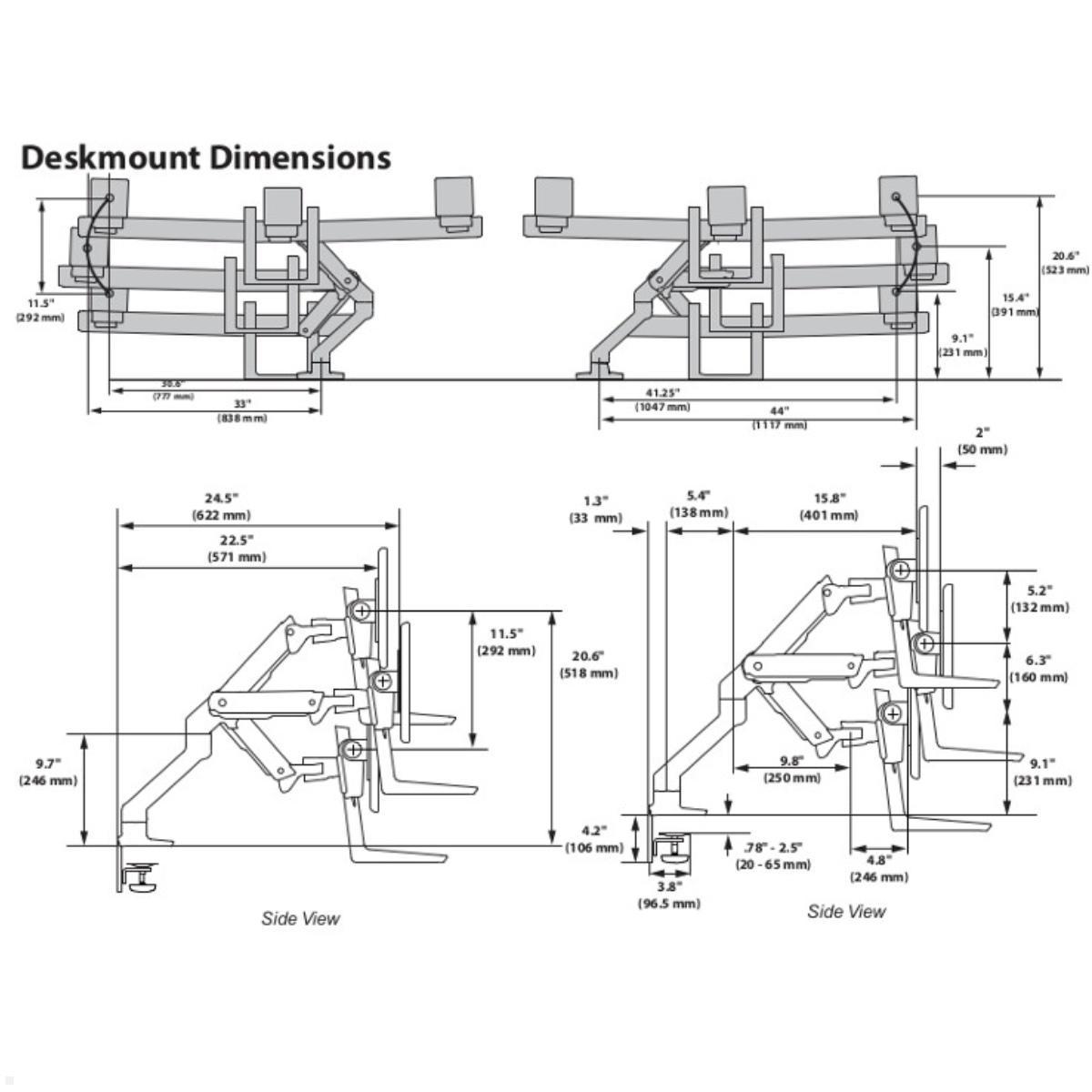

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Minimum weight: | 0,9 kg |
| Capacity: | je 4,6 kg |
| Tilt: | 75° |
| Rotate: | 90° |
| Height range (mm): | 292 mm |
| Pivot: | 90° |
| Swivelling range: | 180° |
| Length of the swivel arm: | 601 |
| Screen size: | 15 - 24'' |
| VESA Standard: | 75x75mm, 100x100mm MIS-D (www.vesa-standard.com) |
| Contains installation material: | + |
| Warranty: | 10 years |
| Manufacturer/Importer: | Ergotron Europe, Stationsstraat 77H, 3811 MH Amersfoort, Niederlande, info.de@ergotron.com |
| Inch size: | 20 inch, 21 inch, 22 inch, 23 inch, 24 inch |
| Mobility: | height adjustable , rotatable (pivot), swivelling, tilting |
| Mounting type: | desk - clamp, desk - drill screw fastening |
| Multi-monitor mount: | Triple solution |
| color: | Black |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
Note on Curved Monitors:
If a curved suitability is not explicitly mentioned with the mount, we do not guarantee that the mount is suitable for curved screens. We are happy to check the compatibility for you! Write us an email with your TV model and the desired monitor mount!
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Kunden kauften auch
Zubehör

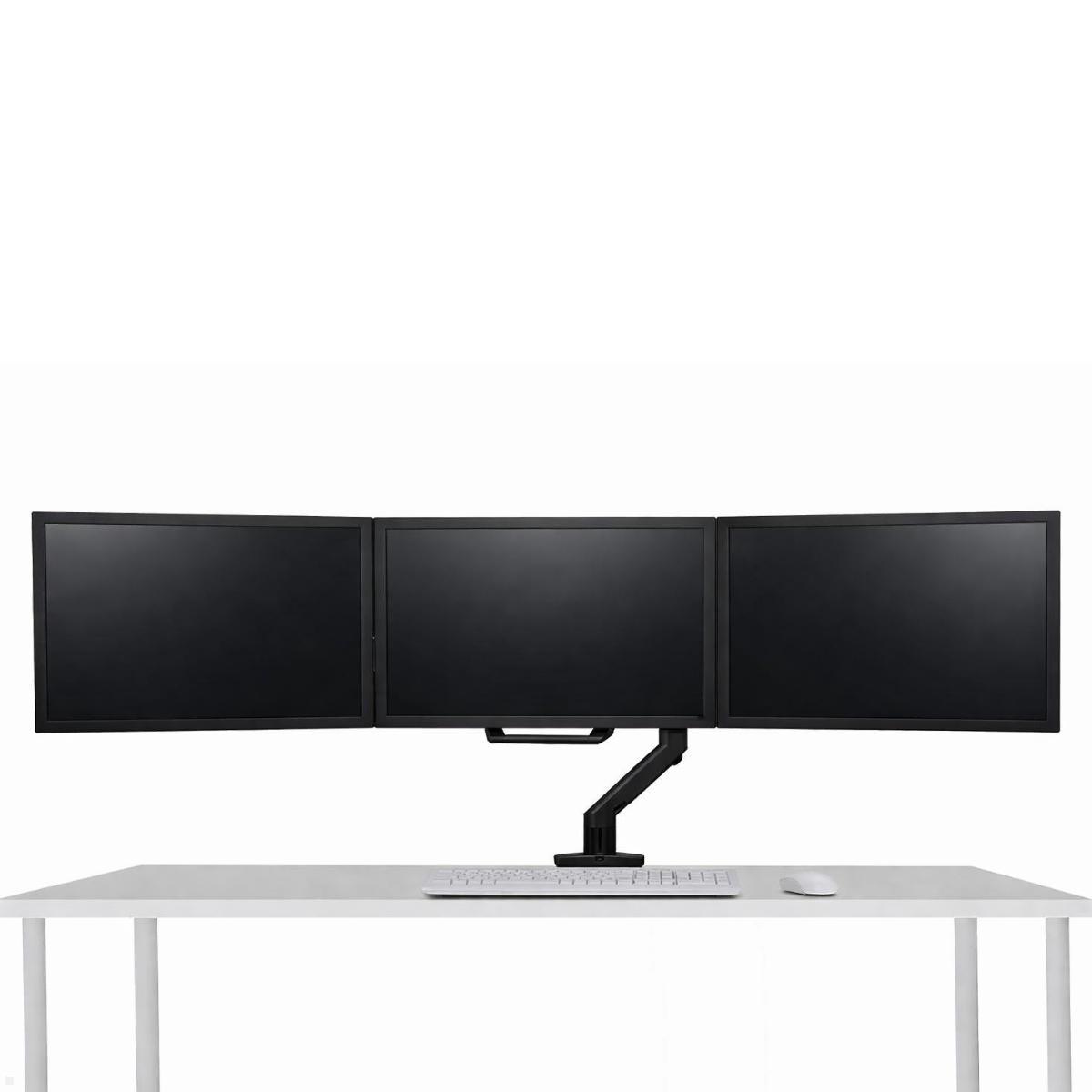

The Ergotron HX monitor mount for 3 monitors in black is the ideal solution for professional workstations where efficiency, ergonomics, and design are key priorities. Whether in the office, home office, trading environment, or creative workspaces, this high-quality triple monitor mount enables flexible and ergonomic positioning of up to three screens side by side. Thanks to its slim, modern design, the monitor mount blends seamlessly into any work environment while freeing up valuable desk space.
With a load capacity of up to 4.6 kg per monitor and a maximum monitor size of up to 26 inches, the Ergotron HX is perfectly suited for standard office and business displays. The patented Constant Force™ technology allows monitors to be positioned precisely with minimal effort—without the need for tools or readjustment. This enables quick changes to working positions and helps reduce long-term strain on the neck, back, and eyes.
Why is the Ergotron HX monitor mount ideal for ergonomic working?
An ergonomic monitor position is essential for healthy and productive work. The Ergotron HX monitor mount offers 292 mm of height adjustment, +70° / -5° tilt, 360° rotation, and 180° swivel capability. This allows all three monitors to be positioned precisely at eye level and at the optimal viewing angle. Especially during long working hours, this significantly improves comfort and noticeably reduces poor posture.

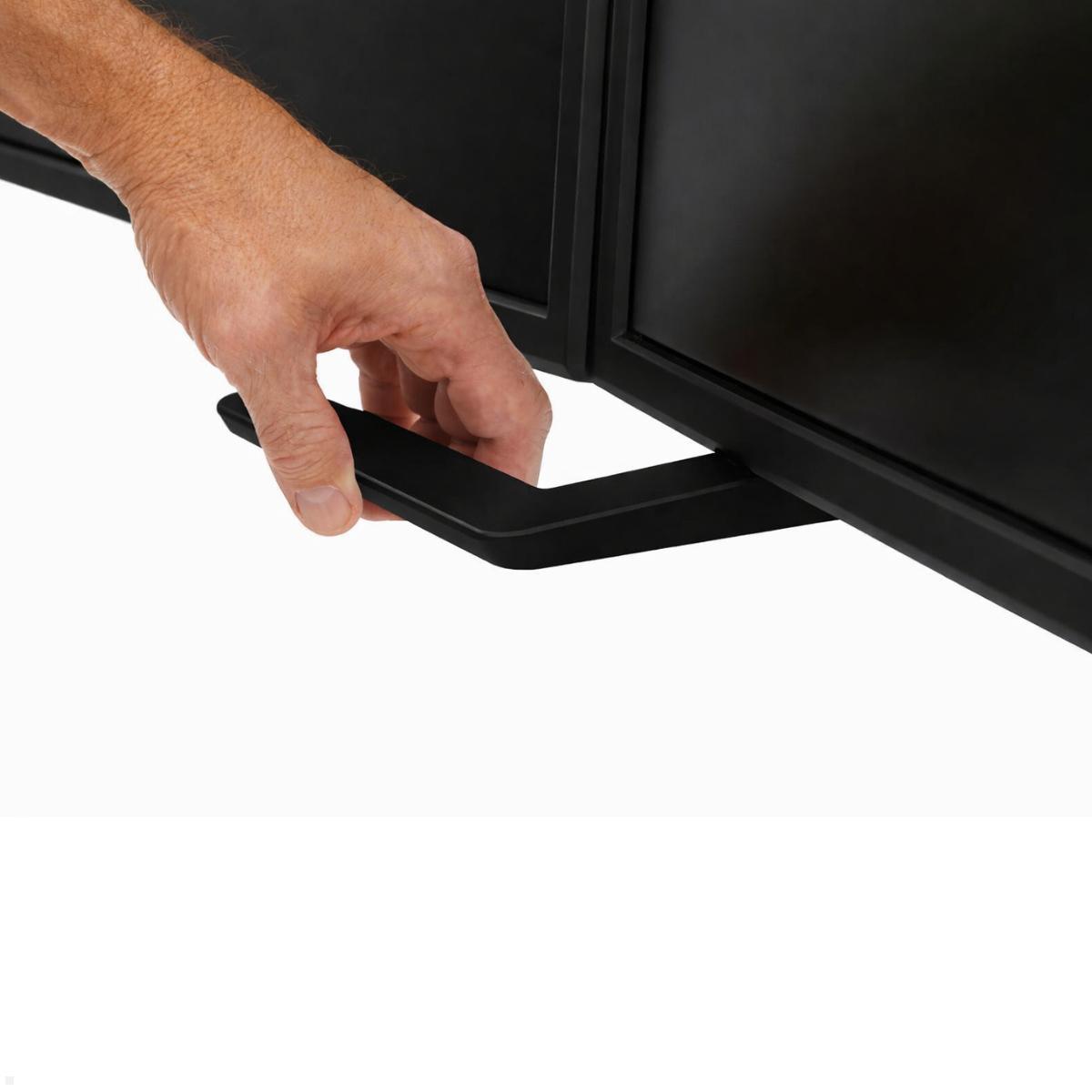

In addition, the rotation function enables easy switching to portrait mode, which is particularly beneficial for programming, reading documents, or working with long web pages. The integrated handle makes it easy to reposition all monitors simultaneously, ensuring maximum ease of use.
Which monitors are compatible with the triple monitor mount?

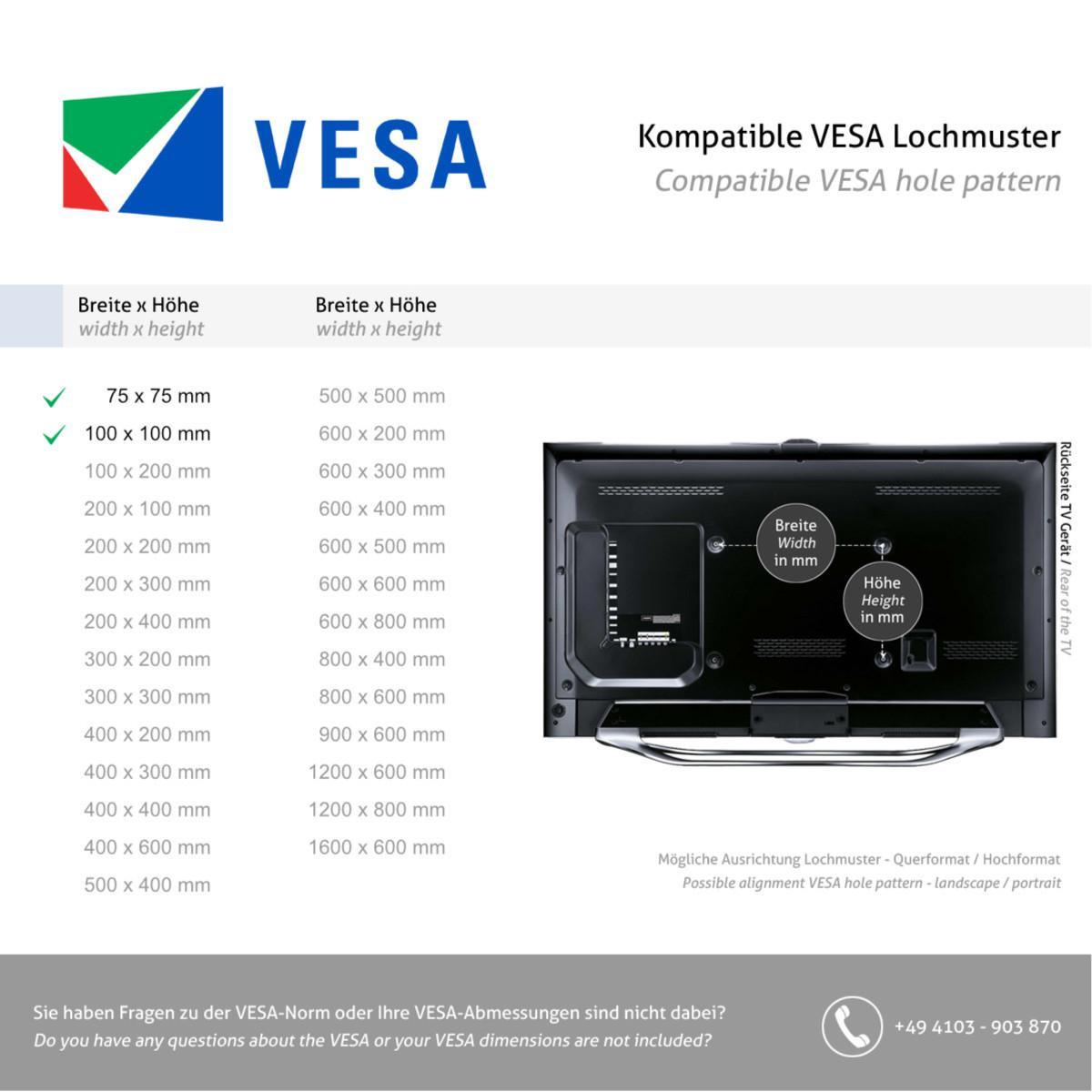

The Ergotron HX monitor mount supports the VESA standards 75x75 mm and 100x100 mm, making it compatible with most common monitors. Each screen must weigh between 0.9 kg and 4.6 kg. The maximum screen width must not exceed 720 mm per monitor. This makes the mount ideal for standard 24- to 26-inch monitors arranged side by side.
If you are unsure whether your monitor is compatible, simply provide the model details (manufacturer and model number) in the comment field at the end of the ordering process. We will be happy to check compatibility for you.
How is the Ergotron HX monitor mount installed?

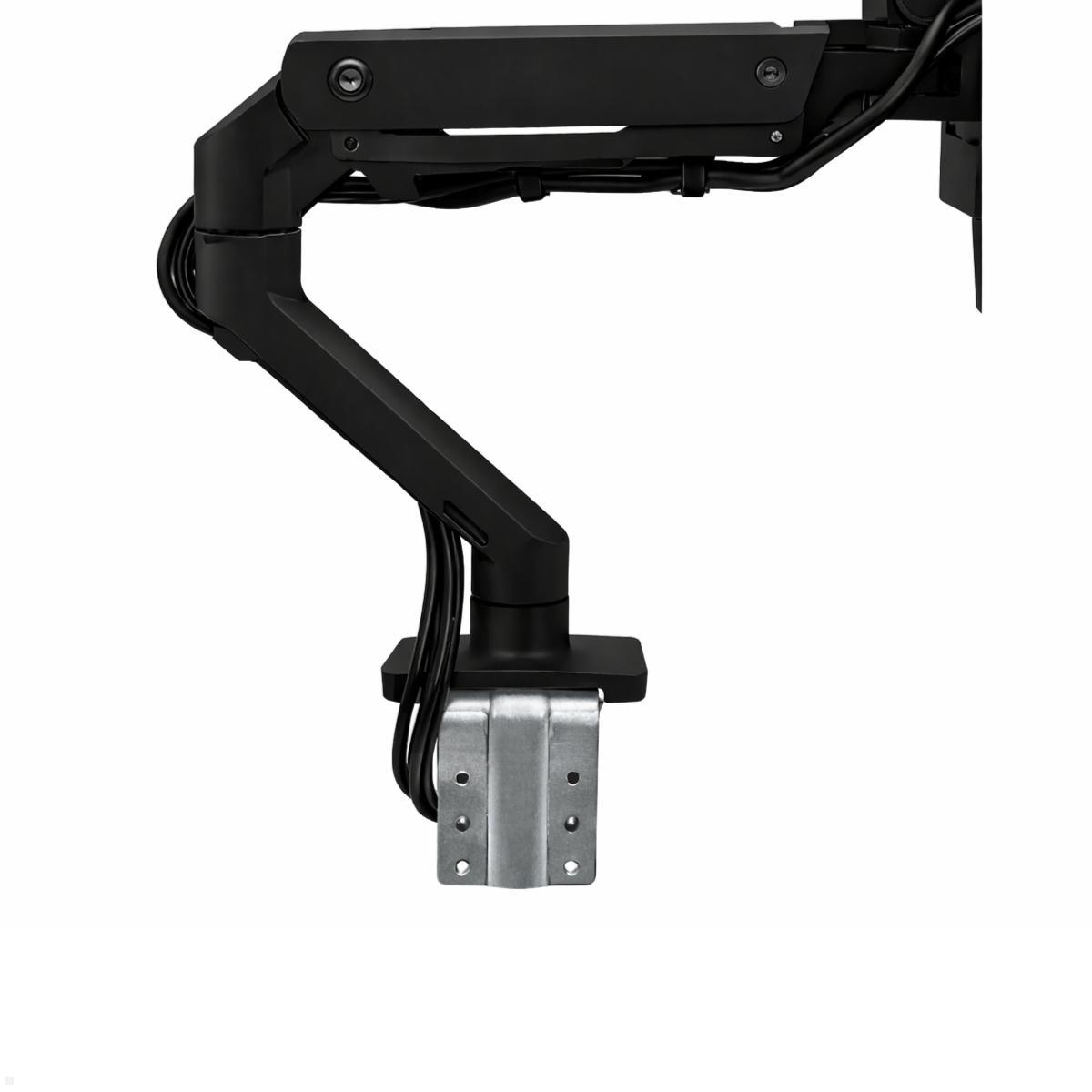

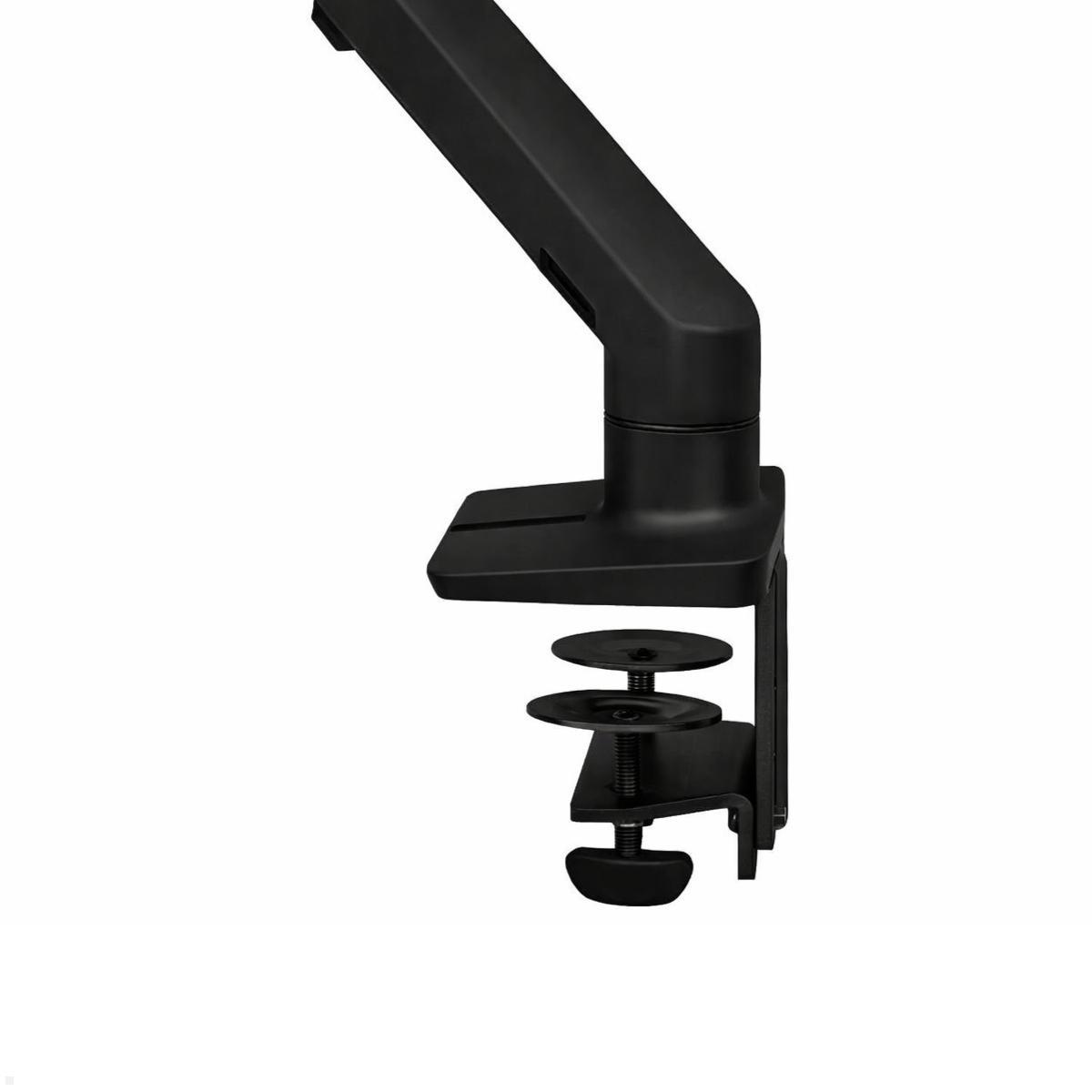

Installation of the Ergotron HX is both flexible and secure. The package includes a desk clamp as well as through-desk mounting hardware. This makes the monitor mount suitable for desktops with a thickness of 10 to 60 mm. The foldable arm provides additional freedom of movement and helps save space when the monitors are not in use.
The overall package is completed by the high build quality, the successful completion of the 10,000-cycle motion test, and a 10-year manufacturer warranty—a clear indication of durability and professional-grade quality.
