Ergotron LX Pro Desk Quad Arm 4-monitor Desk Mount
Highlights
- Mount for 4 monitors up to 27"
- Constant Force Lift technology
- Desk clamp, 10–60 mm desk thickness
- VESA 75x75 & 100x100 mm
- Integrated cable management

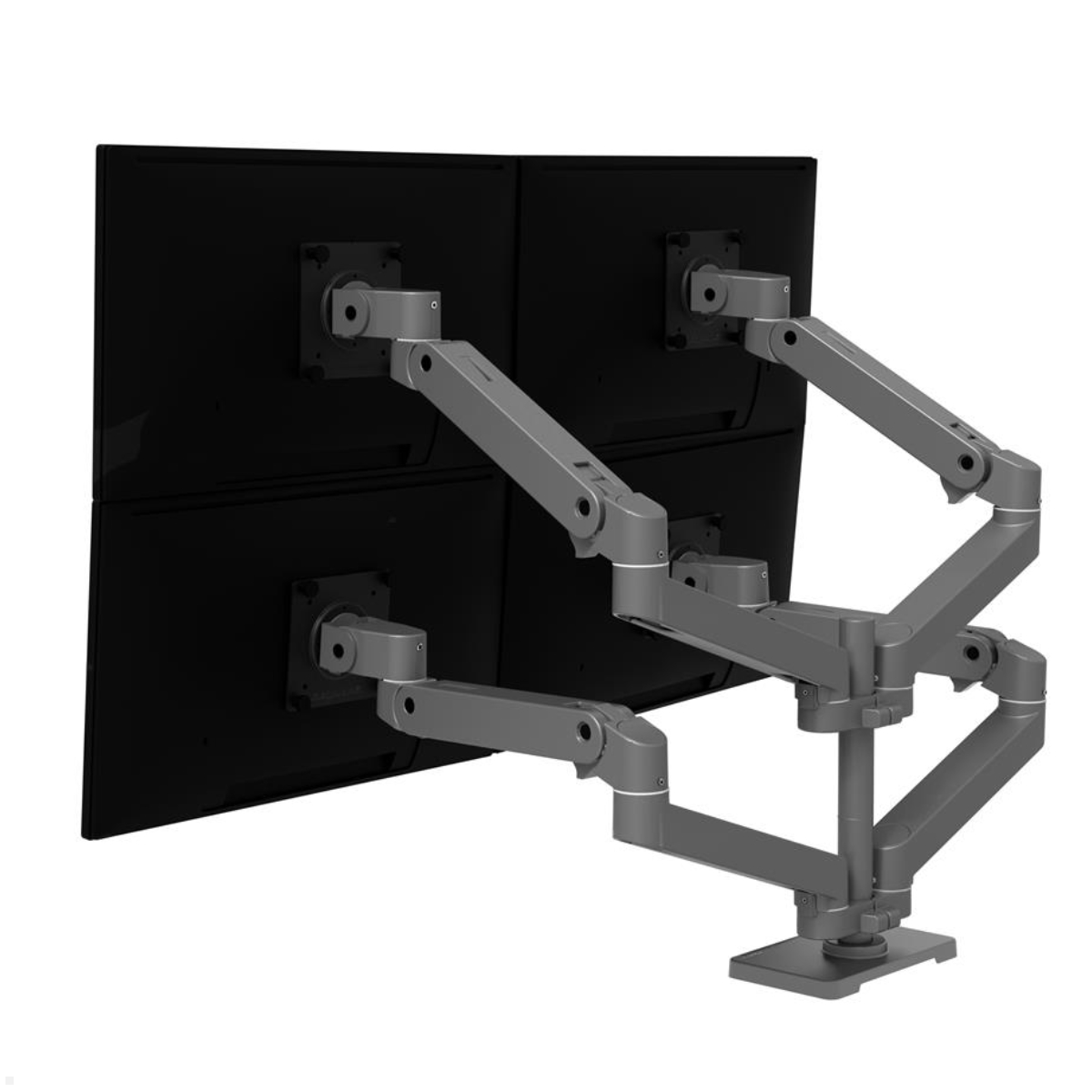

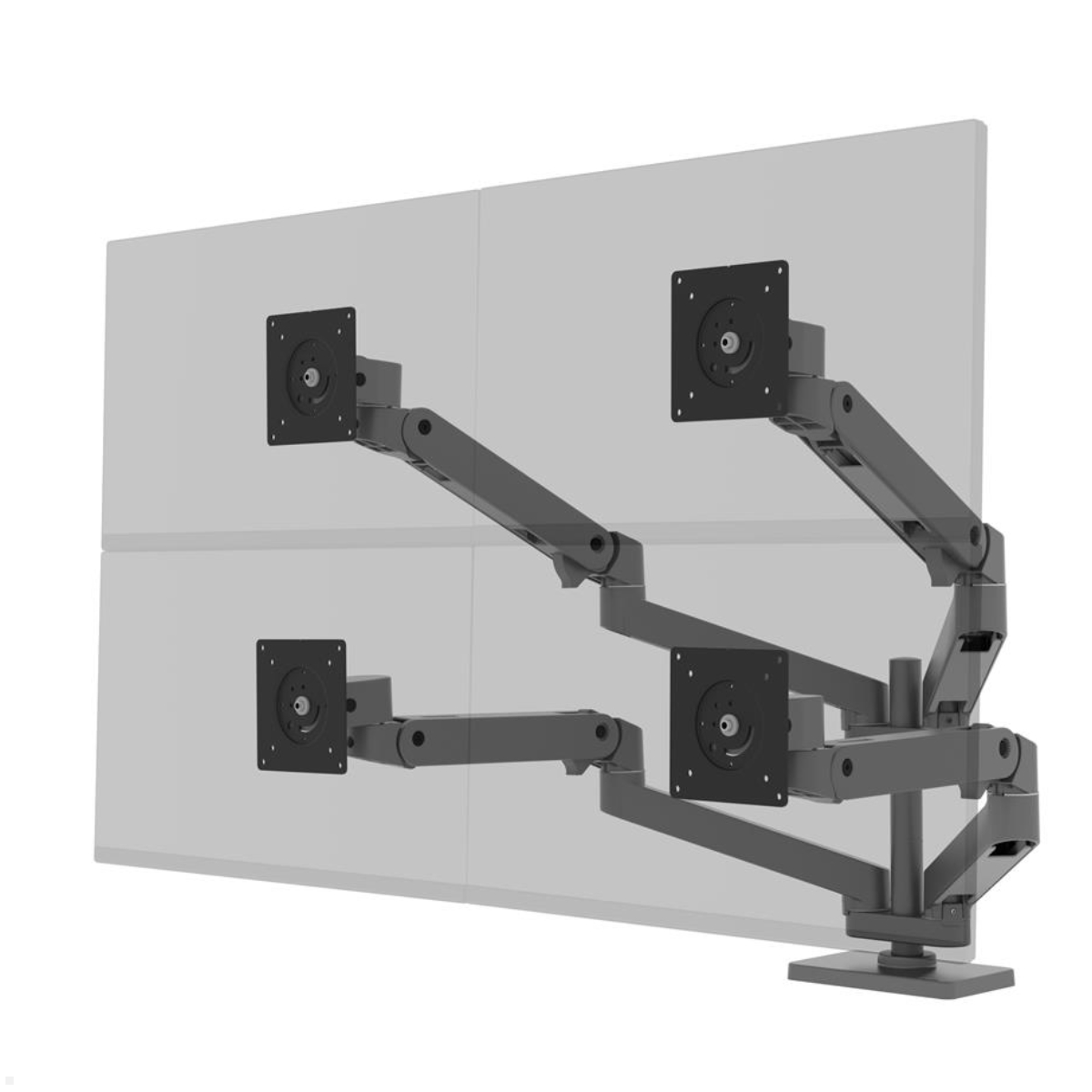

Swiveling Four-Monitor Arm with Desk Clamp
The Ergotron LX Pro Desk Quad Arm is the ideal solution for anyone who wants to position four screens ergonomically and space-efficiently at the desk. With the proven Constant Force Lift Technology, all monitors can be adjusted smoothly in height without much effort – each position remains permanently stable. The high-quality aluminum housing gives the 4-way monitor desk mount a slim look that fits perfectly in any modern office environment. Large screens can be arranged in a triangular layout, while smaller monitors can be placed side by side.
The Ergotron LX Pro Desk Quad Arm 4-way monitor desk mount is excellent for traders, developers, graphic designers and any users who rely on maximum screen space. The desk clamp attaches to table edges with a thickness of 10 to 60 mm and requires no drilling. Thanks to the swivel range of up to 660 mm and the generous tilt range of 70° backward and 15° forward, each screen can be optimally aligned. The integrated cable management keeps the desk tidy.
Technical Details Four-monitor Arm VESA 100x100 Desk Clamp
- Number of monitors: 4
- Max. screen size: 27 inches
- Weight capacity per monitor: 1.8–5 kg
- Total weight capacity: 7.3–20 kg
- Tilt: 70° backward / 15° forward
- Swivel range: up to 660 mm
- Height adjustment: 330 mm
- Max. overall screen height (stacked): 350 mm
- Mounting: Desk clamp
- Desk thickness: 10–60 mm
- VESA: 75x75 mm & 100x100 mm (MIS-D)
- Material: Aluminum & steel
- Warranty: 10 years
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | https://www.monitorhalterung.de/pdf/de/ergotron//ergotron-lx-pro-desk-quad-arm-4-fach-monitor-tischhalterung-mounting.pdf |
| Minimum weight: | 1,8 kg |
| Capacity: | 20 kg |
| Tilt: | +15° / -70° |
| Rotate: | 360° |
| Height range (mm): | 330 |
| Swivelling range: | 360° |
| Length of the swivel arm: | 660 |
| Screen size: | ≤27" |
| Thickness of table (mm): | 10 - 60 |
| Material: | Aluminium |
| VESA Standard: | 75x75mm, 100x100mm MIS-D (www.vesa-standard.com) |
| Scope of delivery: | 1x LX Pro Dual Stacking Arm, 2x LX Pro Monitor Arm Expansion Kit, 2x LX Pro Dual Side-by-Side Collar |
| Contains installation material: | + |
| Warranty: | 10 years |
| Manufacturer/Importer: | Ergotron Europe, Stationsstraat 77H, 3811 MH Amersfoort, Niederlande, info.de@ergotron.com |
| Inch size: | 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch |
| Mobility: | height adjustable , swivelling, tilting |
| Mounting type: | desk - clamp |
| Multi-monitor mount: | Quad solution |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
| Ergotron Serie: | Ergotron LX Pro |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Ergotron LX Pro Desk Quad Arm 4-Display Monitor Desk Mount?
A four-monitor arm with a desk clamp that swivels; ideal for placing four displays ergonomically and space-saving on the desk, with the proven Constant Force Lift technology for stepless height adjustment and stable positions.
-
How many monitors does it support and what sizes are possible?
Supports 4 monitors. Maximum screen size: 27 inches. Weight per monitor: 1.8–5 kg; total weight capacity: 7.3–20 kg.
-
How is it mounted to the desk?
Desk clamp fits desk edges 10–60 mm thick and requires no drilling.
-
How high can it be adjusted?
Height adjustment: 330 mm.
-
What are the tilt and reach ranges?
Tilt: 70° backward / 15° forward. Swivel reach: up to 660 mm.
-
Which VESA sizes are supported?
VESA: 75x75 mm and 100x100 mm (MIS-D).
-
What materials is it made of?
Material: Aluminium & steel.
-
What is included in the package?
1x LX Pro Dual Stacking Arm (including 2 arms, 2 extensions, 2 monitor swivel arms, desk clamp, base, 12-inch rod, rod sleeves, mounting hardware) + 2x LX Pro Monitor Arm Expansion Kit (each includes 1 arm, 1 extension, 1 monitor swivel arm, 1 rod collar, mounting hardware) + 2x LX Pro Dual Side-by-Side Collar.
Why is the Ergotron LX Pro Desk Quad Arm the best choice for a 4-monitor setup?
The Ergotron LX Pro Desk Quad Arm impresses as a professional 4-monitor desk mount due to its thoughtful construction and unique Constant Force Lift technology. Unlike conventional gas springs or screw systems, this technology enables completely stepless height adjustment without tools — and remains permanently stable. Whether in the home office, professional trading environment, or graphic design, anyone using four monitors benefits from maximum flexibility and a tidy desk. The slim aluminum design is crafted to blend into any modern office environment without appearing bulky. With a swivel reach of up to 660 mm, the screens can be positioned precisely within the field of view. Each arm can be individually raised, extended, and swiveled, allowing various screen configurations such as triangular or side-by-side arrangements to be implemented effortlessly. The high-quality manufacturing has been proven by passing the 10,000-cycle test according to BIFMA Level 2 standard.
How is the quad monitor arm attached to the desk?
The LX Pro quad monitor setup is mounted via an integrated desk clamp that attaches to desk edges with a thickness of 10 to 60 mm — without drilling or damaging the desk surface. The scope of delivery includes all necessary components: the LX Pro Dual Stacking Arm as the base with a large base and a 12-inch pole, two LX Pro Monitor Arm Expansion Kits for the third and fourth monitor, and two LX Pro Dual Side-by-Side Collars that can be mounted at any position on the pole. This allows large screens to be arranged in a triangle or smaller displays side by side. All components are available in the color options black, dark gray, and white. As an alternative to the desk clamp, the base can be replaced by a cable grommet option by choosing the LX Pro Dual Stacking Arm with bolt-through mounting.
Which monitors are compatible with the Ergotron LX Pro quad arm?
The Ergotron LX Pro Desk Quad Arm is compatible with monitors up to 27 inches diagonally that conform to the VESA standard FDMI MIS-D with a 75x75 mm or 100x100 mm hole pattern. Load capacity is 1.8 to 5 kg per individual monitor, with a total load capacity of 7.3 to 20 kg. Curved monitors may be restricted depending on housing height — the maximum external height of the stacked screen must not exceed 350 mm. For monitors larger than 27 inches, we recommend checking that the weight limit is met. Ergotron provides a ten-year warranty on the entire product. This bundle consists of a combination of different products — details on the individual components can be found in the technical specifications in the description.
