Ergotron LX Pro Monitor desk mount swivelable up to 34 inches, aluminum (45-682-026)
Highlights
- Ergotron LX Pro monitor arm in aluminum for monitors up to 34 inches and 10 kg
- Constant Force™ technology for effortless height adjustment up to 292 mm
- 360° swivel range, 85° tilt and 90° pivot function
- Desk clamp for desk thicknesses from 10 to 60 mm
- VESA-compatible: 75x75 and 100x100 mm (MIS-D standard)
Ergotron LX Pro Swiveling Monitor Desk Mount
The LX Pro monitor arm from Ergotron in aluminum combines performance, style and functionality in a modern design. As an evolution of the proven LX design, the LX Pro offers improved ergonomics and an easier installation. Thanks to Constant Force™ technology, the arm enables effortless height adjustment and flexible positioning of the monitor. With a load capacity of up to 10 kg it is suitable for a variety of monitors. The integrated cable management ensures a tidy workspace, while the slim design blends harmoniously into any office environment. Experience a new dimension of workspace design with the Ergotron LX Pro monitor desk mount, swiveling for up to 34 inches, aluminum (45-682-026).

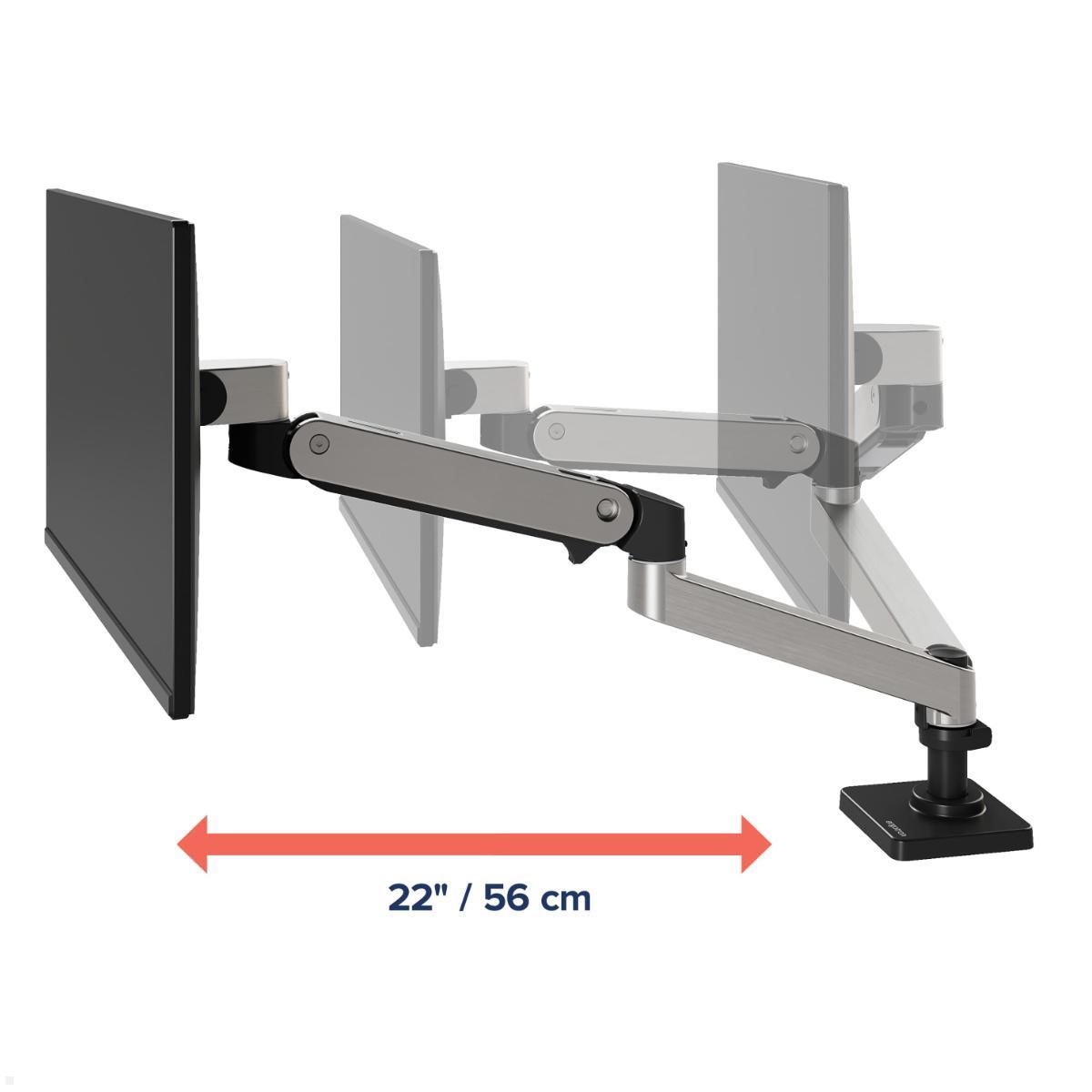

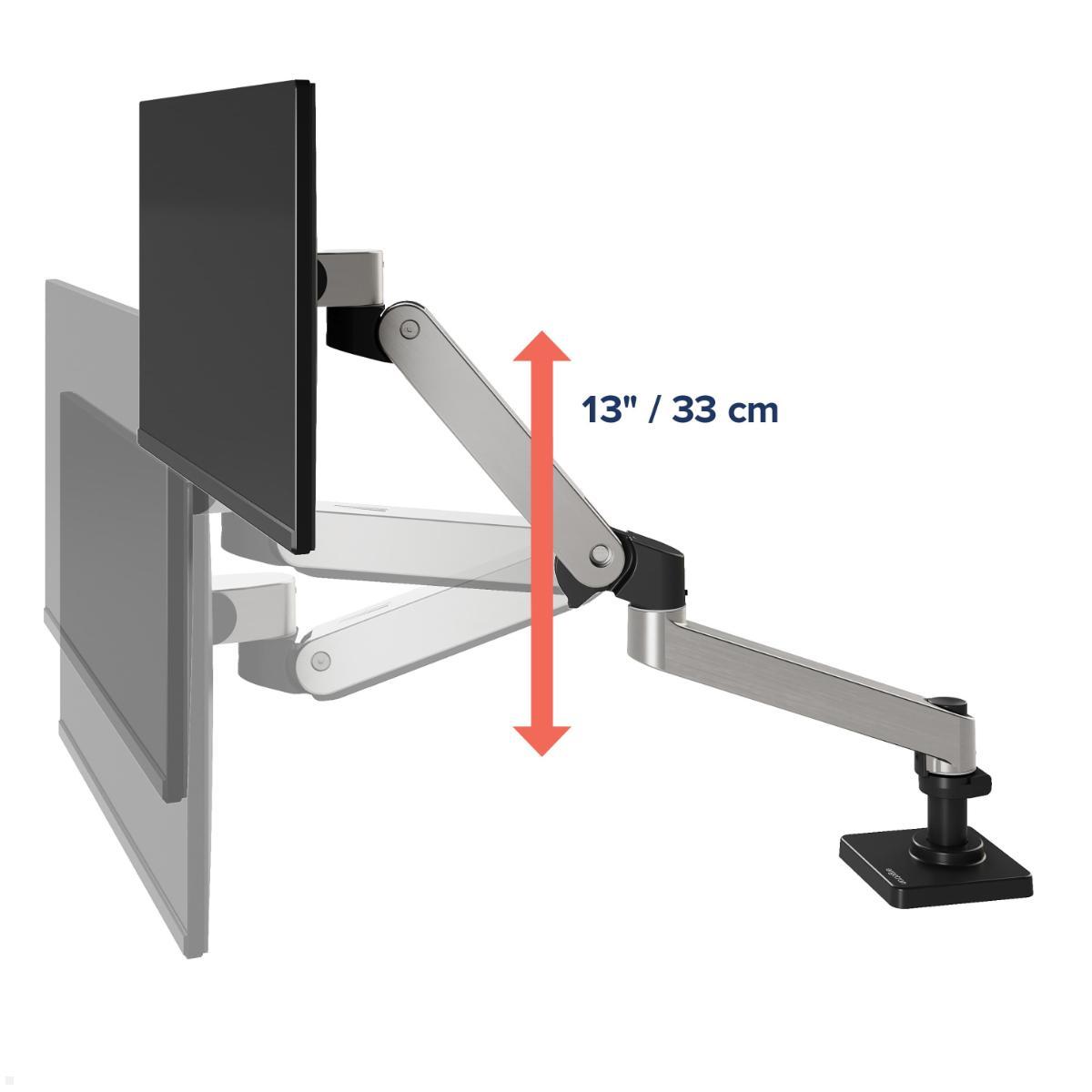

The Ergotron LX Pro monitor arm in aluminum (45-682-026) convinces with high functionality and solid construction. It supports monitors weighing up to 10 kg and is compatible with screen sizes up to 34 inches. Thanks to Constant Force™ technology, the monitor can be adjusted 292 mm in height with minimal effort. The depth adjustment of up to 620 mm allows flexible adaptation to the workspace. In addition, the arm offers a swivel range of 360°, a tilt function of +85° and a rotation function of 360°, so the screen can always be optimally aligned. Whether in the office, the home office or at the desk – the monitor arm adapts flexibly to different areas of use. The integrated cable management ensures order and a tidy appearance.
Technical details monitor desk mount Ergotron 45-682-026
- Load capacity: 1.8 kg - 10 kg
- Screen size: up to 34 inches
- Desk mounting as a desk clamp for desk thicknesses 10 - 60 mm
- Tiltable: 85°
- Swiveling: 360°
- Rotatable: 90°, pivot function to rotate from landscape to portrait
- VESA mount standard MIS-D: 75x75, 100x100 mm
- The Ergotron LX does not use a gas spring but a precise mechanical spring – and that is exactly what makes the monitor mount so durable and reliable.
- Color: Aluminum
Does your TV, screen or display fit the VESA mount?
We will gladly check whether your TV is suitable for this Ergotron LX Pro arm monitor desk mount (45-682-026). To do so, simply provide your model (manufacturer + model no.) at the end of the ordering process in the comment field. We will then check for you whether the TV, monitor or display fits and, if not, we will contact you.
VESA standard - Learn more about the VESA standard for monitor mounts!

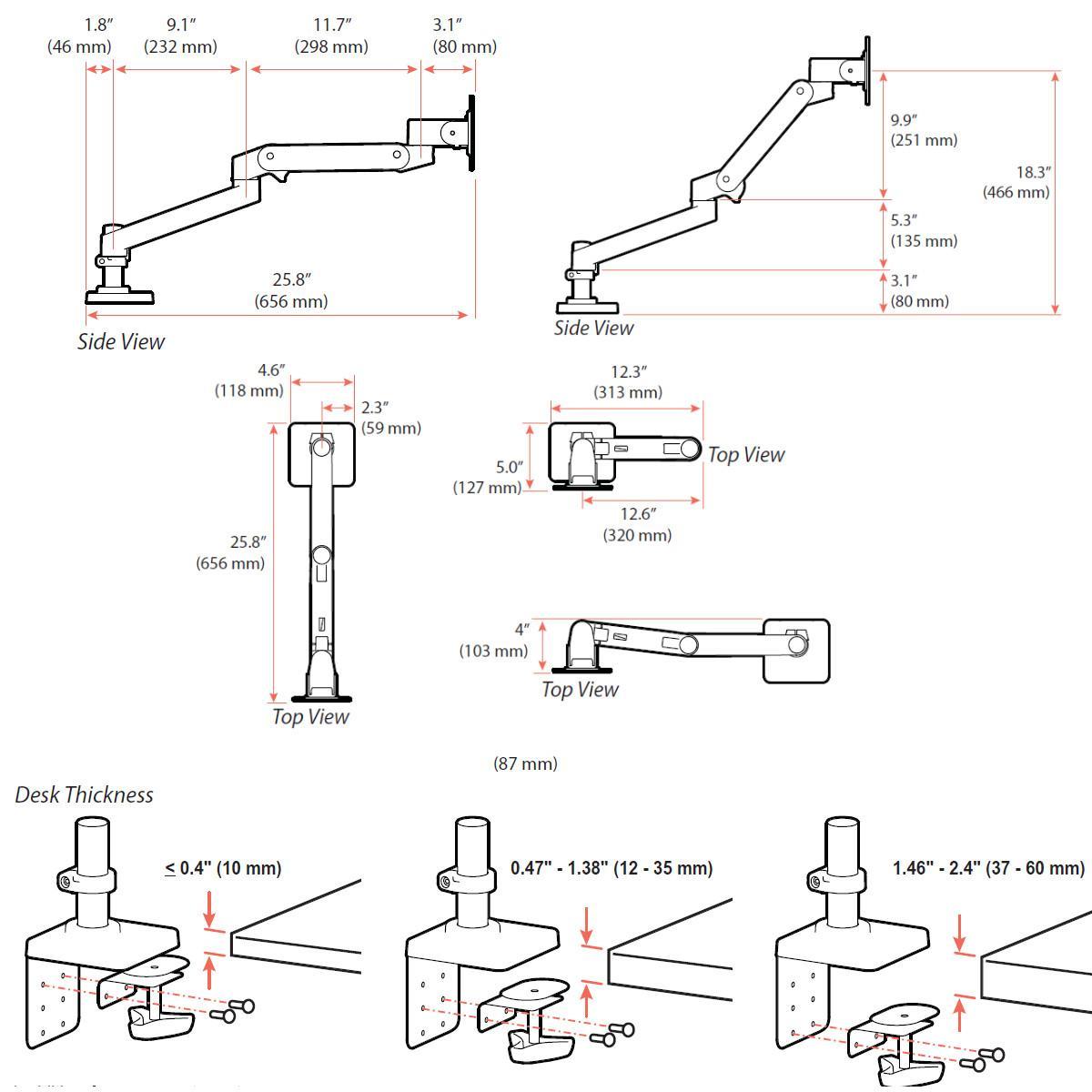

| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Minimum weight: | 1,8 kg |
| Capacity: | 10 kg |
| Tilt: | 70°/15° |
| Rotate: | 90Grad (Pivot) |
| Height range (mm): | 330 |
| Pivot: | 90° |
| Swivelling range: | 360° |
| Length of the swivel arm: | 610 |
| Screen size: | ≤34" |
| Thickness of table (mm): | Tischklemme (10 - 60 mm) |
| Material: | Aluminium |
| Depth of the bracket: | 656 mm |
| VESA Standard: | 75x75mm, 100x100mm MIS-D (www.vesa-standard.com) |
| Packaging dimensions (LxWxH in mm): | 415 x 350 x 165 |

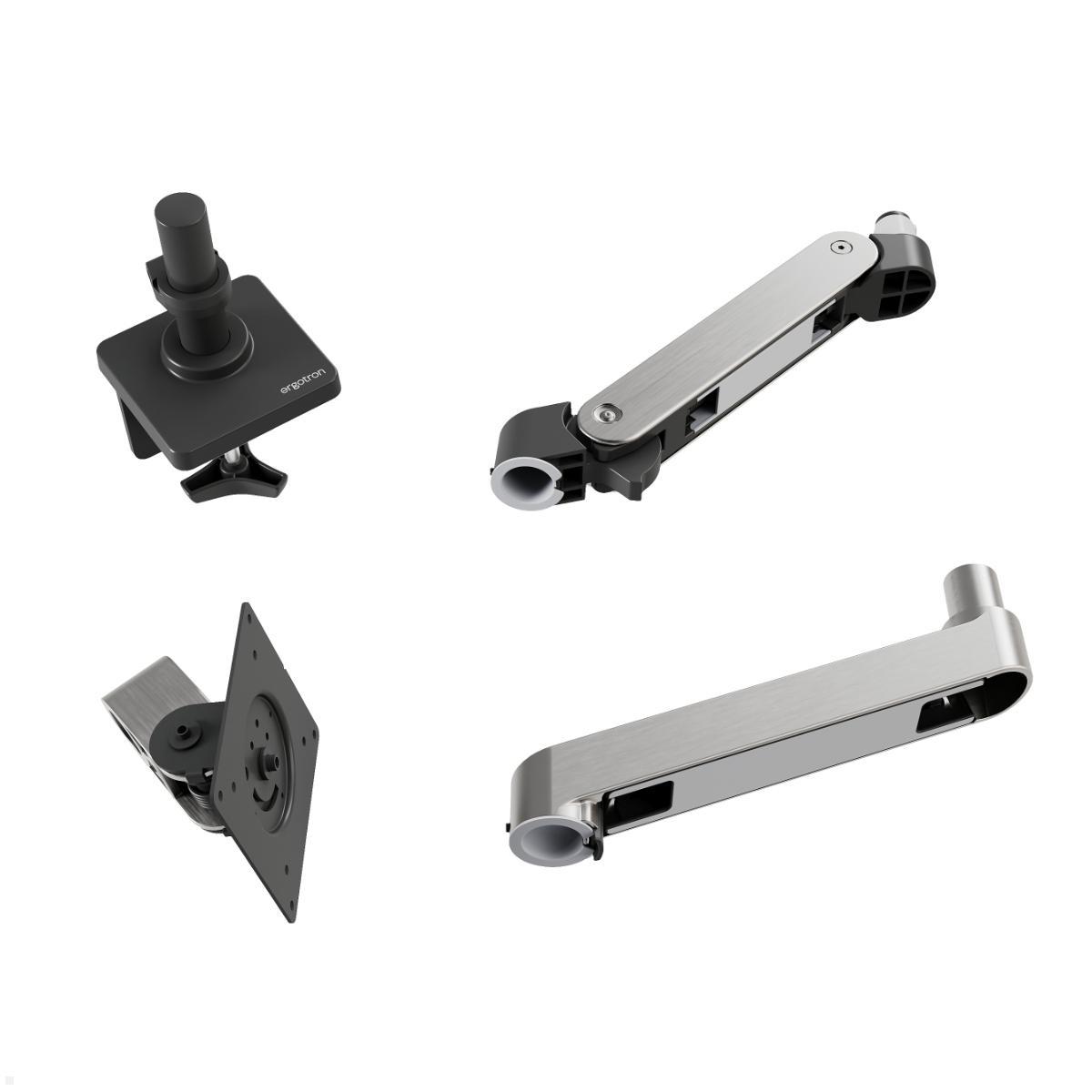

| Scope of delivery: | 1x Ergotron LX Pro Arm monitor desk mount | desk clamp | mounting hardware | assembly instructions |
| Contains installation material: | + |
| Warranty: | 10 years |
| Manufacturer/Importer: | Ergotron Europe, Stationsstraat 77H, 3811 MH Amersfoort, Niederlande, info.de@ergotron.com |
| Inch size: | 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch, 28 inch, 29 inch, 30 inch, 31 inch, 32 inch, 34 inch |
| Mobility: | Drehbar, height adjustable , rotatable (pivot), swivelling, tilting |
| Mounting type: | desk - clamp |
| Multi-monitor mount: | 1 monitor |
| color: | Silber |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
| Ergotron Serie: | Ergotron LX Pro |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Kunden kauften auch
Why is the Ergotron LX Pro Monitor Arm the ideal choice for your desk?
An ergonomically designed workspace is more important than ever. The Ergotron LX Pro Monitor Desk Mount, articulating for displays up to 34 inches, aluminum (45-682-026) offers a thoughtful solution to position the screen flexibly and comfortably at the desk. Thanks to the proven Constant Force technology, the monitor can be adjusted smoothly in height without any additional effort. The mechanical spring provides durable and reliable operation, which is significantly superior to conventional gas springs. With a 360-degree swivel range, up to 85 degrees tilt and a pivot function for switching between landscape and portrait, the LX Pro offers maximum freedom of movement. Whether for focused work, video conferences or creative tasks – the monitor arm adapts flexibly to any situation. The elegant aluminum finish blends subtly into modern office environments and underscores a professional appearance. Monitors up to 34 inches and a weight of 10 kg are held securely, while the integrated cable management keeps the workspace tidy.
What advantages does the desk clamp offer compared to other mounting methods?
The desk clamp of the Ergotron LX Pro enables quick, tool-free installation on virtually any desk. It is suitable for desktops with a thickness of 10 to 60 mm, providing high compatibility with common office furniture. Unlike a grommet/through-desk mount, no hole needs to be drilled in the desktop, which is especially advantageous for rented office spaces or high-quality desks. The clamp sits stable and secure, so even at full extension of the articulating arm there is no wobbling or slipping. The arm itself offers a reach of 610 mm in depth and 330 mm in height, allowing the screen to be positioned precisely where desired. Due to its compact design, the mount takes up little desk space and thus creates additional room for keyboard, mouse and other work materials. VESA compatibility with 75x75 and 100x100 mm standards ensures that a wide range of monitors from different manufacturers can be mounted without problems.
For which applications is the Ergotron LX Pro articulating arm particularly suitable?
The Ergotron LX Pro articulating arm in aluminum is versatile and suitable for both the professional office environment and the home office. In businesses it provides ergonomic workstations that help prevent back and neck discomfort by positioning the monitor at the optimal eye level. Graphic designers and developers benefit from the pivot function, which enables a quick switch between landscape and portrait. In meeting rooms the screen can be flexibly turned toward different participants thanks to the 360-degree swivel range. The robust construction with its high load capacity also proves itself at reception desks or in medical facilities. Ergotron's 10-year warranty underscores the product's quality and durability. With the comprehensive scope of delivery, which includes the monitor arm as well as the desk clamp, mounting hardware and an installation guide, setup is quick and uncomplicated. Thanks to the well-thought-out design and high-quality materials, the LX Pro monitor arm is an investment that pays off over many years and noticeably improves working comfort.
