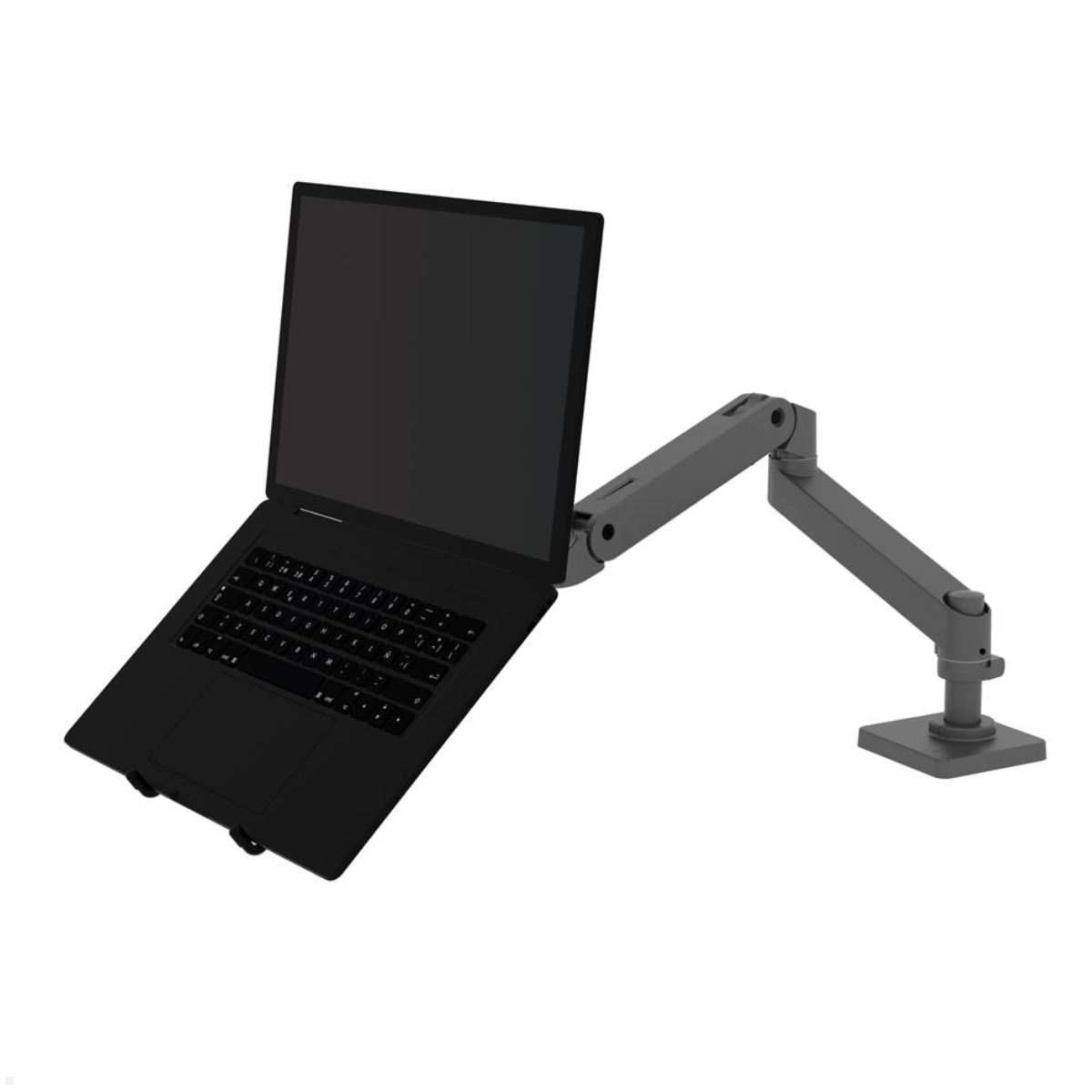

Ergotron LX Pro Swivel Notebook/Laptop Desk Mount
Swivel Notebook Desk Mount
The Ergotron LX Pro Laptop Desk Mount offers ergonomic notebook positioning in a sleek, high-quality design. The robust Pro-Arm allows for precise adjustment of height, depth, and tilt, thus supporting a healthy posture while working – both sitting and standing.

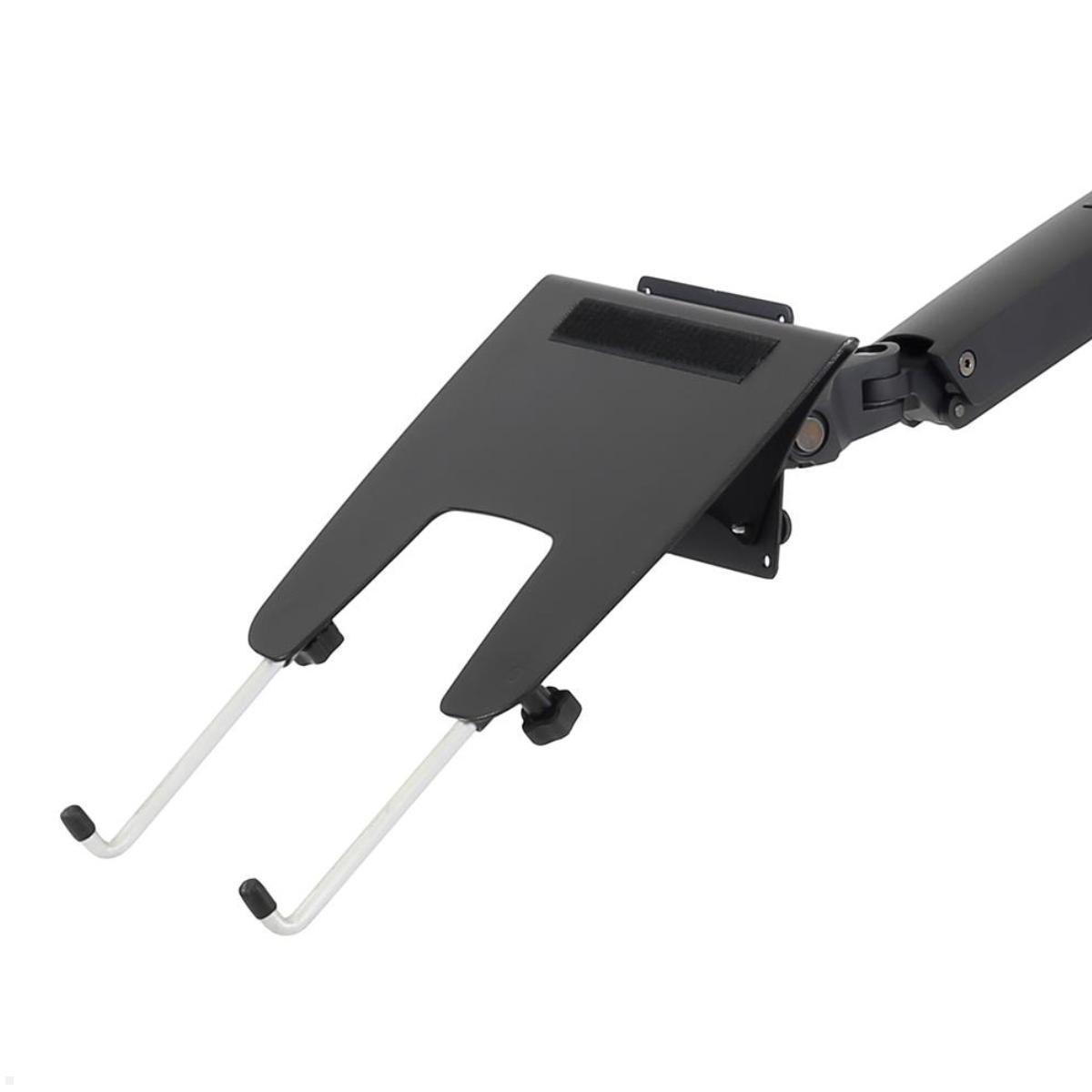

The stable notebook platform securely accommodates laptops or docking station combinations. The open design ensures optimal ventilation, while lateral adjustment options provide additional support for devices of different sizes. With a load capacity of up to 5.4 kg, the tray is suitable for a wide range of professional applications. The LX Pro mechanism utilizes modern Constant Force™ technology for exceptionally smooth movements with minimal operating force. The integrated cable management system neatly routes cables along the arm, ensuring a tidy workspace without unsightly cable pulls. Made from high-quality materials, the LX Pro laptop stand offers a durable construction with an elegant look. Perfect for modern office environments and professional home offices.

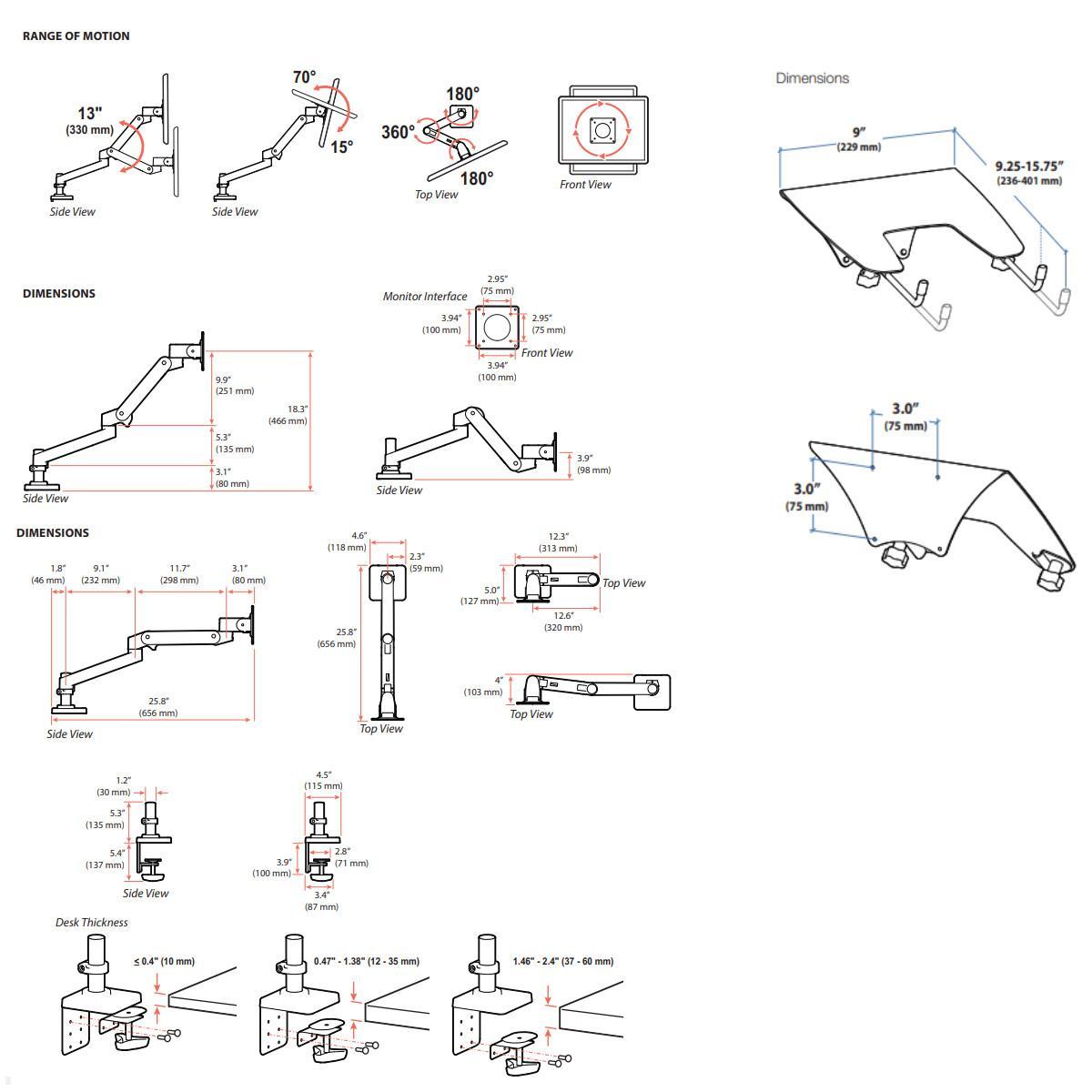

Technical Details Ergotron LX Pro Arm with Laptop Desk Mount
- Mounting: Desk clamp (tabletop 10-60 mm)
- Arm load capacity: 1.8 - 10 kg
- Notebook shelf dimensions (W x D): 229 mm x 236-401 mm
- Swivel: 360°
- Tilt: 70°/15°
- Height adjustable: 330 mm
- Monitor arm reach: up to 656 mm
- Adjustable, open-sided mounting plate accommodates almost all notebooks and laptops
- Includes cable management
Will your notebook or laptop fit?
We'd be happy to check if your notebook is compatible with this Ergotron LX Pro Arm laptop desk mount. Simply provide us with your model (manufacturer + model number) in the comments field at the end of the ordering process. We will then check for you whether the notebook or laptop is compatible and contact you if it is not.
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Minimum weight: | 1,8 kg |
| Capacity: | 10 kg |
| Tilt: | +70°/-10° |
| Rotate: | 90° |
| Height range (mm): | 330 mm |
| Swivelling range: | 360° |
| Length of the swivel arm: | 610 |
| Thickness of table (mm): | Table clamp (10 - 60) |
| Suitable for: | For laptops of almost all sizes |
| Scope of delivery: | 1x Ergotron LX Pro Arm table mount | 1x notebook tray + installation material |
| Contains installation material: | + |
| Manufacturer/Importer: | Ergotron Europe, Stationsstraat 77H, 3811 MH Amersfoort, Niederlande, info.de@ergotron.com |
| Mobility: | height adjustable , swivelling, tilting |
| Mounting type: | desk - clamp |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
What makes the Ergotron LX Pro laptop desk mount an ergonomic solution?
The Ergotron LX Pro laptop desk mount offers a high-quality, ergonomic solution for professional monitor and office workstations. By combining a stable swivel arm with a secure notebook platform, the laptop can be comfortably adjusted to the desired height and depth, thus ideally adapting to individual working positions. Both in the office and in the home office, the mount supports a healthy, upright posture and ensures additional order on the desk. The LX Pro Arm allows for effortless adjustment while working and, thanks to the Constant Force™ mechanism, ensures particularly smooth movements. The stepless adjustment facilitates switching between sitting and standing positions and sustainably improves workplace ergonomics. An integrated cable management system neatly routes power and data cables along the arm and prevents annoying cable loops – a crucial advantage for modern office setups and flexible working environments. The mount is available in black and white. and gray.
How does the Ergotron LX Pro laptop mount contribute to an ergonomic workspace?
The mount positions the notebook in the ideal field of vision, thereby reducing neck and shoulder strain. The height adjustment, as well as the flexible tilt and swivel range, allows the viewing angle to be precisely adjusted, which is particularly important during long work periods. The stable notebook platform securely holds laptops and docking station combinations and, thanks to its open design, offers efficient ventilation to keep the hardware and battery reliably cool.
The modular design of the system also promotes adaptability: The LX Pro desk mount can be easily integrated into existing workspace concepts and expanded or modified as needed. This is particularly interesting for companies, agencies, coworking spaces, and home office users who value flexible and sustainable workplace solutions. The robust aluminum construction ensures durability and resilience in daily use.
What are the advantages of a height-adjustable laptop swivel arm in the office and home office?
Height-adjustable desk mounts are among the most important components for an ergonomic workspace. They promote dynamic working and allow users to switch between different working styles and postures. The comfortable tilt and swivel function of the LX Pro solution ensures that the laptop can always be used at the optimal viewing angle. Regardless of whether emails are written while sitting or presentations are prepared while standing. In addition to its ergonomic function, the structured cable management contributes to professional desk organization. It facilitates cleaning and rearranging the workspace and supports a tidy overall appearance, which is particularly appreciated in open-plan offices and hybrid work models.
For which users is the Ergotron LX Pro notebook/laptop desk mount recommended?
The LX Pro desk mount is aimed at users who value ergonomics, quality, and adjustability. This includes traditional office workers, creatives, developers, remote workers, and users who rely on laptops as their primary work device. Thanks to its high-quality construction, the stand represents a sustainable investment in a modern, ergonomic, and efficient workplace.
