Ergotron LX Pro System Wall Workstation (45-696-292) up to 34 inches, black
The Ergotron LX Pro System Wall Workstation (45-696-292) is the perfect solution for confined work areas: simply fold the keyboard holder and monitor holder close to the wall when they are not in use.
Wall Workstation with Monitor Mount and Keyboard Tray
The grey Ergotron LX Pro System Wall Workstation (45-696-293) for monitors up to 34 inches offers a premium solution for ergonomic and space-saving work environments. Thanks to its flexible swivel arm and elegant grey design, it easily adapts to various monitor sizes and configurations. The integrated monitor mount ensures secure support and optimal screen alignment.
With proven Constant Force™ lift technology, the monitor position can be effortlessly adjusted with a single touch, providing optimal viewing and improved ergonomics. The slim design with integrated cable management keeps the workspace tidy, while the wide tilt range allows for personalized adjustment. A practical rotation stop protects walls and partitions from damage.
A particularly convenient feature is the integrated keyboard tray, which, together with the monitor arm, forms a complete and ergonomic workstation solution. The simplified setup with fewer components and the quick-release display mechanism make installation and monitor changes especially fast and easy. When not in use, the entire workstation can be folded flat against the wall to save space.
Key features LX Pro System wall workstation
- Load capacity monitor holder 1.8 -10 kg
- Load capacity keyboard holder up to 2.2 kg
- VESA mount standard 75x75 and 100x100 mm

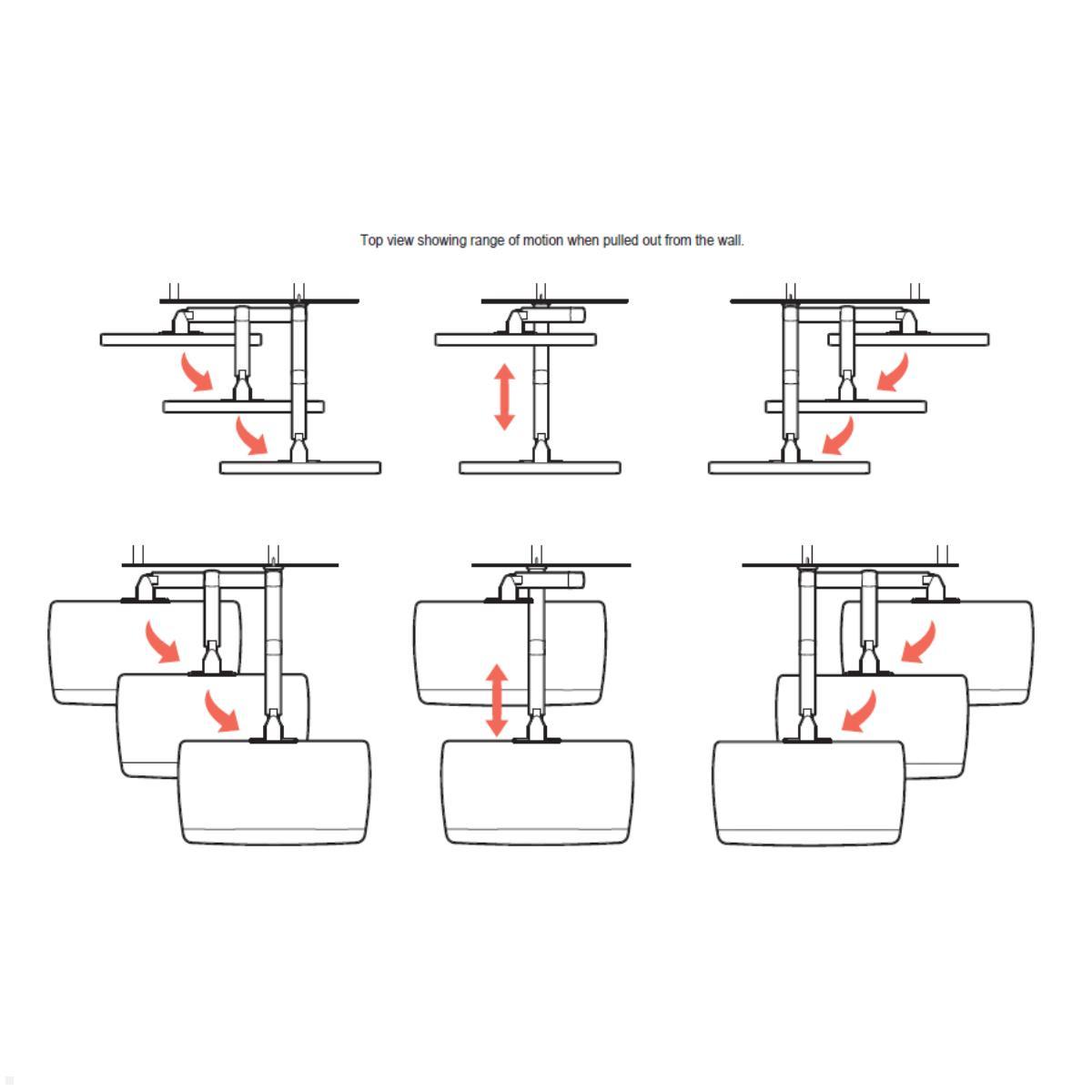

- Pivot range 180 degrees
- Rotation range 360°
- Inclination of the monitor holder 85°
- Inclination of the keyboard holder 90°
- Height adjustment 330 mm
- Size of the keyboard tray 480 x 240 mm
- incl. Mouse tray
- Guarantee: 10 years
Does your monitor or display fit the wall mount?
We would be happy to check whether your monitor is suitable for this Ergotron 45-696-293 mount. Simply send us your model (manufacturer + model number) in the comments field at the end of the ordering process. We will then check for you whether the monitor or display fits on the mount and if not, we will contact you.
VESA Standard - Find out more about the VESA standard for monitor mounts!
| Product sheet: |  [pdf] |
|---|---|

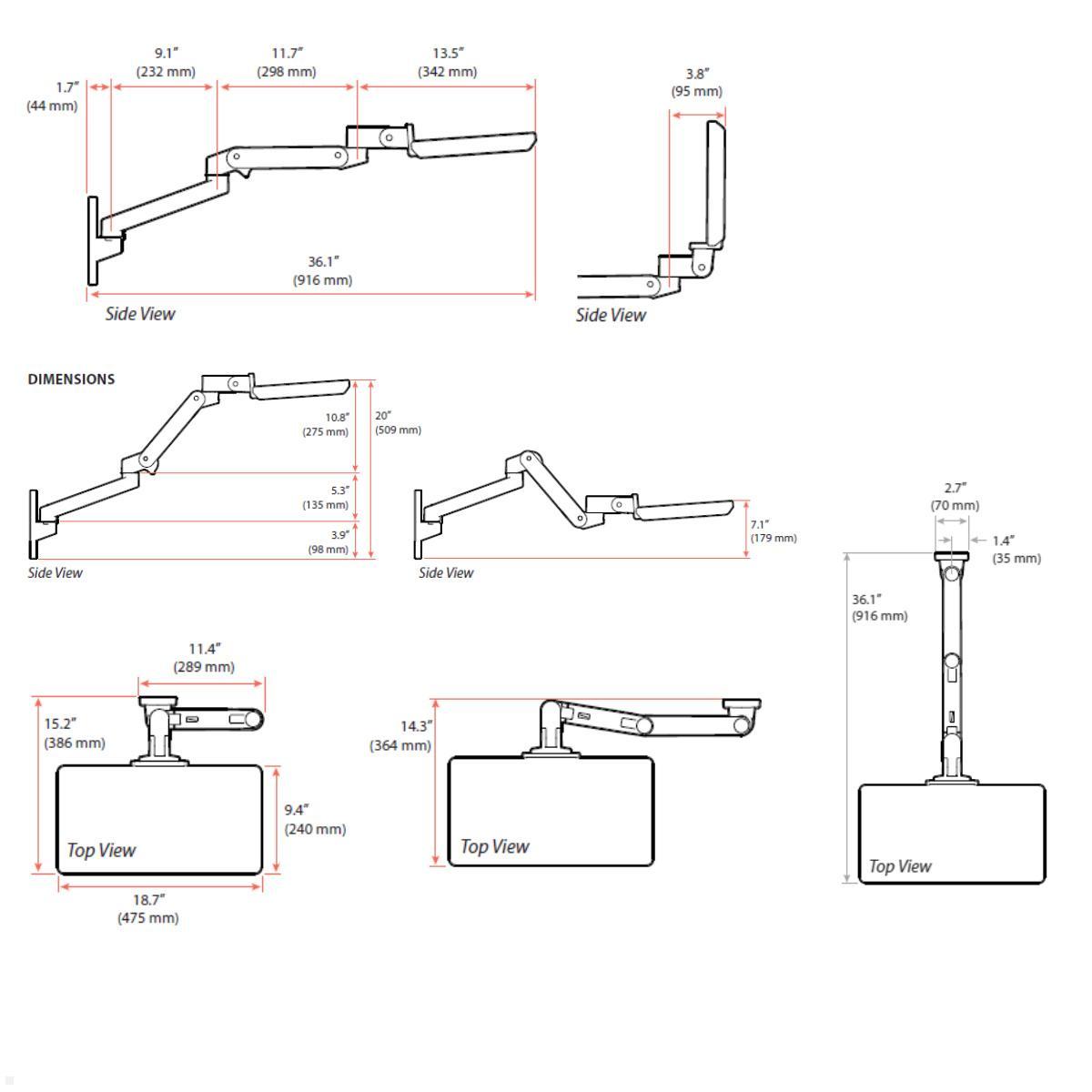

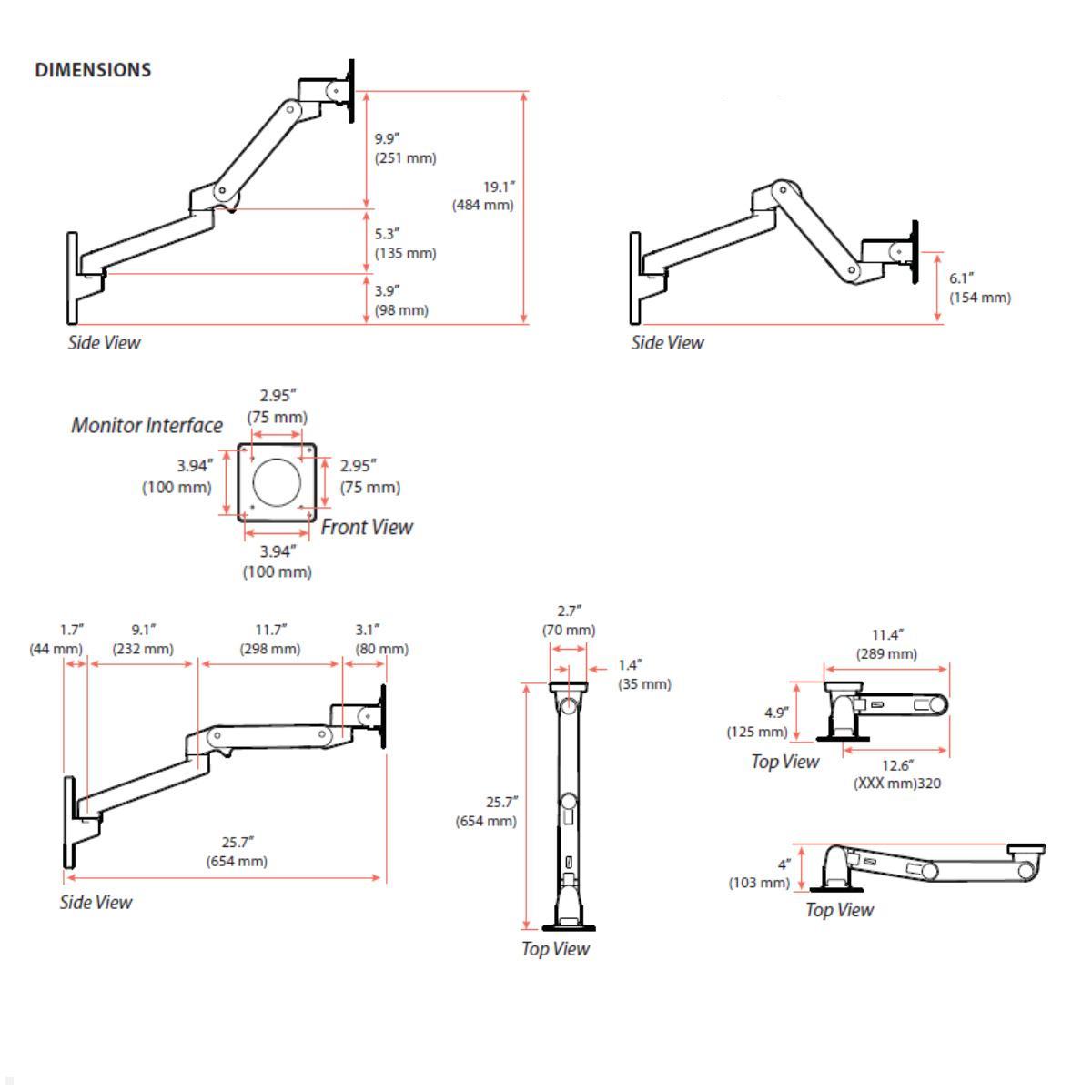

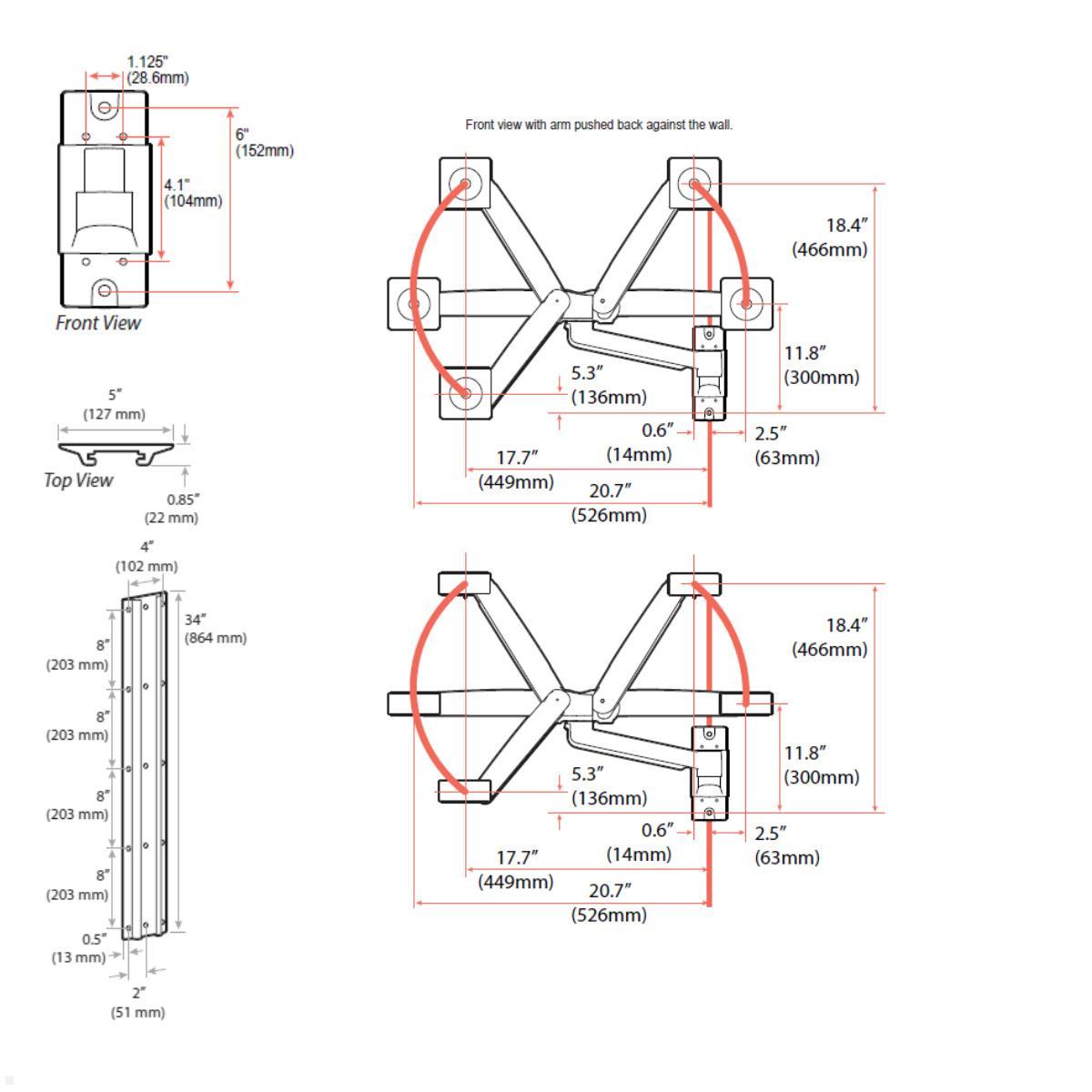

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Minimum weight: | 1,8 kg |
| Capacity: | Display 10 kg, Keyboard 2,2 kg |
| Tilt: | 85° |
| Rotate: | 360° |
| Height range (mm): | 330 |
| Pivot: | 90° |
| Swivelling range: | 180° |
| Length of the swivel arm: | Display 610, Keyboard 872 |
| Screen size: | ≤34" |
| Material: | Aluminium |
| VESA Standard: | 75x75mm, 100x100mm MIS-D (www.vesa-standard.com) |
| Packaging dimensions (LxWxH in mm): | 94,5 x 47 x 16,5 |
| Scope of delivery: | 2 arms | 2 extensions | Monitor pivot | Wall mount | Wall rail | Keyboard tray pivot | Mouse holder | Wrist rest | Mounting hardware |
| Contains installation material: | + |
| Warranty: | 10 years |
| Manufacturer/Importer: | Ergotron Europe, Stationsstraat 77H, 3811 MH Amersfoort, Niederlande, info.de@ergotron.com |
| Inch size: | 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch, 28 inch, 29 inch, 30 inch, 31 inch, 32 inch, 34 inch |
| Mobility: | height adjustable , rotatable (pivot), swivelling, tilting |
| Mounting type: | wall mount |
| Multi-monitor mount: | 1 monitor |
| color: | Black |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
