EOL - Ergotron StyleView Vertical Lift, Patient Room
Compact ergonomics, extremely low profile

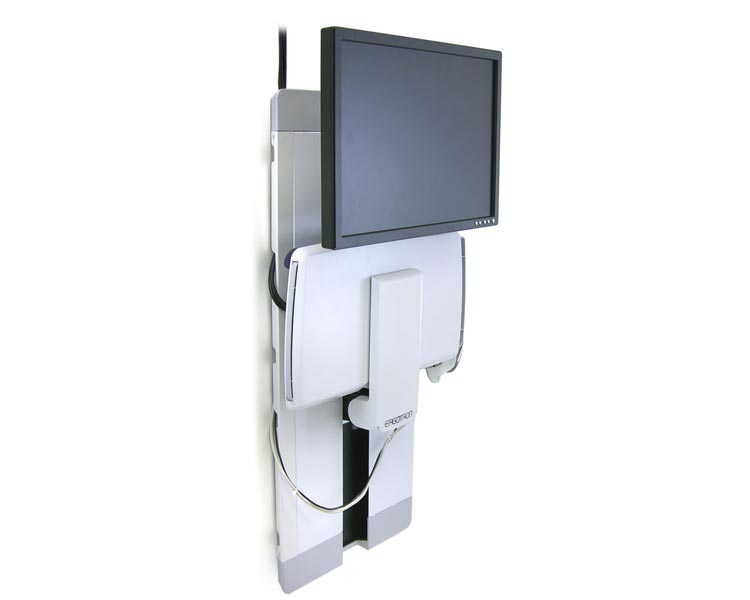

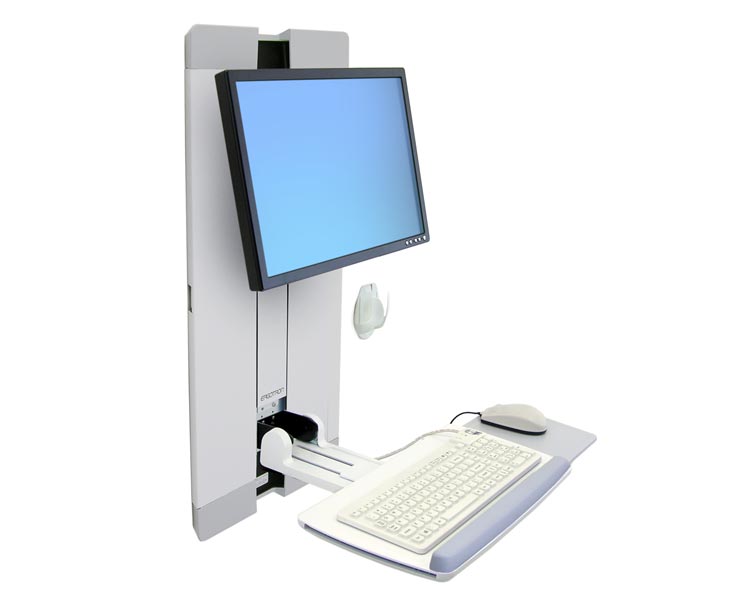

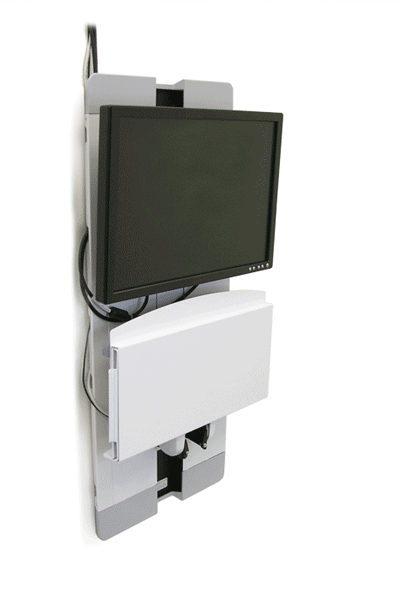

Perfect for space-constrained patient exam rooms, the low-profile vertical lift provides 9" (23 cm) of smooth vertical adjustment and folds into a slim, compact unit when not in use.
The slide-out, negative tilt keyboard enhances user comfort, while the monitor and keyboard pan capability promote patient-caregiver interaction. A unique cable management system conceals and organizes cords and makes cleaning a snap!
Benefits:
- Side-to-side pan of keyboard and display promote patient caregiver interaction while access data
- Slide-out Keyboard Tray can extend out an extra 5" (125 mm) for comfortable data entry
- With the keyboard folded up, total system depth is as little as 4.5" (114 mm)
- Ergonomic negative-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry
- Patented counterbalance system provides smooth adjustment while maintaining touch-screen stability
- 9" (229 mm) vertical adjustment enhances ergonomics for multiple users
- Steel construction for long-lasting durability
- Right- or left-side cable management system conceals and organizes cords and makes cleaning a snap!
| Product sheet: | [pdf, 233 kb] |
|---|---|
| Technical drawing: |  [pdf, 275 kb] |
| Installation manual: | [pdf, 5,9 MB] |
| Capacity: | 3.6 - 14.9 kg |
| Tilt: | 10° |
| Height range (mm): | 229 |
| Swivelling range: | 50° |
| Screen size: | 15 - 24" |
| Material: | Stahl |
| VESA Standard: | 75x75mm, 100x100mm MIS-D (www.vesa-standard.de) |
| Accessories: | Ergotron Universal CPU Halter (80-102-064) Ergotron Vertikaler Universal CPU-Halter (97-468-202) |
| Contains installation material: | + |
| Warranty: | 5 years |
| Manufacturer/Importer: | Ergotron Europe, Stationsstraat 77H, 3811 MH Amersfoort, Niederlande, info.de@ergotron.com |
| Mounting type: | wall mount |
| color: | Weiß |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
