Ergotron accessory LX Pro C-clamp with tall pole
Highlights
- Tall column for more flexibility in monitor positioning
- Ideal for retrofitting existing LX-Pro monitor arms without desk modifications
- Compact mounting directly to the desk edge
- Robust construction for secure support and ergonomic working
- Includes base, tall column, and mounting hardware for quick installation
Ergotron LX Pro C-Clamp with Tall Column – Retrofit Kit
The Ergotron LX Pro C-Clamp with Tall Column is a versatile retrofit kit for secure, space-saving mounting of LX Pro monitor arms to the edge of a desk. The integrated tall column offers additional vertical adjustment and is especially suitable for workstations with increased positioning needs or greater flexibility in monitor orientation.
With this base, an existing LX Pro arm can be easily adapted to changed workstation requirements – without modifying the desktop surface. The sturdy C-clamp provides a reliable attachment to the desk edge, while the slim, unobtrusive design ensures a modern, tidy appearance from both front and back.
Thanks to the thoughtful construction, the clamp requires little space and minimizes potential collisions with cables or substructures. At the same time, the robust build ensures a secure hold and thus supports an ergonomic and stable workspace. The kit includes all necessary components for quick and easy installation.
Please note that LX Pro components are not compatible with older LX series or other product lines.

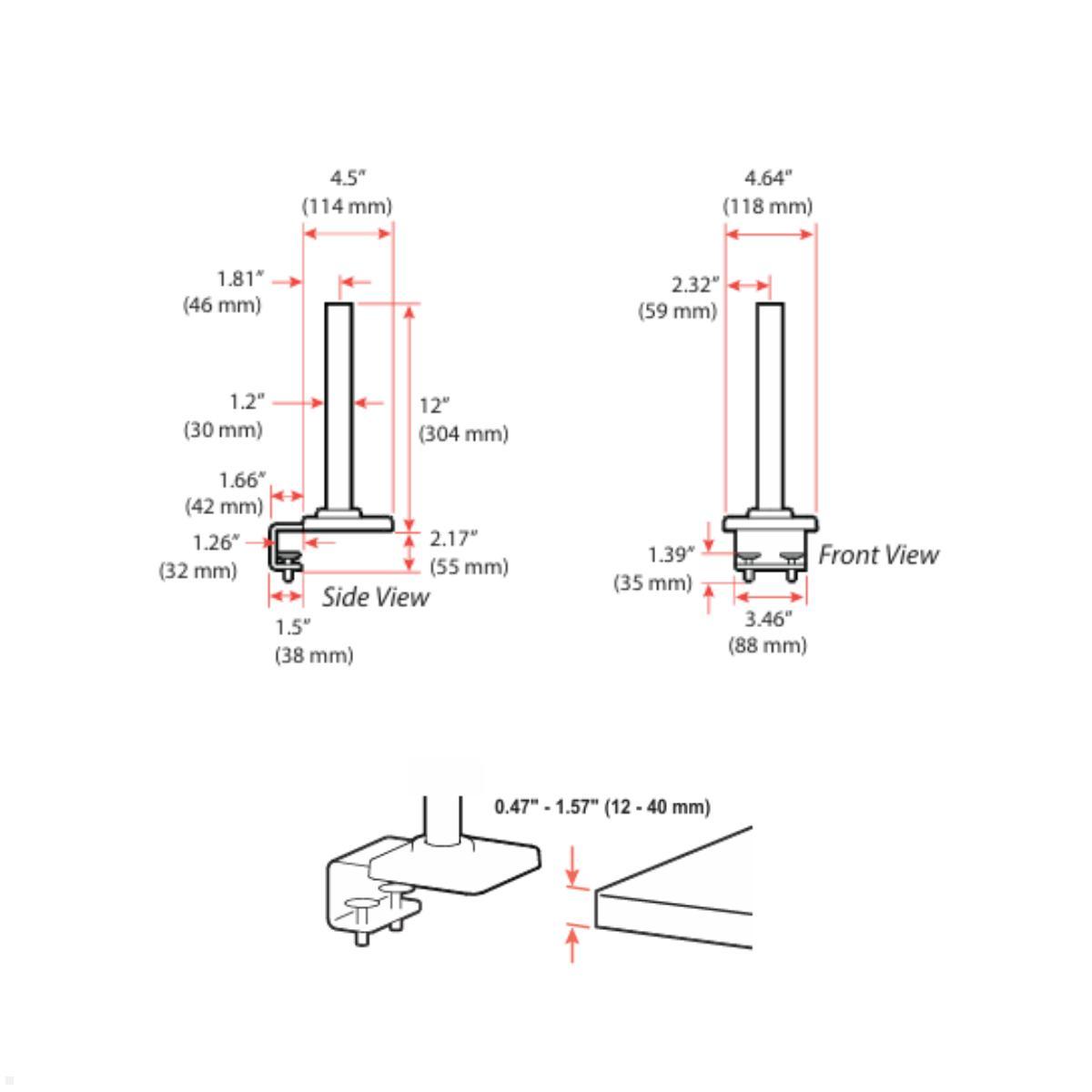

Technical Details
- Mounting type: Table clamp (C-clamp)
- Column: tall column (approx. 305 mm / 12 in)
- Suitable table thickness: approx. 12–40 mm
- Required clearance under the tabletop: max. 38 mm
- Load capacity: up to 20 kg
- Scope of delivery: table base with C-clamp, tall column (12 in), mounting hardware
- Warranty: 10 years
| Product sheet: |  [pdf] |
|---|---|
| Installation manual: | [pdf] |
| Thickness of table (mm): | 12 - 40 mm |
| Suitable for: | Ergotron LX Pro |
| Scope of delivery: | 1x Ergotron table base C-clamp, mounting material |
| Contains installation material: | + |
| Warranty: | 10 years |
| Manufacturer/Importer: | Ergotron Europe, Stationsstraat 77H, 3811 MH Amersfoort, Niederlande, info.de@ergotron.com |
| Mounting type: | desk - c-clamp |
| Ergotron Serie: | Ergotron LX Pro |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Ergotron LX Pro C-Clamp with Tall Column used for?
A retrofit kit for safe, space-saving mounting of LX-Pro monitor arms at the desk edge, with a tall column for extra height adjustability.
-
What are the benefits of the tall column?
It provides additional height adjustability and more flexibility in monitor orientation, especially for workloads needing higher positioning.
-
What is included in the package?
Desk foot with C-clamp, tall column (12 inches), and mounting hardware.
-
What mounting type is used?
Desk clamp (C-clamp).
-
What desk thickness is it suitable for?
Suitable for about 12–40 mm.
-
What clearance under the desk is required?
Up to 38 mm of clearance under the desk is required.
-
What is the load capacity?
Up to 20 kg.
-
Are LX-Pro components compatible with older LX-series or other product lines?
LX-Pro components are not compatible with older LX-series or other product lines.
Zubehör
What is the Ergotron LX Pro C-clamp with high column and what is it used for?
The Ergotron LX Pro desk base C-clamp with high column is a high-quality retrofit kit for mounting monitor arms directly to the desk edge. It was specifically designed for the Ergotron LX Pro series and enables a secure, stable and at the same time flexible attachment without drilling or permanent alterations to the desktop. This solution is particularly suitable for modern offices and home office workstations where ergonomics and adaptability play a central role. With the integrated high column, the monitor position can be adjusted much more variably than with standard solutions.
What advantages does the high column offer for the monitor mount?
A key advantage of this version is the 12-inch (30.5 cm) high column, which provides an extended height adjustment range. This allows monitors to be precisely aligned to eye level, supporting ergonomic posture and reducing strain on the neck and back. Especially with height-adjustable desks or changing working positions, the additional height provides more flexibility in daily work. Users benefit from an individually adjustable screen position that promotes both productive work and long-term comfort.
How does the C-clamp installation work and what requirements must be met?
The installation of the C-clamp holder is simple and quick. It is attached directly to the desk edge and is suitable for desktops with a thickness of 12 to 40 mm. It is important that there is a free area of up to 38 mm under the desktop so that the clamp can be attached correctly. The compact and well-thought-out design ensures that only little space is required and collisions with cables or substructures are avoided. At the same time, the appearance of the workspace remains clean and modern, as the mount has a discreet, low-profile design.
Who is the retrofit kit suitable for and what technical advantages does it offer?
The retrofit kit is ideal for anyone who already uses an Ergotron LX Pro monitor arm and wants to optimize their existing installation. It is suitable for individual workstations as well as professional office environments where flexibility and stability are required. The robust construction ensures a secure attachment and supports monitors weighing up to 20 kg. The scope of delivery includes all necessary components, including the C-clamp, the high column and the required mounting hardware, so a quick installation is guaranteed. In addition, Ergotron offers a 10-year manufacturer warranty, which speaks to quality and durability.
The Ergotron LX Pro desk base C-clamp with high column combines functionality, stability and modern design in a well-thought-out solution for ergonomic workstations. It enables a flexible adaptation of existing monitor arms, saves desk space and at the same time improves posture during daily work. This makes it an ideal choice for anyone who values efficiency, comfort and professional workspace design.
