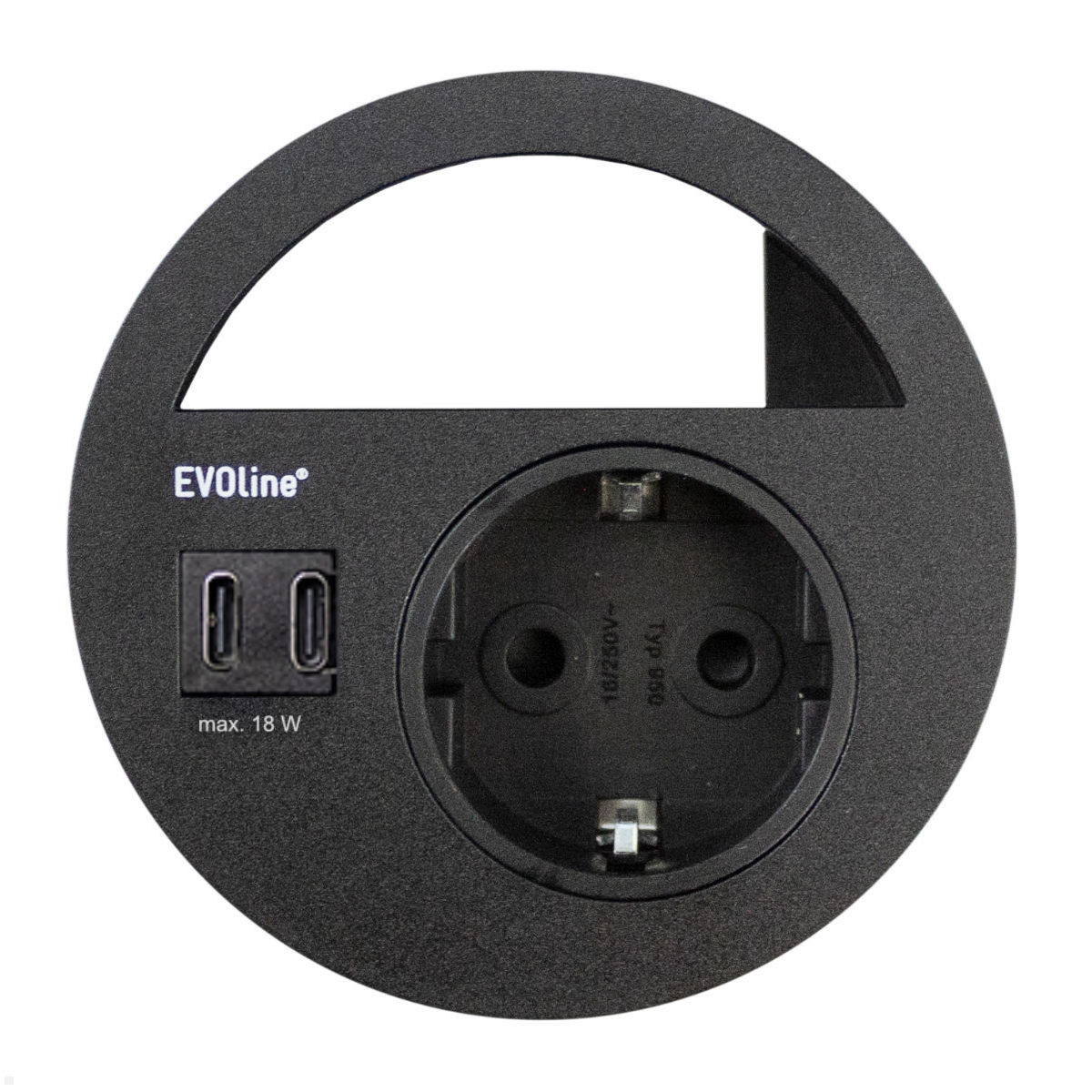

EVOline Circle80 built-in socket with USB charger C/C
The EVOline Circle80 built-in socket with USB combines the most common connections in one: a socket and a USB charger. In addition, the practical cable outlet elegantly hides excess cables from the table. The low installation depth and the EVOline mounting system guarantee quick and easy installation.
Desktop socket with integrated double USB-C charger
The built-in socket from the EVOline Circle80 series offers a sophisticated solution for power and charging directly at the workplace. With its integrated double USB-C charger, it ensures short charging distances and a tidy table surface – ideal for modern work environments. The socket unit is suitable for tabletops with a thickness of 10 mm or more and can be easily attached from above with a screw movement. Thanks to its flat design, the table connection panel integrates discreetly and almost flush (only 5.5 mm installation height) into the surface, blending harmoniously into the overall appearance. The built-in socket with USB-C charging function can be used in a wide variety of areas - be it in the office, home office, conference rooms, or even on kitchen countertops. The permanently connected 3 m connection cable with an angled plug ensures a flexible and secure power connection.
Key features EVOline Circle80 table socket with double USB-C charger
- Installation opening: Ø 79 mm
- Installation depth: 48.5 mm
- Installation height: 5.5 mm above the surface
- 3 m power cable with protective contact angled plug
- 2x USB-C charging ports, each with 2.1 A and 5 V output
- 1 x VDE socket, 16 A, with contact protection
- Voltage: 230 V AC
- Compatible with a variety of end devices such as smartphones, tablets, and much more. m.
- Suitable for Apple iPhone, Apple iPad, Samsung Galaxy Tablet and many more.
- Quick and easy installation
- Material: Plastic
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Suitable for: | For worktops from 10 mm thickness |
| Packaging dimensions (LxWxH in mm): | 340 x 240 x 180 |
| Scope of delivery: | 1x EVOline Circle80 |
| Contains installation material: | + |
| Manufacturer/Importer: | Schulte - Elektrotechnik GmbH & Co. KG / EVOline, Jüngerstraße 21, D-58515 Lüdenscheid, info@schulte.com |
| Number of sockets: | 1 |
| color: | Black |
| Form: | rund |
| USB-Charger: | USB C/C |
| Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
EVOline Circle80 - Built-in socket with double USB-C charger for modern workplaces
The EVOline Circle80 built-in socket with integrated double USB-C charger is a space-saving and elegant solution for power and charging directly at the desk, in conference rooms, in the kitchen, or at other workplaces. This intelligent desk connection panel combines a classic safety socket with two powerful USB-C charging ports - Ideal for anyone who wants to efficiently charge mobile devices such as smartphones, tablets, headphones, or other USB-C-enabled devices.
Space-saving integration and easy installation

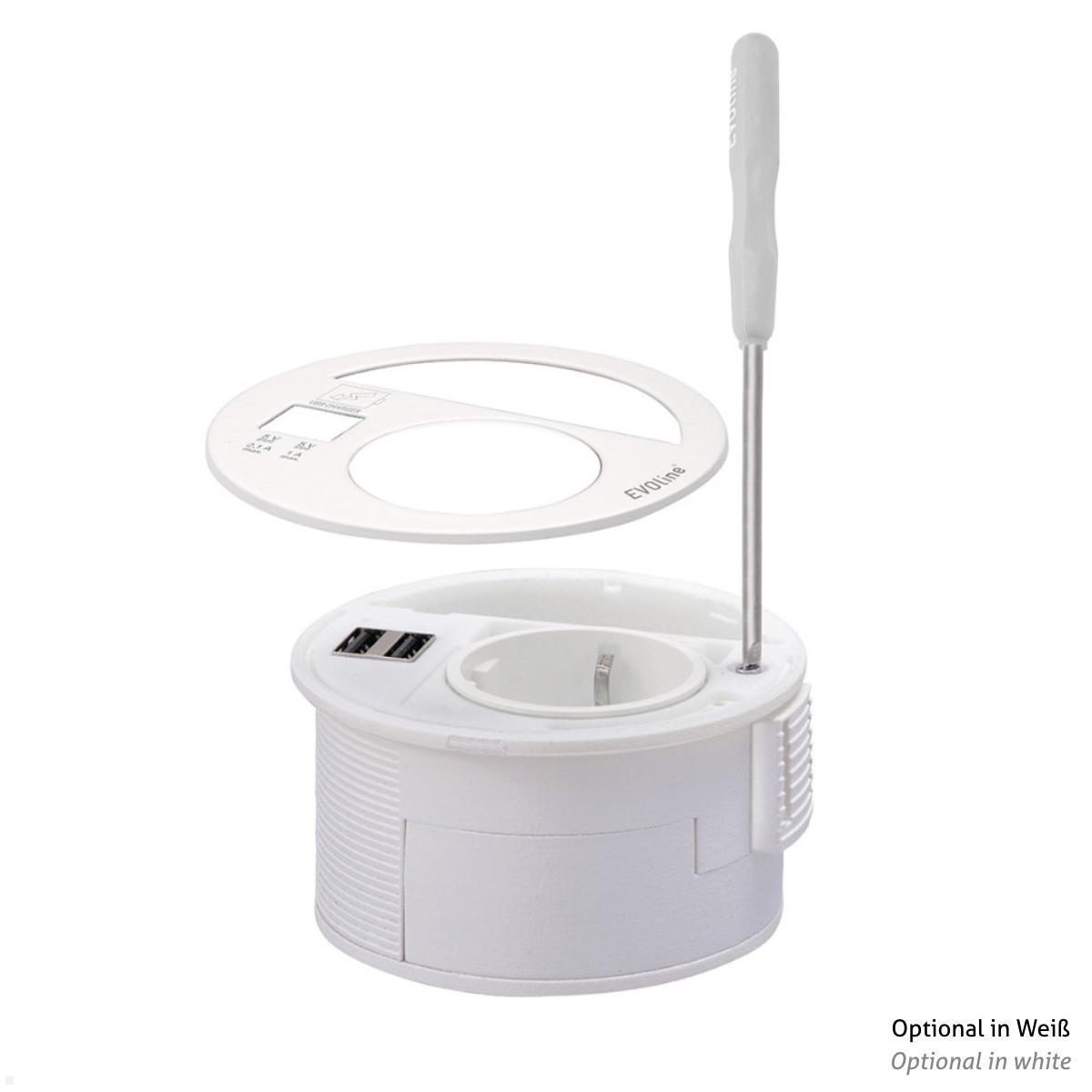

Thanks to the sophisticated design, installation is particularly simple: The built-in socket is inserted from above into a 79 mm diameter hole and securely fixed with a screw. The minimum panel thickness is 10 mm; there is no maximum thickness specified. The flat installation ensures that the desk connection panel integrates harmoniously and unobtrusively into the surface – With a height of just 5.5 mm, the look remains clean and uncluttered.

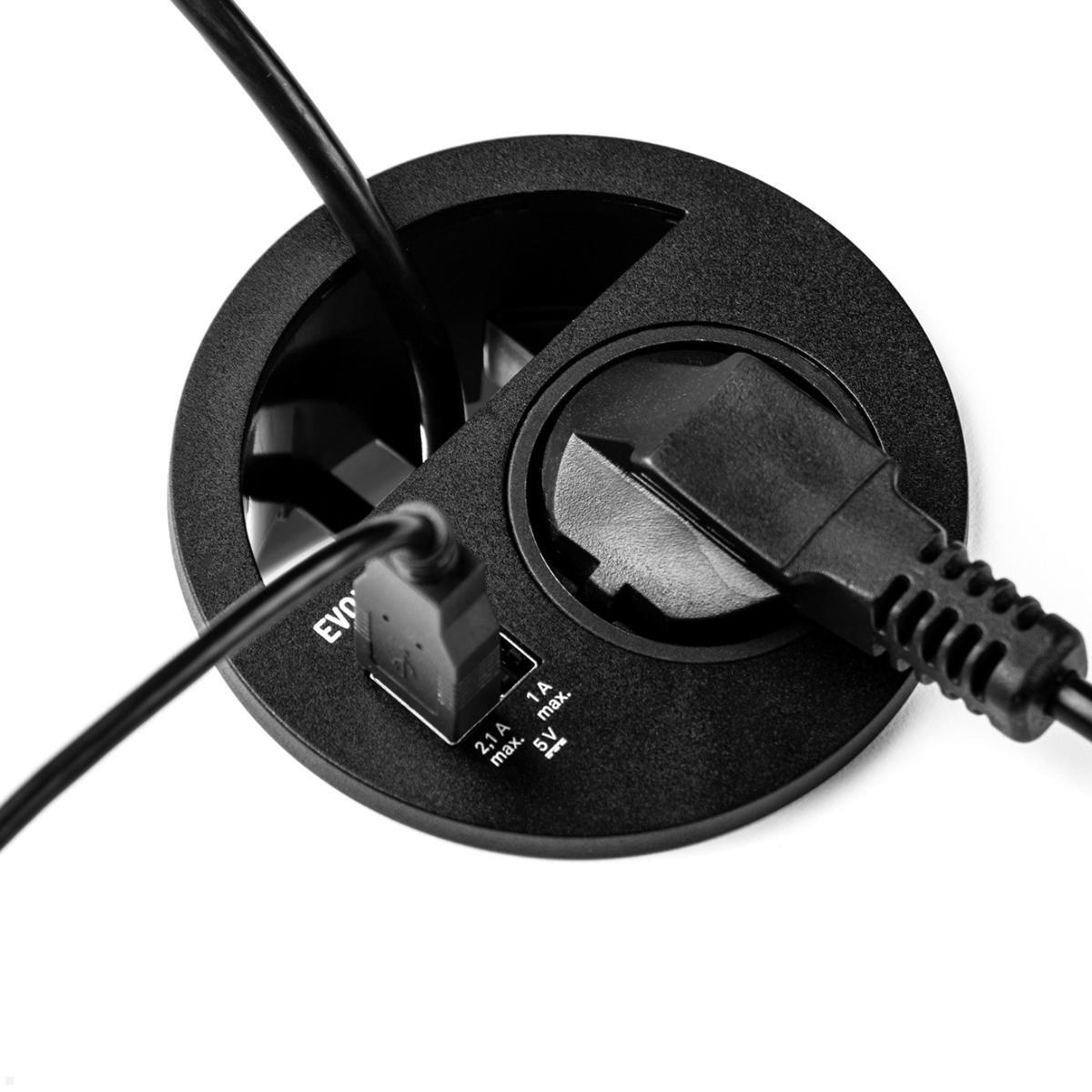

Powerful USB-C charging ports and safety socket
Two integrated USB-C ports enable simultaneous charging of modern devices, each with 2.1 A at 5 V output voltage – without the need for an additional power adapter. The integrated safety socket (VDE-certified) with 16 A and touch protection offers additional flexibility for conventional electrical devices. The 3-meter-long connection cable with an angled plug ensures sufficient range and a secure connection to the power grid.

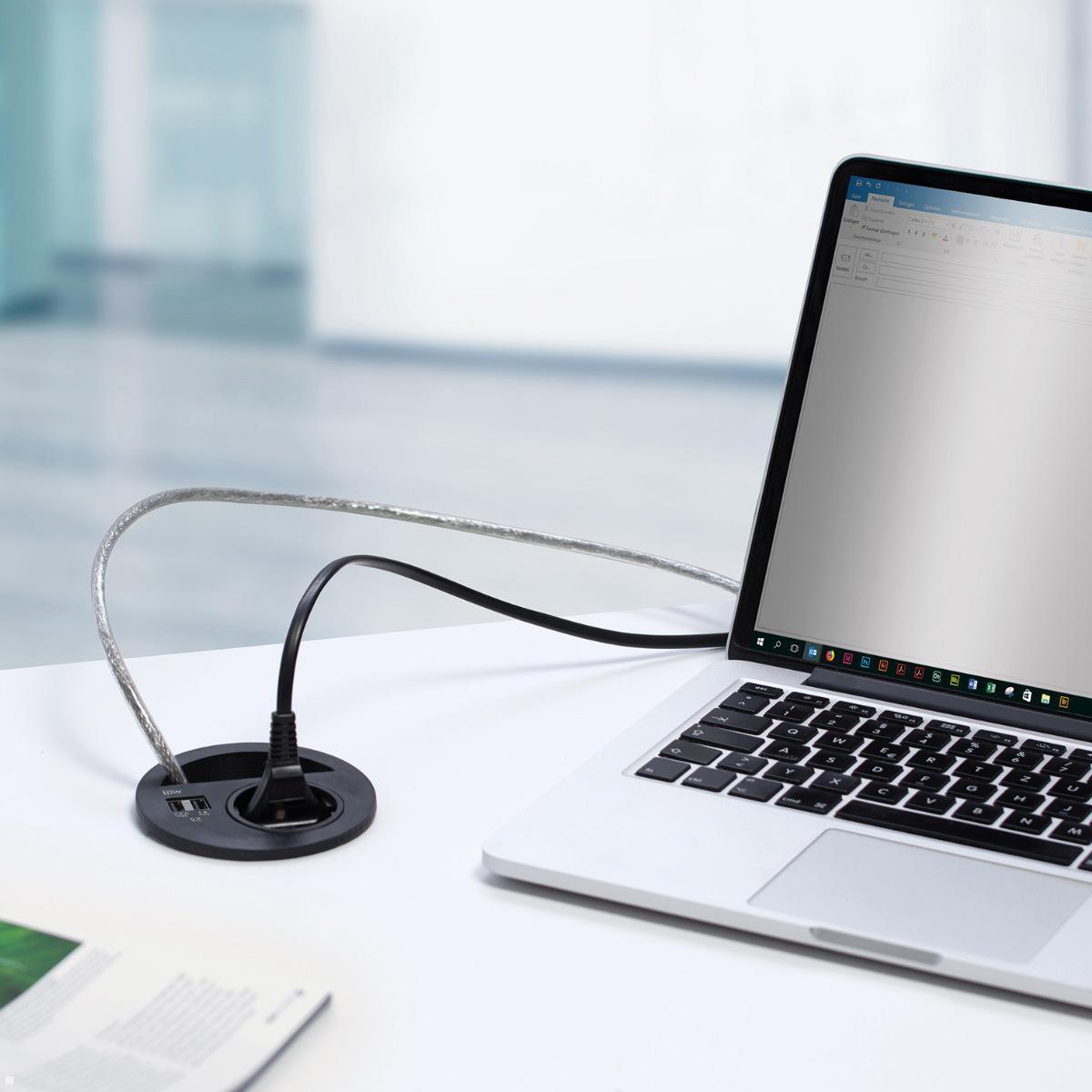

Ideal for the office, home office, and kitchen
The EVOline Circle80 built-in socket with USB charger C/C is ideal for installation in desks, kitchen countertops, meeting tables, or counters. It supports modern workplace organization, minimizes cable clutter, and creates a clear, functional surface. Especially in professional environments such as offices, coworking spaces, or conference areas, the socket solution ensures structure and efficiency in everyday work.
