EVOline Circle80 built-in socket with USB charger C/C with CAT6a

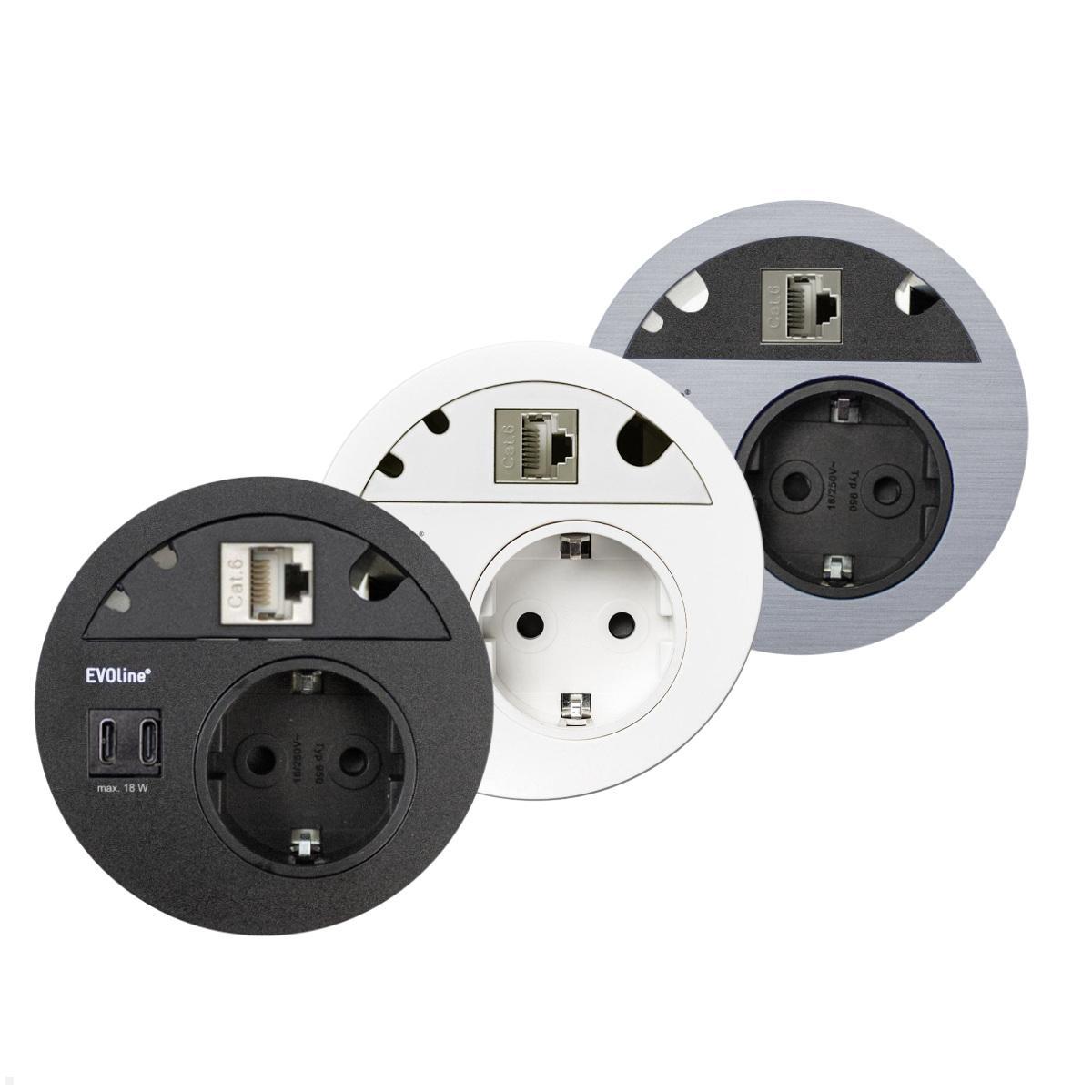

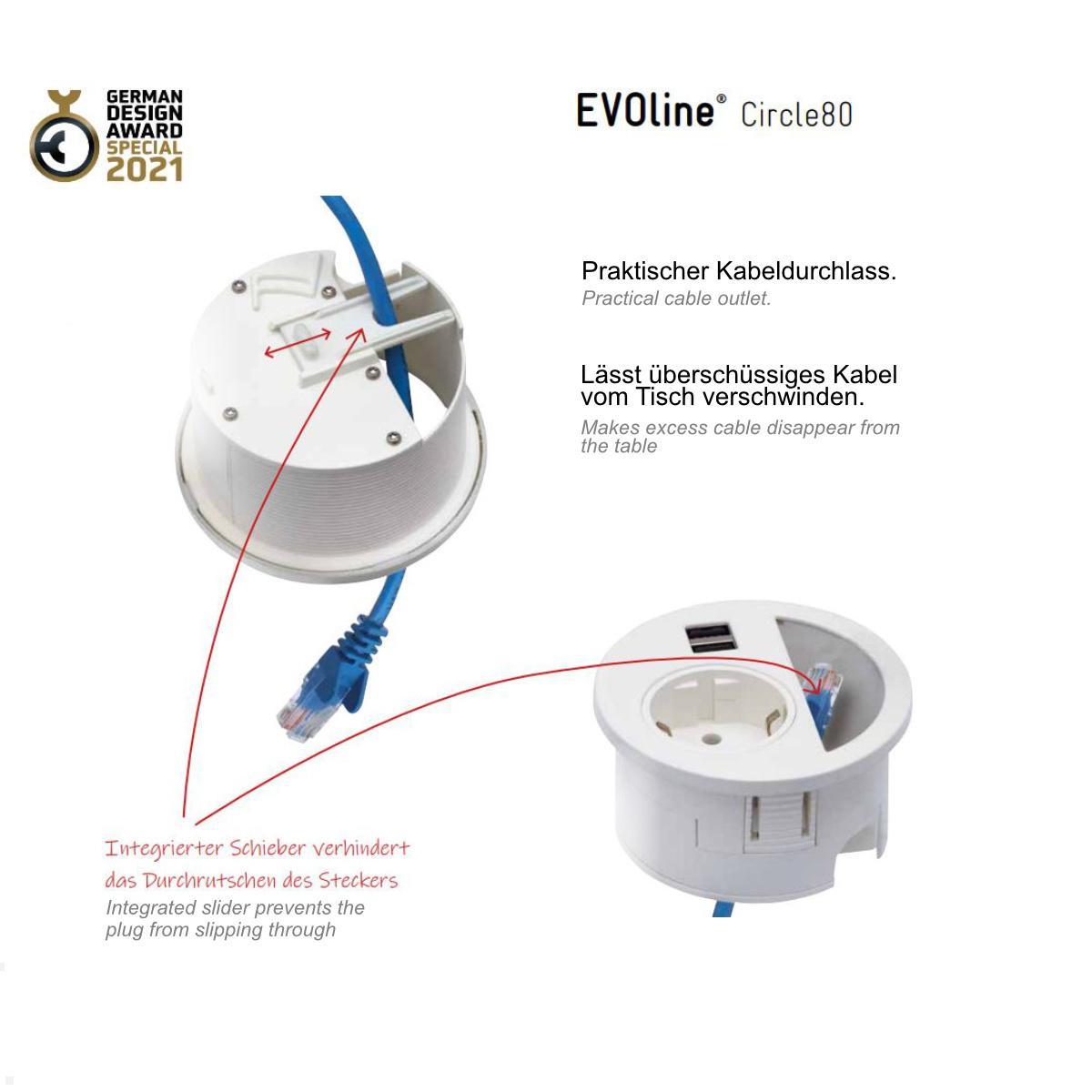

The EVOline Circle80 built-in socket with USB intelligently combines three functions in one: a socket, USB charger, and cable outlet. The outlet features a matching cover with an RJ45 CAT6A socket and cable guide. The integrated cable locking slider elegantly hides excess cables from the table and keeps them organized.
USB C/C desk socket with cable feed-through and CAT6A socket
The EVOline Circle80 built-in socket ensures order and short cable runs in the workplace. In addition to the integrated socket, the additional USB C/C charger offers another fast charging option. The RJ45 panel with CAT6A transmission speed and cable feed-through expands the functionality for the highest network requirements and supports a tidy work surface. CAT6A is suitable for Ethernet with speeds of 10/100/1000/10000 Mbps as well as for ATM and multimedia networks. The flat built-in socket with an installation depth of just 48.5 mm and a diameter of 92 mm blends discreetly into its surroundings - whether at the desk, in worktops, in the office, or in the kitchen. Turning a screw from above is enough to securely mount it in panels with a thickness of 10 mm or more.

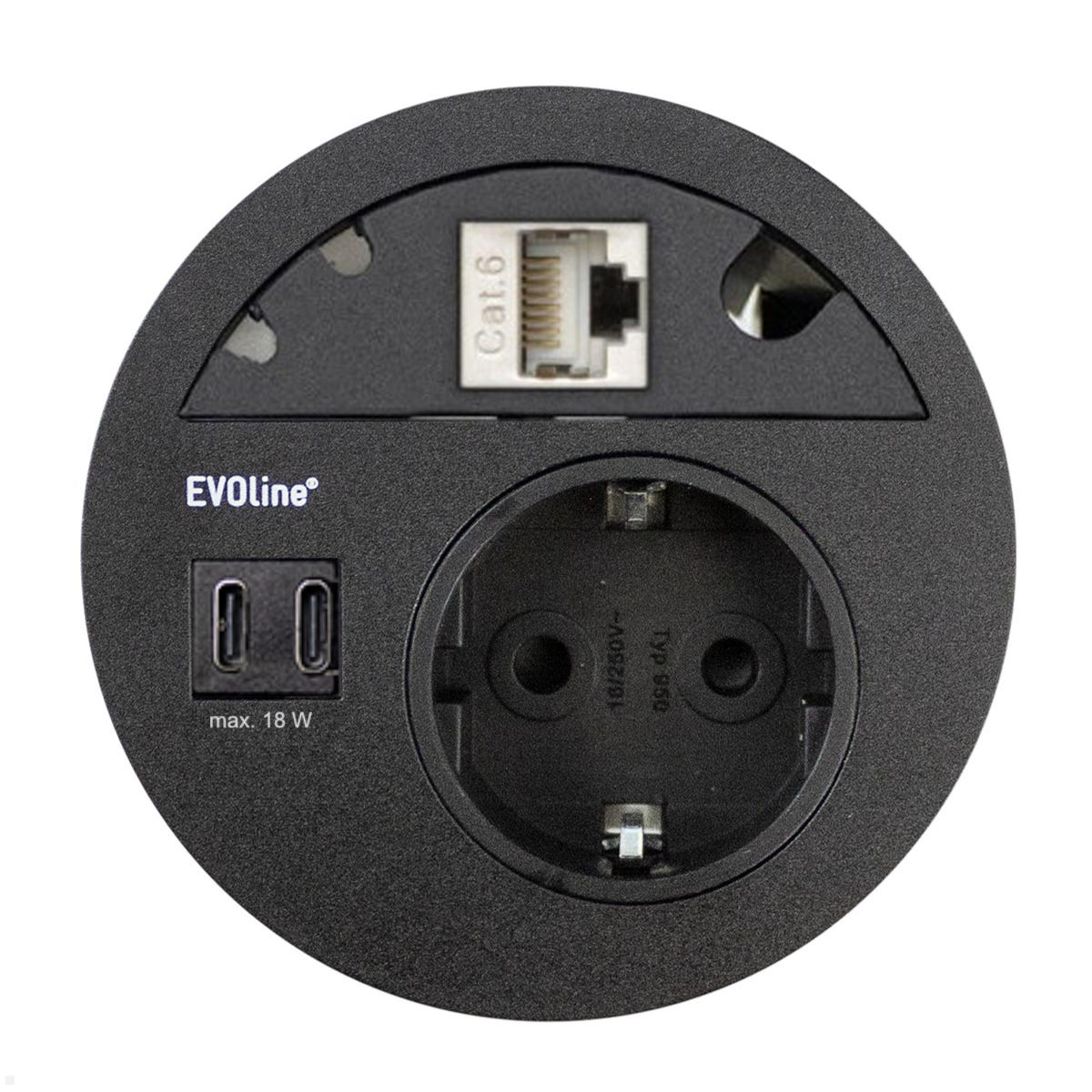

Key features EVOline Circle80 table socket with cable routing
- Installation opening: Ø 79 mm
- Installation depth: 48.5 mm
- Installation height: 5.5 mm

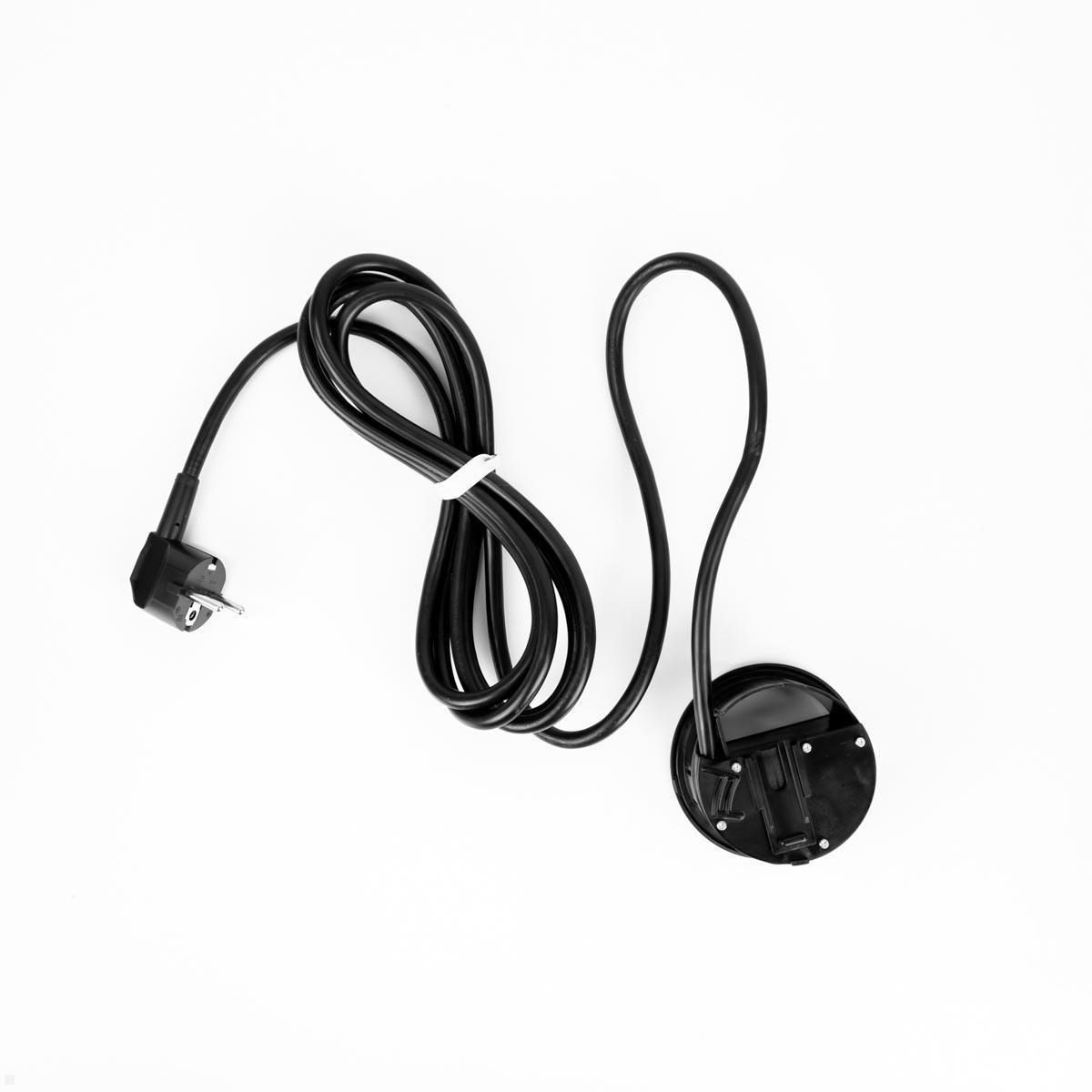

- 3 m power cable with right-angle plug with earthing contact
- 2x USB-C charging ports (2.1 A / 5 V each)
- 1x earthing contact socket (VDE-compliant, 16 A, contact protection)
- Panel with cable routing (2 x 4 mm, 1 x 9 mm), RJ45 CAT6A
- Voltage: 230 V AC
- Tested according to DIN VDE 0620
- Compatible with a wide range of devices such as smartphones, tablets, and many more.
- Suitable for Apple iPhone, Apple iPad, Samsung Galaxy Tablet, and many more.
- Quick and easy installation
- Material: Plastic
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Suitable for: | For worktops from 10 mm thickness |
| Packaging dimensions (LxWxH in mm): | 340 x 240 x 180 |
| Scope of delivery: | 1x EVOline Circle80 |
| Contains installation material: | + |
| Manufacturer/Importer: | Schulte - Elektrotechnik GmbH & Co. KG / EVOline, Jüngerstraße 21, D-58515 Lüdenscheid, info@schulte.com |
| Number of sockets: | 1 |
| color: | Black |
| Form: | rund |
| USB-Charger: | USB C/C |
| Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
EVOline Circle80 Built-in Socket - Order, Functionality, and Maximum Connectivity

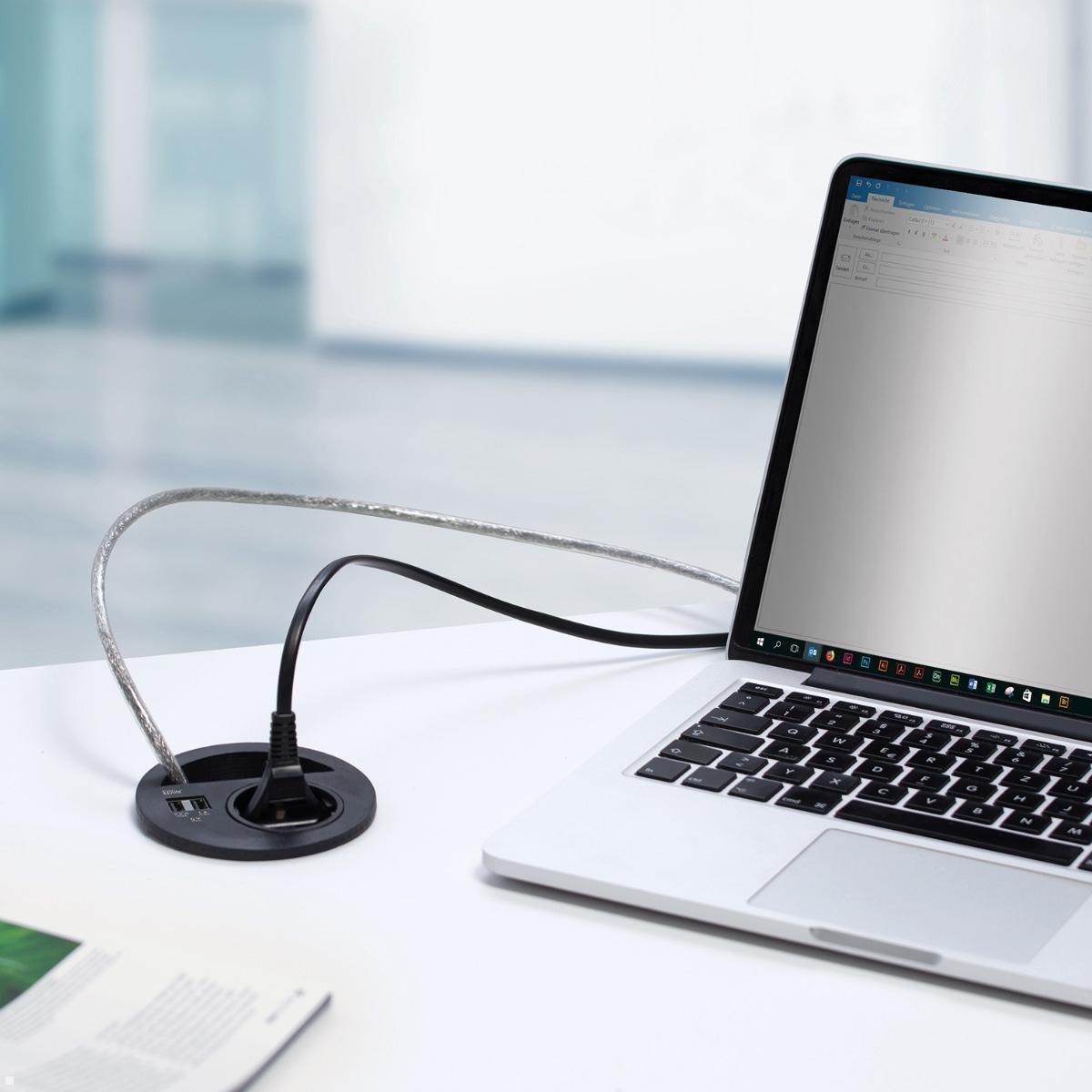

The EVOline Circle80 built-in socket is the ideal solution for modern workplaces, home offices, and conference rooms. It combines a classic 230-volt socket with a powerful USB Type-C charger, a CAT6A network socket, and a practical cable entry in a compact design. This not only enables space-saving power and data supply, but also ensures optimal cable organization at the desk or in the work environment.
With its innovative design, the EVOline Circle80 supports the highest network requirements - From Gigabit Ethernet to 10 Gigabit applications. The integrated RJ45 CAT6A socket is ideal for fast and stable network connections, whether for streaming, large data transfers, or business-critical applications.
Modern charging and networking technology in one device
The built-in socket is equipped with a double-sided USB-C port (USB C/C Charger) that supplies devices such as smartphones, tablets, notebooks, or accessories with power quickly and reliably. Thanks to 2.1 A output current and a voltage of 5 V, end devices can be charged efficiently – without an additional power supply.
The CAT6A RJ45 socket offers transmission rates of up to 10 Gbit/s, making it ideal for Ethernet networks, ATM, and multimedia networks. Whether used in the office, conference room, or private study, this socket is optimized for high data speeds and future-proof.

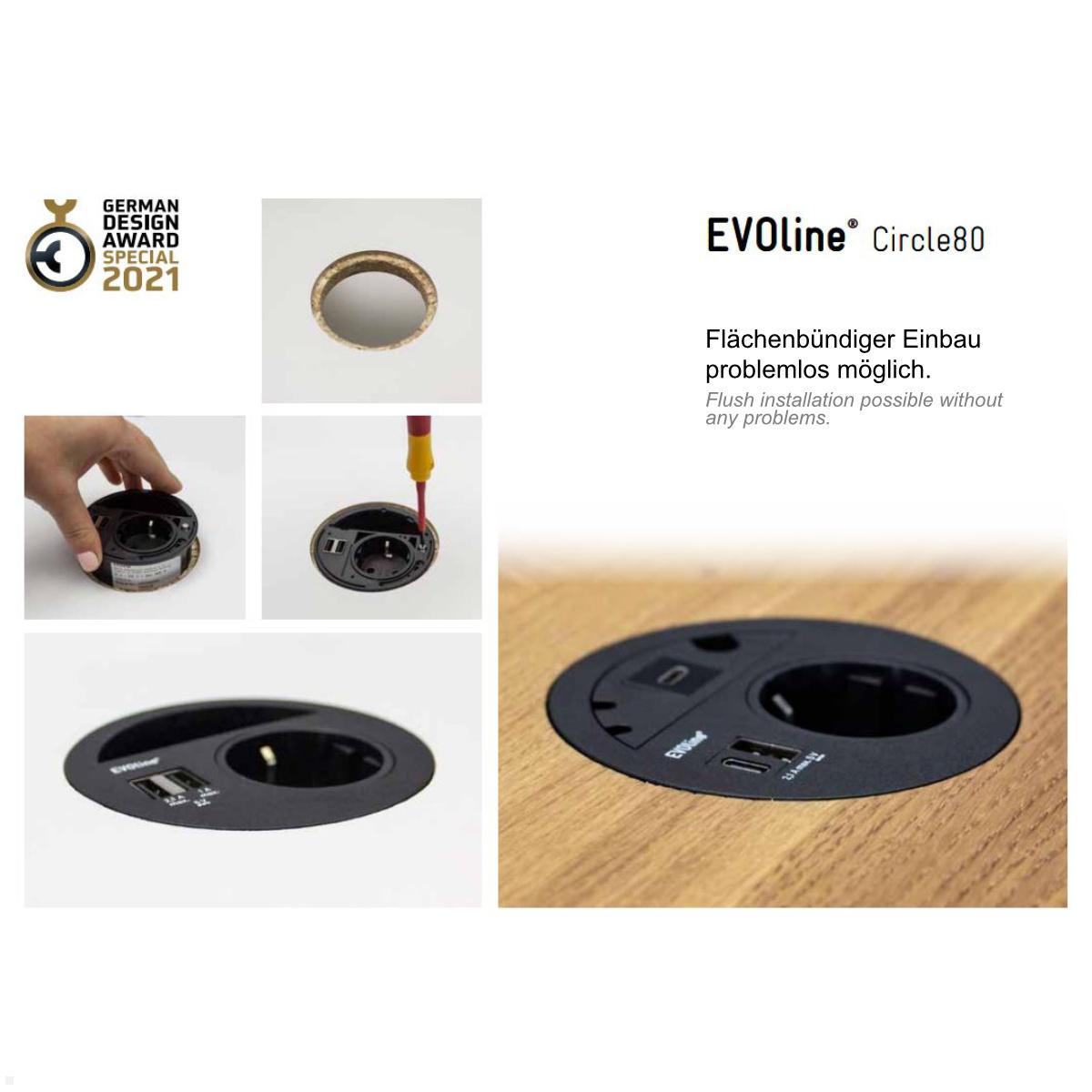

Easy installation and space-saving design

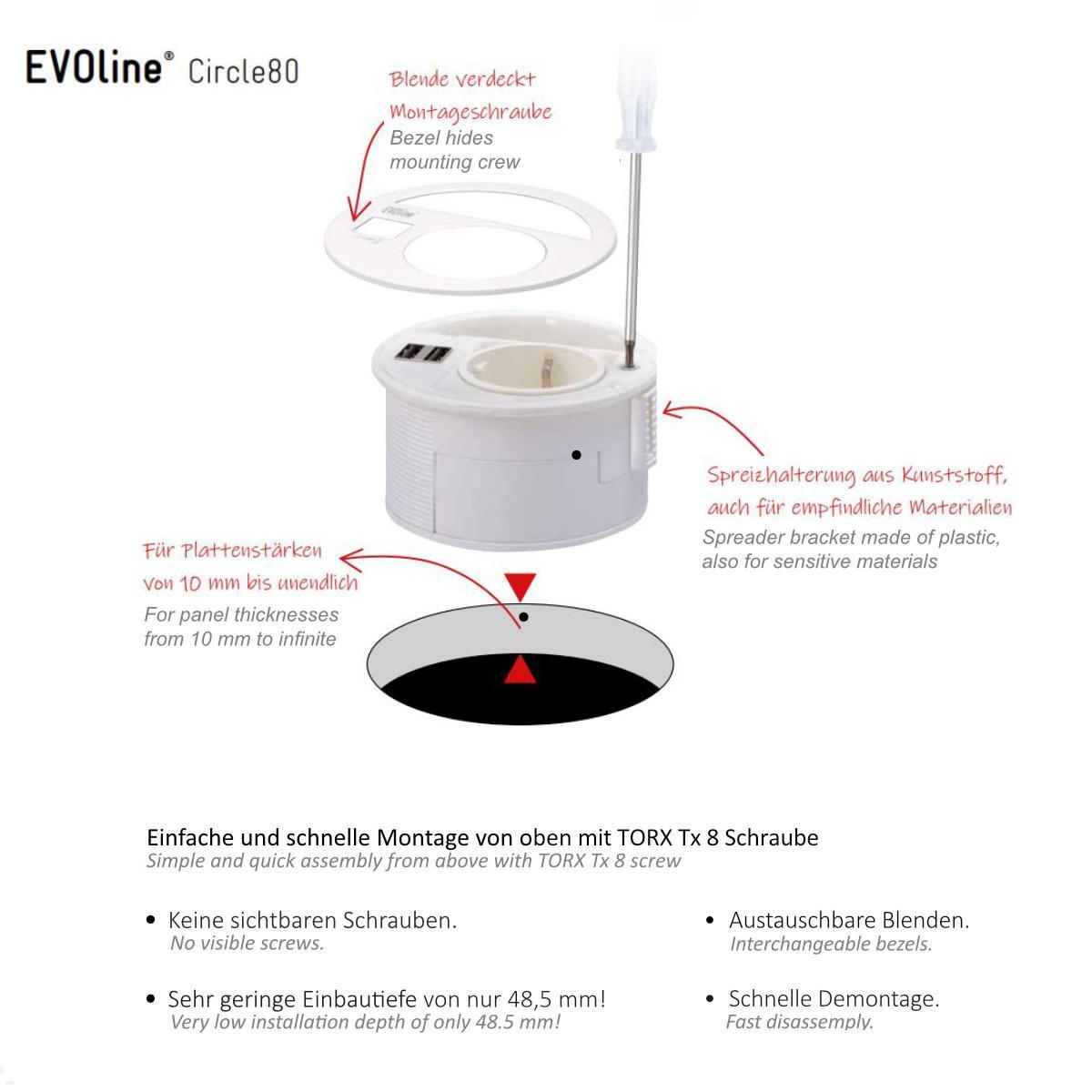

With an installation depth of only 48.5 mm and an installation opening of 80 mm in diameter, the EVOline Circle80 can be flexibly integrated into tabletops, kitchen countertops, or furniture. Installation is straightforward from above. A simple turn of the screw is enough to securely fix the socket. It is suitable for panel thicknesses from 10 mm; there is no maximum thickness specified.

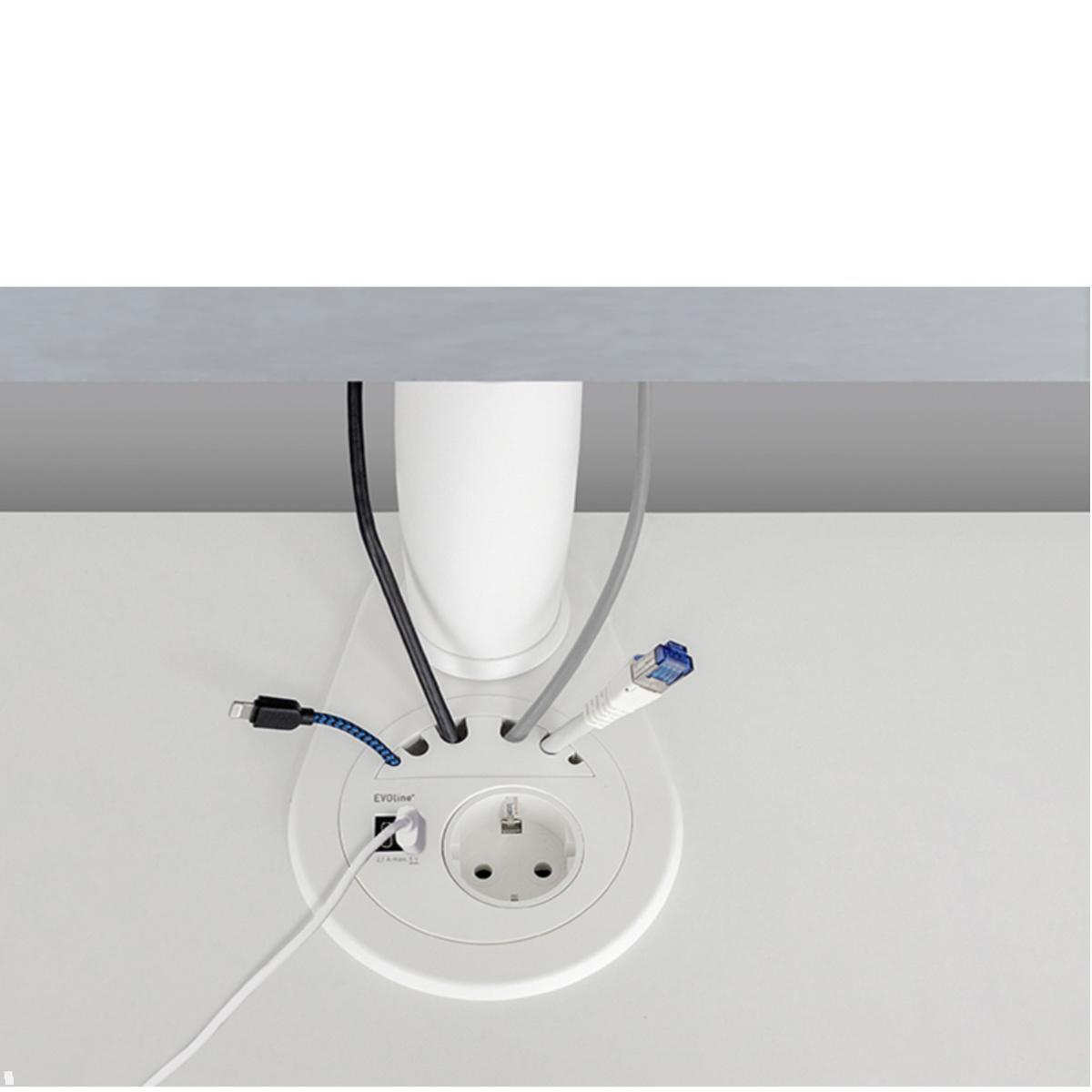

The panel with integrated cable management (two 4 mm openings, one 9 mm opening) ensures clean and tidy cable routing. The 3 m long power cable with a protective contact angled plug offers sufficient reach for flexible application options.
Versatile - in the office, home office, or kitchen

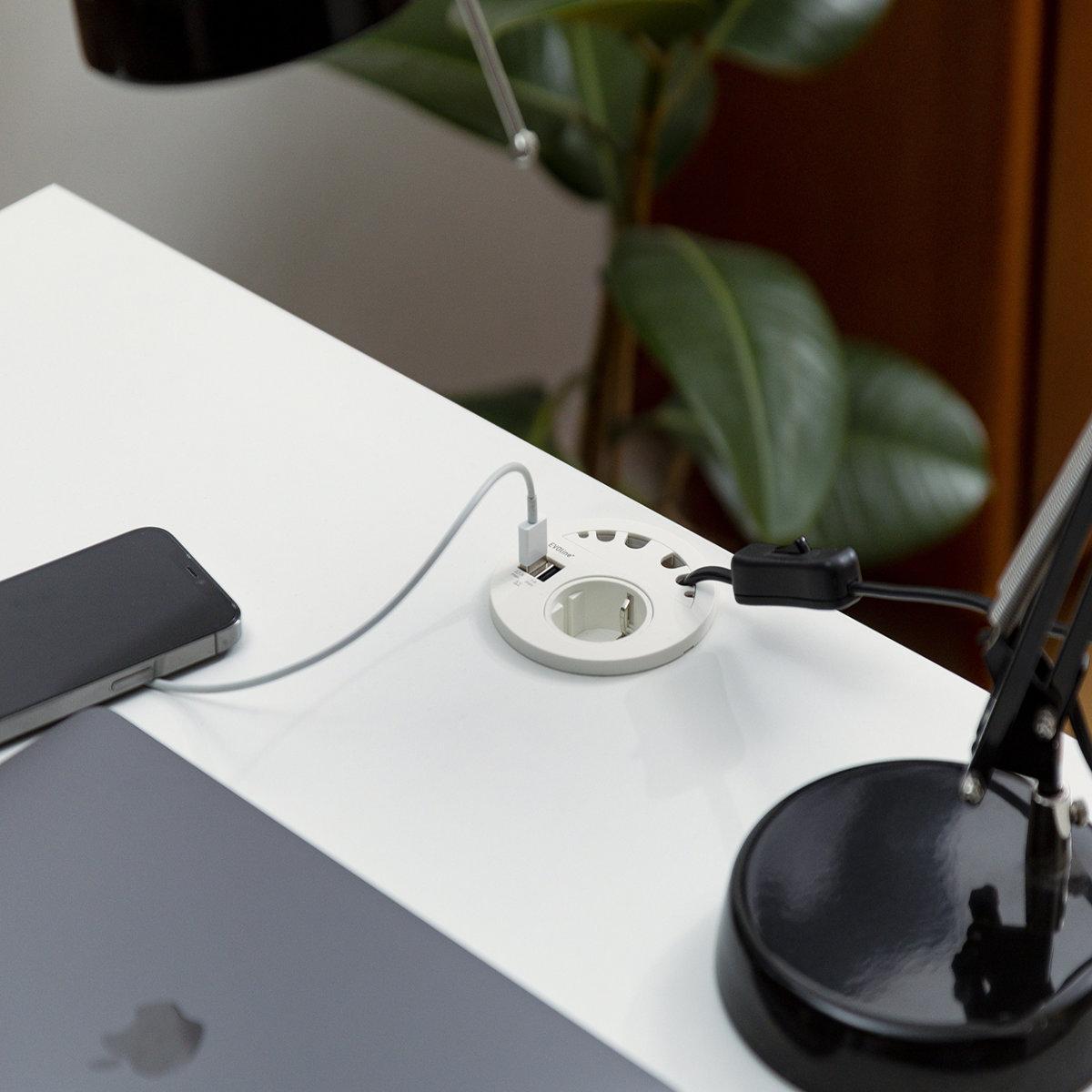

Whether in the study, meeting room, co-working space, or kitchen – the EVOline Circle80 is a winner wherever power and data connections need to be integrated discreetly and space-savingly. It is ideal for anyone who values cable management, charging convenience, and network performance.
The EVOline Circle80 built-in socket is not only a functional addition to the workplace, but also a modern solution for power supply, data connection, and cable organization – compact, elegant, and powerful.
