EVOline Circle80 built-in socket with USB charger C/C with cable guide
The EVOline Circle80 built-in socket with USB combines the most common connections in one: a power outlet and a USB charger. In addition, the practical cable routing elegantly hides excess cables from the table. The low installation depth and the EVOline mounting system guarantee quick and easy installation.
USB C/C Desk Socket with Cover and Cable Grommet
The EVOline Circle80 built-in socket brings order to the desk with its combination of a socket, modern USB-C dual charging port, and practical cable grommet. Two USB-C ports enable simultaneous, fast charging of mobile devices. The cover with integrated openings ensures that frequently used cables remain within easy reach. The flat-mounted socket unit has a diameter of 92 mm and is flush-mounted with the surface, with an installation height of just 5.5 mm. Installation is easy from above with just one turn of a screw - suitable for worktops 10 mm thick and over. A 3-meter-long power cable with an angled plug ensures a secure connection. The table connection panel is ideal for worktops, desks, kitchens, and conference tables - anywhere where charging and connection options need to be neatly integrated.
Key features EVOline Circle80 table socket with cable routing
- Installation opening: Ø 79 mm
- Installation depth: 48.5 mm
- Installation height: 5.5 mm
- 3 m power connection cable with earthing contact angle plug
- 2x USB-C charging ports (each 2.1 A / 5 V); AC
- Compatible with a variety of devices such as smartphones, tablets, and many more.
- Suitable for Apple iPhone, Apple iPad, Samsung Galaxy Tablet, and many more.
- Quick and easy installation
- Material: Plastic
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Suitable for: | For worktops from 10 mm thickness |
| Packaging dimensions (LxWxH in mm): | 340 x 240 x 180 |
| Scope of delivery: | 1x EVOline Circle80 |
| Contains installation material: | + |
| Manufacturer/Importer: | Schulte - Elektrotechnik GmbH & Co. KG / EVOline, Jüngerstraße 21, D-58515 Lüdenscheid, info@schulte.com |
| Number of sockets: | 1 |
| color: | Black |
| Form: | rund |
| USB-Charger: | USB C/C |
| Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
EVOline Circle80 - Built-in socket with USB-C double charging port and cable feed-through
The EVOline Circle80 built-in socket with integrated cable feed-through and modern USB-C double charging port is the ideal solution for a tidy and functional work environment - be it in the office, kitchen, home office, or conference room. This compact unit combines a classic safety socket with two USB-C ports and a practical cover with cable feed-through. It reduces visible cables while enabling fast charging of modern devices.

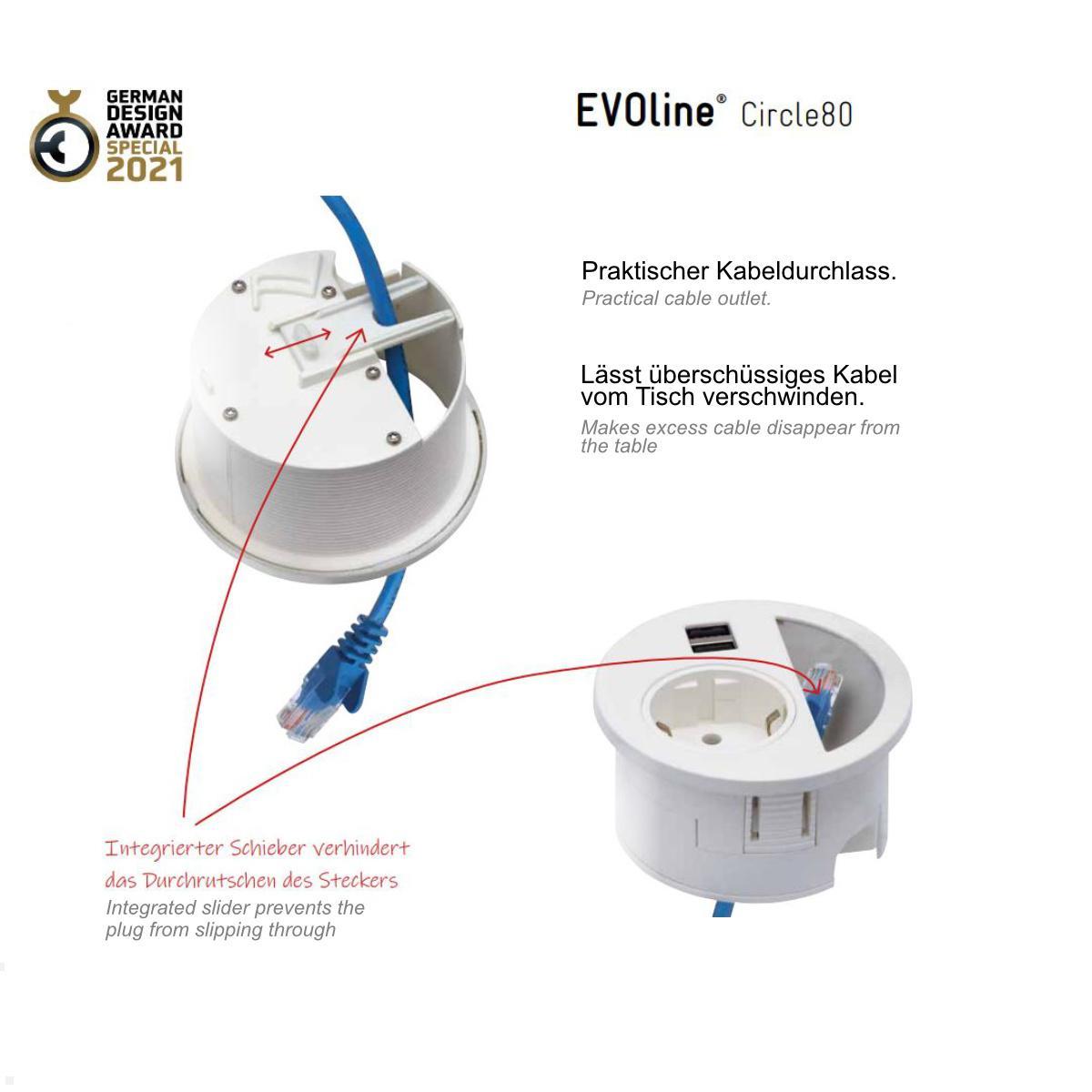

Cover with practical cable routing

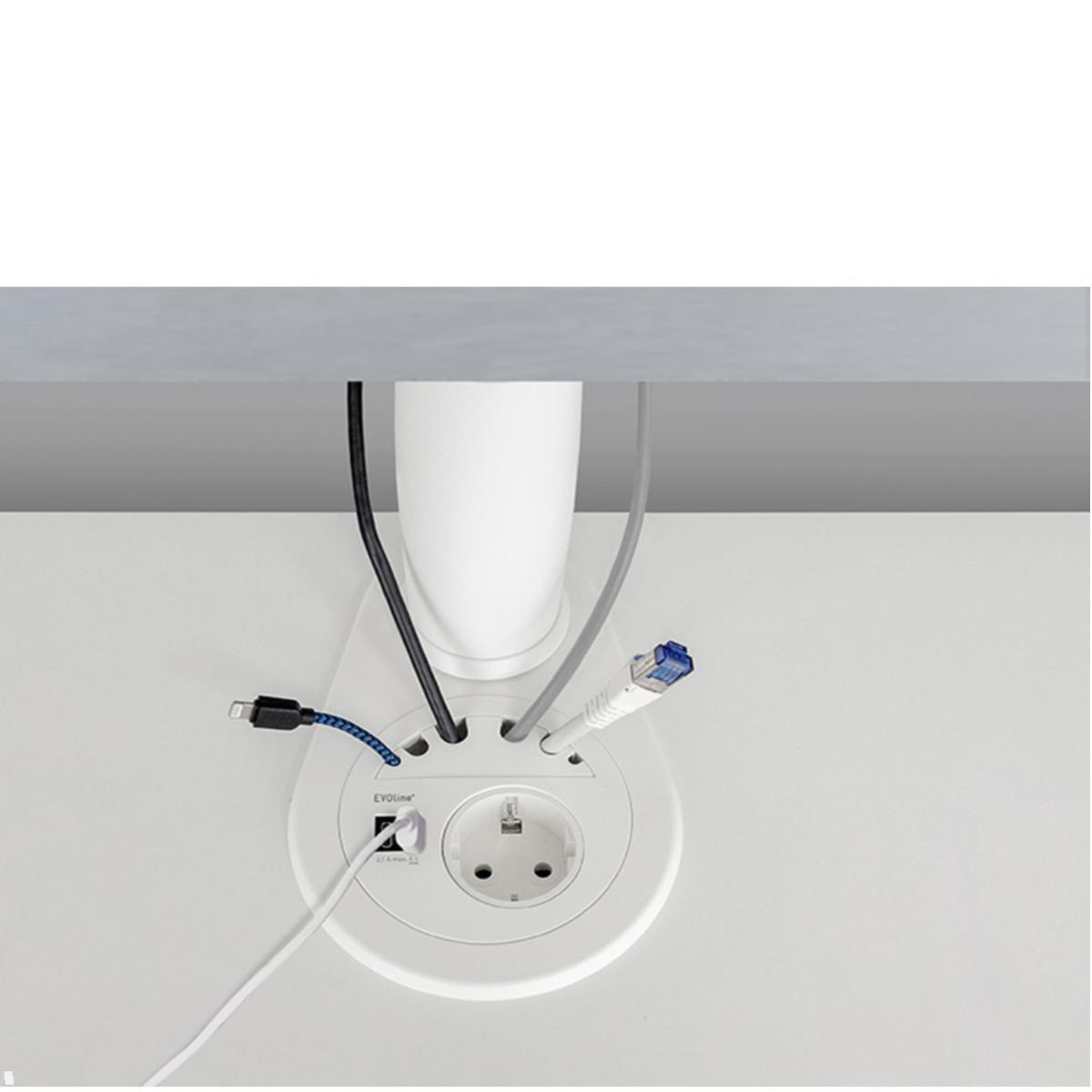

The integrated cable routing in the cover provides access to regularly used cables without them lying loose on the tabletop. With several openings (2x 4 mm, 2x 7 mm, 2x 9 mm), different cable types can be routed safely and neatly. Ideal for charging cables, USB connections, or network cables.

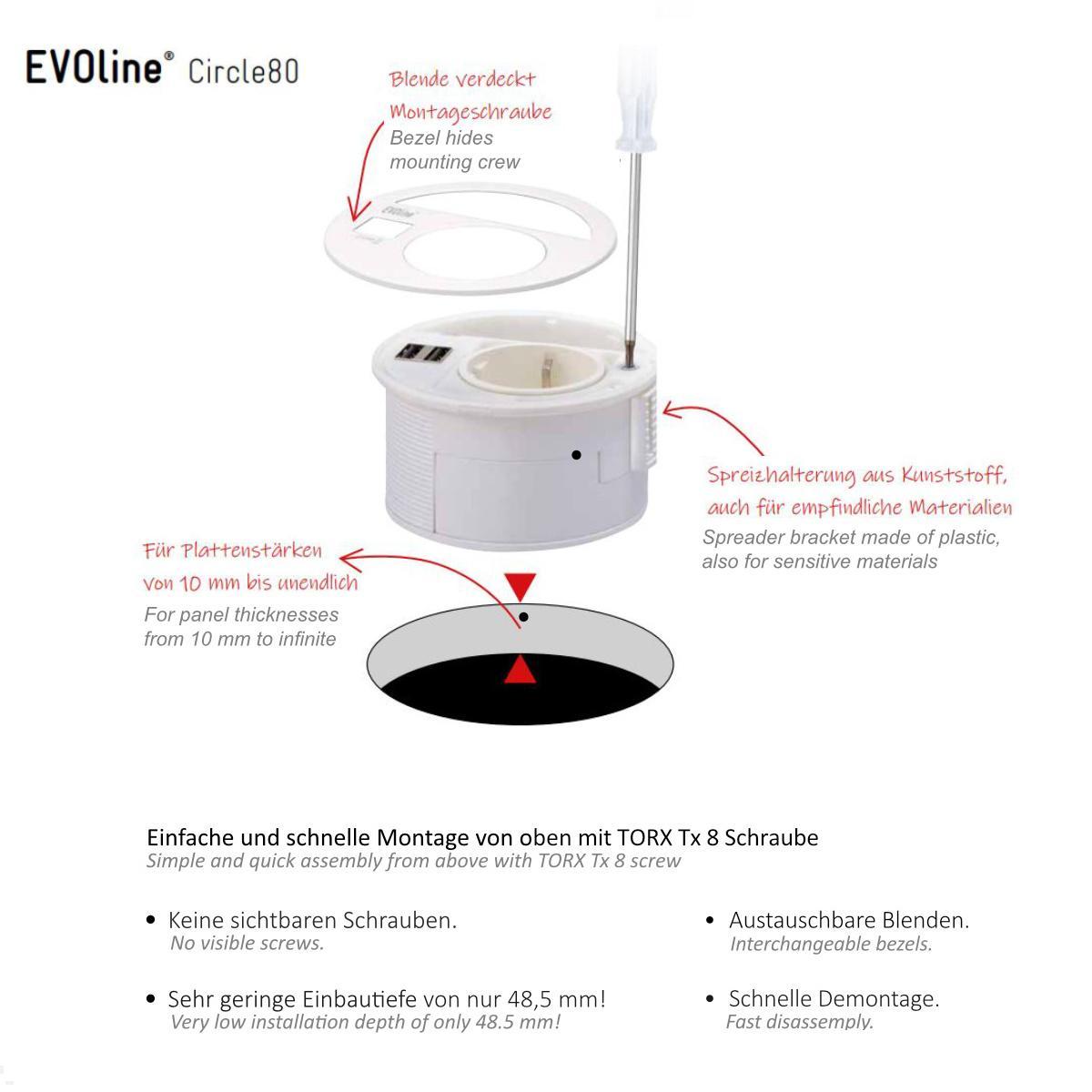

Flat installation and easy assembly

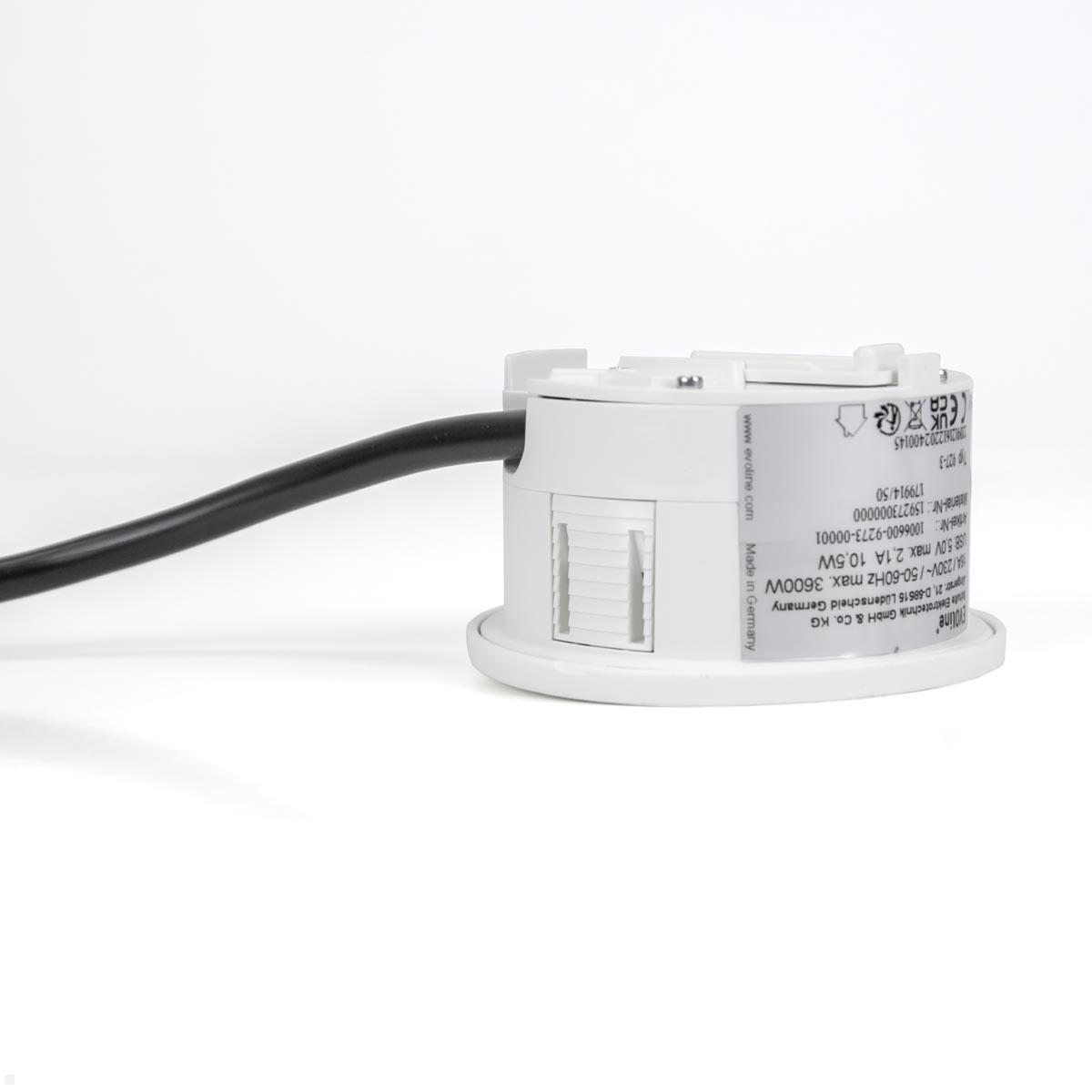

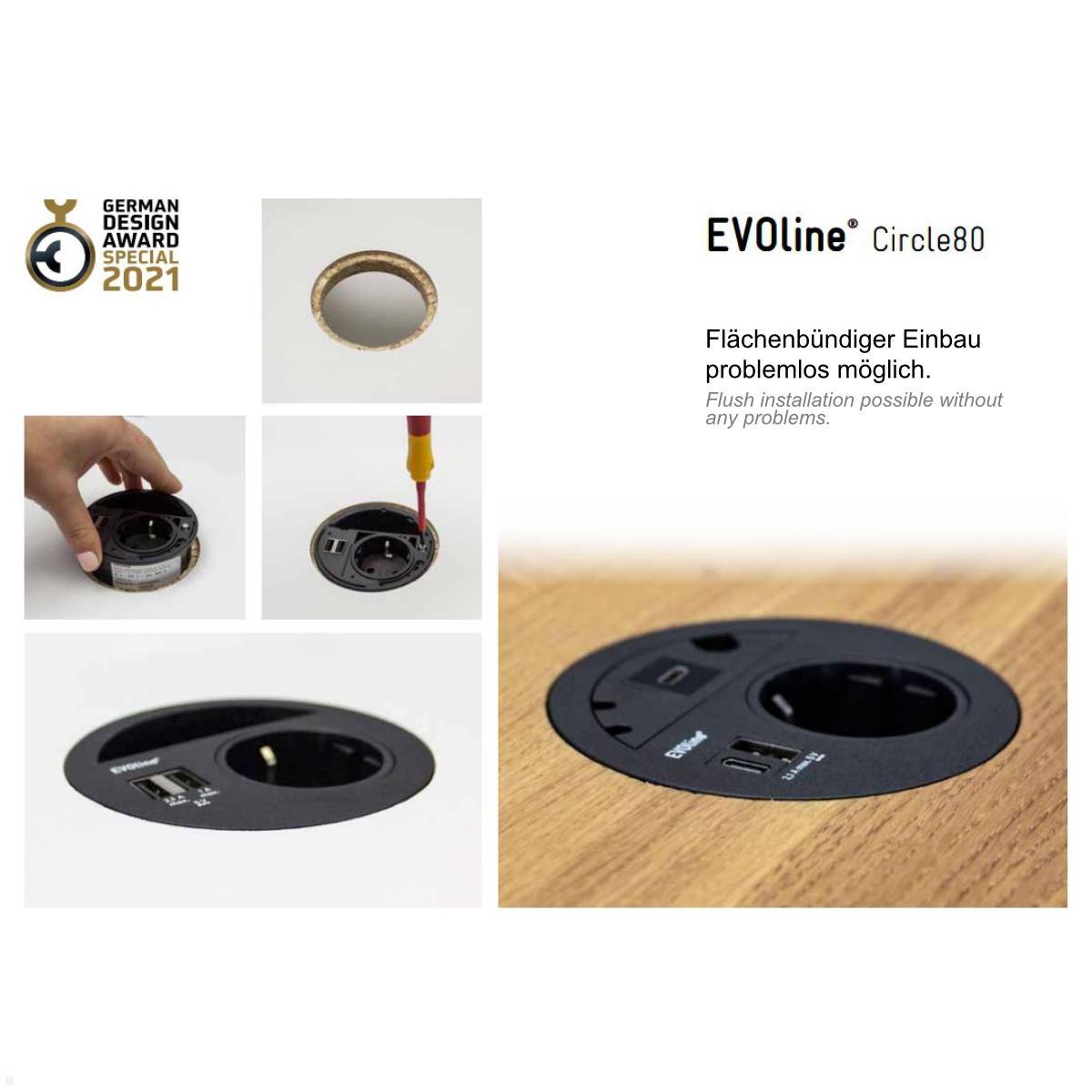

The Circle80 unit has a visible diameter of 92 mm and is integrated flat into the surface with a height of just 5.5 mm. The installation depth is 48.5 mm, and installation is conveniently from above. The built-in socket is suitable for panels 10 mm thick and above – there is no maximum thickness specified. Thanks to the simple screw lock, installation can be completed in just a few minutes without the need for special tools.
Powerful USB-C charging without an additional power supply
With two USB-C charging ports, the EVOline Circle80 offers modern charging options for a wide variety of devices. Both ports deliver 2.1 A at 5 V and are compatible with common charging protocols such as USB Battery Charging 1.2 and the China YD/T1591-2009 specification. This allows smartphones, tablets, headphones, and other devices to be charged efficiently and safely – without the need for an additional power supply.

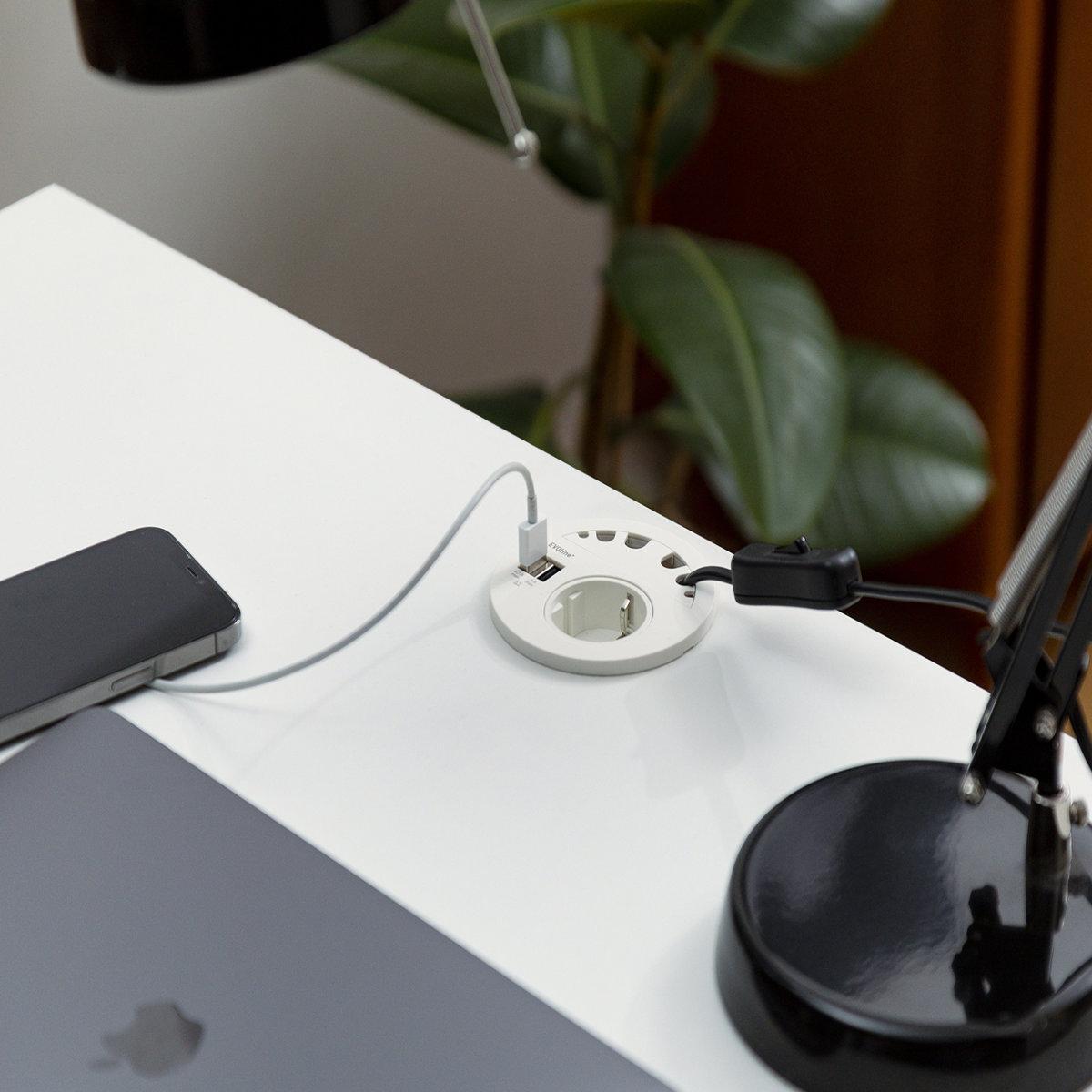

Versatile – In the office, kitchen, or home office

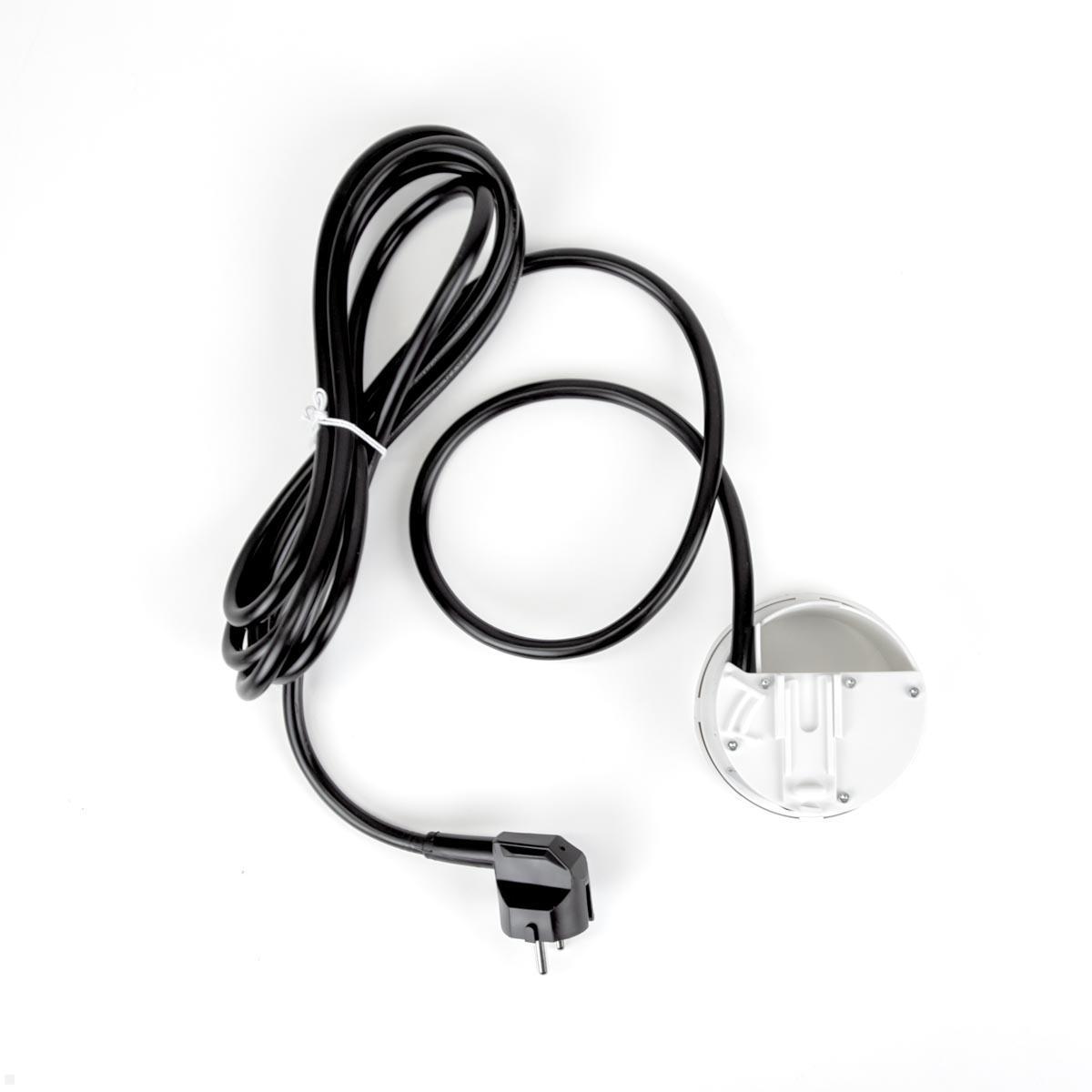

The 3-meter-long connection cable with a protective contact angled plug allows the unit to be flexibly positioned and reliably connected. The robust construction makes the built-in socket ideal for a wide variety of applications: worktops, desks, counters, or conference tables all benefit equally from the clean integration and functional enhancement.
