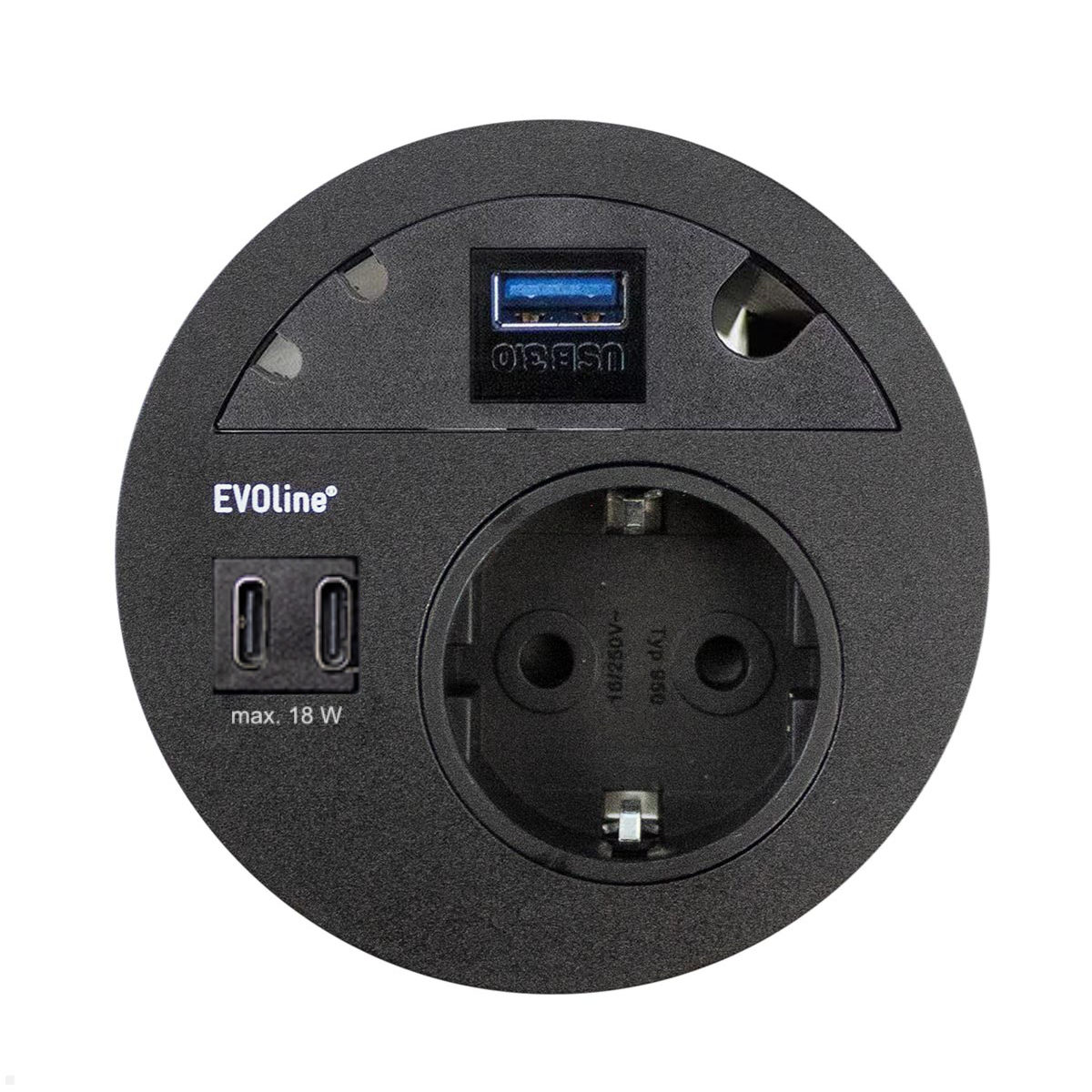

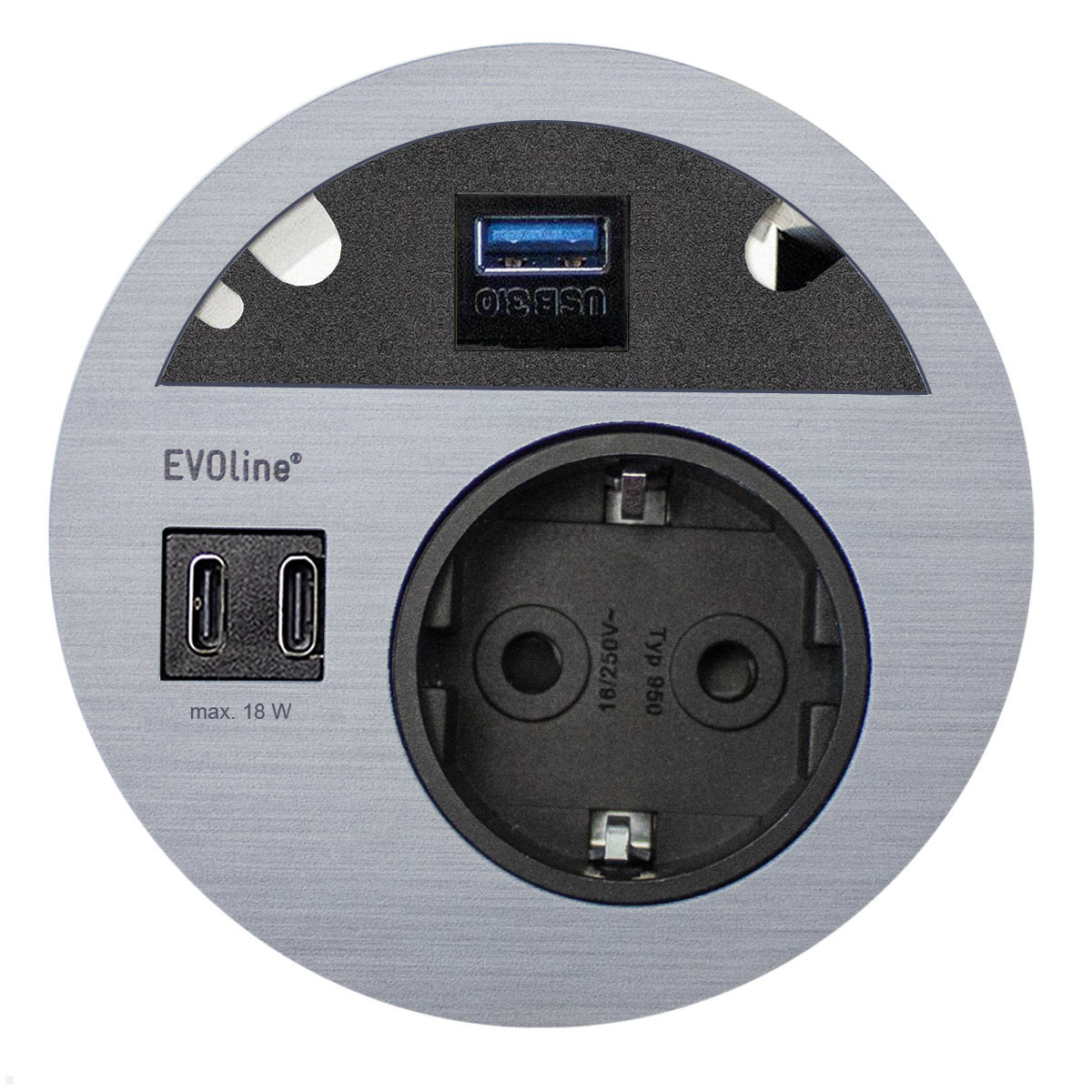

EVOline Circle80 built-in socket with USB charger C/C with USB 3.0
The EVOline Circle80 built-in socket with USB combines three connections in one: a power outlet, USB charger, and cable outlet. The outlet features a matching cover with a USB 3.0 socket and cable management. The integrated cable management slider elegantly hides excess cables from the table and keeps them organized.
USB C/C Desk Socket with Cover and Cable Entry

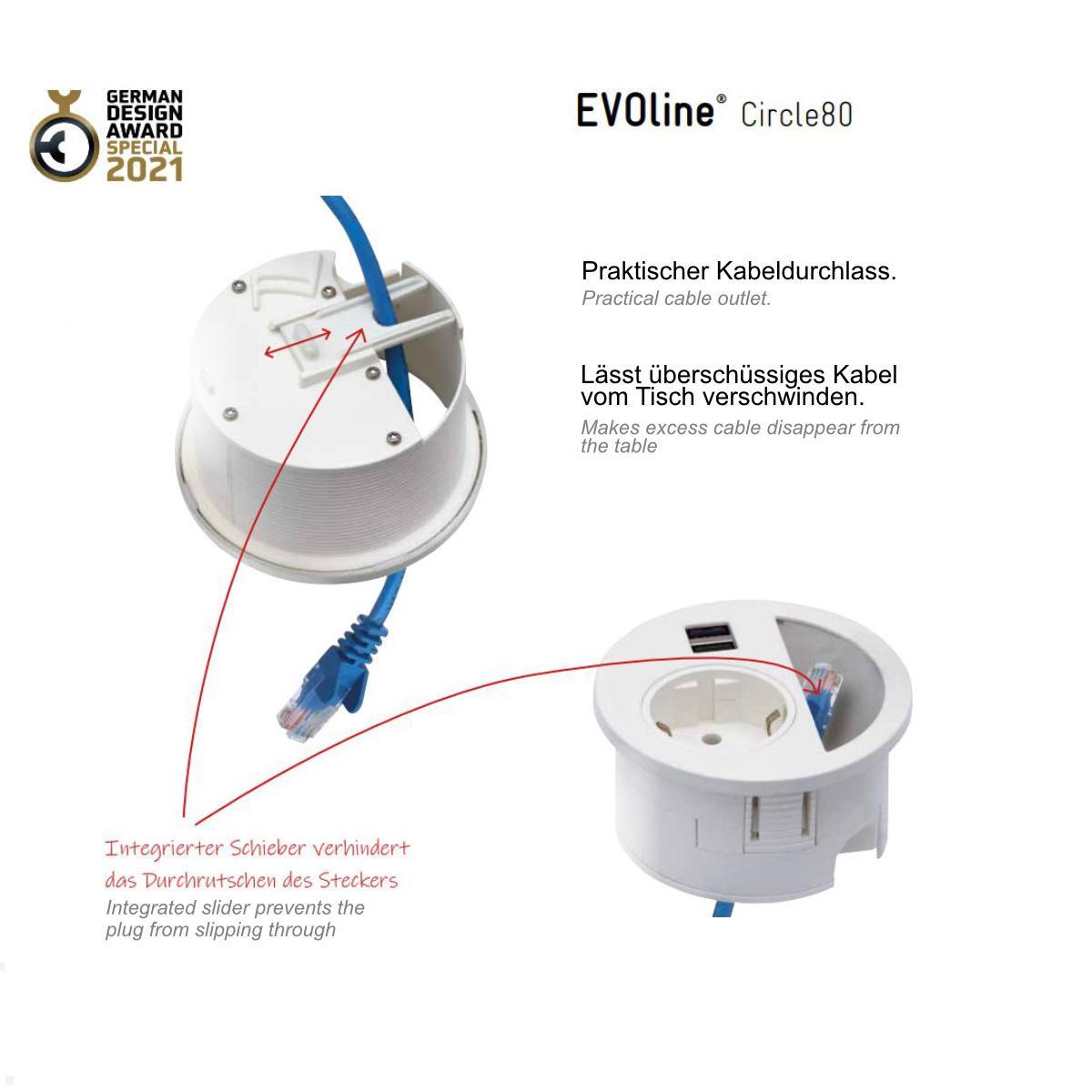

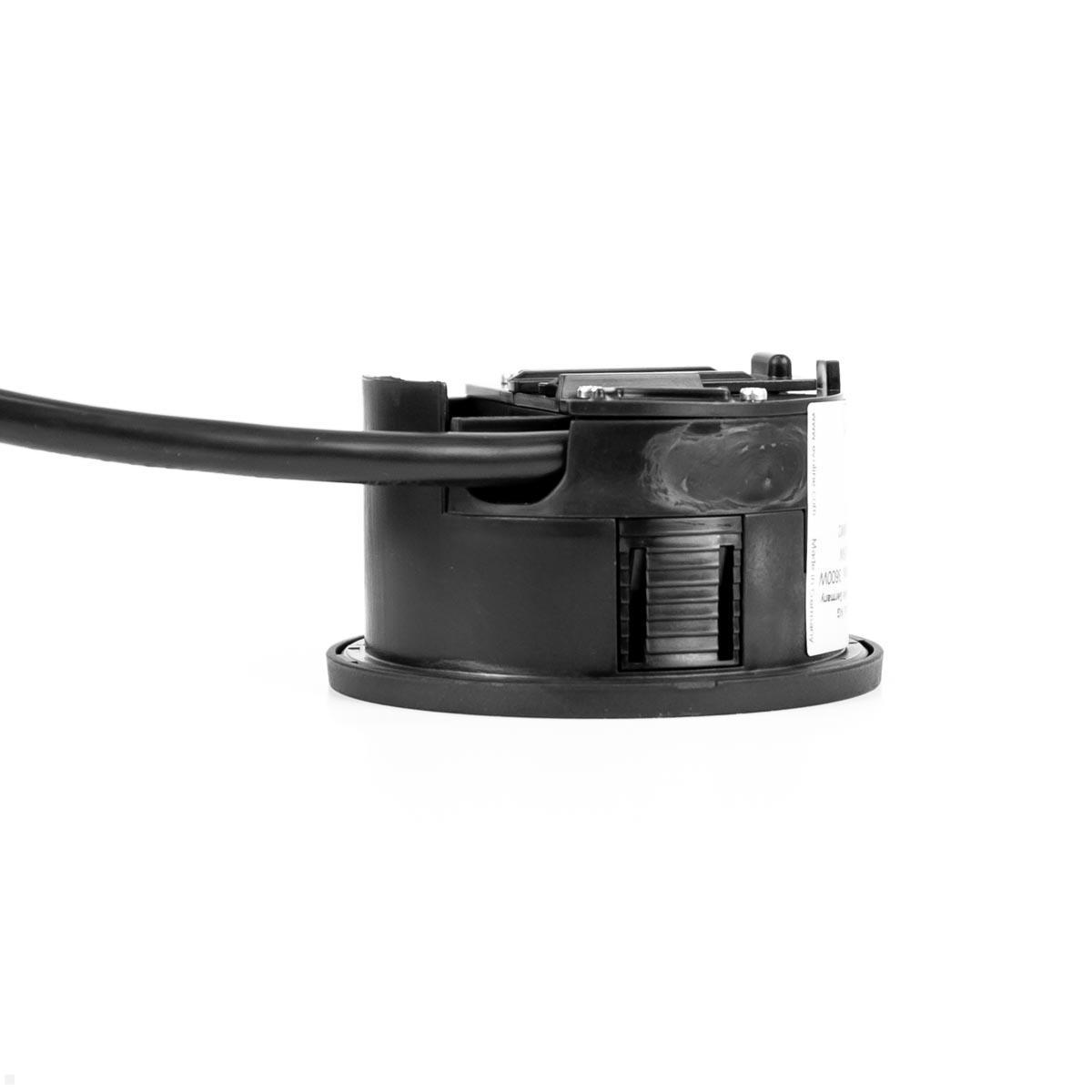

The EVOline Circle80 combines three functions in one compact module: a socket, a USB C/C charger, and a cable entry with an integrated USB 3.0 socket (female-female, without cable). A sliding mechanism secures cables and allows excess lengths to disappear elegantly under the tabletop. With a mounting depth of just 48.5 mm, the socket can be easily installed in worktops from 10 mm thick; there is no maximum thickness specified. The flush-mounted design with a height of just 5.5 mm ensures discreet integration. The dual USB-C port charges mobile devices such as smartphones, tablets, or laptops quickly and reliably. The USB 3.0 port offers additional data connectivity, while the cable management keeps your workplace tidy.
Key features EVOline Circle80 Desktop Socket with Cable Management
- Installation Opening: Ø 79 mm
- Installation depth: 48.5 mm
- Installation height: 5.5 mm
- 3 m power cable with right-angle plug
- 2x USB-C charging ports (2.1 A / 5 V each)
- 1x socket with earthing contact (VDE-compliant, 16 A, contact protection)
- Panel with cable routing (2 x 4 mm, 1 x 9 mm), USB 3.0 socket
- Voltage: 230 V AC
- Compatible with a wide range of devices such as smartphones, tablets, and many more.
- Suitable for Apple iPhone, Apple iPad, Samsung Galaxy Tablet, and many more.
- Quick and easy installation
- Material: Plastic
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Suitable for: | For worktops from 10 mm thickness |
| Packaging dimensions (LxWxH in mm): | 340 x 240 x 180 |
| Scope of delivery: | 1x EVOline Circle80 |
| Contains installation material: | + |
| Manufacturer/Importer: | Schulte - Elektrotechnik GmbH & Co. KG / EVOline, Jüngerstraße 21, D-58515 Lüdenscheid, info@schulte.com |
| Number of sockets: | 1 |
| color: | Black |
| Form: | rund |
| USB-Charger: | USB C/C |
| Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
EVOline Circle80 Built-in Socket with USB Type-C/C, Cable Outlet, and USB 3.0 Port
The EVOline Circle80 built-in socket combines three functions in one compact module: a power outlet, a powerful USB Type-C/C charger, and a cable outlet. The cable outlet is equipped with a matching cover, which also features a USB 3.0 port (female-female, without cable) and integrated cable guides. A practical sliding mechanism for cable locking ensures that excess cables disappear neatly under the tabletop and remain within easy reach at all times.

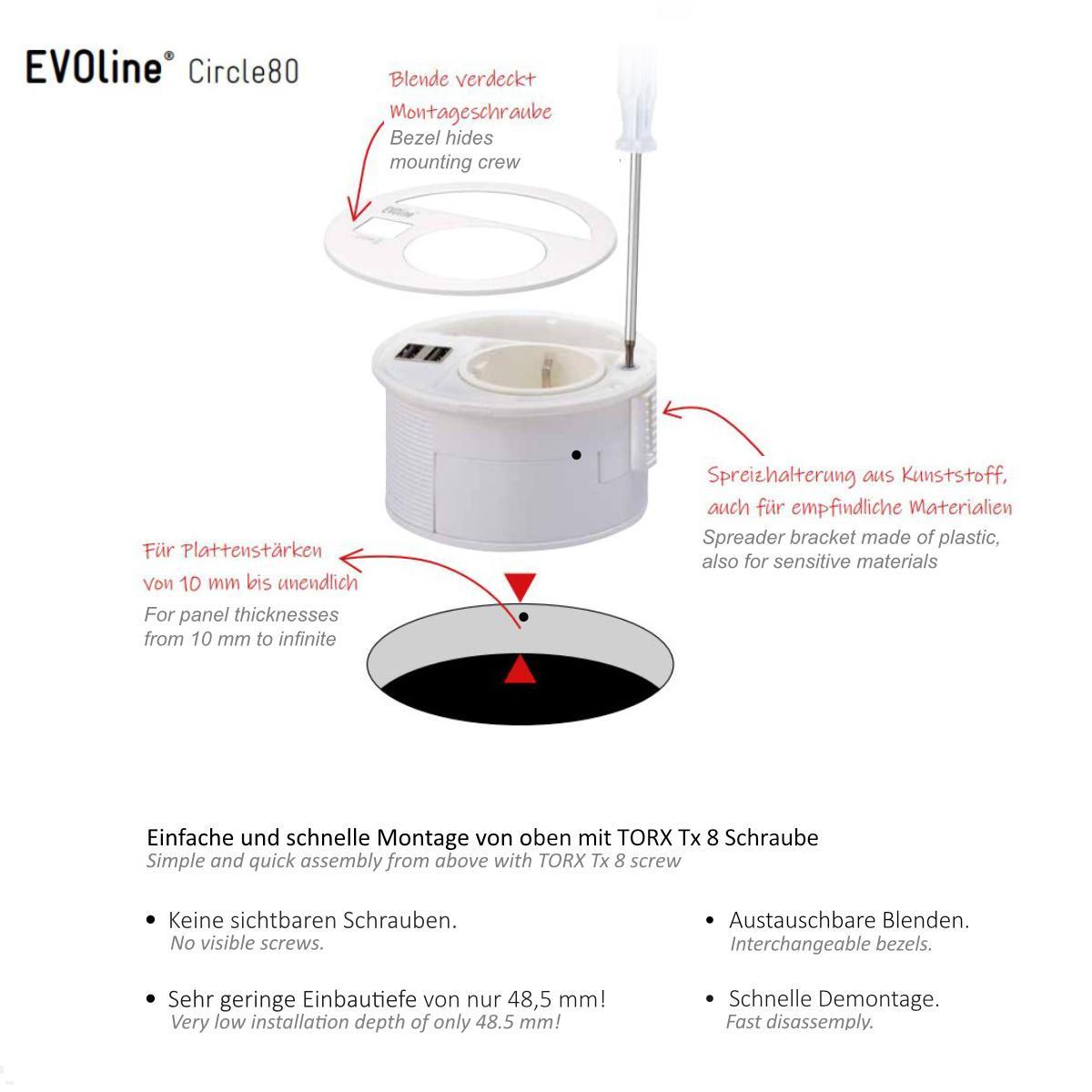

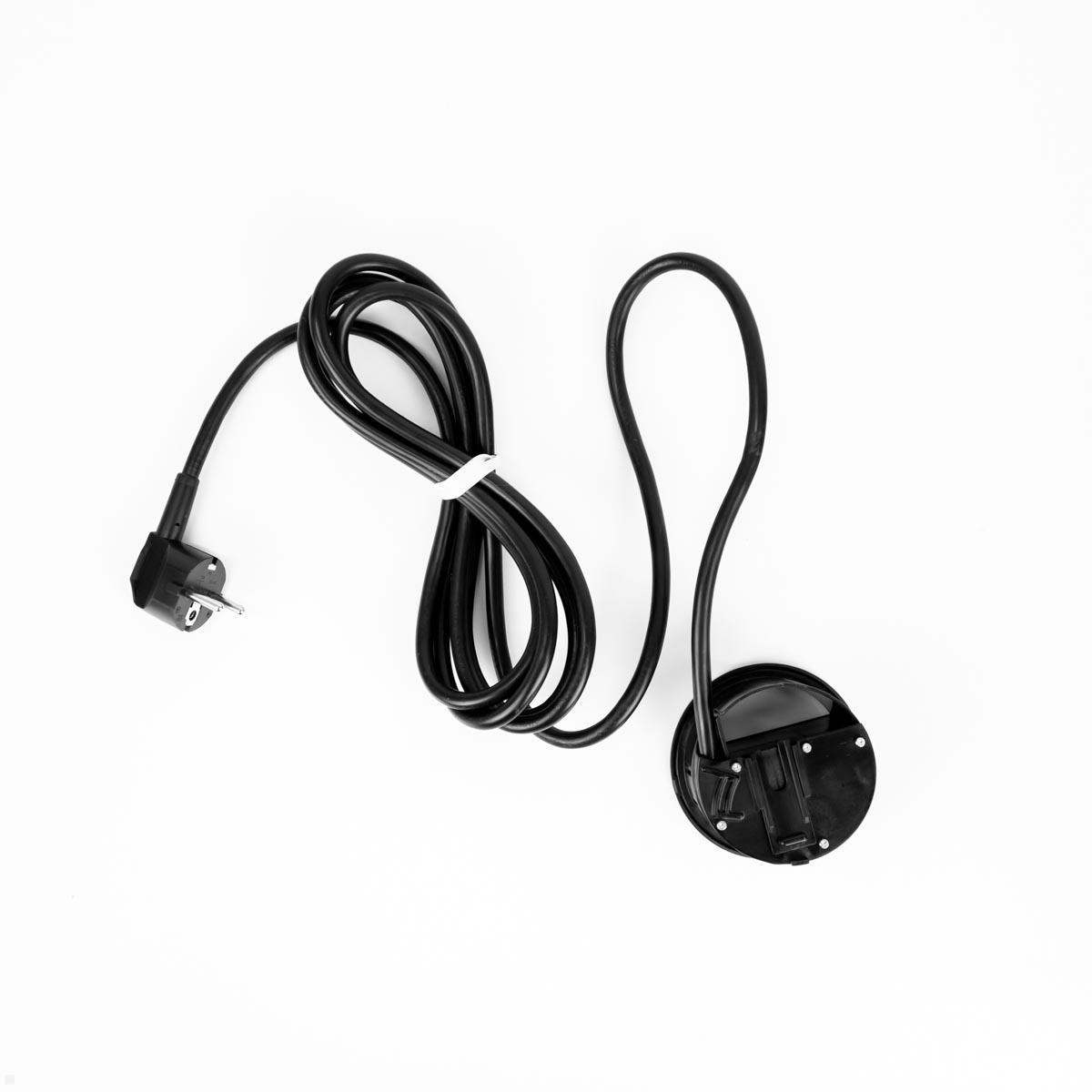

The low installation depth and the sophisticated EVOline fastening system enable quick and uncomplicated installation. The included 3 m connection cable with a right-angle plug with protective contact provides sufficient range for flexible placement.
Efficient power supply and cable organization
This built-in socket is the ideal solution for organizing work surfaces while simultaneously providing modern charging options. The integrated USB C/C charger reliably supplies power for mobile devices such as smartphones, tablets, laptops, or accessories – without the need for an additional power adapter. Supported charging protocols ensure a fast and secure power supply.
The USB 3.0 socket (female-female) enables a straightforward data connection to PCs or peripherals. Combined with the cable management, this creates a tidy workspace where power and data cables are organized and readily available without clutter.
Flexible Applications

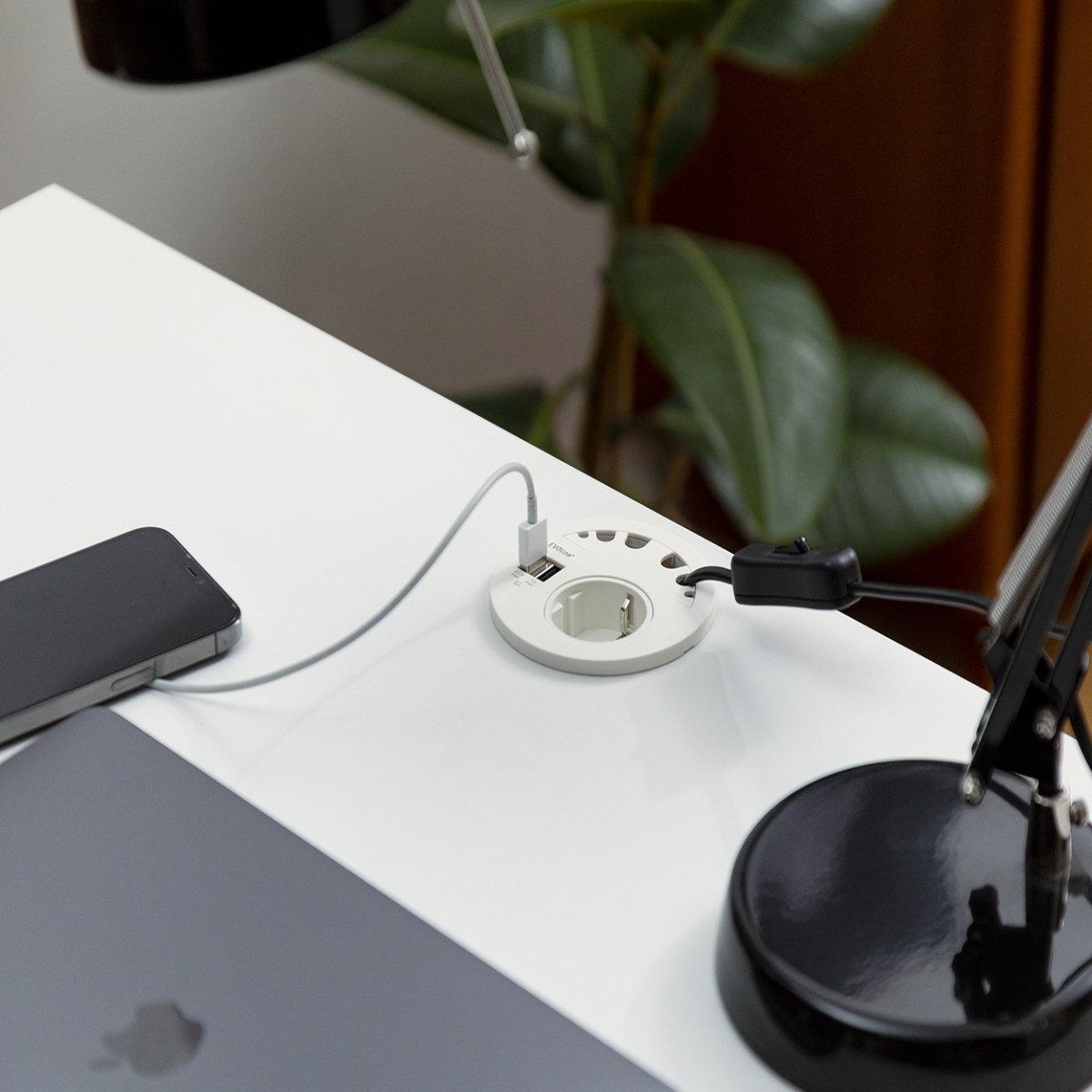

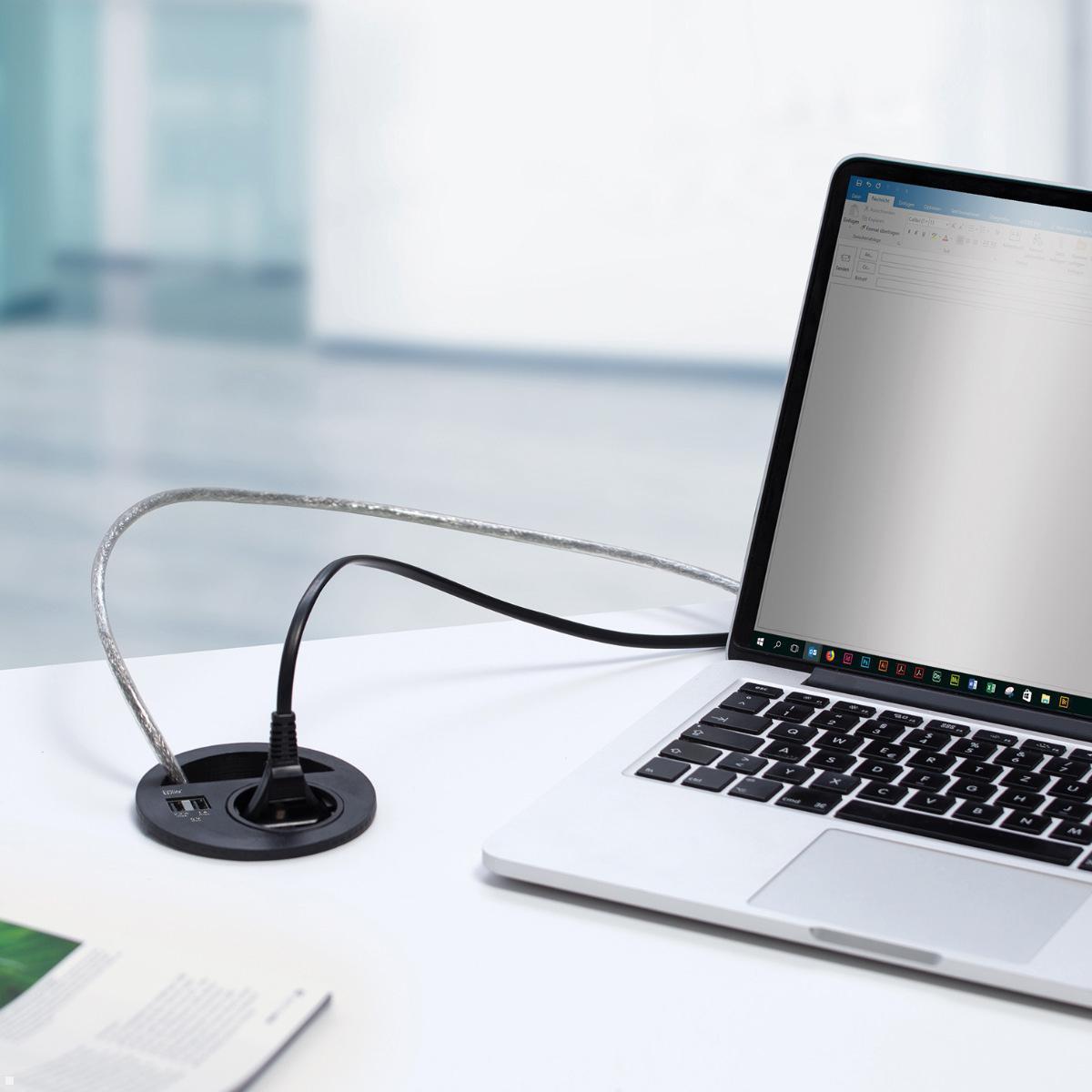

The EVOline Circle80 is suitable for a wide variety of locations – from home offices and conference rooms to kitchens and workshops. It fits flush with tabletops and work surfaces and can be installed anywhere power and data connections are needed.

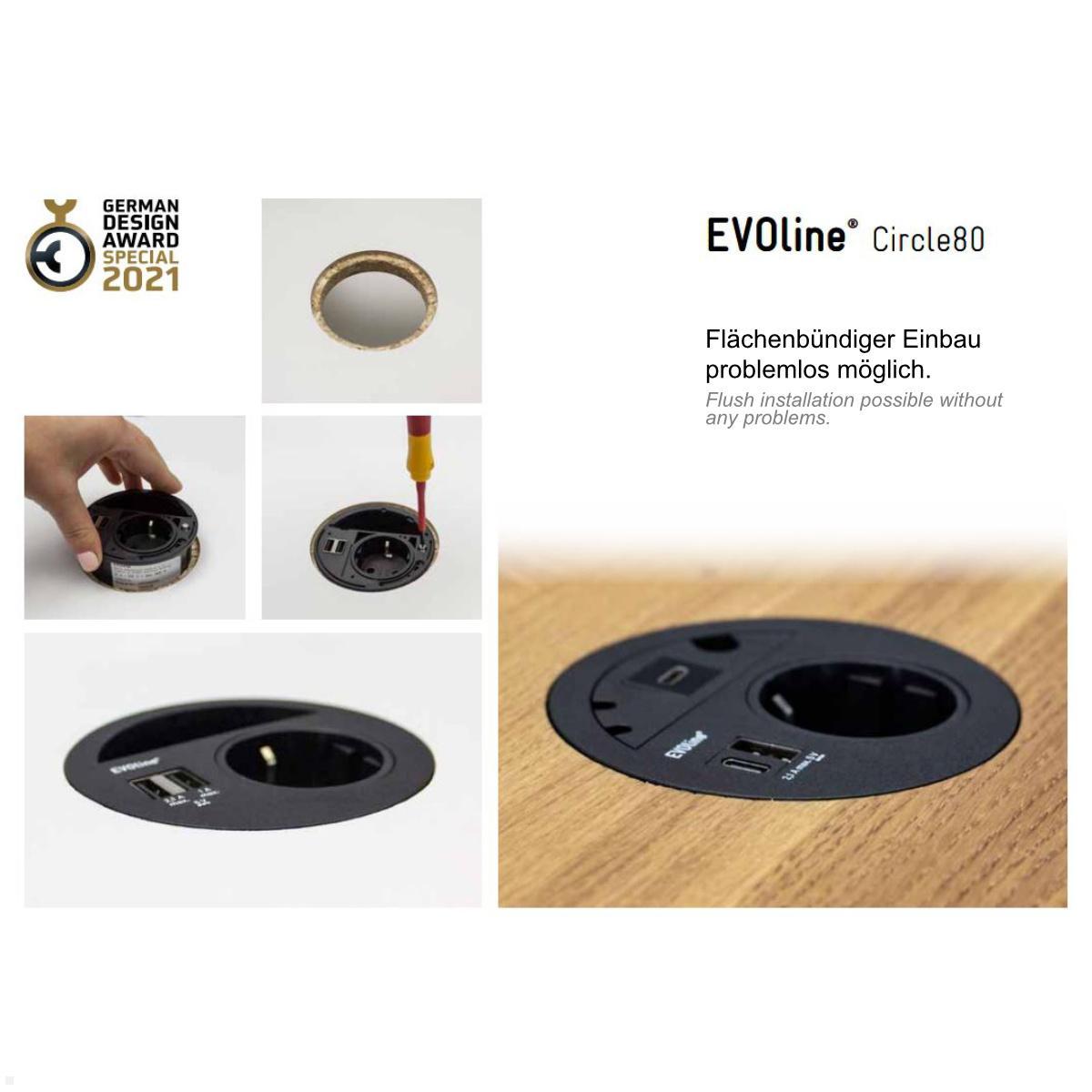

Thanks to its low installation height of just 5.5 mm on the surface, the socket blends discreetly into its surroundings. Installation is possible for panel thicknesses from 10 mm, with no limit on the maximum thickness.
With the EVOline Circle80, you get a high-quality built-in socket with modern charging and connection technology that elegantly combines cable management and power supply – Space-saving, practical, and versatile.
