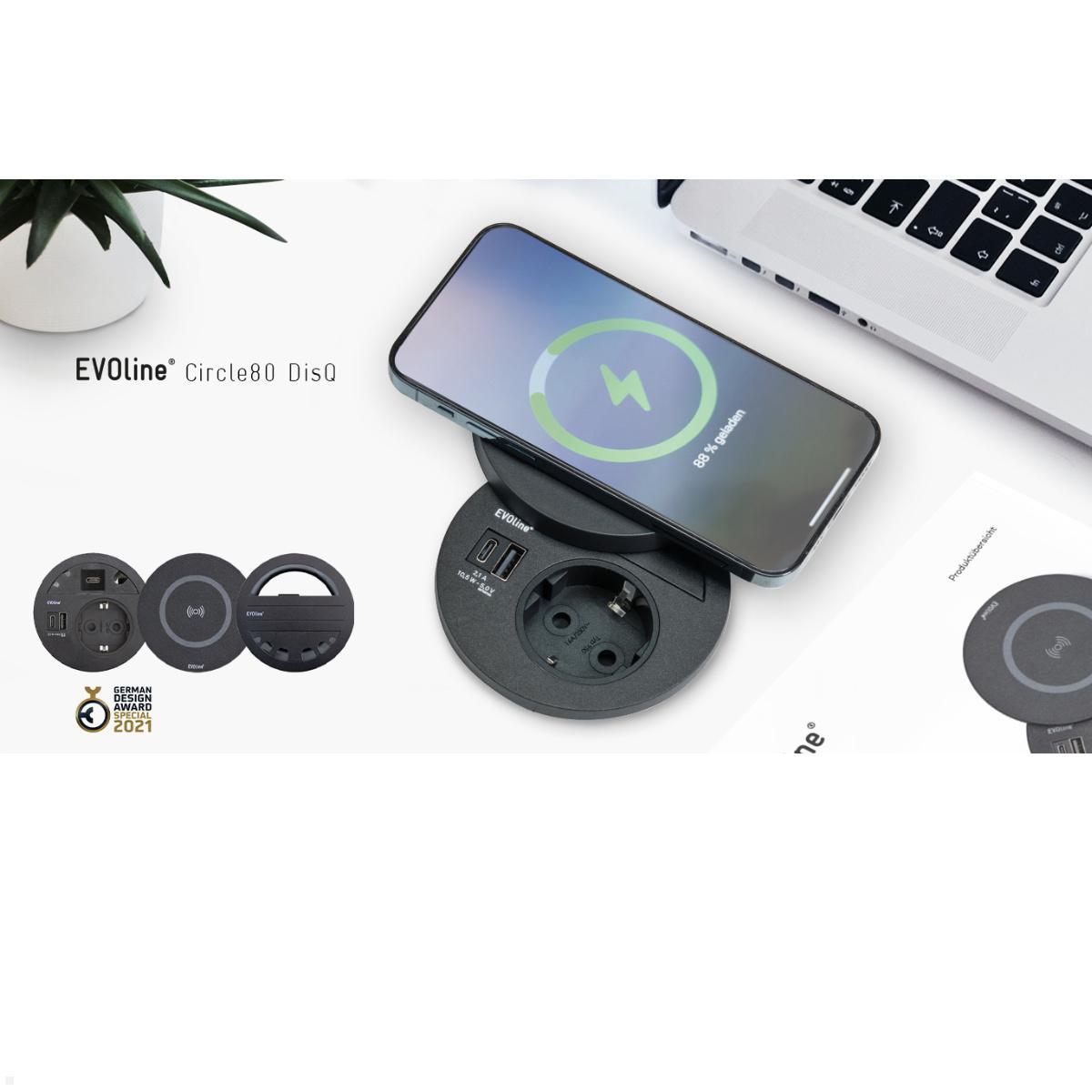

EVOline Circle80 built-in socket with USB charger C/C and DisQ induction charger
The EVOline Circle80 built-in socket with USB Type-C/C and wireless charger with rotating lid intelligently combines three functions in one: a socket, USB Type-C/C charger, and charging station. The lid with Qi charger works both when closed and when opened. This allows you to continue using all the functions of your Circle80 built-in socket.
Recessed socket with USB and wireless charger cover

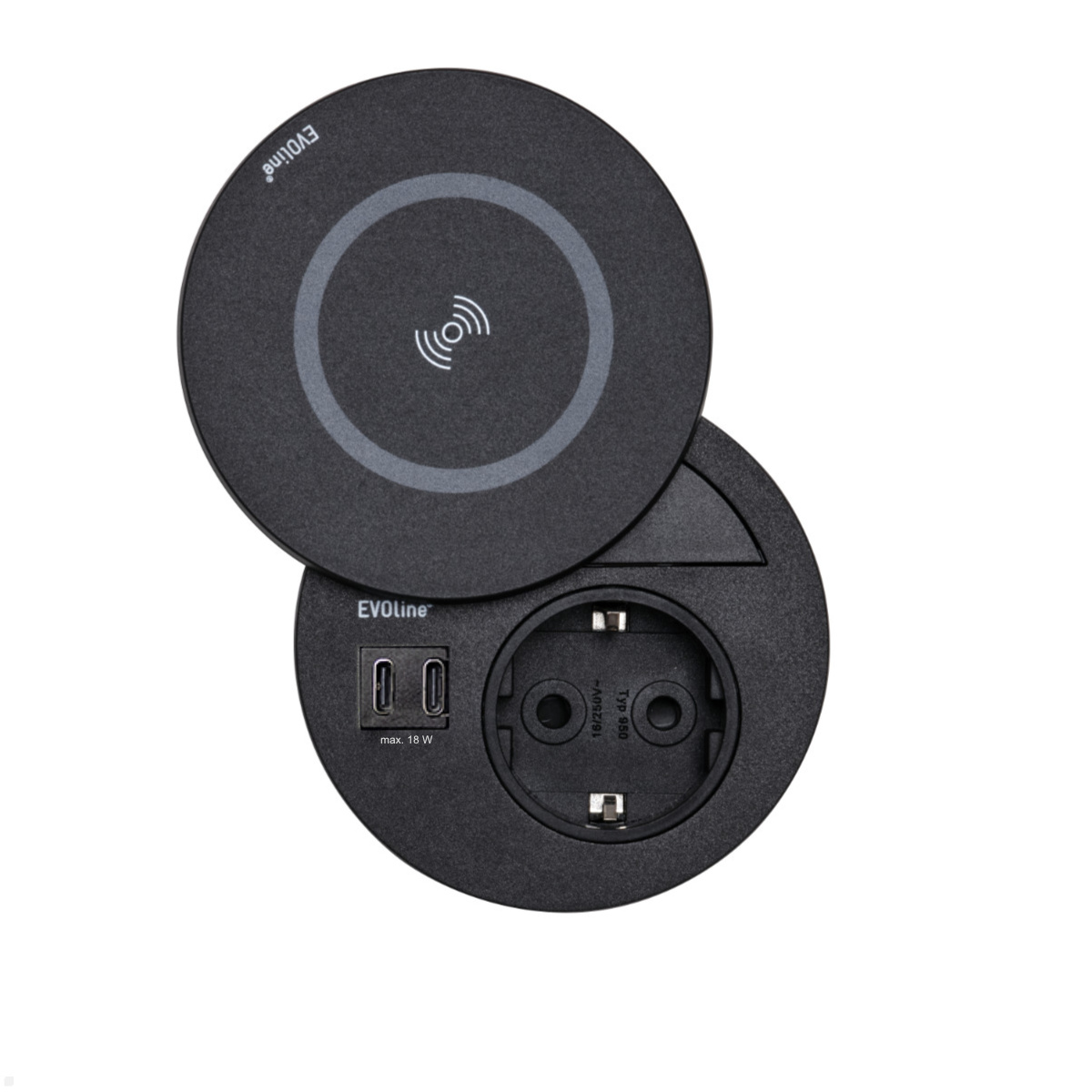

The EVOline Circle80 recessed socket with USB-C/C port and wireless charger cover combines a socket, dual USB port, and wireless charging station in a compact three-in-one solution. The integrated 15W Qi charger in the cover enables wireless charging at the desk, kitchen, office, or workplace. The cover can be rotated sideways to reveal the flat Circle80 recessed socket. The integrated USB-C/C charging function ensures order and short cable runs.
Quick and easy installation

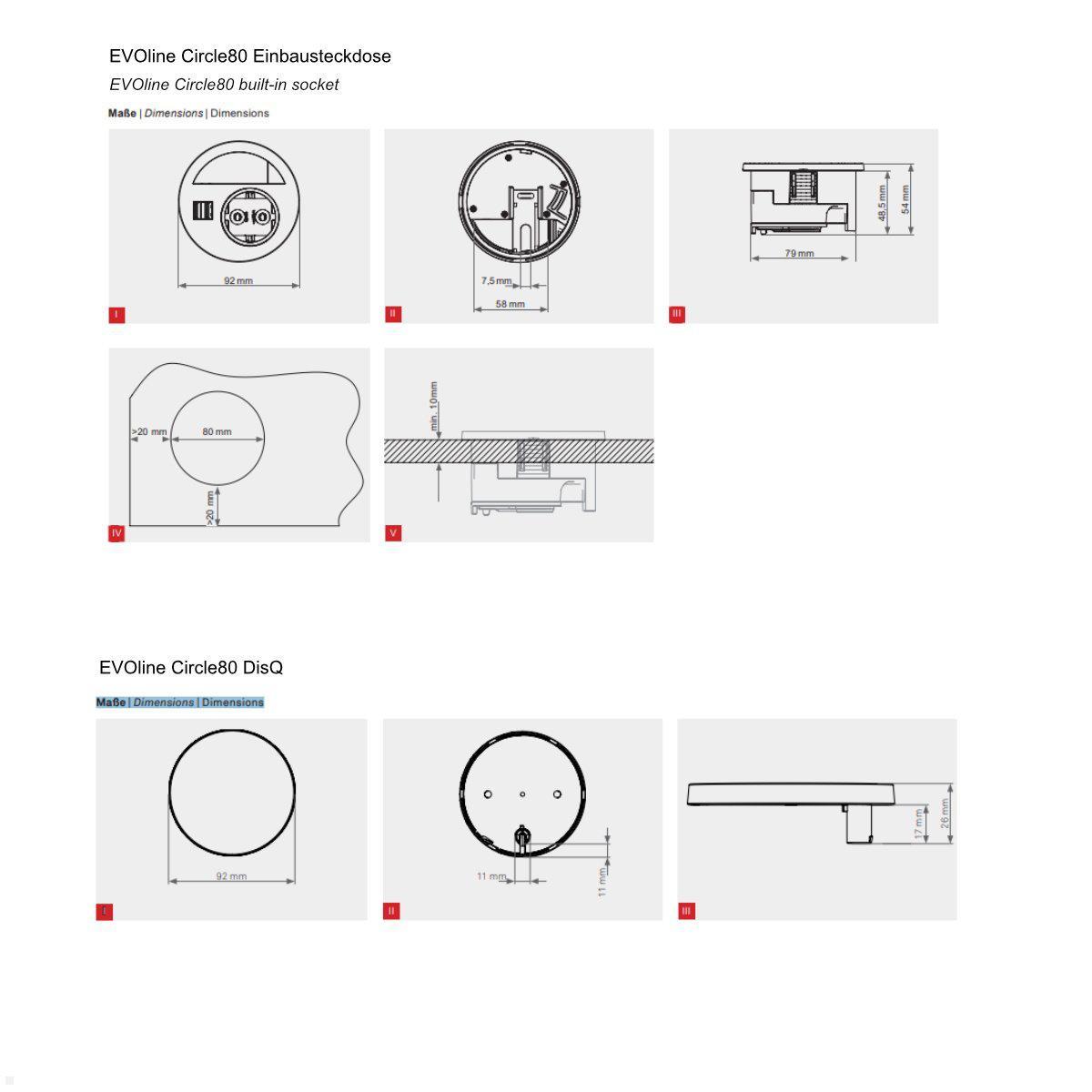

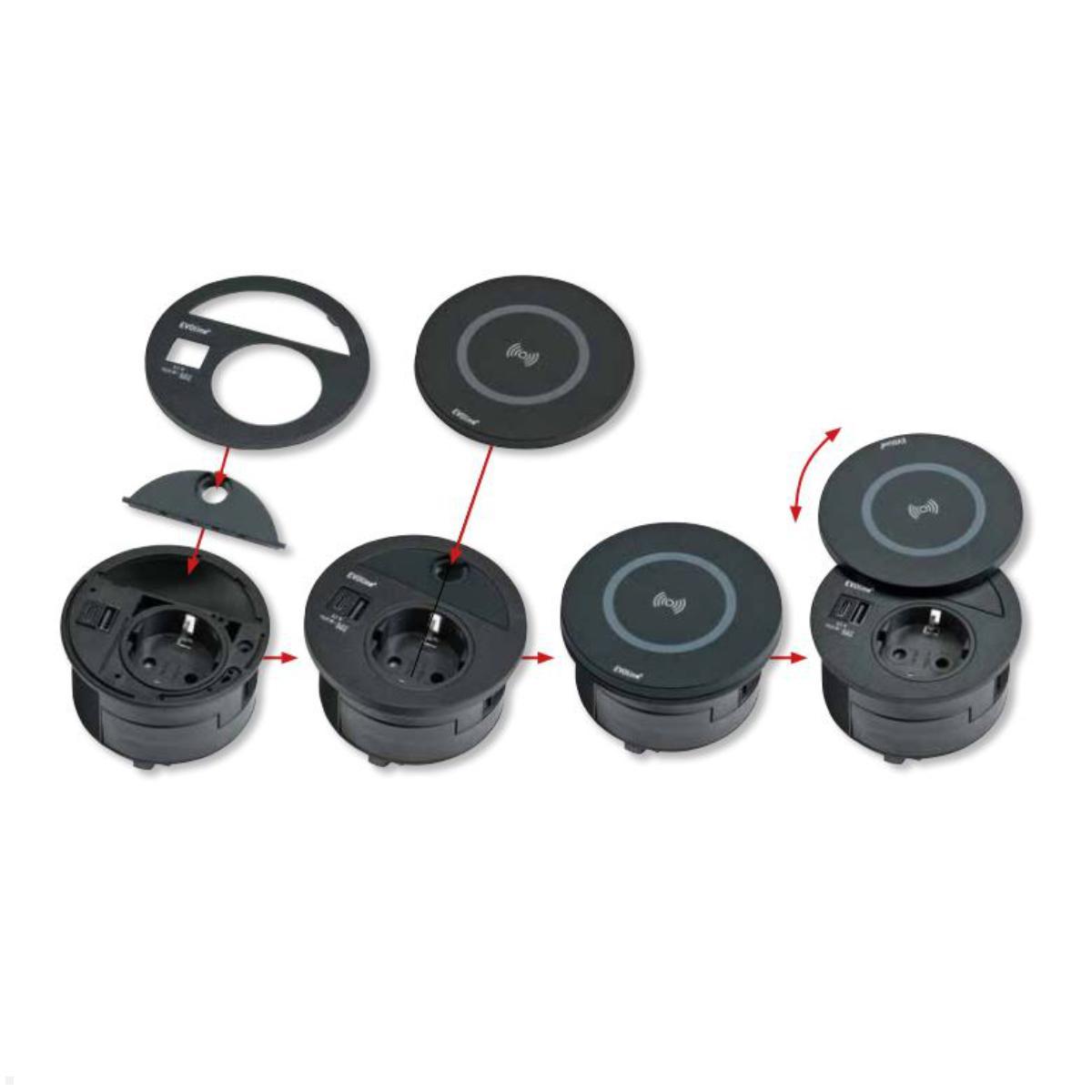

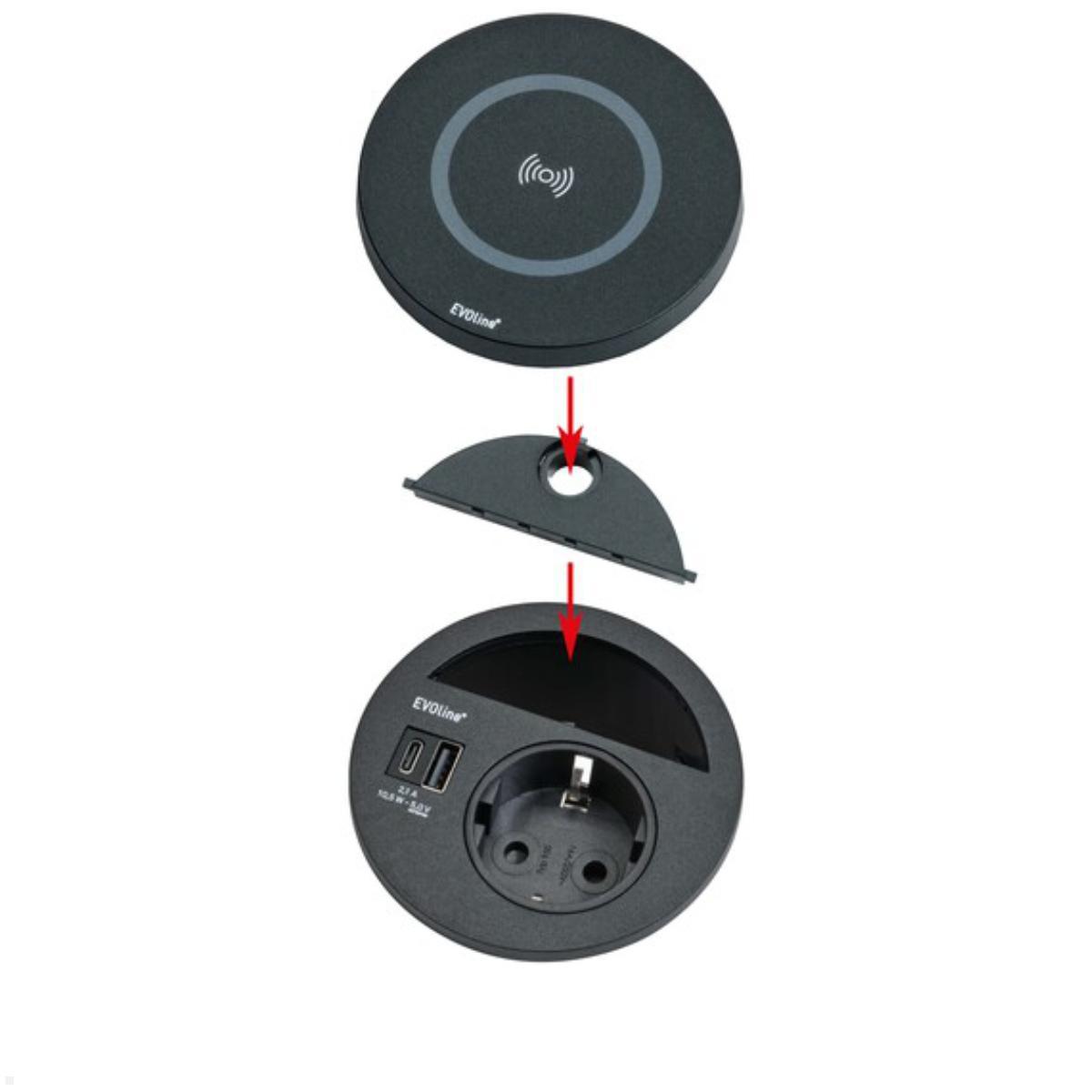

The socket is installed up to 5.5 mm flush with the surface, has a diameter of 92 mm, and blends discreetly into its surroundings. For secure installation in panels 10 mm thick and over, a simple screw turn from above is sufficient; there is no maximum panel thickness specified. The DisQ rotating cover is inserted into the existing module opening and secured with a cover cap. The USB-C cable integrated into the cover is connected to the included USB-C/C charger and to the mains power supply. The built-in socket is equipped with a 3 m power cable and a grounded right-angle plug. No additional accessories are required to use the built-in socket with wireless charger cover.
Key features:
DisQ rotating cover:
- Rotating cover with Qi charging function according to WPC 1.1. Standard with max. 15W
- Output range: DC 5V / DC 9V
- Nominal output voltage: 3A / 2A
- Diameter: 92mm
- Material: Plastic

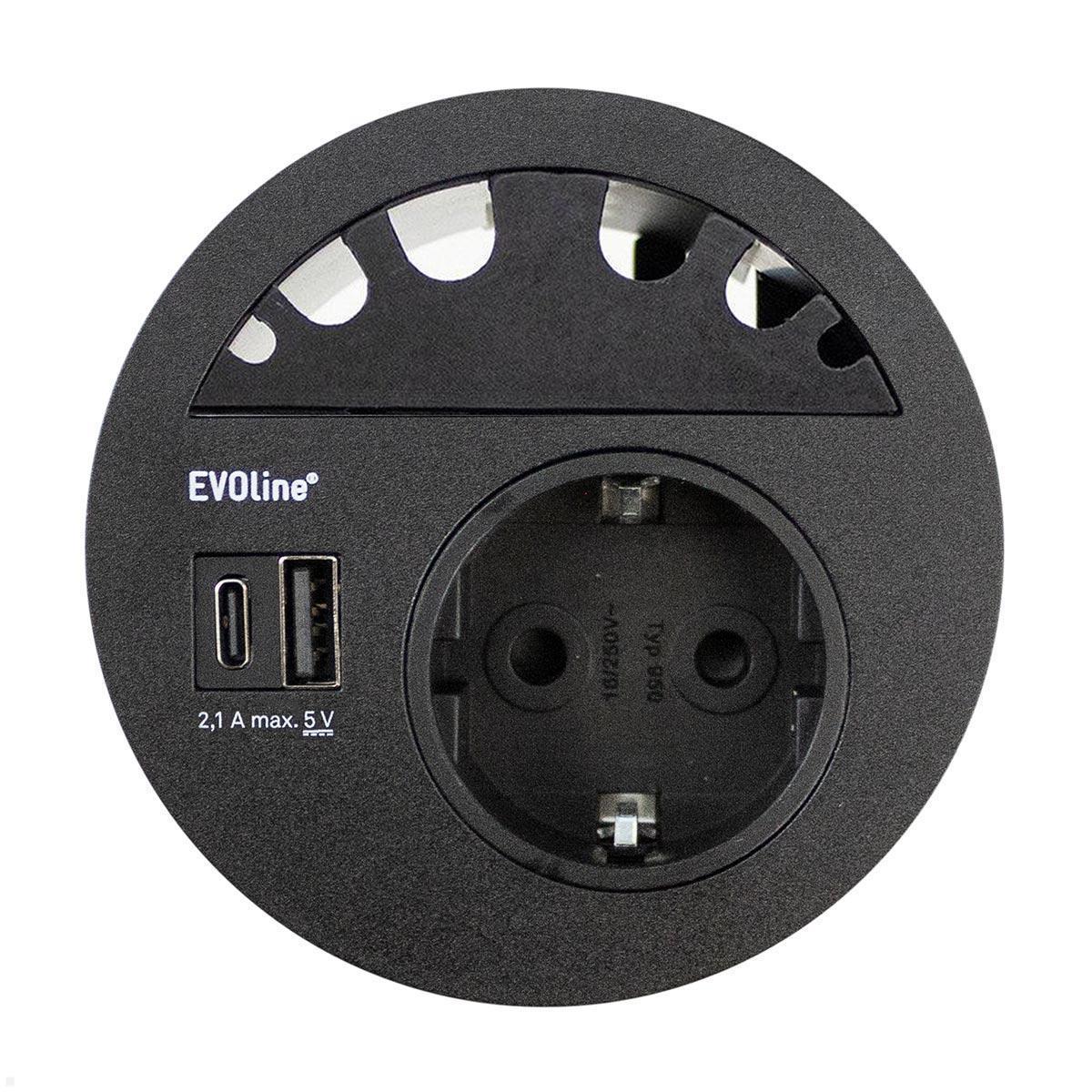

Circle80 built-in socket:
- Installation opening: Ø 79 mm
- Installation depth: 48.5 mm
- 2× USB-C, 2.1 A and 5 V each
- 1 x VDE socket, 16 A, with touch protection
- Voltage: 230 V AC

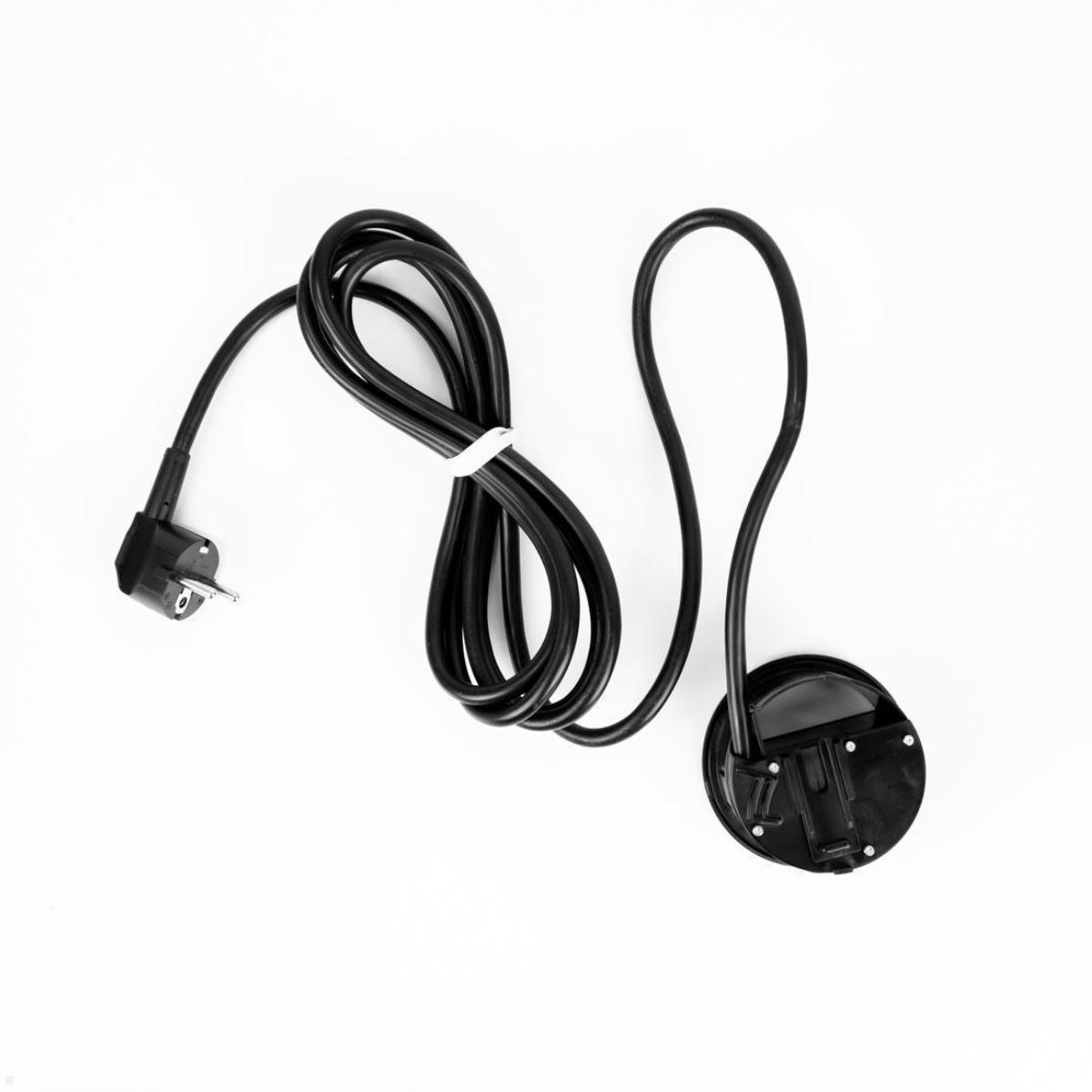

- 3 m power cable with protective contact angled plug
- Color: Black
- Material: Plastic
USB-C/C Charger:
- 2x USB-C ports (PD 3.0)
- Input: 230 V AC, 50/60 Hz, 1 A max.
- Compatible with most smartphones and tablets
- Overcurrent protection, overvoltage protection, overheating protection, and short circuit protection
Scope of delivery: EVOline Circle80 built-in socket USB A/C, EVOline Circle80 DisQ rotating cover with integrated 15W induction charger, sealing cap, USB socket adapter, and installation instructions.
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Suitable for: | For worktops from 10 mm thickness |
| Packaging dimensions (LxWxH in mm): | 340 x 240 x 180 |
| Scope of delivery: | 1x EVOline Circle80 built-in socket USB A/C, 1x EVOline DisQ cover with wireless charger, 1x USB socket adapter |
| Manufacturer/Importer: | Schulte - Elektrotechnik GmbH & Co. KG / EVOline, Jüngerstraße 21, D-58515 Lüdenscheid, info@schulte.com |
| Number of sockets: | 1 |
| color: | Black |
| Form: | rund |
| USB-Charger: | USB C/C |
| Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
EVOline Circle80 Built-in Socket with USB-C and Wireless Charger Cover

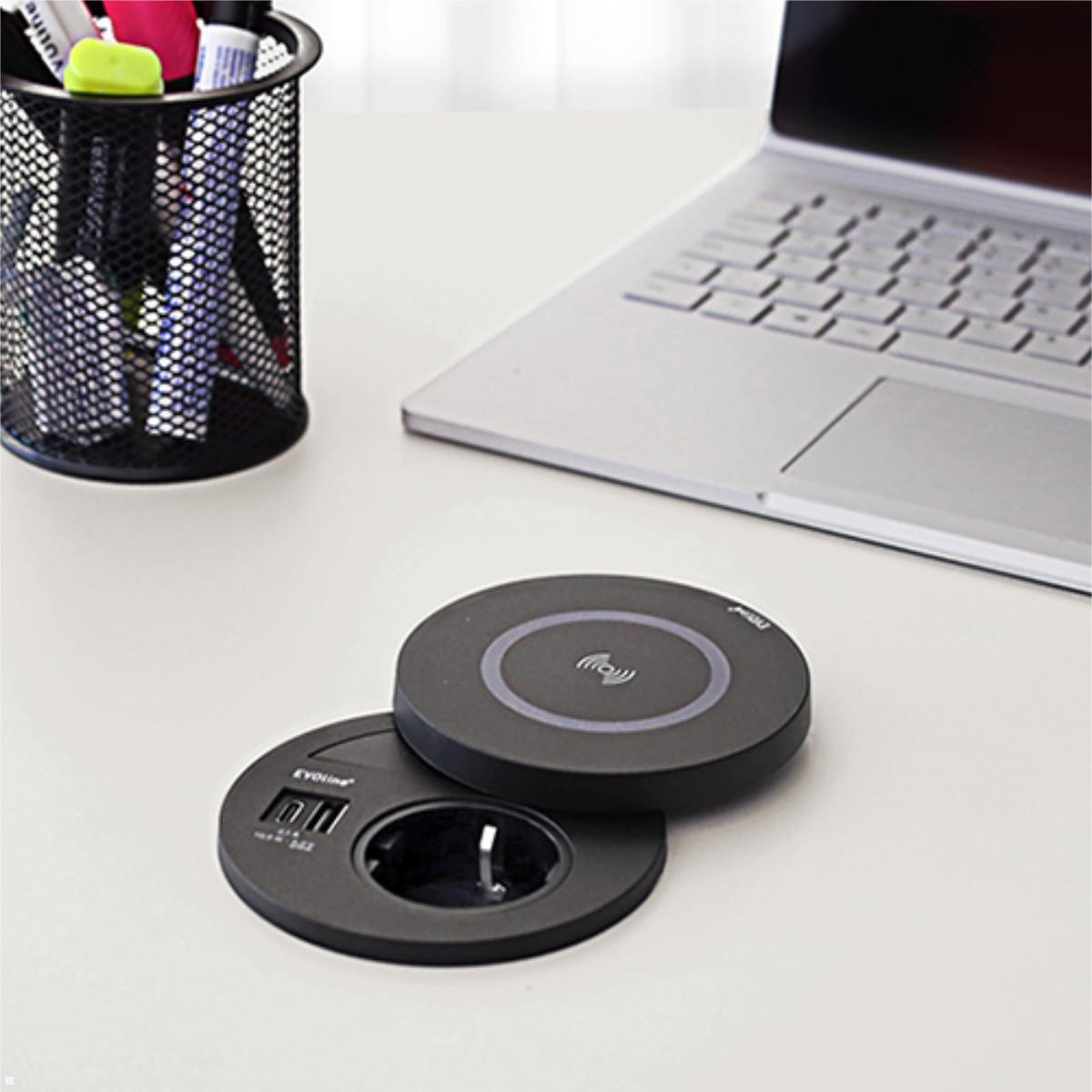

The EVOline Circle80 built-in socket with USB-C/C port and wireless charger cover is an elegant and space-saving solution for modern work and living spaces. It combines a socket, dual USB-C port, and wireless charging station in a compact three-in-one unit. With this innovative combination, you can charge your devices simultaneously via cable or wirelessly— Whether at your desk, in the kitchen, at home, or in a professional office.

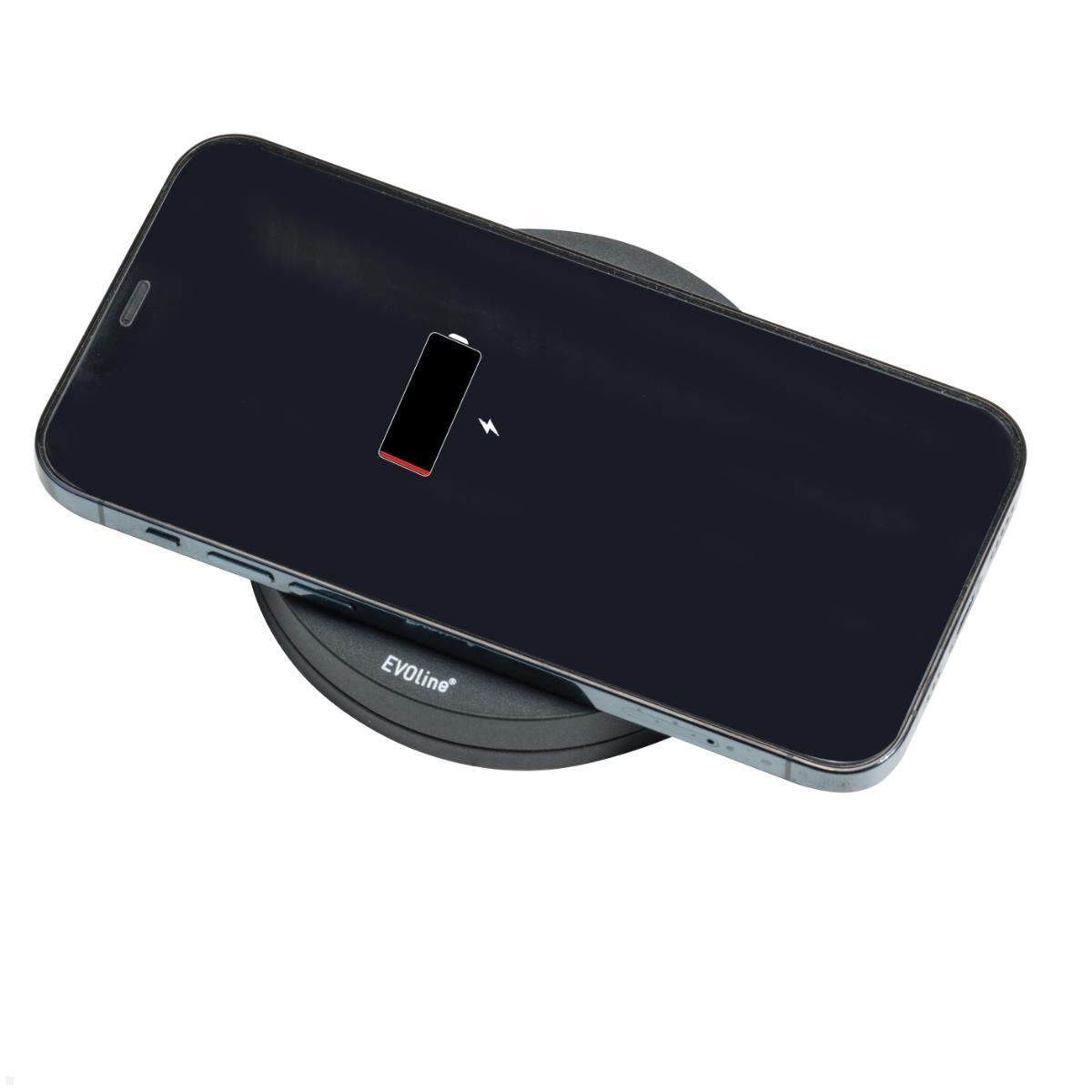

The integrated 15W Qi charger in the lid enables fast, wireless charging of compatible smartphones and devices according to the WPC 1.1 standard. Simply place your smartphone on the charging area, and charging starts automatically – without any annoying cables.
Practical design with rotating lid

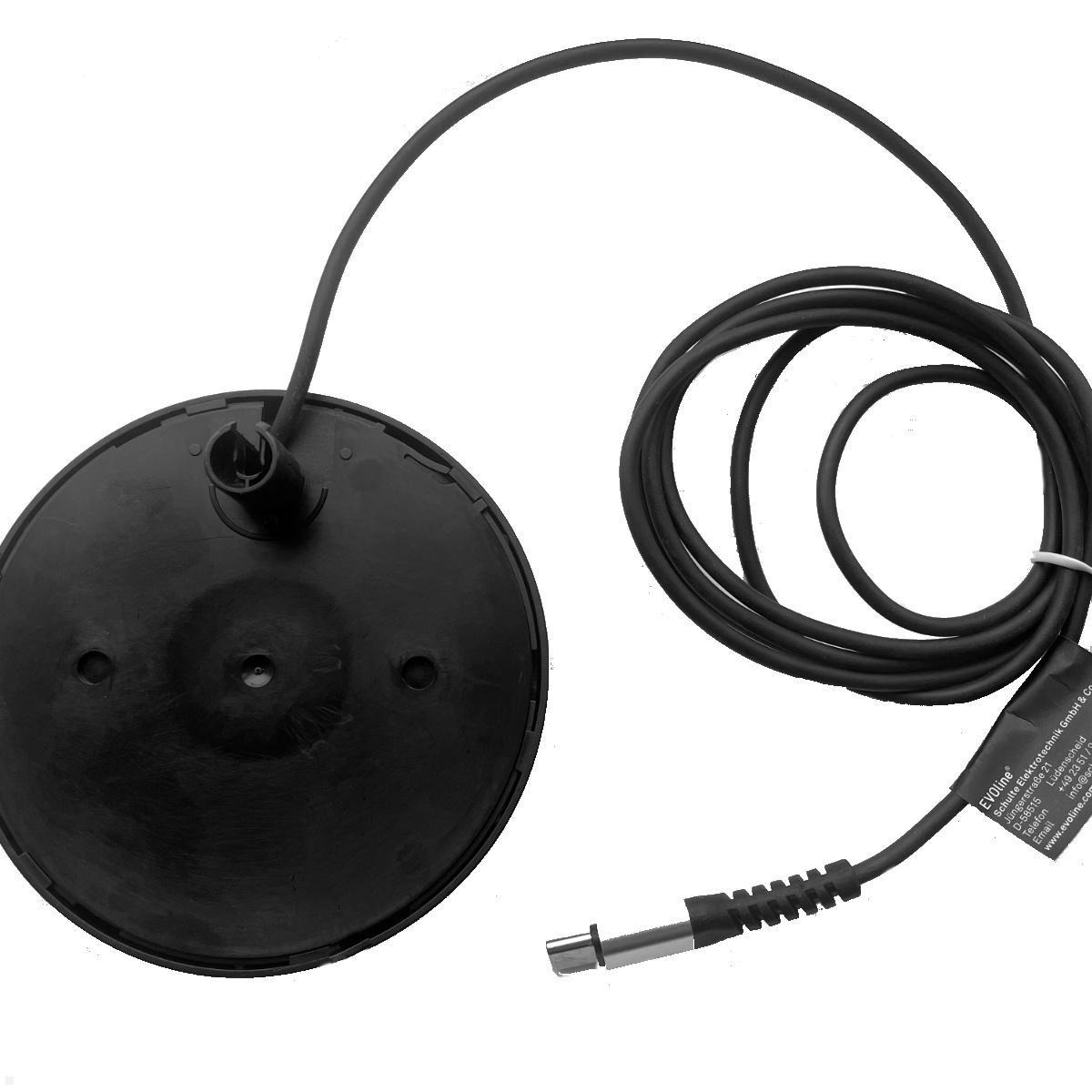

The DisQ rotating lid protects the built-in socket from dust and damage when not in use. Simply turning it sideways provides access to the flat Circle80 built-in socket. The rotating lid is equipped with an integrated USB-C cable that connects directly to the included USB-C/C charger. This connection ensures a fast and stable power supply for your devices.
With its discreet design, the built-in socket blends harmoniously into various environments – whether as a socket module in kitchen countertops, conference tables, desks, or workbenches.
Easy installation and flexible application options
The installation of the EVOline Circle80 is straightforward and requires no special tools. The socket is installed up to 5.5 mm flush with the surface; the diameter is 92 mm. A simple screw turn from above is sufficient for secure installation. It is suitable for panels with a thickness of 10 mm or more – A maximum strength is not specified.
The included 3 m power cable with a protective contact angled plug provides sufficient range for flexible positioning of the built-in socket. No additional accessories are required to operate the wireless charger cover – everything you need is already included. With the EVOline Circle80 built-in socket with USB charger C/C and DisQ induction charger, you get a modern, functional, and visually appealing solution for wireless charging, USB-C fast charging, and power supply via a standard socket – ideal for the workplace, kitchen, or office.
