EVOline DisQ Wall wireless charging pad for wall installation, black (159909141100)
Highlights
- Wireless Qi charging pad up to 15 W

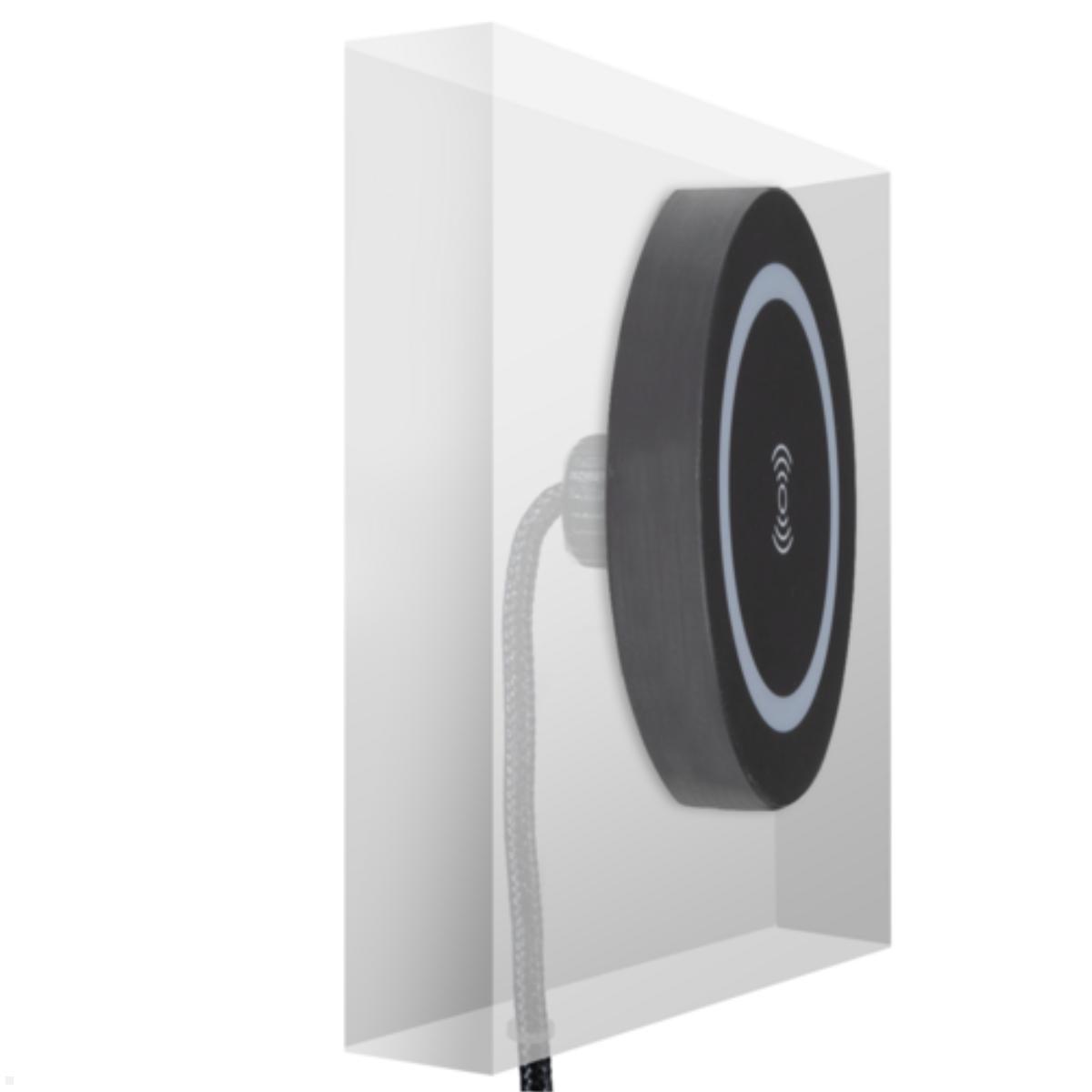

- Integrated magnet for automatic alignment
- 3-in-1: smartphone, iWatch, headphones
- WPC 1.3 compliant, manufacturer-independent
- Compact: 30 mm diameter, 15 mm height
Wireless Qi Charging Pad with Magnetic Holder for Wall Mounting
The EVOline Wall DisQ wireless charging pad, black (159909141100), is an innovative wireless charging module for concealed integration into the wall. The charging pad supports the WPC-1.3 standard for A11-type coils and enables fast wireless charging of up to 15 W (EEP) as well as standard charging at 5 W (BPP). Thanks to the integrated magnet, compatible devices connect and center automatically so that charging begins immediately. The inductive coupling between transmitter and receiver works independently of the manufacturer with all mobile devices that feature a Qi-compatible charging function. The compact EVOline Wall DisQ charging pad, with only 30 mm diameter and 15 mm height, is ideal for installation in walls, furniture and work surfaces in smart homes, offices and commercial areas. For operation a USB Type-C power adapter is required, which provides power via DC 9V, PD, QC 2.0, QC 3.0 or AFC.
Technical Details EVOline Wall DisQ Qi Charging Pad
- Wireless Qi charging pad with integrated magnet
- WPC-1.3 compliant for A11-type coils
- Charging power: WPC Qi BPP 5 W and EEP 15 W
- 3-in-1 wireless charging: smartphone, iWatch, headphones
- Power supply: DC 9V, PD, QC 2.0, QC 3.0, AFC
- DPM (Dynamic Power Management) for USB bus
- USB Type-C power adapter required (not included)
- Manufacturer-independent for all Qi-enabled devices
- LED status indicator: Blue = charging, Red = self-test
- Diameter: 30 mm
- Height: 15 mm
- Color: Black
[pdf]
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the EVOline Wall DisQ wireless charging pad?
A wireless Qi charging pad with an integrated magnet mount for wall mounting and concealed integration into the wall.
-
What charging speeds does it support?
It is WPC-1.3 compliant for A11-type coils and charges at 5 W BPP and 15 W EEP.
-
How does the magnet function work?
The built-in magnet connects and centers suitable devices automatically so charging starts immediately.
-
Which devices are supported?
Manufacturer-independent for all Qi-enabled devices; 3-in-1 Wireless Charging: smartphone, iWatch, headphones.
-
What are its dimensions and colour?
Diameter 30 mm, height 15 mm; colour: black.
-
What power supply is required?
A USB-C power supply is required (not included) and it provides DC 9V, PD, QC 2.0, QC 3.0 or AFC.
-
How is the LED indicator used?
LED indicator: Blue = charging, Red = self-test.
-
Where can it be installed?
Suitable for embedding in walls, furniture and work surfaces in smart homes, offices and commercial spaces.
How does the EVOline Wall DisQ wireless charging pad with magnetic holder work?
The EVOline Wall DisQ wireless charging pad, black (159909141100) uses inductive coupling according to the WPC 1.3 standard to wirelessly supply compatible mobile devices with power. The integrated magnet connects and automatically centers suitable devices over the charging coil so that charging begins immediately when the device is placed on it. The charging coil is only active when an actual connection to the receiving device exists, minimizing standby power consumption. The Qi pad supports both BPP mode at 5 W and the faster EEP mode with up to 15 W of charging power, making it suitable for a variety of smartphones, smartwatches and wireless earbuds. The 3-in-1 wireless charging function enables charging of smartphones, Apple Watch and earbuds with a single charging pad. For operation, a USB Type-C power adapter supporting DC 9V, PD, QC 2.0, QC 3.0 or AFC is required. Dynamic Power Management (DPM) provides intelligent power distribution over the USB bus and protects connected devices from overcharging.
Which application areas is the EVOline Wall DisQ charging pad suitable for?
The EVOline Wall DisQ is specifically designed for concealed integration into walls, furniture surfaces and worktops. With a diameter of only 30 mm and a profile height of 15 mm, the compact module can be installed almost invisibly into a variety of surfaces. In smart homes it serves as an elegant charging station in the hallway, kitchen or on the bedside table without visible cables or chargers disrupting the room design. It also provides real added value in commercial environments such as hotels, restaurants, conference rooms and reception areas for guests and employees. The manufacturer-independent compatibility with all Qi-enabled devices ensures that users can benefit from wireless charging regardless of smartphone brand. The device must be placed centered and flush over the coil – cases or protruding housing parts such as cameras can impair the charging function.
What status indicators does the EVOline Wall DisQ have and how is it installed?

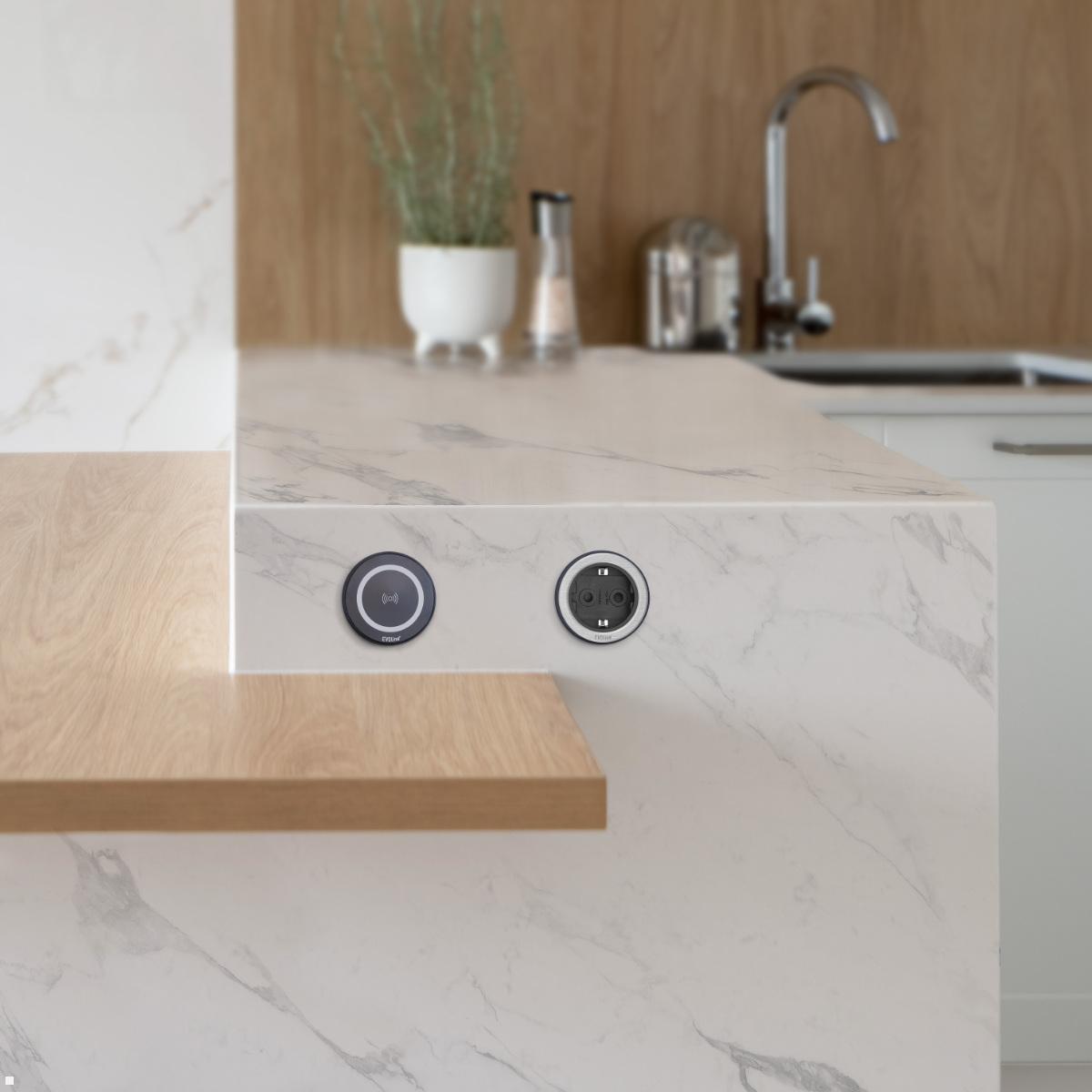

The EVOline Wall DisQ features an LED status indicator that signals the current operating state. After connection to a power source, a red LED lights once for a three-second self-test. As soon as a compatible device is placed on it, the blue LED lights continuously to indicate active charging. In standby – when no charging is taking place, the device is fully charged, or no power source is connected – the LED remains off. Installation of the EVOline Wall DisQ wireless charging pad is performed by embedding it into a corresponding recess in the wall or furniture surface. The compact dimensions of 30 mm diameter and 15 mm profile height allow flexible positioning even in thin wall constructions. In combination with other EVOline products such as the Circle80 recessed sockets, an integrated charging and power supply system for modern living and working environments can be realized.
