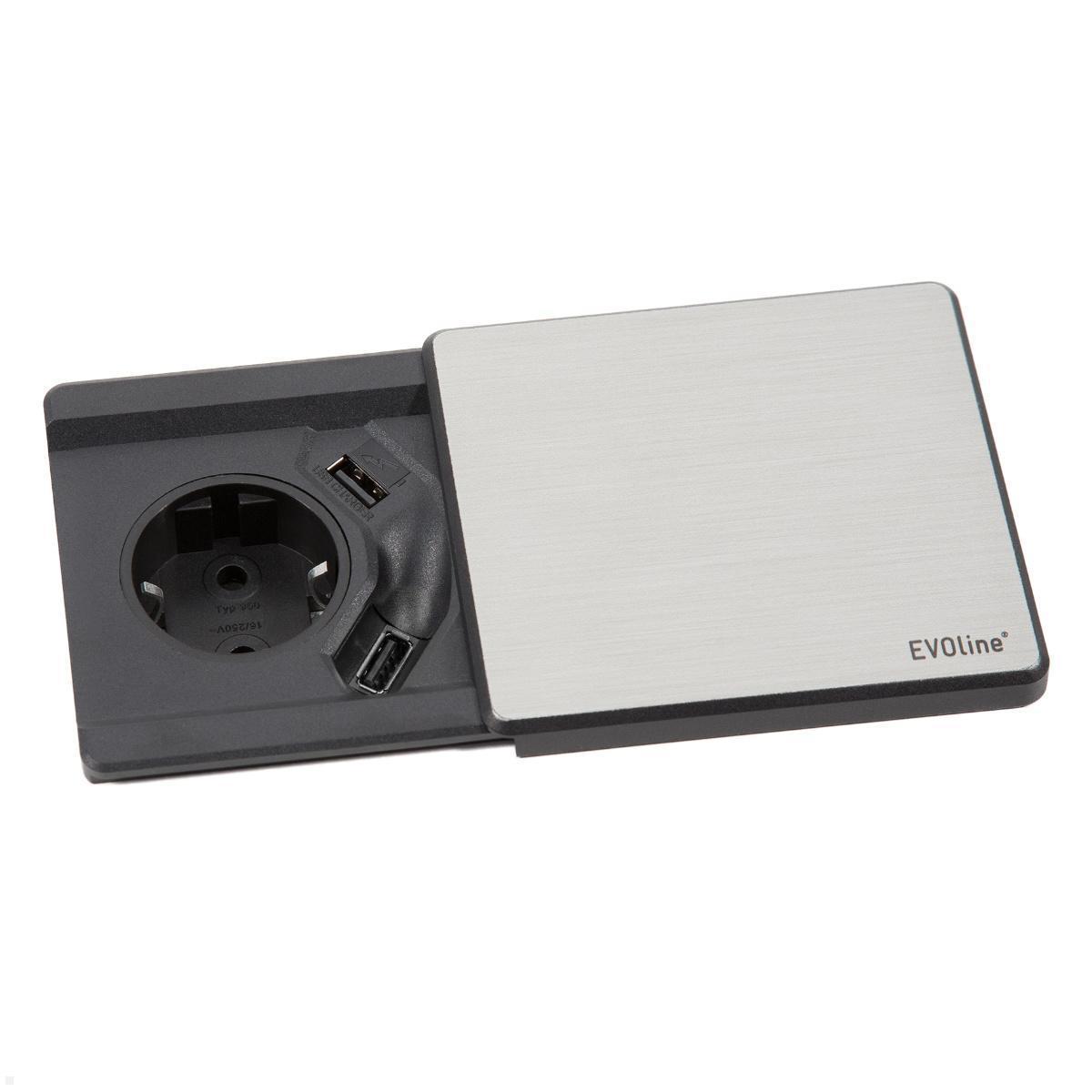

EVOline Square80 without Qi option with 2x USB charger, stainless steel
The EVOline Square80 desktop built in socket with 1x socket, 2x USB charger and 3.0 m power cord in stainless steel elegantly combines a power outlet and charging station at the workplace.
Built in socket with USB charger

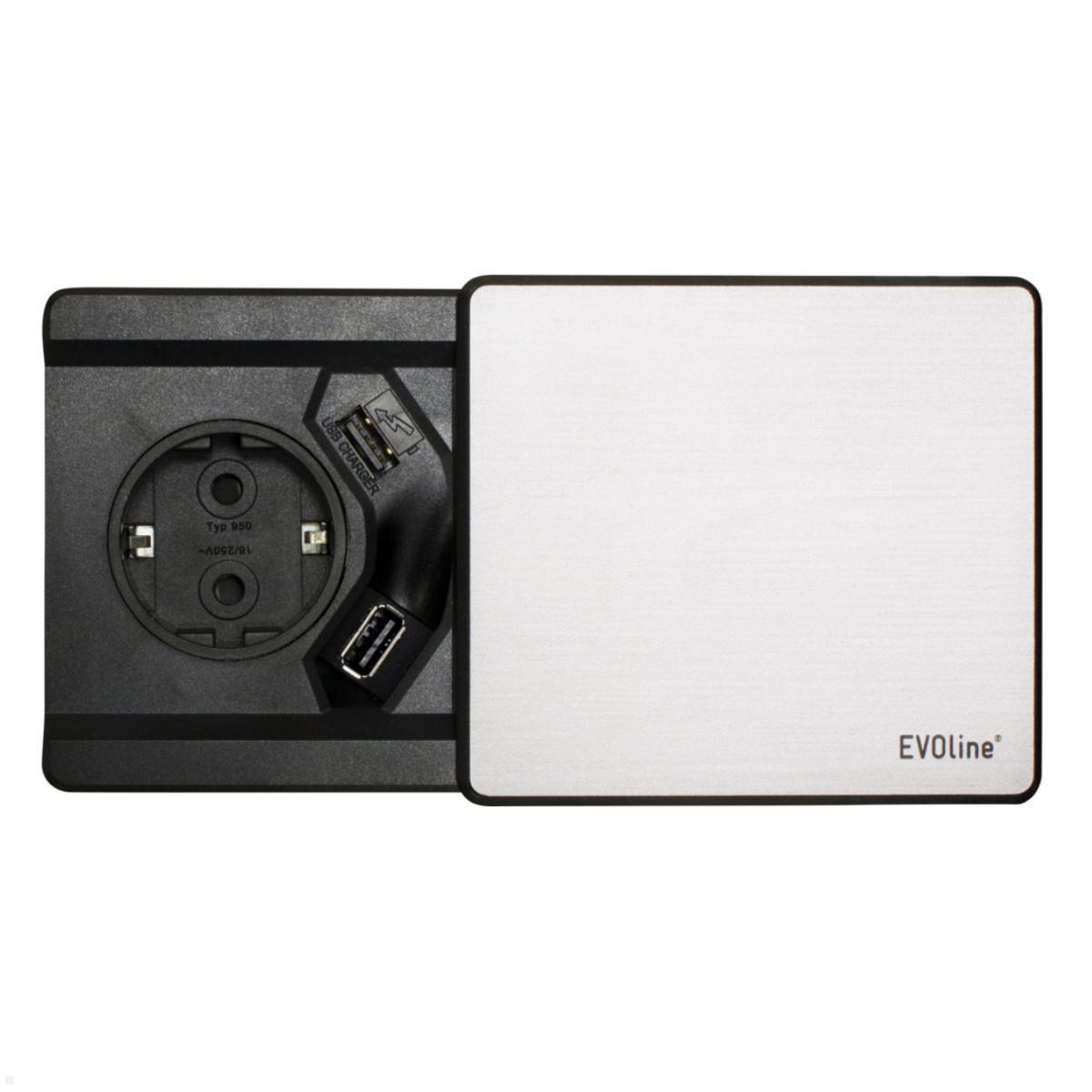

The EVOline Square80 desktop built in socket with USB charger and 3.0 m power cord in stainless steel in 80 mm diameter combines a socket and two USB charging stations. Thanks to EVOline's individual configuration with charger and socket, a practical connection field is created at the desk. A modern conference room / workplace, a hotel lounge or the waiting area at the airport set new standards with integrated table connection panels, which make it possible for travelers, guests as well as speakers to connect any type of external device to the media technology room equipment in the quickest and easiest way. Optionally, the sliding lid of the EVOline Square80 is available in the Qi version as an inductive charging station, on which suitable cell phones / smartphones are charged wirelessly.
Key features EVOline Square80 with 2x USB charger and single socket
- Finish: stainless steel
- Weight: 860 g

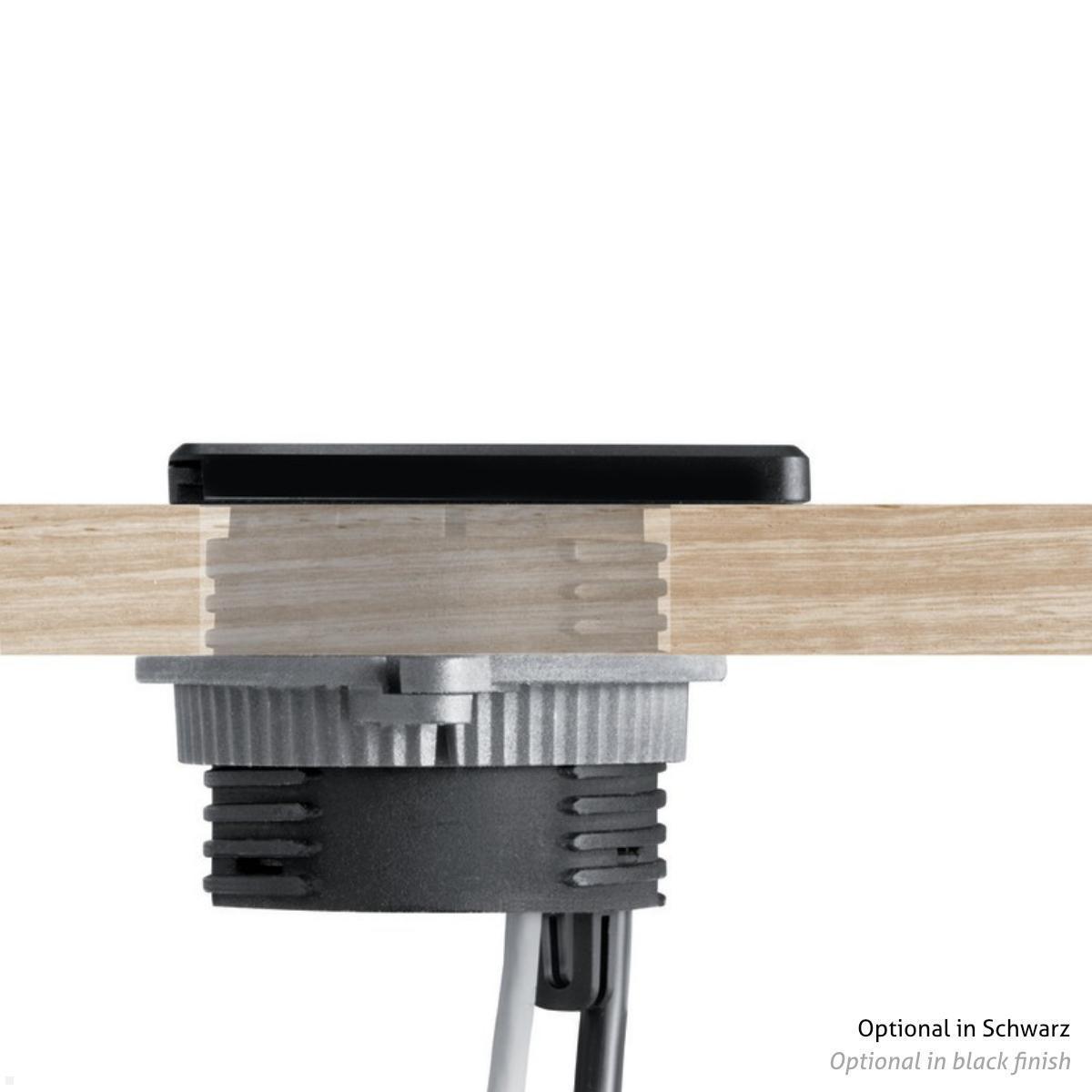

- Suitable for table thicknesses up to 50 mm

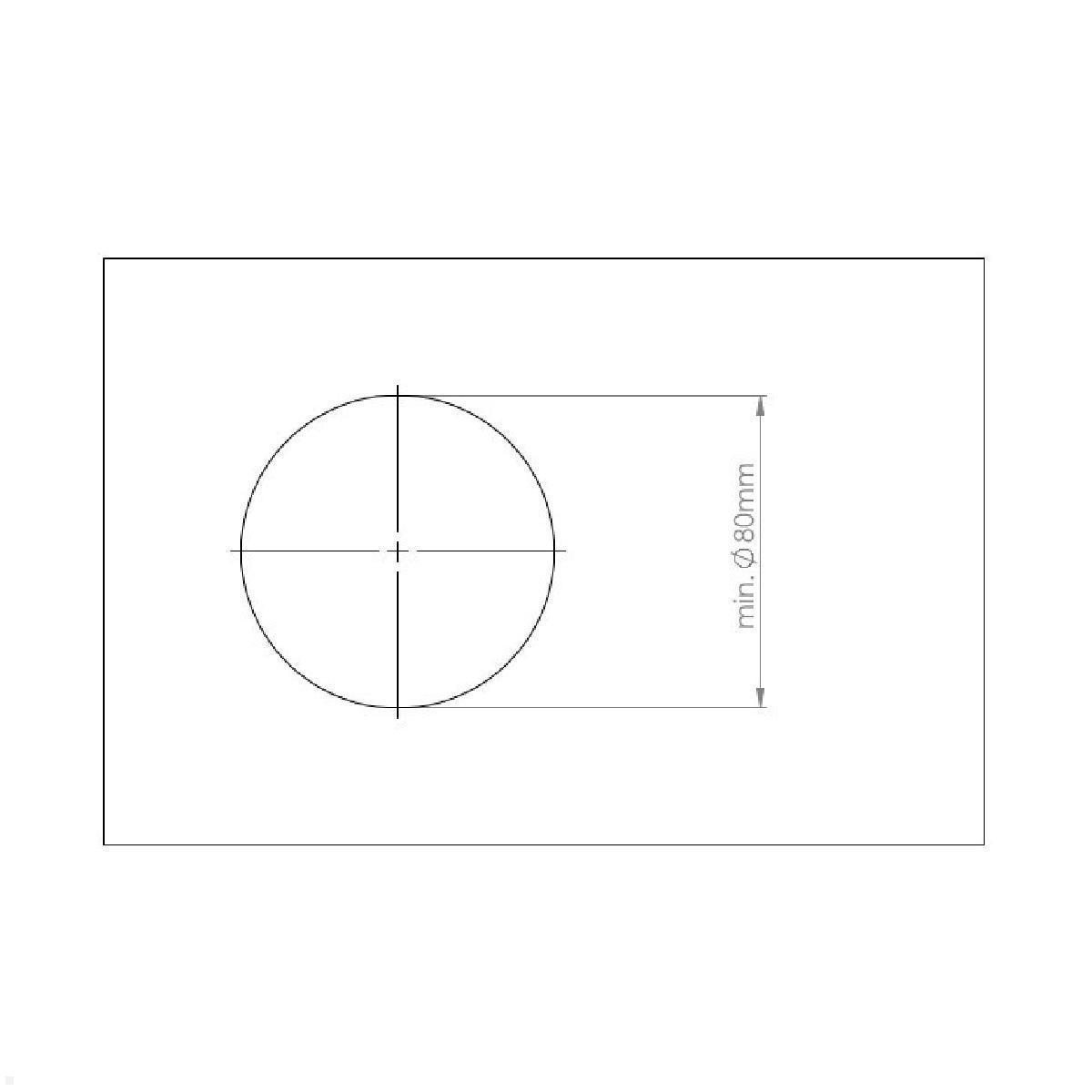

- Installation hole diameter: 80 mm
- Backing:
- 1x VDE socket, 16A with touch protection
- 2x USB charger type A 5V / 2.1A
- Output voltage: 5V DC
- Nominal output voltage: 1A
- Fixed power cord 3.0 m with safety angled plug (RJ45)
- Lid and case in black
- Without Qi charging function
| Product sheet: |  [pdf] |
|---|---|

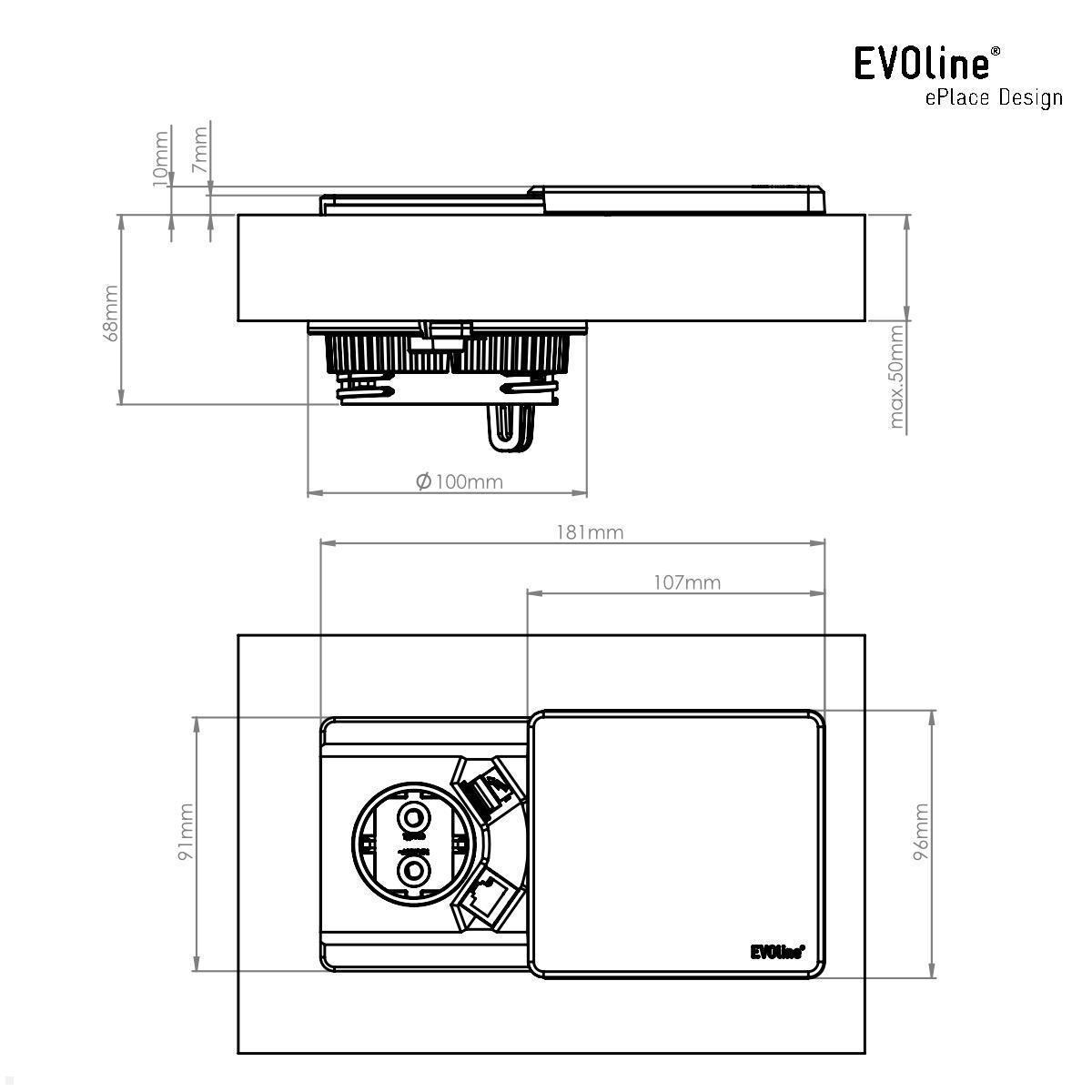

| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Suitable for: | For table thicknesses up to 50 mm |
| Packaging dimensions (LxWxH in mm): | 340 x 240 x 180 |
| Scope of delivery: | 1x EVOline Square80 |
| Contains installation material: | + |
| Manufacturer/Importer: | Schulte - Elektrotechnik GmbH & Co. KG / EVOline, Jüngerstraße 21, D-58515 Lüdenscheid, info@schulte.com |
| Number of sockets: | 1 |
| color: | Stainless Steel |
| USB-Charger: | USB A/A |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
1 review
25 October 2023 06:29
USB & Strom einfach nahe liegend
Da gibt es nicht viel zu sagen, monitorhalterung.de macht einen tollen Job, es gibt persönlichen Support per Telefon und E-Mail, und das ziemlich schnell sogar! Die Abläufe im Versand sowie die Kommunikation und der Aufbau der Website sind sehr übersichtlich und informativ. Die Einbausteckdose von EVOline ist elegant und sehr praktisch an meinem Arbeitsplatz. Die wichtigsten Energiequellen (USB & Strom) sind unmittelbar erreichbar ohne jedes Mal unter den Schreibtisch kriechen zu müssen. Die Montage ist einfach und unkompliziert.
Questions & Answers
-
What is the EVOline Square80 built-in power outlet with USB charger?
A black flush-mounted socket with a stainless steel lid that includes a VDE socket (16 A) with touch protection and two USB-A chargers, plus a 3 m fixed power lead.
-
What outlets does it provide?
It provides one VDE socket (16 A) with touch protection and two USB-A chargers (5 V, 2.1 A).
-
How long is the cable?
The fixed power lead is 3.0 m long and ends with a protective-earth angled plug.
-
How is it installed?
It requires a Ø80 mm installation hole and the surface can be up to 50 mm thick.
-
What does it look like and what is it made of?
Color is stainless steel; lid and housing are black; weight 860 g.
-
What are suitable use cases?
Suitable for table thickness up to 50 mm and can be mounted in countertops, tables, cabinets or desks; ideal for conference rooms, workplaces, hotel lounges or airport waiting areas.
-
Is Qi charging available?

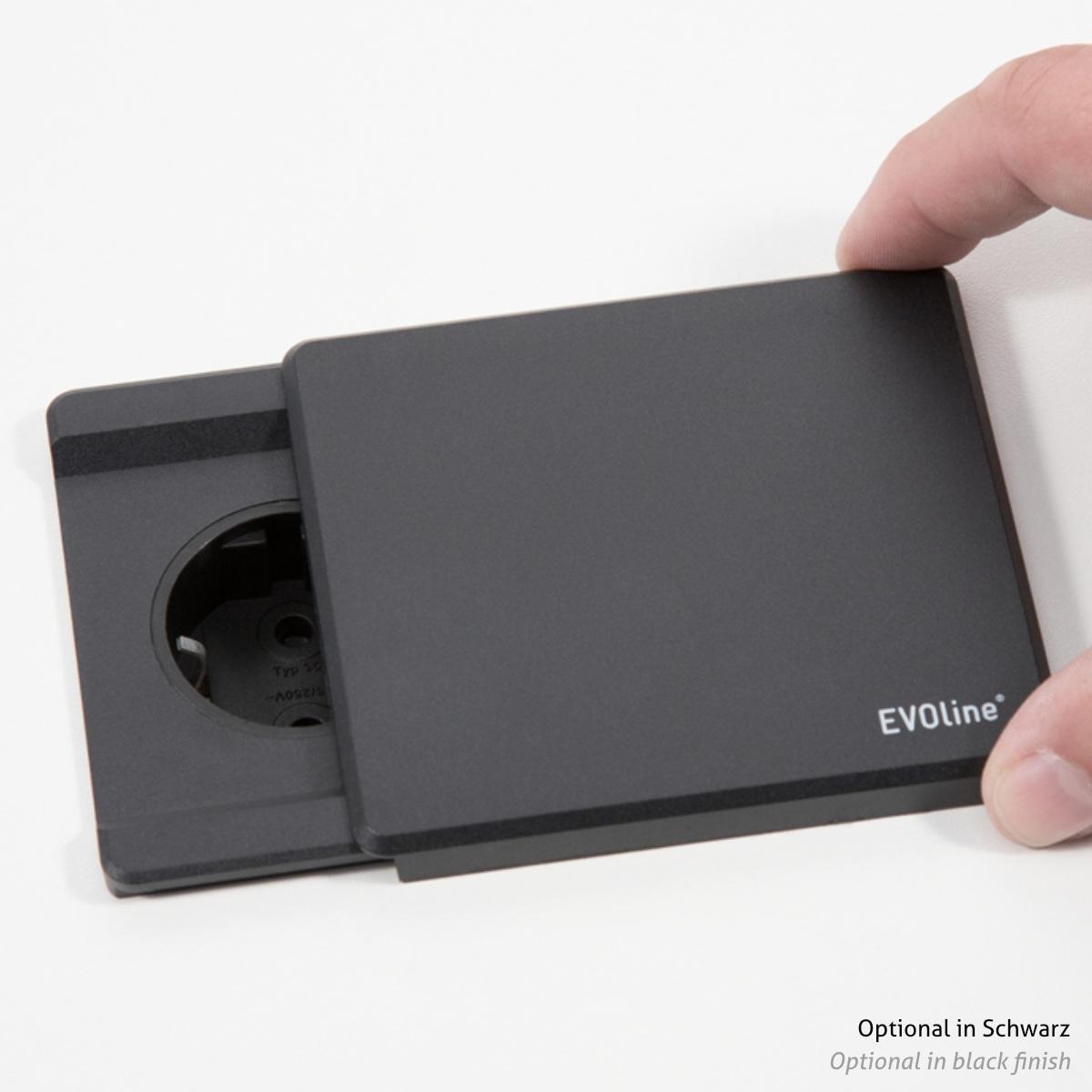

The sliding lid can be ordered in a Qi version as a wireless charging station.
-
Technical details?
Configuration: 1x VDE socket (16 A) with touch protection; USB Charger A/A Type A 5 V / 2.1 A; output 5 V DC; installation hole Ø80 mm; 3.0 m cable; weight 860 g.
